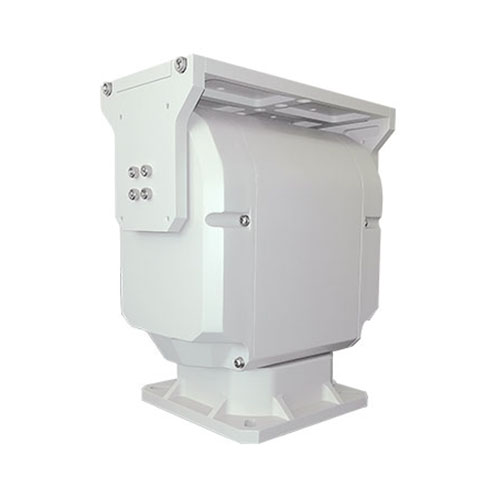

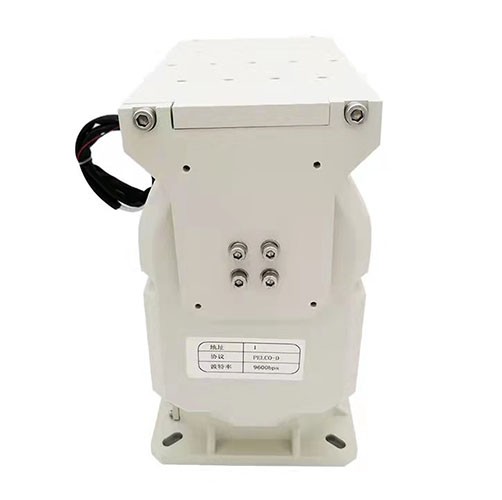

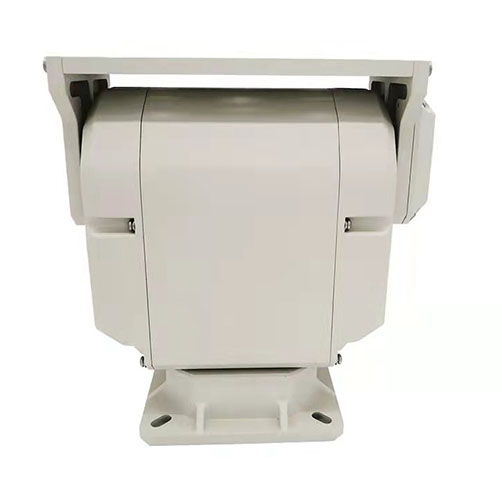

Name: BIT-PT010W Side Load Variable Speed Light Duty Pan Tilt Head/Positioner
Brand: Blue Icon (Tianjin) Technology Co., Ltd.

Specialized in Design, Engineering & Manufacturing of
High-Quality CCTV Surveillance Equipments for More than 15 Years!

Features of BIT-PT010W Variable Speed Light Duty Pan Tilt Head/Positioner

Maximum top load capacity 10kg (22.05lb)

Pan angle: 0-360°, tilt angle: -60°~-+20° (±90° for side load)

Pan speed 0.02~20°/s; tilt speed 0.02~10°/s

Positioning accuracy: ±0.1°

High precision stepper motor, worm/gear drive transmission

Support Pelco D/P with RS485/RS422

Support DC12V for vehicle load application

Support angle feedback and absolute control

Die-cast aluminum alloy material

Rated IP66 for dust and water ingress

Overview of BIT-PT010W Variable Speed Light Duty Pan Tilt Head/Positioner

BIT-PT010W is a small size light duty pan tilt unit with the most required features for small pan tilt positioning system. It is capable of carrying up to 10kg (22.05lb) with 360 degree continuous pan rotation angle and -60°~-+20°tilt angle and rotates at a low speed of 0.1°/s . With gear drive transmission, it also has many other advanced features including preset, cruising track, scan, self-lock, guard location. Via RS485/422 interface, Pelco D, extended commands, absolute position control, coordinate feedback are also available. Rated IP66 ingress protection, BIT-PT010W pan tilt head is a good choice for all weather operation.

Technical Specifications of BIT-PT010W Variable Speed Light Duty Pan Tilt Head/Positioner

Model

BIT-PT010W

Max. Load Capacity

10kg (22.05lb) (15kg for side load)

Load Type

Indoor/outdoor, vehicle load, top load

Rotation Angle

Pan: continuous 360° ; Tilt: -60°~+20° (±90° for side load)

Rotation Speed

Pan: 0.02~20°/s ; Tilt: 0.02~10°/s

Programmable Presets

200

Preset Accuracy

± 0.1°

Cruising Track

Auto Scan

Coordinate Feedback

Support angle query feedback/real-time feedback (optional RS422)

Absolute Control

Support

Guard Location

Support

Power Failure Memory

Support, recover to PT position, scan/preset/cruising track before power failure

Protocol

Pelco P/D

Baud Rate

2400/4800/9600/19200 bps

Communication Interface

RS485 (Optional RS422) or RJ45

Transmission

Worm/gear transmission

General

Operating Voltage

AC/DC24V self-adaptive (Optional AC12V/DC12V/AC220V)

Power Consumption

≤40W

Working Temperature

-25ºC～+55 ºC

Working Humidity

90±5% RH

Storage Temperature

-40 ºC～+70 ºC (-40 ºF ~ 158 ºF )

Protection Level

IP66

Material

Aluminium Alloy

Weight

9.5kg

Dimension（L×W×H）

256×154×270mm

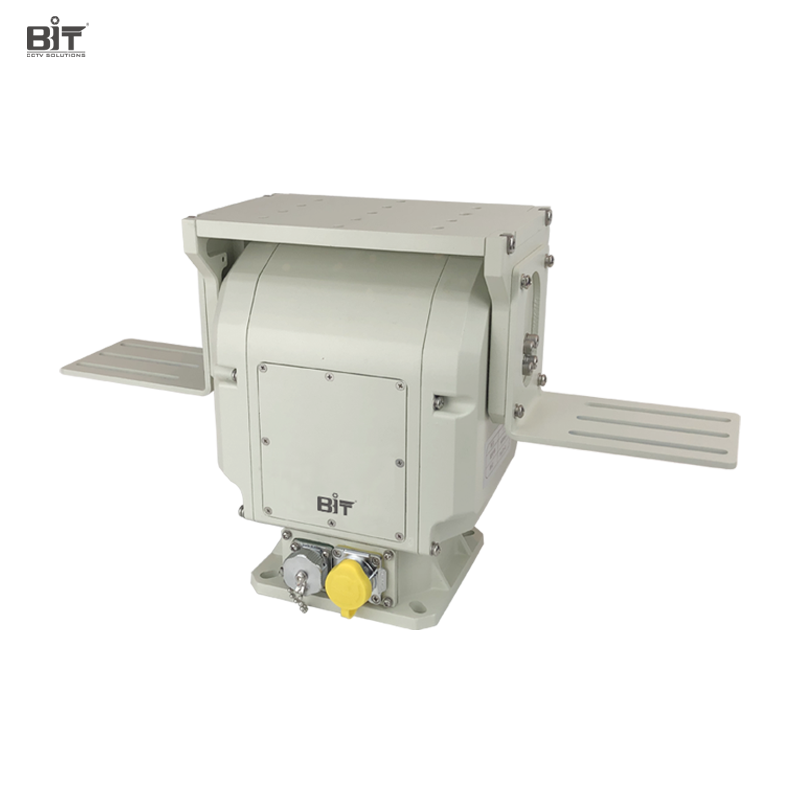

Side Load Light Duty Pan Tilt Head Positioner with Load Capacity 10kg (22.05lb)
