Maximum top load capacity 80kg (176.37lb)
Pan angle: 0-360°, tilt angle: -45°~-+45°
Pan speed 0.005°/s~15°/s, tilt speed 0.005°/s~7°/s
Preset positioning accuracy: ±0.1°
Double pitch worm and gear driving, electronic image stabilization and anti-loose design, self-lock after power failure, strong wind resistance, high stability.
256 subdivision design, smooth rotation at low speed.
Whole structure with PTA three-proofing coating, key component sealed with pure nitrogen, all weather design
Aviation circular connector design, easy for installation and maintenance.
Self-lock with memory after power failure, strong wind-resistance
RS485 or RS422 pan tilt control with Pelco P/D protocol
Support position feedback and absolute position
Anti-corrosion surface treatment and coating
Rated IP66 for dust and water ingress

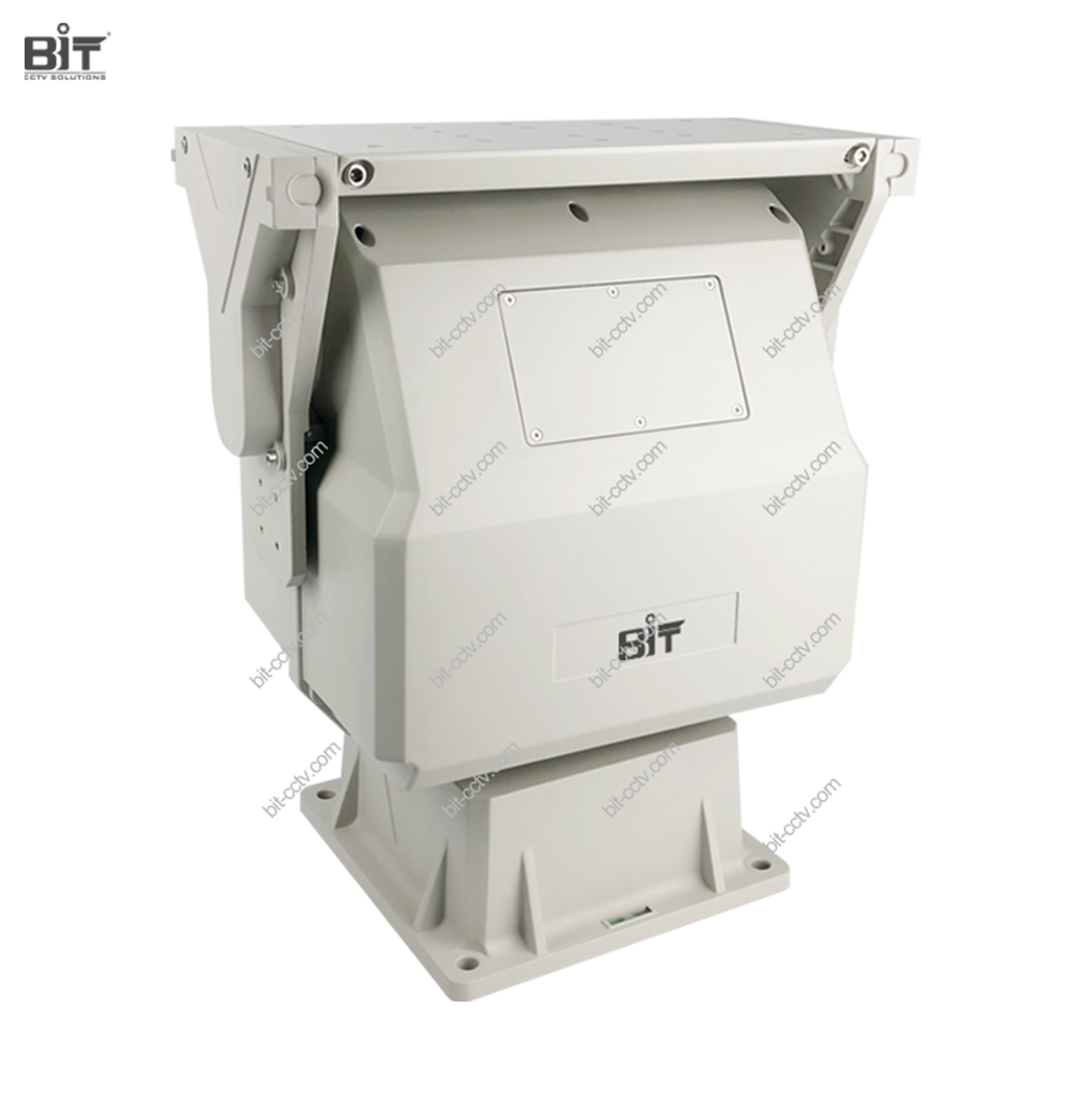

BIT-PT890 is a very large size pan tilt head positioner with load capacity up to 80kg (176.37lb). Powered with DC48V and equipped with double pitch worm and gear, it features a minimum speed of 0.005°/s, electronic image stabilization, anti-loose technology, self-lock to make sure smooth and stable view for a long range surveillance. With IP66 ingress protection design and corrosion resistance surface treatment and coating, BIT-PT890 is a good choice for application in corrosive environment like the coast.
Max. Load Capacity
Outdoor, top load
Support, coordinate query feedback (default)/real-time feedback
Support with Pelco D extended commands set
Lens Control Speed
Continuously adjustable zoom, focus speed
Adaptive PT Speed to Zoom
Speed up while zooming out, slow down while zooming in
Support with1 preset or 1 cruising track or 1 auto scan
Power Failure Memory
Support, recover to PT position, scan/preset/cruising track movement before power failure
RS485 (Optional RS422) or RJ45
Worm gear transmission
Pan Tilt Base
100M Ethernet with RJ45 (4 wire, pass-through), 48V DC (2 wire), GND
Pan Tilt Top
100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire)
12V DC (2 wire), 24V AC/DC (2 wire), GND
≤150W (With heater）
Working Temperature( with heater)
-40ºC～+65 ºC (-40 ºF ~ 149 ºF)
-40 ºC～+70 ºC (-40 ºF ~ 158 ºF)
BIT-PT890 heavy pan tilt is powered with DC48V voltage, instead of AC or DC24V that other pan tilt units require.
Every BIT-PT890 heavy duty pan tilt positioner will be inspected thoroughly there times strictly according to our on-line working instruction book, and passes 24 hours aging test before delivered to our customer.
MoQ is 1 unit.
BIT-PT890 is a heavy duty pan tilt head designed to load very heavy camera housing with large zoom lens inside and usually applied in heavy wind situation like mountain, airport, or seaport for a very long range surveillance.
While the camera lens is at its maximum zoom to view or track a target a few miles away, a very low rotation speed of 0.005°/s will make sure that the camera view won’t move too fast and miss the target.
Also any slight instability of the pan tilt body caused by wind will cause a big image shake and affect surveillance operation, so BIT-PT890 is designed with image stabilization and anti-loose technology to minimize image shake.
