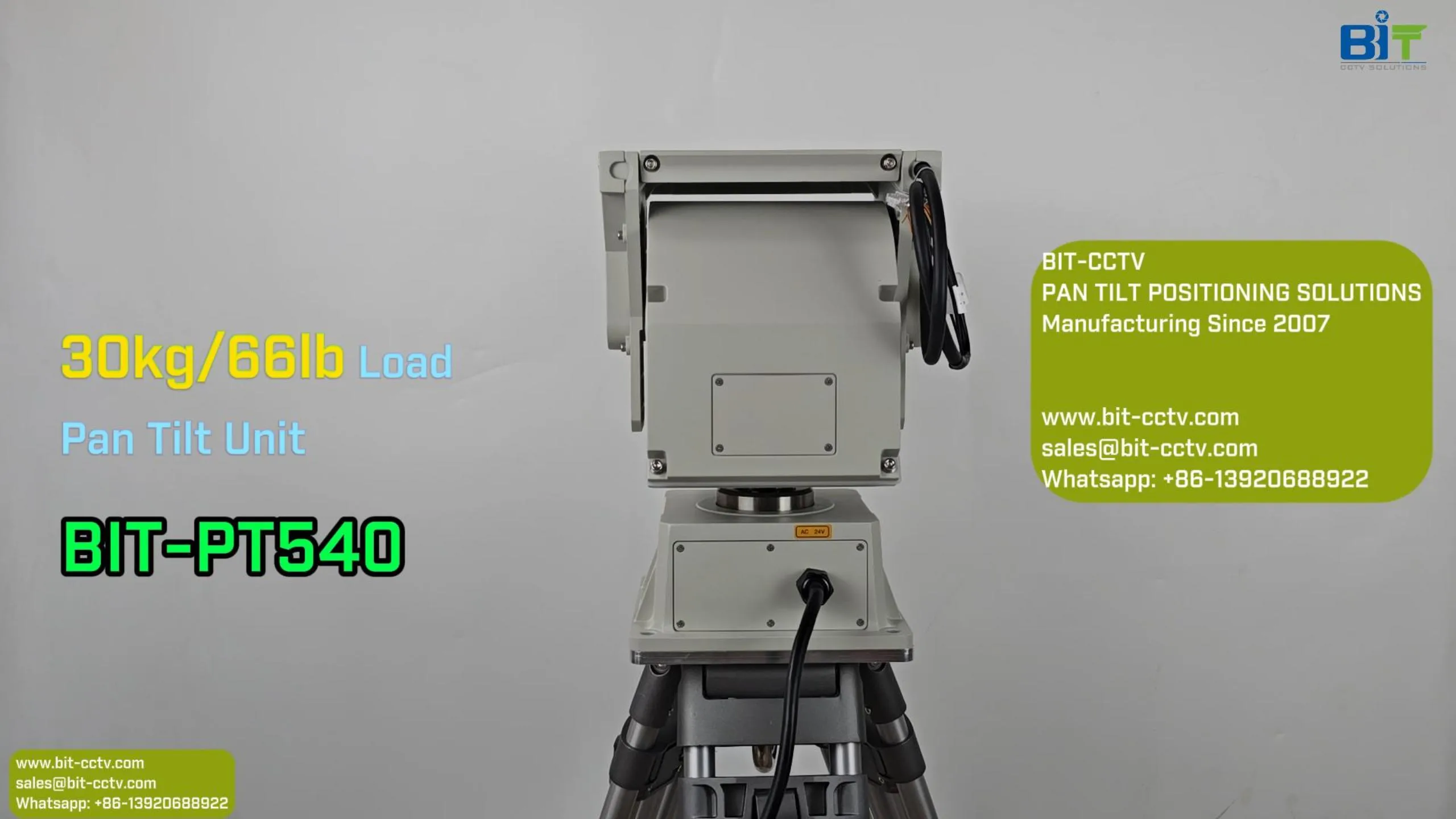

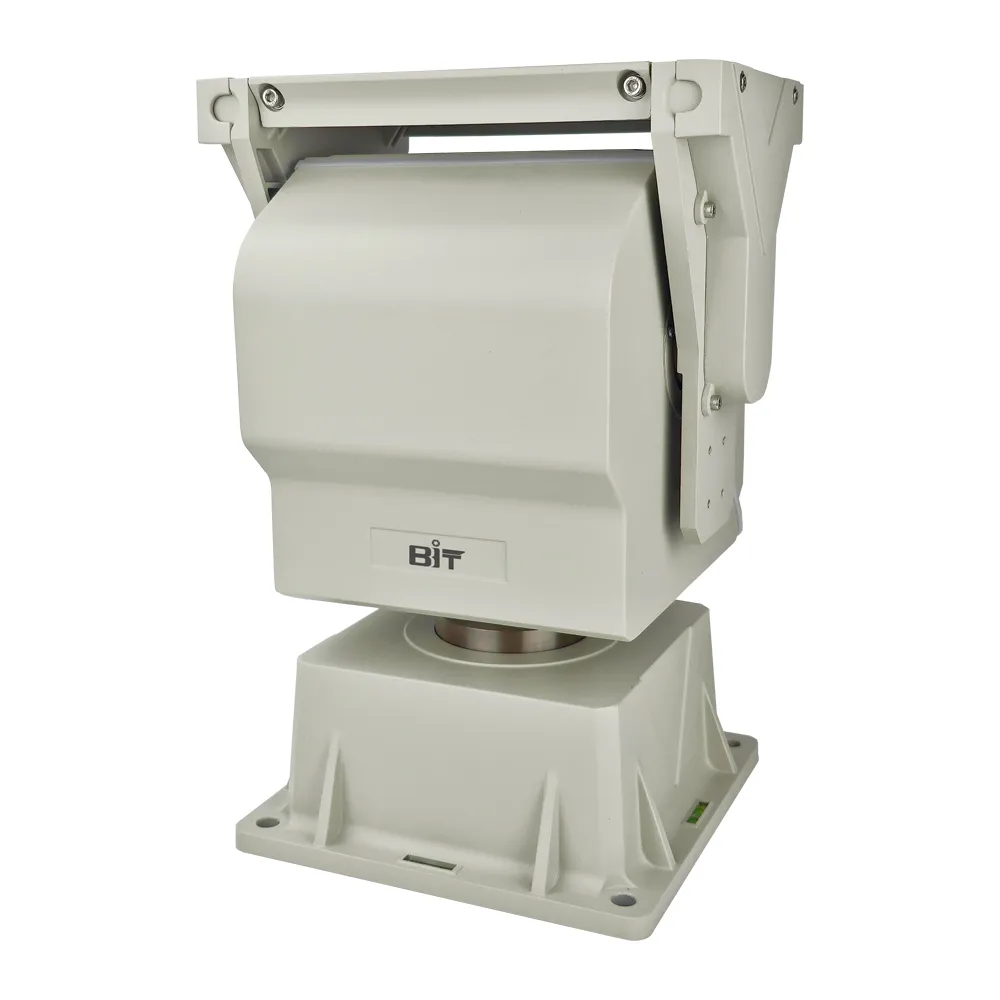

BIT-PT540 Pan and Tilt Gimbal produced by Bit-cctv adopts high-strength aluminum alloy die casting process, supports heavy load of up to 30kg, has IP66 protection grade and 0.1 repeated positioning accuracy, and is specially designed for long-distance monitoring and harsh industrial environment. Bit-cctv is the source of the manufacturing plant, with a full set of precision processing production line, directly eliminate the intermediate links of trade, to provide you with highly competitive ex-factory prices and more flexible bulk delivery services.
Material
High strength aluminum alloy
Horizontal
360-degree continuous rotation
Power Supply
24VDC or AC
Load
30kg
Vertical
-45°~-+40°
Interface
RS485, RS422 or RJ45
Protection
IP66 grade
Accuracy
0.1 degrees
Working Temperature
- 35 to 65 degrees
The precision grinding worm gear transmission structure is adopted, and the gear clearance is less than 0.02mm, which can effectively prevent the pan/tilt from shifting under strong wind. It has the function of power-off self-locking to ensure that the load does not slip when the equipment is accidentally powered off.
It is equipped with a high-torque DC motor with a maximum load-bearing capacity of 30kg. It can easily carry multiple sensors such as telephoto lens, infrared thermal imager and laser ranging module, and the operating noise is less than 45 decibels.
The built-in high-life industrial conductive slip ring supports horizontal 360-degree continuous rotation without winding. The slip ring contacts are gold-plated to ensure that video signals and control instructions are transmitted with zero packet loss during 5 million revolutions of operation.
Full support for Pelco-D and Pelco-P and other mainstream industry control protocols, baud rate 2400 to 19200 adjustable, can seamlessly connect the mainstream brand security management platform and hard disk video recorder system.
The fuselage adopts the whole die-cast aluminum alloy shell, with triple sealing ring design, through 48 hours of salt spray test, can completely prevent dust from entering and withstand high-pressure water gun spray, adapt to the marine and chemical environment.
It supports a wide range of speed changes from 0.1 degrees per second to 20 degrees per second. Pan and Tilt Gimbal’s internal algorithm automatically adjusts the rotation speed according to the zoom multiple to ensure smooth and no jitter when tracking the target at the telephoto end.
| Parameter categories | Specifications |
| Product Name | Industrial-grade Pan and Tilt Gimbal |
| Input voltage | AC 24V / DC 24V ±10% |
| Maximum load | Top load capacity: 30kg |
| Horizontal rotation angle | Continuous rotation from 0° to 360° |
| Vertical rotation angle | +40° to -45° (adjustable) |
| Horizontal rotation speed | 0.01°/s to 20°/s (variable speed) |
| Vertical rotation speed | 0.01°/s to 10°/s (variable speed) |
| Preset number of positions | 128 / 255 (Supports cruise scanning) |
| Repeatability | ±0.1° |
| Communication Protocol | Pelco-D / Pelco-P Adaptive |
| Communication interface | RS-485/RS422/RJ45 |
| Protection level | IP66 (Waterproof and dustproof) |
| Operating temperature | -35℃ to +65℃ |
| Operating humidity | < 90% RH (non-condensing) |
| Total weight | 15kg (excluding load) |
| Material structure | High-strength aluminum alloy die casting, with powder coating treatment. |
Bit-cctv low backlash transmission design: for the observation of targets several kilometers away in border monitoring, we eliminate the tiny jitter caused by the transmission gap through the cooperation of precision gears, thus solving the problem of violent shaking of the picture due to wind blowing under high zoom..
Bit-cctv multi-heavy anti-corrosion process: aiming at the monitoring scenes of seaports and islands, we adopted the process of anodizing and teflon coating, which solved the pain points of shell corrosion and sealing failure of common metal pan-tilt after 3 months of operation in salt spray environment..
Bit-cctv composite hub slip ring technology: for integrators who need to mount visible light, thermal imaging and laser at the same time, we provide multi-channel slip ring, which solves the wiring problem of multi-strand cables winding or even tearing each other when rotating..
Suitable for engineers responsible for highway, tunnel and bridge monitoring projects. Pan and Tilt Gimbal’s high stability ensures that license plates and traffic violations can still be clearly captured under vehicle vibration and outdoor wind resistance.
Suitable for purchasers who need field high point monitoring. The product is resistant to high and low temperatures and has a power-off self-locking function. It is suitable for installation on an unattended watchtower and a thermal imaging camera is mounted for all-weather fire source detection.
It is suitable for national defense projects with high requirements for equipment concealment and durability. Low-noise design combined with military-grade protection standards to ensure that the equipment can perform long-term and stable cruise tasks on extreme cold or high salt spray boundaries.
.webp "Port terminals and large industrial and mining enterprises")
It is suitable for operation management personnel who need to dispatch large machinery and monitor storage yard. The heavy-duty design allows the mounting of long-distance laser fill lights to solve the problem of insufficient light and excessive monitoring range in port night operations.
Please ensure that the flatness error of the mounting bracket is less than 1mm, use 4 M10 stainless steel bolts to firmly fix Pan and Tilt Gimbal to the bracket, and apply thread fastening glue to prevent vibration from loosening..
Connect the power cord and RS485 control line in strict accordance with the line sequence defined by the label. After the connection is completed, the interface must be wrapped with waterproof tape or heat shrinkable tube to prevent water vapor from penetrating into the machine along the cable..
Before powering on, open the bottom cover plate, adjust the DIP DIP switch according to the manual comparison table, set the communication address code and baud rate of the PTZ, and ensure that it is completely consistent with the parameters of the back-end control keyboard or DVR..
When installing the camera shield, adjust the position of the shield back and forth so that the center of gravity of the load is located on the center axis of rotation of the pan/tilt to avoid motor overload or gear wear caused by the deviation of the center of gravity, and then lock the fixing screws..
Yes, the nominal load capacity refers to the total weight that can be carried on the top of the gimbal, including the sum of all additional equipment such as cameras, lenses, protective covers, and fill lights. It is recommended to reserve 20% of the load margin during selection.
Support. For the cold environment below minus 35 degrees, we can choose the built-in temperature control heating components, when the temperature is too low automatically start heating, to prevent the solidification of lubricating oil, to ensure the normal start and operation of the gimbal.
The theoretical transmission distance of RS485 is 1200 meters, but in actual engineering, it is recommended to use a repeater with signal amplification function, or convert the control signal into an optical signal transmission through an optical terminal to ensure that Pan and Tilt Gimbal receive instructions without delay.
The standard version is mainly designed for formal (vertical). If your project must be inverted, please explain when ordering that we need to adjust the internal gravity balance structure and software limit logic to suit the lifting application.
A voltage regulator circuit is designed inside the device to allow ± 10% voltage fluctuation. However, in the industrial field, if the voltage fluctuates greatly or there is large motor interference, it is strongly recommended to configure the regulated power supply module at the front end to protect the PTZ circuit.
By controlling the keyboard or background software, preset multiple key points (preset positions), then enter the cruise setting menu, add these preset positions in sequence and set the dwell time, and finally send the call cruise command to start automatic scanning.
