Instead of classification by their types and general use, BIT-CCTV products for CCTV camera surveillance solutions
also have a very strong presence in several vertical markets and special industries.
With the advancement of technology, heavy-duty pan tilt unit with various deficiencies have slowly withdrawn from the stage of history, replaced by light-load small Size Pan Tilt Unit with smaller equipment, lighter weight, and higher integration. Pan tilt head units are usually categorized in terms of load capacity, which is the most important thing users need to consider while selecting the right pan tilt head.
The weight of the whole machine is less, which can be easily carried by one person. Pan tilt heads/positioner are divided into light duty, medium duty and heavy duty according to the maximum weight of items pan tilt head is capable of loading. In our pan tilt head products lines, below are light duty pan tilt heads/positioners:
| Pan Tilt Category | Max. Load Capacity | Model |
| Light Duty Pan Tilt Head Positioner | 3.5kg/7.72lb | BIT-PT503 |
| 8kg/17.6lb | BIT-PT409 | |
| 10kg /20.05lb | BIT-PT410 | |
| 10kg /20.05lb | BIT-PT005 |
To make sure that the most suitable pan tilt head will be chosen for your system/solution among our pan tilt products line, it is highly suggested to send us an email to sales@bit-cctv.com with your detailed technical requirements and specifications, so that you will get your perfectly customized pan tilt head for your solution/project.
What is the internal structure of the pan tilt positioner/pan tilt head?
The pan tilt positioner/pan tilt head is a supporting device for installing and fixing the camera. It can ensure that the camera can move in four directions, up, down, left and right, to obtain a wider viewing angle. The function and function of the monitoring PTZ is to support adjusting the camera focus, depth of field, and aperture to obtain better image collection effects at any time.
Read More >
+

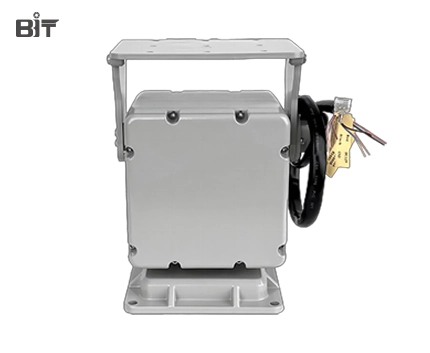

BIT-PT503 Outdoor Mini Pan Tilt Positioner/Unit with Top Payload up to 3.5kg/7.72lb
Mini size variable speed outdoor pan tilt head unit, worm/gear drive and transmission, -90°~-+90 tilt angle, ±0.1°preset accuracy, support coordinate feedback and control, support Pelco P/D, DC 24V input
+
BIT-PT409 Outdoor Variable Speed Light Duty Pan Tilt Head with Payload up to 8kg (17.6lb)
Light duty small size pan tilt head positioner, with max load capacity up to 8kg/17.6lb. Designed as indoor/outdoor top load type pan tilt unit, it features variable speed, 360 degree continuous pan rotation, ±1°preset accuracy and IP66 ingress protection.
+
BIT-PT410 Outdoor High Speed Light Duty Pan Tilt Head with Payload up to 10kg (20.05lb)
Medium duty variable speed outdoor pan tilt head unit, worm/gear drive and transmission, -90°~-+40 tilt angle, ±0.1°preset accuracy, support coordinate feedback and control, support Pelco P/D, AC/DC 24V input self-adaptive
+
BIT-PT005 Outdoor Variable Speed Light Duty Single-Axis Pan Head Positioner Load Capacity 10kg (20.05lb)
Single aixs pan rotation light duty pan tilt unit, worm/gear drive and transmission, 360° continuous pan rotation with self-lock, max. 10kg top load capacity with 3 load weight/speed options, up to 60°/s rotation speed, ±0.2° preset accuracy, IP66 waterproof
+
BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings
Small size light duty pan tilt unit, dual worm/ gear drive, 360°pan/±90°tilt rotation, die-cast aluminum alloy material, ready housing
+
BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt with Top Housing
High speed light duty pan tilt, top housing with one or two camera space option, up to 100°/s rotation speed, worm gear transmission, RS485 control via Pelco P/D, absolute control, IP 66 waterproof
+
BIT-PT420HS Outdoor High Speed Light Duty Pan Tilt with Top Housing
High speed light duty pan tilt, top housing with one or two camera space option, up to 100°/s rotation speed, worm gear transmission, RS485 control via Pelco P/D, absolute control, IP 66 waterproof
+
9116Y 110kg Load Heavy Duty Tripod for Pan Tilt Unit
Features of 9116Y 110kg Load Heavy Duty Tripod for Pan Tilt Unit Load Capacity 110kgWeight 11.5kgAluminum alloyMinimum height 760mmMaximum height 1490mm
