Name: BIT-PT503 Outdoor Mini Pan Tilt Positioner/Unit with Top Payload up to 3.5kg/7.72lb
Brand: Blue Icon (Tianjin) Technology Co., Ltd.

Specialized in Design, Engineering & Manufacturing of
High-Quality CCTV Surveillance Equipments for More than 15 Years!

Features of BIT-PT503 Outdoor Mini Pan Tilt Positioner/Unit with Top Payload up to 3.5kg/7.72lb

Maximum top load capacity 3.5kg (7.72lb)

Pan angle: 0-360°; Tilt angle: -90°~-+90°

Pan speed 0.01~30°/s; Tilt speed 0.01~15°/s

Preset accuracy: ±0.1°

High precision stepper motor and tilt worm gear drive transmission

RS485 or RS422 pan tilt control with Pelco P/D protocol

Support position feedback and absolute position

Support self-lock

Rated IP66 for dust and water ingress

Overview of BIT-PT503 Outdoor Mini Pan Tilt Positioner/Unit with Top Payload up to 3.5kg/7.72lb

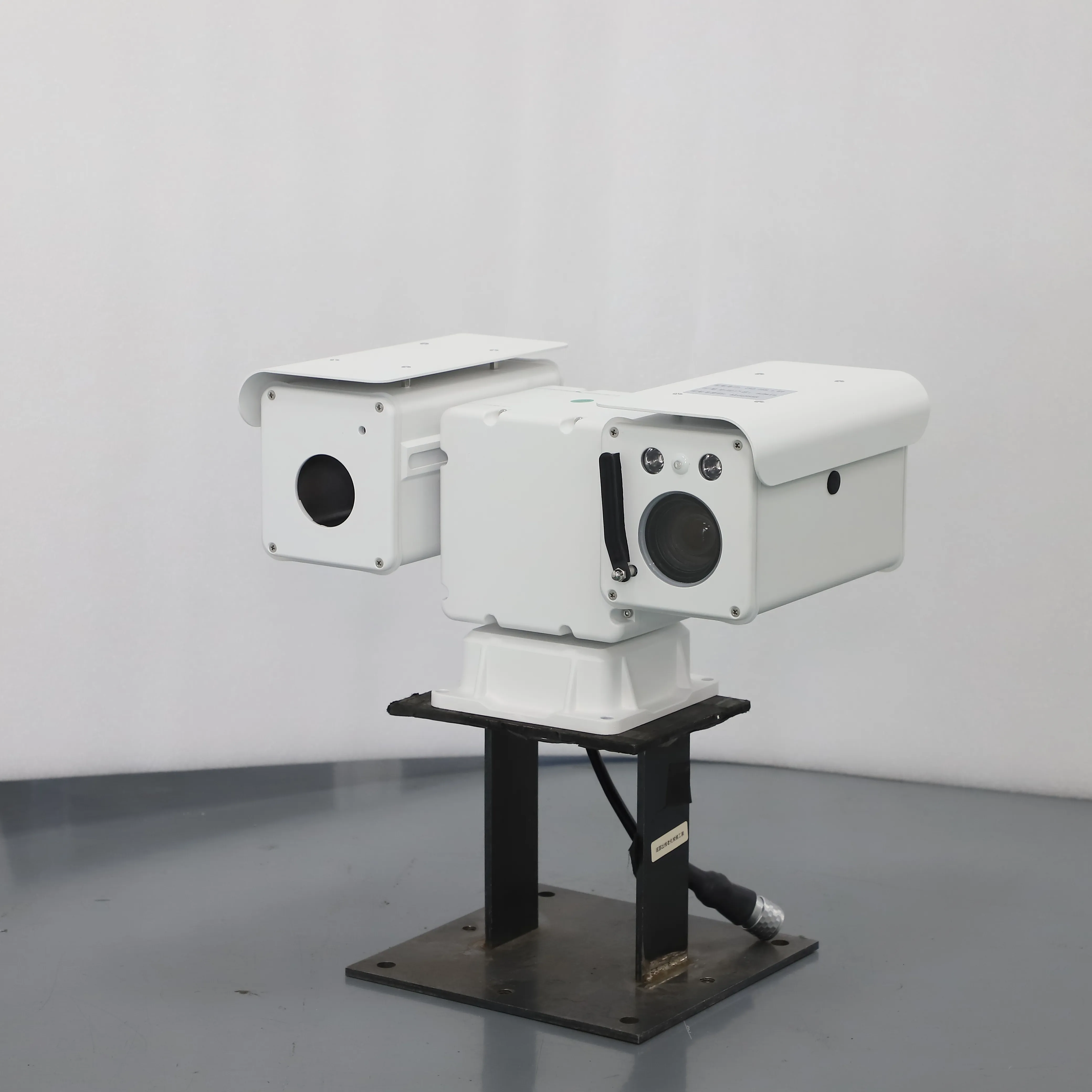

BIT-PT503 is an advanced mini size light duty pan tilt unit for both indoor/outdoor application. With a maximum 3.5kg (7.72lb) load capacity, its pan rotation speed can be as slow as 0.01 degree/sec. Taking advantage of its high precision stepper motor and worm/gear drive mode, it features 0.1 degree positioning accuracy for repeat positioning and extremely low speed control. It also features 360 degree pan rotation and -90°~-+90° tilt rotation for wide-angle surveillance. Camera housings are also available for your easy integration with cameras.

Technical Specifications of BIT-PT503 Outdoor Mini Pan Tilt Positioner/Unit with Top Payload up to 3.5kg/7.72lb

Model

BIT-PT503

Rotation Speed

Pan: 0.01º~30º/s,Tilt:0.01º~15º/s

Rotation Angle

Pan: 0º~360º continuous (Customized with limit switch)

Tilt: +90º~ -90º

Presets

200

Preset Positioning Accuracy

±0.1º

Optional Function

Pan tilt position data, focal length etc.

Auxiliary Switch

2 groups

Lens Preset

Support, with self-adaptive function

Auto Cruising

8 tracks (each with 10 presets)

Homing

It can be set up within the period of 1~60 min

Auto Scan

Protocol

Pelco-D/P

Baud Rate

2400/4800/9600/19200bps

Interface

RS485 (RS232,RS422 optional)

Input Voltage

DC24V

Power Consumption

≤20W

Operation Temperature

Working temperature:-25℃~+65℃

Working humidity: 90%±3% RH, without condensation

Storage Temperature

-40℃~+70℃

Max Load

3.5 kg Top Load

Load Mode

Top-mounted(side-mounted optional)

Driven Mode

Worm-gear in both pan and tilt direction

Protection

IP66 rated

Weight

3.5 kg/7.72lb

Dimension

141*110*199mm/5.55*4.33*7.83 inch (L*W*H)
