· Maximum load capacity 80kg/176lb
· Direct drive servo motor, high precision, quick response
· Die-cast aluminum material
· 360 degree continuous pan/azimuth rotation
· Pan/azimuth speed 0.01°～180°/S
· Preset accuracy: ±0.05°
· Self-lock with memory after power failure
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Rated IP66 for dust and water ingress

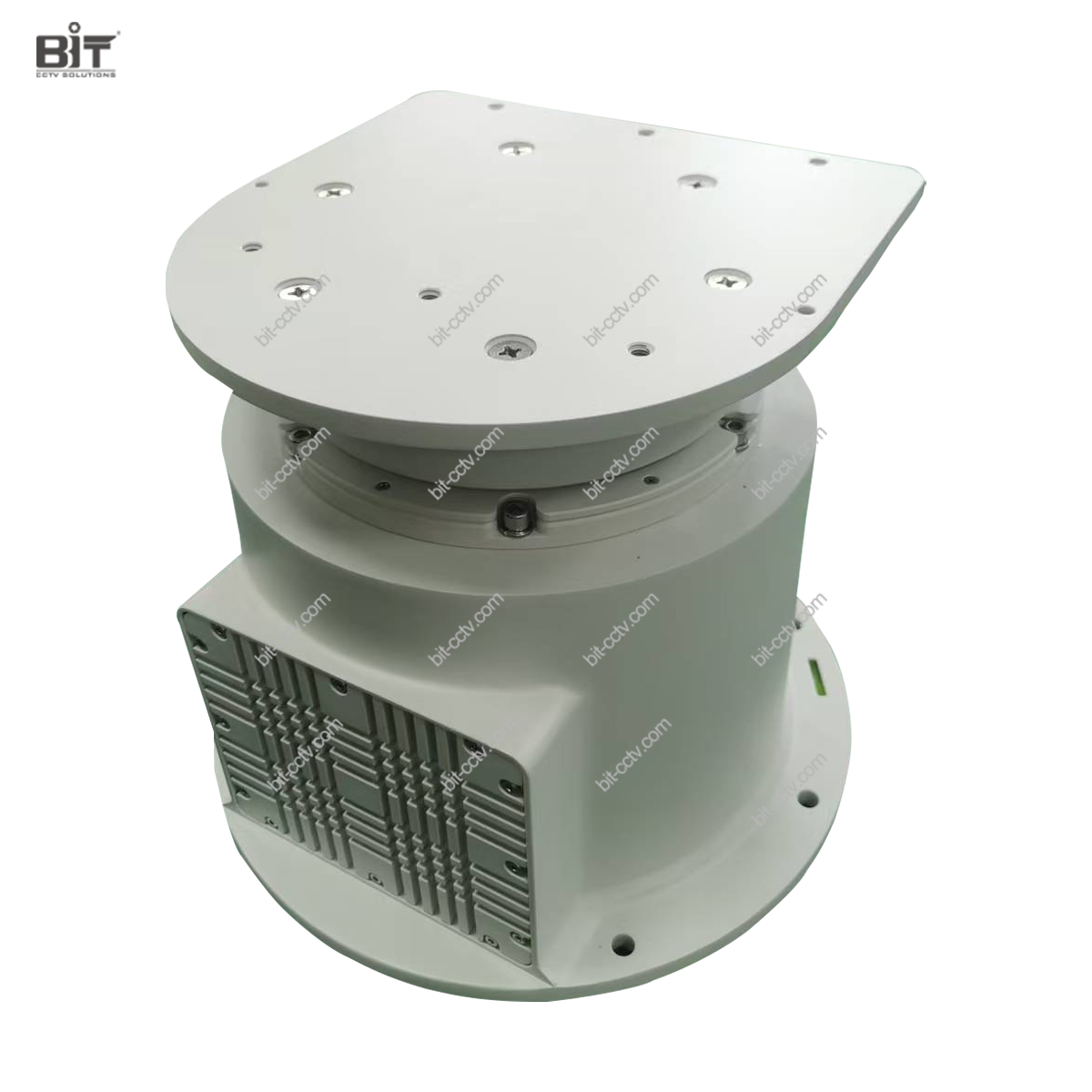

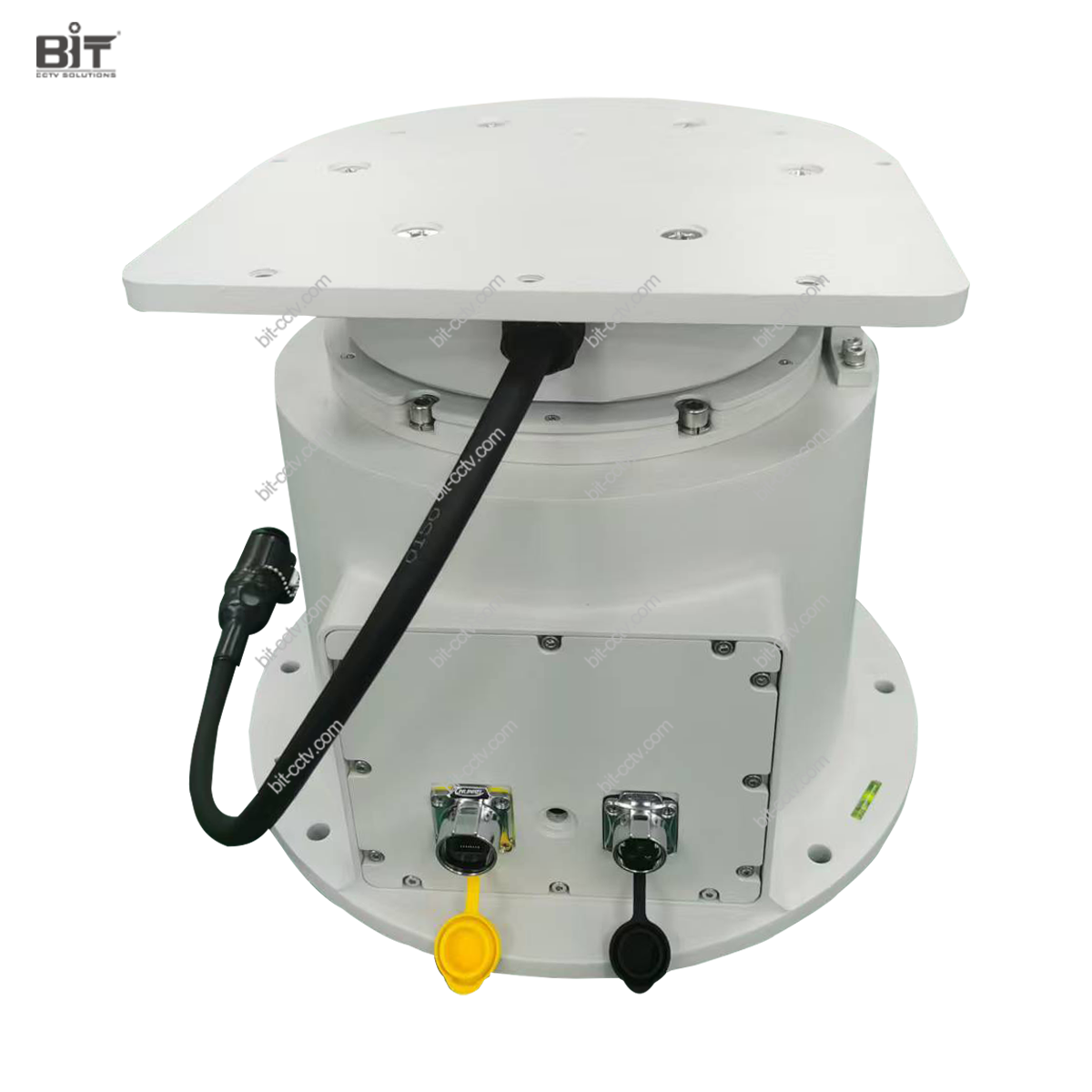

BIT-SPT80-D is a 80kg/1760lb top load sing-axis pan rotator/panpositioner that will only rotate in pan direction, but not tilt direction. With built-in direct drive servo motor, its maximum rotation speed can reach up to 180°/S with 0.05 degree preset accuracy. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-SPT80-D, including preset, cruising track, auto scan and guard location.
BIT-SPT80-D pan positioner is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.
Model | BIT-SPT80-D |
Load Capacity | 80Kg/176lb |
Load Type | Top load |
Drive Transmission | Servo motor direct drive |
Rotation Speed | Pan 0.01°～180°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） |
Preset | 200 |
Repeat Accuracy | ±0.05° |
Cruising Track | 8, each with 10 positions |
Guard Location | Back to home position in 1～60 min |
Auto Scan | 1 |
Communication | PELCO_D/PELCO_P |
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） |
Interface | RS485（optional RS485/RS422/RS232） |
General | |
Power Input | DC24V ±20% |
Consumption | Max≤90W |
Working Temperature | -40℃～+65℃ |
Storage Temperature | -40℃～+70℃ |
Top Plate Diameter | 330mm |
Dimension (mm) | 360×360×291mm/14.17x14.17x11.46in (L×W×H) |
Weight | 30kg/66lb |
Protection | IP66 |
Yes, BIT-SPT80-D support angle/coordinate feedback and advanced absolute position control via “Pelco D extended commands” , that includes some advanced commands for positioning control of the positioner.
Please contact us directly for technical discuss for our better understanding before placing order with us.
We don't have any agent or distributors, please contact us for direct sales.
We offer standard 1 year warranty for BIT-SPT80-D Outdoor 80kg Load Servo Direct Azimuth Positioner.
