Bit-cctv industrial Pan Tilt Mount BIT-PT8120 adopts a high-torque turbine worm transmission system, providing a heavy load capacity of up to 120kg and a 0.1-degree repeated positioning accuracy. It is specially designed for long-distance monitoring and harsh outdoor environment, ensuring the stable operation of the security system all day long and can be purchased in batches.
Max. Load Capacity
120kg
Drive Mode
Stepper Motor + Worm Gear
Tilt Rotation Angle
-45 degree ~ 45 degree

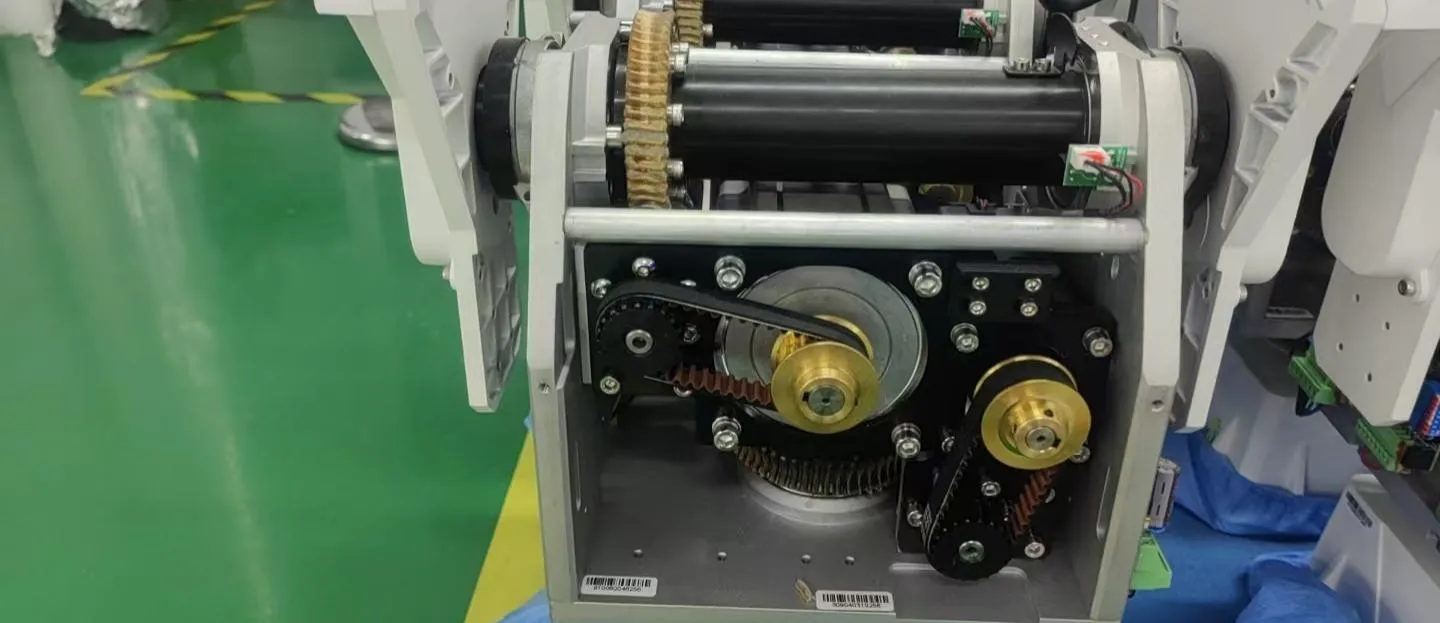

Using high-strength worm gear transmission structure, compared with ordinary gear transmission, self-locking capacity increased by 85%. The Pan Tilt Mount can stably carry a 50kg camera and telephoto lens assembly to maintain image stability without slippage in high wind or vibration environments.
Built-in high-precision encoder and stepper motor drive, to achieve 0.01 degrees to 60 degrees per second stepless variable speed adjustment. The repeated positioning accuracy is strictly controlled within 0.1 degrees to ensure that the preset position finger-back deviation does not exceed 5% of the center of the picture in telephoto monitoring scenes above 2000 meters.
The fuselage adopts an integrated die-casting aluminum alloy process, combined with double-layer powder spraying technology, and passes a 96-hour neutral salt spray test. The Pan Tilt Mount has IP66 protection and can operate continuously in extreme temperature difference environments from minus 35 degrees Celsius to 65 degrees Celsius.
Supports storage of 255 preset bits and 8 automatic cruise routes. Users can customize the residence time and scanning speed of each route to realize 24-hour unattended intelligent area coverage, and the effective monitoring range is 300 higher than that of fixed supports.
Fully compatible with Pelco-D, Pelco-P and other industry standard control protocols, support RS485 communication interface. The Pan Tilt Mount provides seamless access to mainstream security integration platforms without the need for additional protocol converters, reducing the complexity and cost of system integration.
Built-in 4000V lightning protection surge protection circuit, effectively prevent lightning damage to equipment. Support AC24V or DC24V wide voltage input, voltage fluctuation tolerance of plus or minus 15%, adapt to the unstable power supply environment of field base stations or industrial parks.
