Maximum Load
40kg
Repeat Accuracy
±0.1 degree
Absolute Positioning
Support

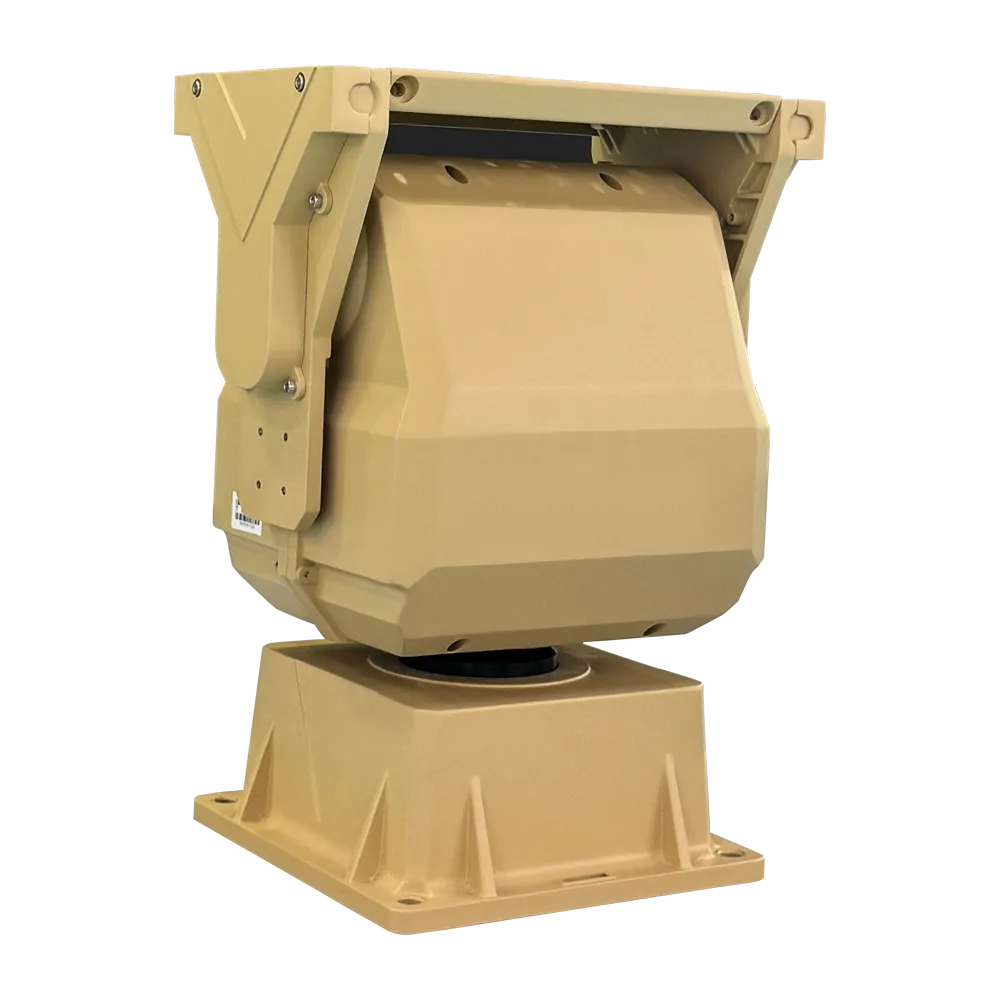

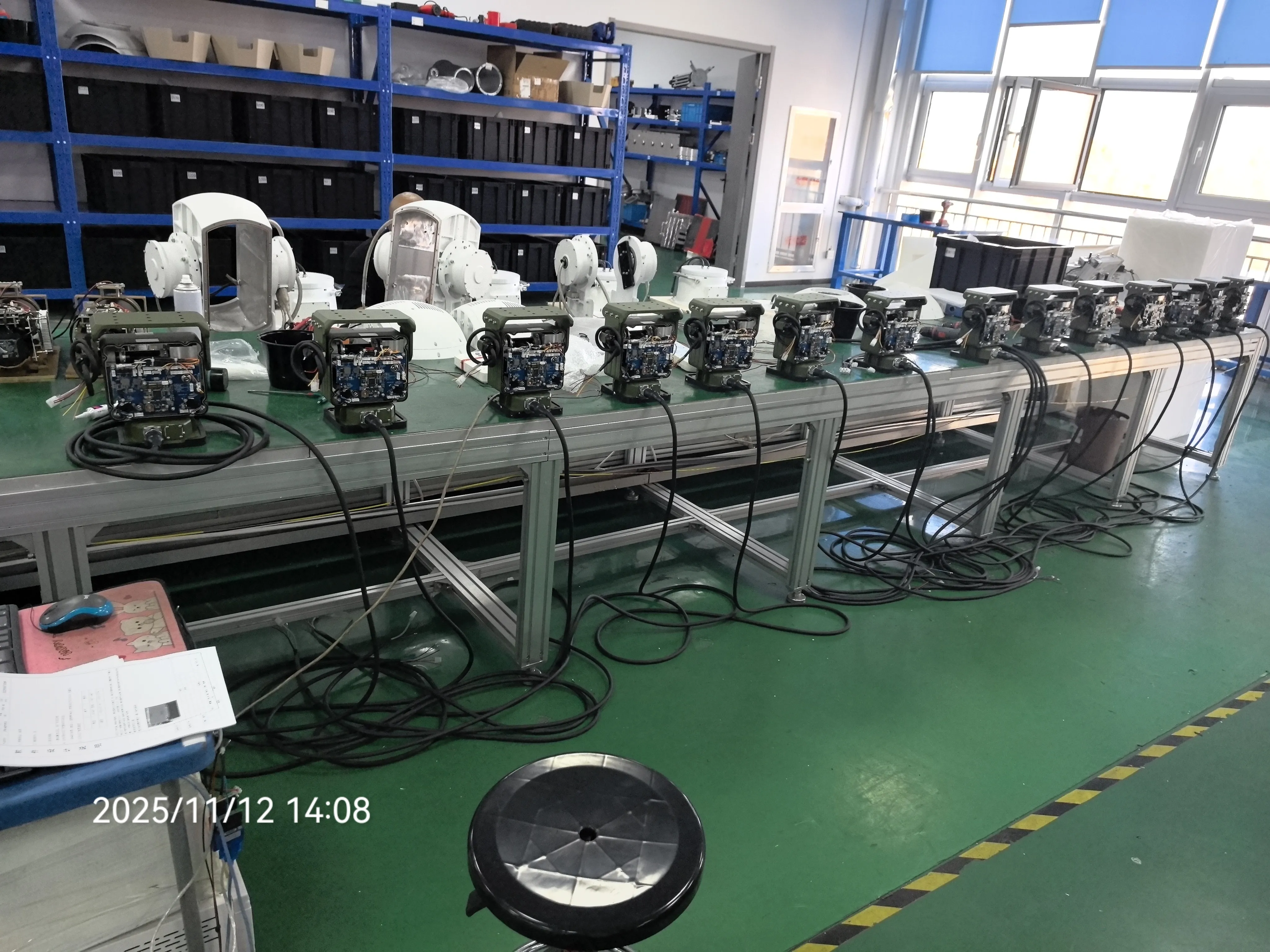

The high-precision worm gear transmission structure is adopted to ensure that the heavy-duty pan-tilt can maintain the current position without slipping under the condition of power failure. Compared with ordinary gear transmission, its anti-wind resistance capacity is improved by 40%, effectively eliminating the image jitter of the telephoto lens under high zoom.

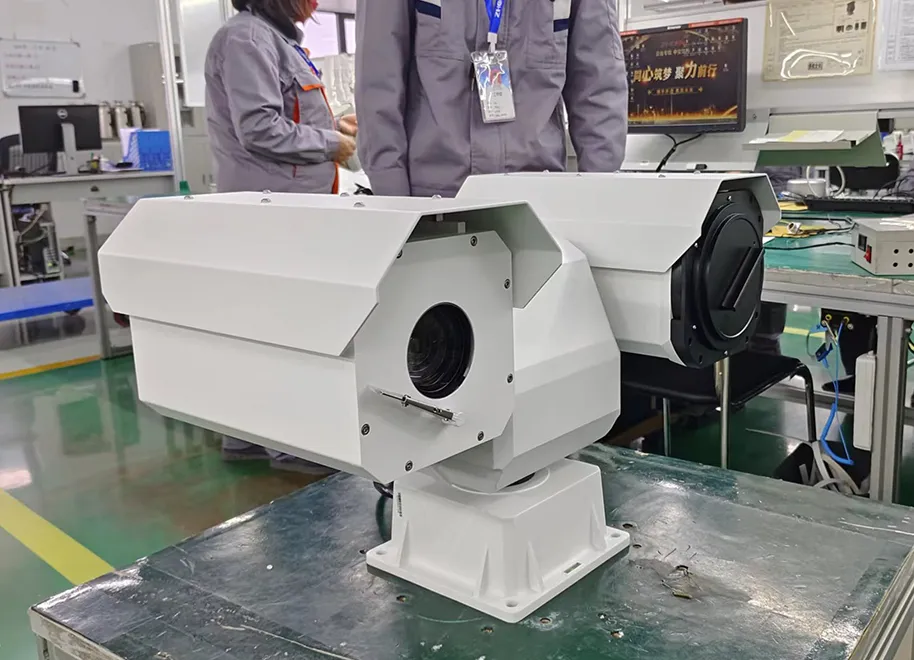

Optimized for heavy loads, it supports a maximum equipment carrying capacity of 50kg. Whether it is a visible light camera with an ultra-long focus lens or a dual-spectrum thermal imaging device, it can maintain a stable center of gravity and avoid motor overheating or gear wear due to overload.
The body is made of high-strength aluminum alloy die-casting, with multiple sealing design, completely prevent dust from entering and withstand high-pressure water gun spray. In the port with salt spray or high dust mining environment, the corrosion resistance life of the shell is more than 10 years.
Built-in automatic temperature control heater and cooling fan system, so that the heavy-duty platform can continue to work in the environment of minus 35 degrees Celsius to 65 degrees Celsius. Effectively prevent the gear grease under low temperature freezing or high temperature aging failure of electronic components.
Equipped with precision conductive slip ring, support horizontal direction 360 degree continuous rotation and vertical direction plus or minus 60 degree scanning. Completely solve the problem of traditional PTZ cable winding, to meet the border inspection or forest fire scene under the full range of no dead angle monitoring needs.
Built-in multi-protocol decoding board, perfect support for Pelco-D, Pelco-P and other industry standard protocols and RS485 control interface. System integrators can quickly access without changing the existing control architecture and support adaptive adjustment of baud rates from 2400bps to 9600bps.
| Parameter categories | Parameter name | Technical indicators |
| Mechanical properties | Load capacity | 40 kg (top load/side load) |
| Transmission method | Worm gear self-locking drive | |
| Horizontal rotation range | Continuous rotation from 0 degrees to 360 degrees | |
| Vertical rotation range | -45 degrees to +45 degrees (customizable) | |
| Horizontal rotation speed | 0.01 degrees to 30 degrees per second (variable speed) | |
| Vertical rotation speed | 0.01 degrees to 10 degrees per second (variable speed) | |
| Accuracy indicators | Preset number of positions | 255 |
| Repeatability | ±0.1 degrees | |
| hysteresis | Less than 0.2 degrees | |
| Electrical parameters | Input voltage | AC24V or DC24V |
| Maximum power consumption | 100 watts | |
| Control Interface | RS485 | |
| Environmental adaptability | Operating temperature | -35 degrees Celsius to +65 degrees Celsius |
| Protection level | IP66 (Waterproof and dustproof) | |
| Material Structure | High-strength aluminum alloy/stainless steel screws | |
| Physical Specifications | Self-respect | 17 kg |
For long-distance monitoring scenes such as forest fire prevention, the bit-cctv heavy-duty pan-tilt solves the problem that the ordinary pan-tilt has too large a gear gap, which causes the picture to shake violently in the breeze and cannot focus imaging when zooming at high magnification (more than 30 times)..
For high-load applications in mines and ports, we have solved the durability problem of the traditional PTZ using powder metallurgy gears that are prone to tooth breakage and slippage under long-term heavy load or strong wind resistance, resulting in the complete loss of control of the equipment..
In view of the monitoring requirements in high altitude or severe cold areas in the north, we have solved the problem that the motor is blocked and burned due to the solidification of lubricating oil when the ordinary outdoor pan-tilt is at minus 30 degrees, so as to ensure that the equipment can still respond to instructions immediately in extremely cold weather..
Suitable for system integrators who need a telephoto fog lens and laser illuminator. bit-cctv the high load and high stability of the heavy-duty gimbal, it can meet the needs of long-distance target search and locking with a span of more than 5 kilometers on the border and coastline.
Designed for forest fire prevention projects, it is suitable for users who need to carry dual-spectrum (visible light + thermal imaging) heavy-duty cameras at the same time. It can withstand the strong wind environment on the top of the mountain, and realize automatic cruise and accurate positioning alarm of fire point by using 360-degree scanning function.

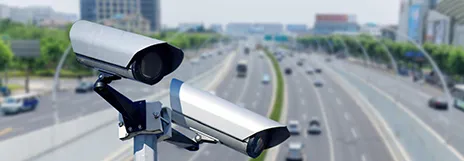

Purchasers for monitoring along highways and railways. The seismic design of the heavy load head can effectively resist the high-frequency vibration generated by vehicle traffic, and the IP66 protection level can resist the long-term erosion of road dust and automobile exhaust, and reduce the maintenance frequency.

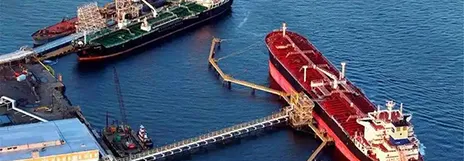

.webp "Port Terminal and Ship Security Contractor")
It is suitable for monitoring scenes of ports and ships with serious salt spray corrosion. The high-strength alloy shell and sealing structure can prevent seawater moisture intrusion, support the heavy-duty explosion-proof camera housing, and ensure 24-hour safety supervision in dangerous operation areas.
Make sure that the mounting bracket or column can bear a load of at least 4 times the total weight of the gimbal (about 80kg). Use 4 M10 stainless steel bolts to fix the base horizontally, and install spring washers to prevent vibration from loosening..
When installing the camera shield or thermal imager, you must first adjust the position of the equipment back and forth, find out the balance point of the center of gravity, and then lock the screws. The unbalanced center of gravity will cause the motor to be overloaded for a long time, which will seriously shorten the service life of the gimbal..
When connecting the power line and the control line, you must use a waterproof junction box or wrap a self-adhesive waterproof tape at the interface. Be sure to keep the U-shaped drip bend at the line inlet to prevent rainwater from flowing backward along the cable into the pan-tilt..
Before powering on, open the access cover on the side of the gimbal and set the baud rate and RS485 address code according to the instructions. Make sure that the PTZ address is exactly the same as the channel address of the back-end control keyboard or DVR/NVR, otherwise it cannot be controlled..
Answer: The rated maximum load of this equipment is 50kg. In order to ensure the best running stability and prolong the life of the motor, it is recommended that the total weight of the actual camera and shield be controlled between 40kg and 45kg, and a certain torque margin is reserved.
Answer: No special drive is required. bit-cctv Heavy Duty PTZ has built-in standard Pelco-D and Pelco-P protocols and supports RS485 communication. As long as your control terminal (such as hard disk video recorder, matrix or joystick keyboard) supports these common protocols, you can directly control.
A: Yes, with power-off memory function. When an unexpected power failure occurs and a new call occurs, the pan/tilt will automatically return to the position and state (such as preset position or automatic cruise state) before the power failure, without manual reset.
A: It fits. Our heavy-duty pan-tilt housing is sprayed with plastic to prevent corrosion and reaches IP66 protection level. For extreme marine environments, we also recommend regularly checking the sealing ring and applying anti-rust grease to obtain a longer service life.
A: Support variable speed control. The horizontal rotation speed ranges from 0.1 degrees to 12 degrees per second, and the vertical speed ranges from 0.1 degrees to 6 degrees per second. The speed will be automatically adjusted according to the thrust of the rocker or the preset command, supporting low-speed precise positioning.
Answer: Please first check whether the power supply voltage is AC24V and the power is sufficient. Secondly, check whether the positive and negative poles of RS485 line are connected in reverse. Finally, confirm whether the address code and baud rate set by the dip switch inside the pan-tilt are completely consistent with the control terminal.
