Specially designed for harsh industrial environment, bit-cctv Pan and Tilt Positioners adopts high-precision worm gear and worm drive, providing IP66 protection grade and 50kg heavy load capacity, realizing 0.01 repeated positioning accuracy, ensuring the extreme stability of all-weather remote monitoring system and supporting bulk purchase.
Maximum Load
50kg
Repeat Accuracy
±0.01 degrees
Protection Class
IP66

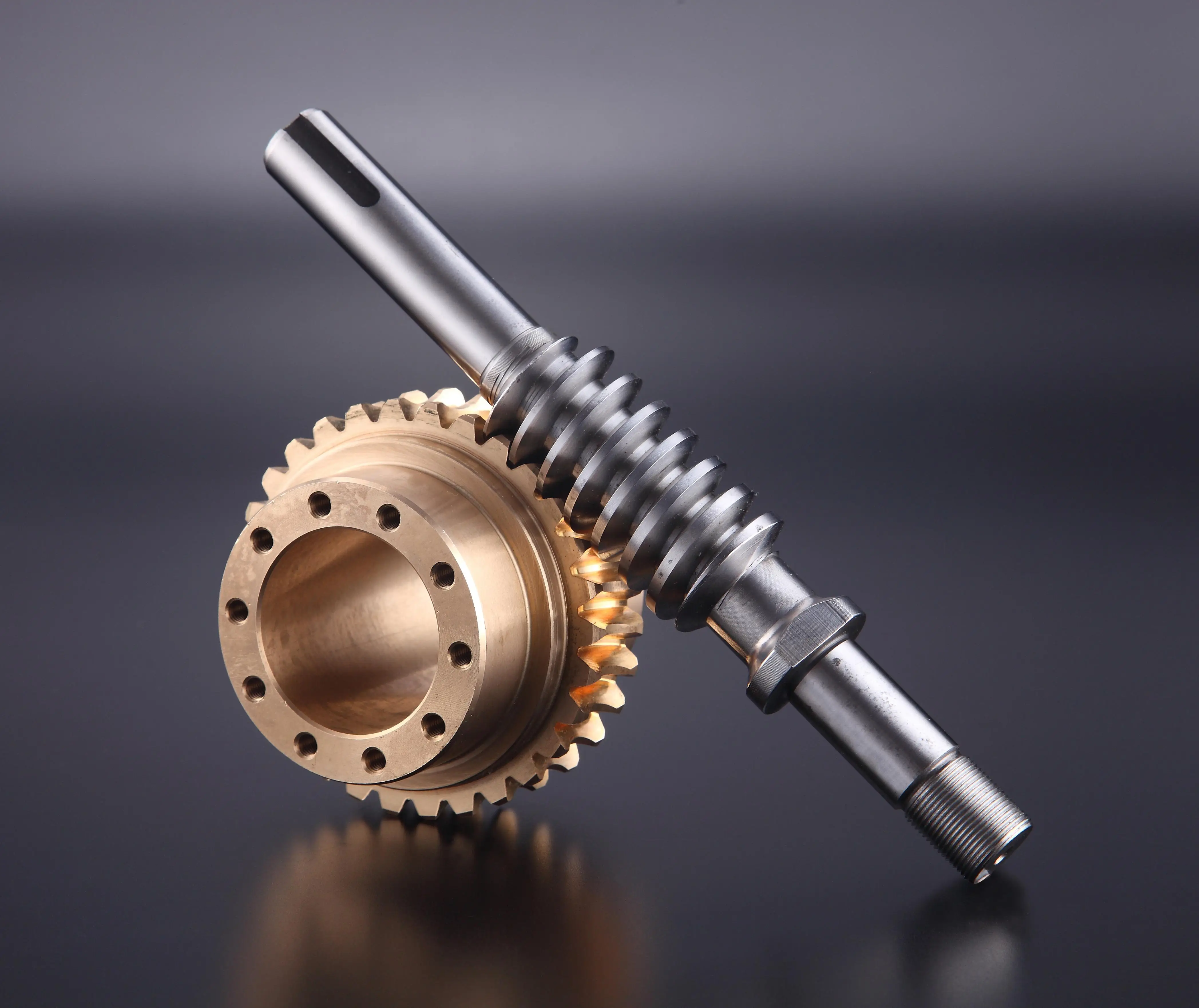

It adopts high-strength alloy steel worm gear structure and has the function of power-off self-locking. Even in the power-off state, it can keep the maximum load of 50kg without displacement of 0.1mm, and the wind resistance level reaches 12, thus completely eliminating the picture jitter.
The built-in high-resolution photoelectric encoder supports 0.01 ultra-low speed smooth operation and preset position accuracy, and cooperates with the closed-loop control algorithm Positioners by Pan and Tilt to ensure that the target is still in the center of the picture after zooming with the telephoto lens 3km away.
The main body of the fuselage is made of integrated die-casting aluminum alloy, and the surface is coated with three layers of anti-corrosion powder. Through 96 hours of neutral salt spray test, the service life can reach more than 8 years in the high salt spray or high corrosion environment in the chemical industry area.
Equipped with industrial-grade conductive slip ring, it supports Pan and Tilt Positioners for horizontal 360 infinite continuous rotation, and supports +90 to -90 scanning in vertical direction, completely eliminating monitoring blind area and improving area coverage efficiency.
The integrated multi-channel high-precision slip ring not only supports power transmission, but also supports transparent transmission of gigabit network port, SDI video signal and RS485 control signal, which perfectly solves the problem of cable winding and wear easily caused by 360-degree rotation of traditional pan-tilt.
Native support Pelco-D/P industry standard protocol and absolute value position feedback instruction, with baud rate adaptive function, can seamlessly connect the mainstream radar linkage system and security management platform, system integration time-consuming reduction of 40%.
| Technical indicators | Detailed specifications |
| Product Name | Pan and Tilt Positioners |
| Horizontal rotation range | 0° – 360° continuous infinite rotation |
| Vertical rotation range | -90° to +90° (customizable to -45° to +45°) |
| Horizontal rotation speed | 0.01°/s – 60°/s (speed adjustable) |
| Vertical rotation speed | 0.01°/s – 30°/s (speed adjustable) |
| Maximum load capacity | 50kg (top load) / 30kg (side load) |
| Transmission method | Worm gear drive (self-locking upon power failure) |
| Preset position accuracy | ±0.01° |
| Communication Protocol | Pelco-D, Pelco-P, Extended Instruction Set |
| Communication interface | RS485 / RS422 |
| Input voltage | AC 24V / DC 24V ±10% |
| Protection level | IP66 (Waterproof and dustproof) |
| Body material | High-strength aluminum alloy die casting |
| Surface treatment | Polyester powder coating (resistant to salt spray corrosion) |
In view of the common problem of micro-jitter in long-distance monitoring, we have solved the 0.5 clearance error caused by traditional gear wear to ensure accurate target locking beyond 5km..
In view of the cable winding and signal interruption caused by the rotation of the pan-tilt, we have solved the hidden danger of aging and fracture of the external wiring, and realized the integrated and stable transmission of power supply, network and video signal..
We have solved the problem of motor overheating caused by the unstable center of gravity when equipped with radar or dual-spectrum camera, and improved the motor life by more than 3 years..
Operation and maintenance teams serving substations, oil pipelines or wind farms need heavy-duty PTZ to carry thermal imaging equipment for equipment temperature monitoring. The products are required to have extremely high weather resistance and power-off self-locking function to prevent accidental slipping and damaging expensive sensors.
The technical director in charge of border or coastline monitoring projects needs Pan and Tilt Positioners to be equipped with ultra-long focus lens or laser night vision device, and requires the equipment to operate stably for 7x 24 hours and have accurate positioning under strong wind and high salt fog environment.
Engineers engaged in highway or urban traffic monitoring, using Pan and Tilt Positioners to carry radar and capture cameras, need the PTZ to have extremely fast response speed and accurate preset position function to capture high-speed moving vehicle violations.
The security department, which manages the dispatching and monitoring of the port terminal, needs to use Pan and Tilt Positioners to mount multi-sensor loads (such as searchlights and cameras) to track the incoming and outgoing
When mounting a camera or radar load, be sure to position the mounting plate so that the center of gravity of the load lies vertically on the axis of rotation centerline of the Pan and Tilt Positioners. The center of gravity shift will cause insufficient motor output torque or increased gear wear. Correct leveling can extend the service life of the equipment by 50%..
Due to the large current at the moment of equipment startup, it is recommended that the cross-sectional area of the power cord should not be less than 1.5 mm², and the power supply distance should be controlled within 50 meters. If the distance is too long, it is necessary to use higher voltage transmission or increase the wire diameter to prevent the voltage drop from causing the pan/tilt to restart or lose the step..
When connecting the RS485 control line, a twisted pair shielded wire must be used, and the shielding layer must be grounded at one end. In the strong electromagnetic interference environment (such as substation), incorrect grounding will lead to pan-tilt control failure or misoperation, to ensure that the positive and negative pole wiring is correct before power..
Before power-on, you need to set the physical address and communication baud rate of the Pan and Tilt Positioners through the dip switch at the bottom (default 2400 or 9600). When multiple devices are cascaded, the address code of each device must be unique. Otherwise, control conflicts may occur..
