VOx uncooled detector, 384*288 (640*512)
NETD less than 50mk (@25℃F1.0)
30～120mm lens with motorized zoom and focus
Detection range 10km, recognition range 2.8km
SDE digital image processing, AGC, 2X digital amplification
360 continuous pan angle, tilt angle: -75°~+40°
Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s rotation speed
Die-cast aluminum alloy housing, IP66 ingress protection

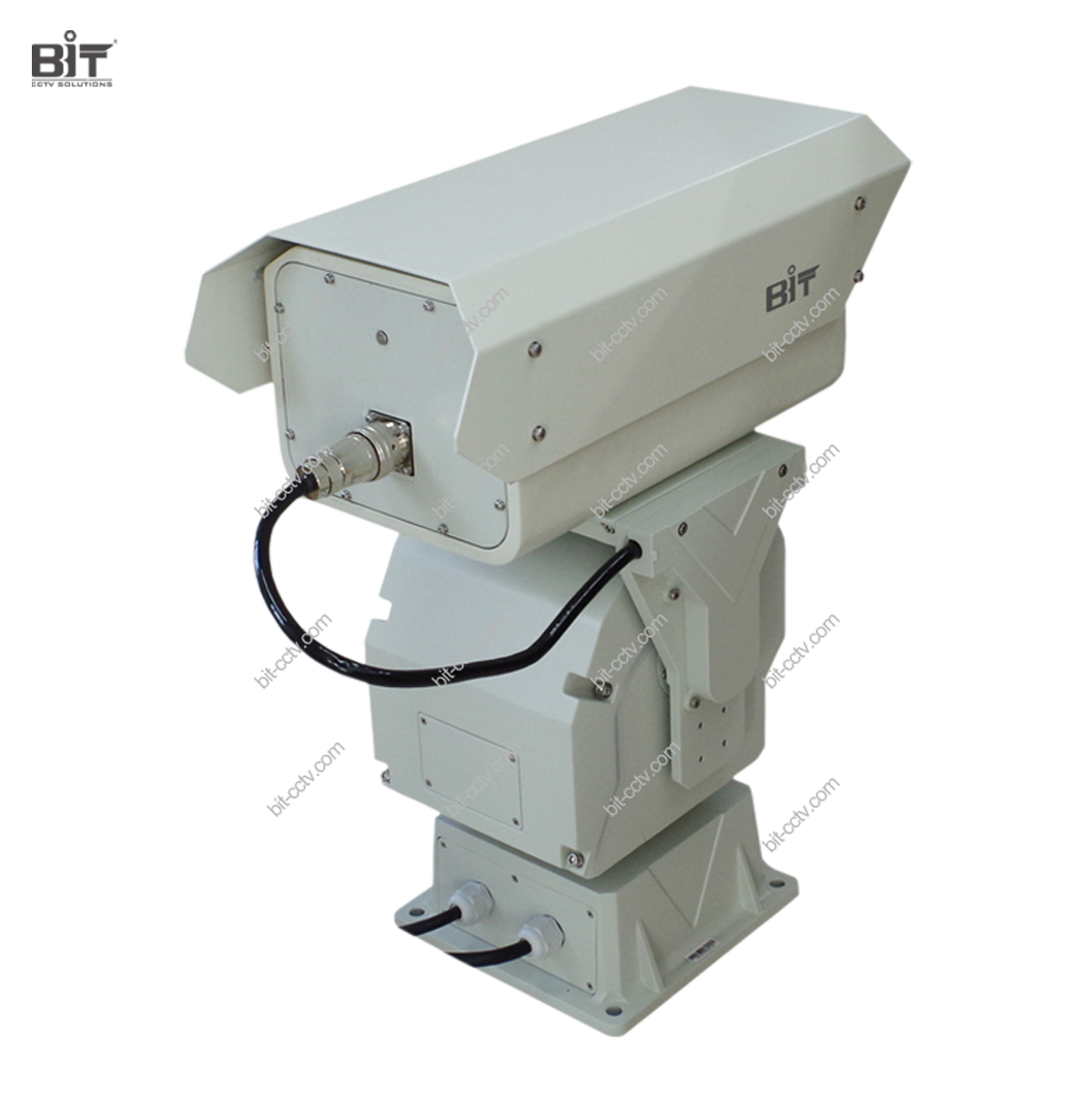

BIT-SN12-W, a long range infrared thermal imaging PTZ camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 384*288/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 30～120mm optical zooming lens have detection distance 10km, suitable for both seeking and viewing. Die-cast aluminum alloy housing makes sure the camera’s operation outdoor.
Our thermal camera integrate high sensitive FPA sensor, electronic and optical systems, and features fog/dirt/rain/snow penetration with 24 hours’ image.
Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.
Model | BIT-SN12-W |
Detection | Vehicle: 10,000m/Human: 4,000m |
Recognition | Vehicle: 2,800m/Human: 1,000m |
Sensor | 5th generation UFPA sensor |
Resolution | 384*288 pixel ( 640*512 optional) |
Spectral | 7.5～14μm |
NETD | 50mK（@25℃ F1.0） |
Focal length | 30～120mm |
FOV(H) | 11°～2.8° |
IFOV | 0.14～0.57mrad |
Lens control | Motorized zoom and auto focus |
Network Protocol | ONVIF2.4 compliant |
TCP/IP, UDP, IPv4/v6; | |
Support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP | |
Support PSIA | |
Image processing | 1. Stable operational temperature without TEC, starting time less than 4 seconds |
2. SDE digital image processing | |
3. 10 pseudo color and B/W, B/W inverse | |
4. AGC | |
5. 2X digital zoom | |
Housing | 1. Material：High strength aluminum alloy shell，waterproof seal，To avoid the growth of mold and moisture generated |
2. Structure：Integrated single-window design | |
3. Surface coating：PTA three-resistance coating, Seawater corrosion resistance | |
4. Interface：Aviation waterproof plug | |
Pan Tilt | 1. Rotation: Pan: continuous 360°, tilt: -75°~+40° |
2. Rotation speed: Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s | |
3. Positioning accuracy: 0.1° | |
4. Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | |
5. Support coordinate query/feedback and absolute control | |
Interface | 1. RJ45.10, 10/100 Base-T adaptive |
2. AC24V/DC24V ±10%, self-adaptive | |
3. Optional RS-485 (PELCO D/P protocol) | |
4. Waterproof connector | |
Working Environment | 1. Operating temperature: -40℃～+65℃ |
2. Storage temperature: -40℃～+65℃ | |
3. Humidity:<90% | |
4. Ingress protection：IP66 |
Maximum detection and recognition distance of long range thermal imaging PTZ camera BIT-SN12-W is:
Detection Range: Vehicle: 10,000m/Human: 4,000m
Recognition Range: Vehicle: 2,800m/Human: 1,000m
Standard resolution of infrared camera in BIT-SN12-W PTZ thermal camera is 384*288 pixel with higher option: 640*512.
BIT-SN12-W long range PTZ thermal imaging is AC24V or DC24V, self-adaptive.
Pan tilt unit positioning accuracy of BIT-SN12-W is 0.1°with high precision stepper motor and worm/gear drive.
