· Maximum load capacity 30kg/66lb
· Die-cast aluminum material
· 360 degree continuous pan/azimuth rotation
· Pan/azimuth speed 0.01°～30°/S
· Preset accuracy: ±0.1°
· High precision worm/gear drive and stepper motor transmission
· Self-lock with memory after power failure
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Designed for dish/jig antenna, camera or radar
· Rated IP66 for dust and water ingress

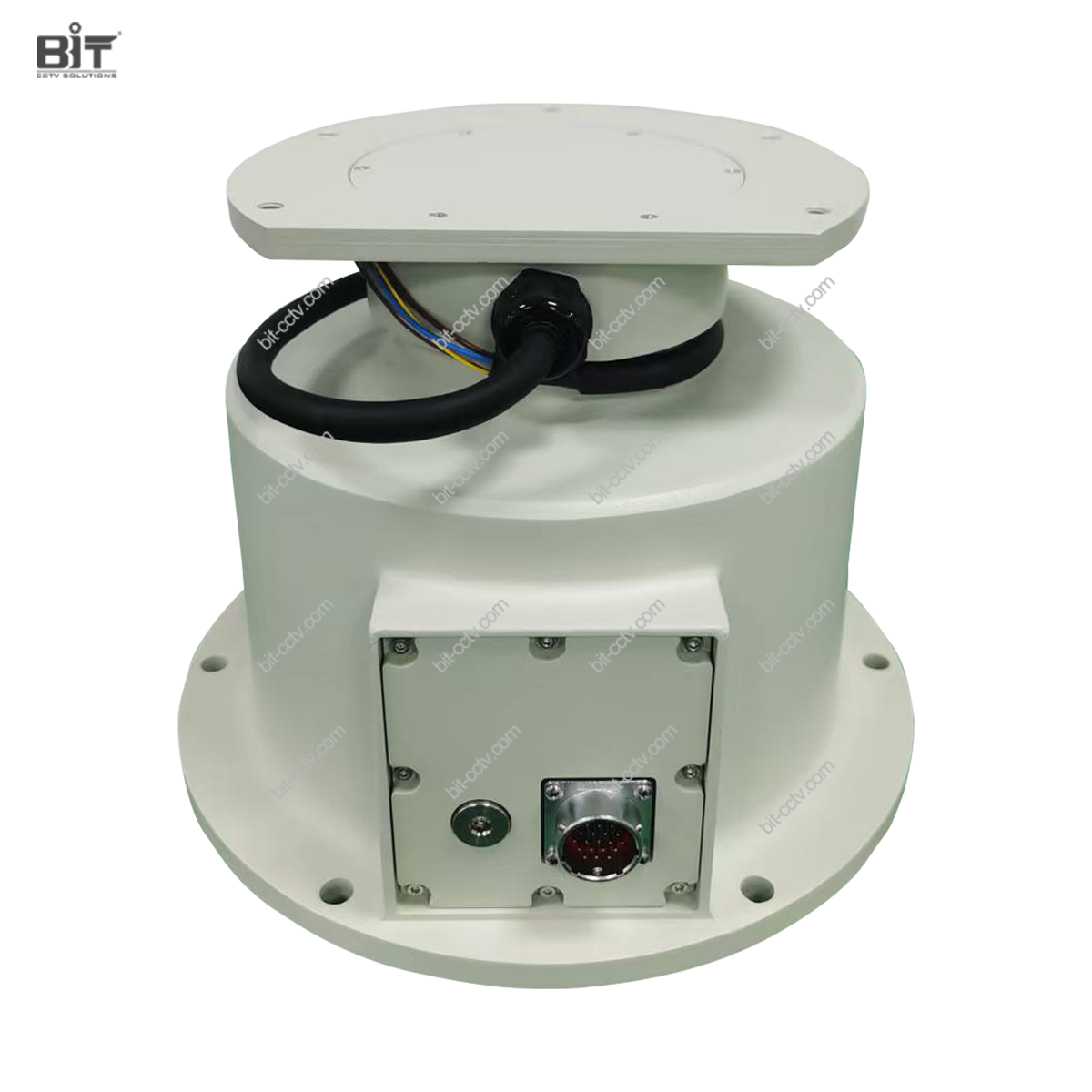

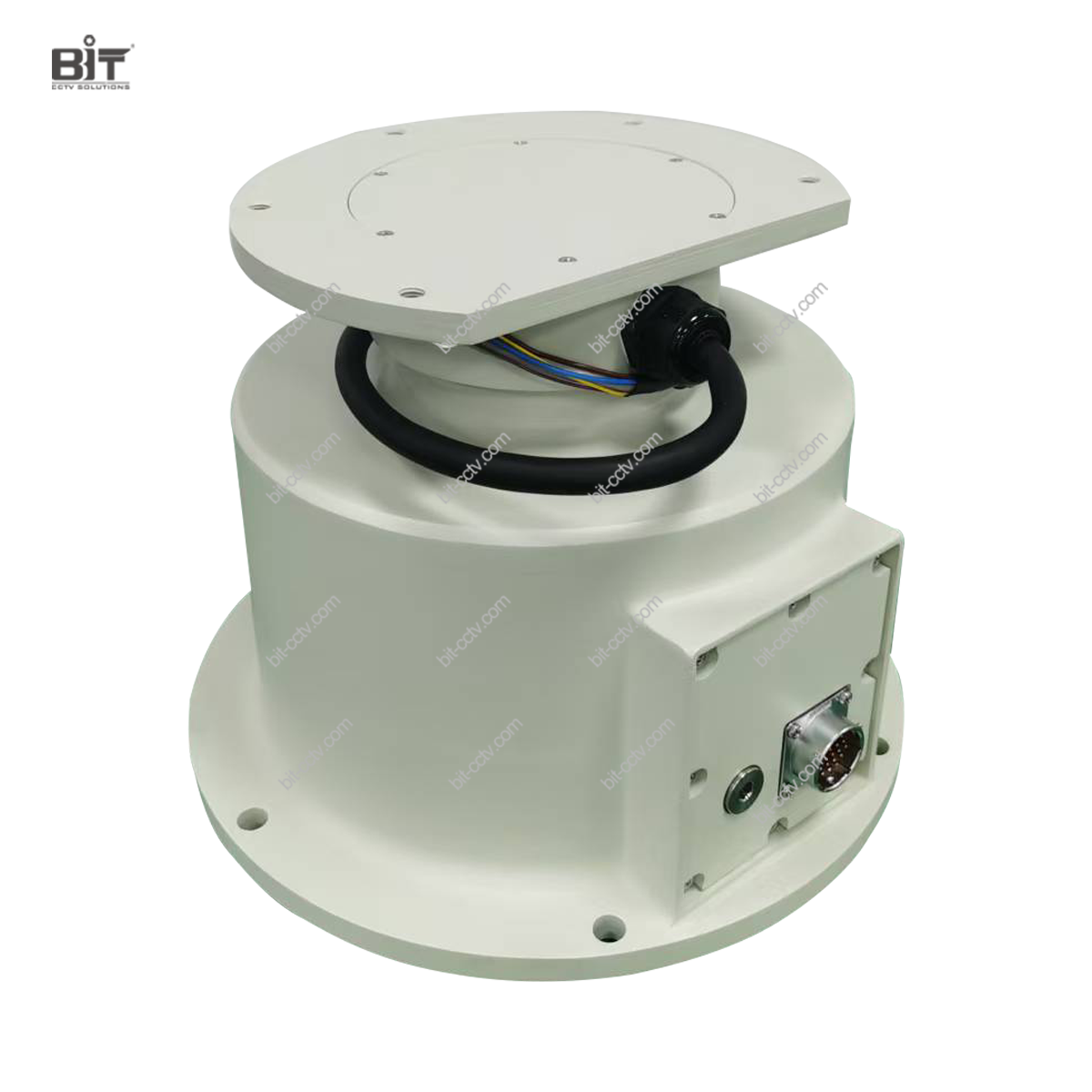

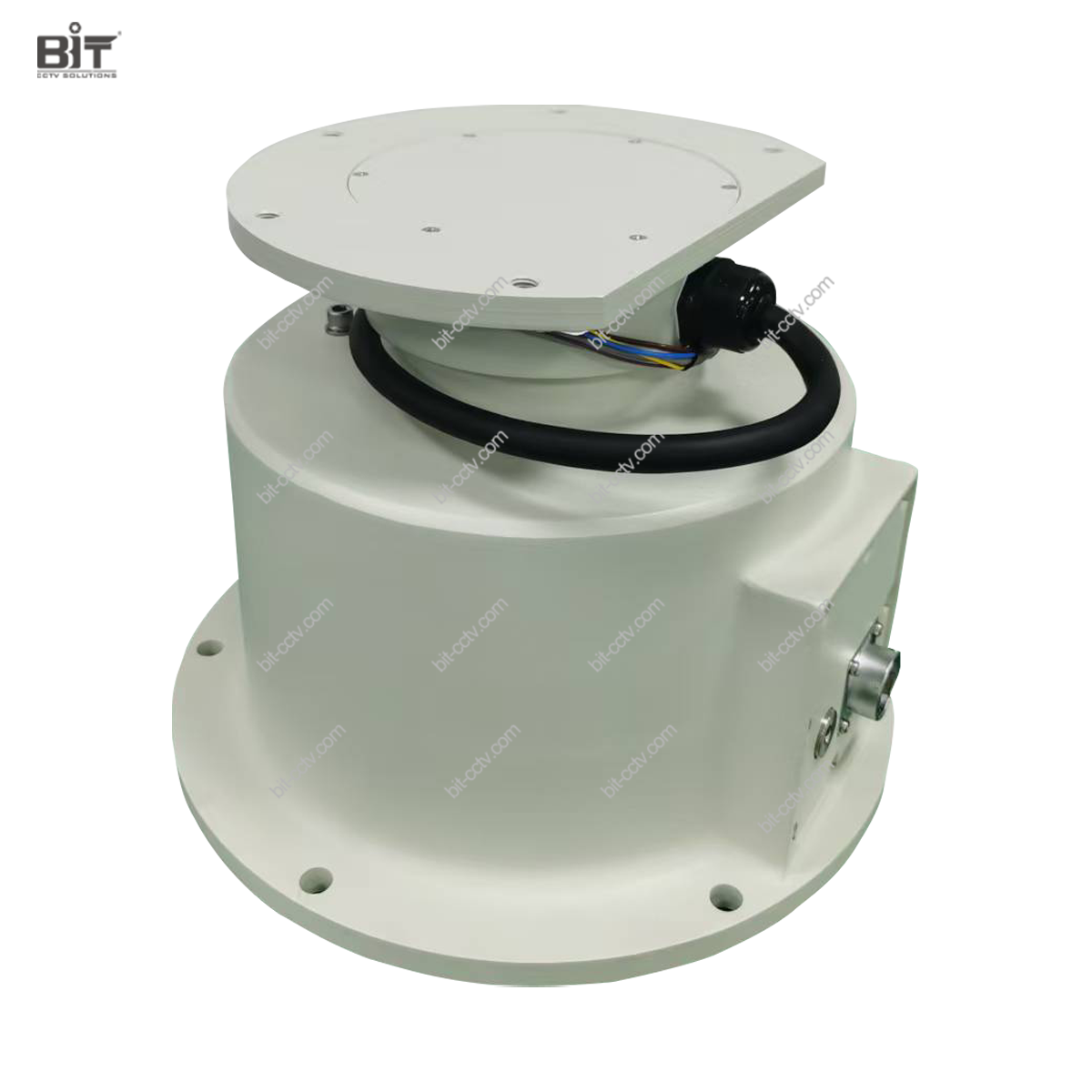

BIT-SPT30 is a medium duty sing-axis pan rotatory positioner that will only rotate in azimuth direction, but not tilt direction. With worm/gear drive transmission, its maximum rotation speed can reach up to 30°/S with 0.1 degree preset accuracy. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-SPT30, including preset, cruising track, auto scan and guard location.
BIT-SPT30 pan positioner is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.
Model | BIT-SPT30 |
Rotation Speed | Pan 0.01°～30°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） |
Preset | 200 |
Repeat Accuracy | ±0.1° |
Cruising Track | 8, each with 10 positions |
Guard Location | Back to home position in 1～60 min |
Auto Scan | 1 |
Communication | PELCO_D/PELCO_P |
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） |
Interface | RS485（optional RS485/RS422/RS232） |
General | |
Power Input | DC24V ±20% |
Consumption | Max≤20W/Standy 5W |
Working Temperature | -35℃～+65℃, 90%±3%, no condensing |
Storage Temperature | -40℃～+65℃ |

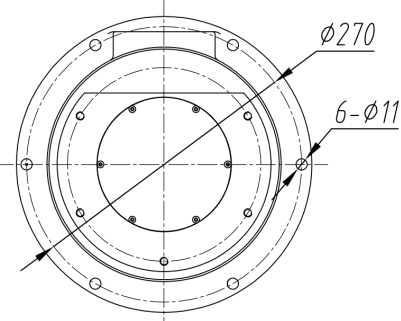

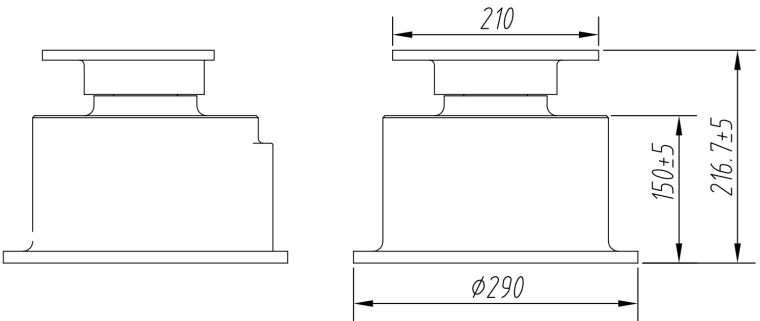

Top Plate Diameter | 210mm |
Load Capacity | 30Kg/66lb |
Dimension (mm) | 280×280×185mm/11.02x11.02x7.28in (L×W×H) |
Weight | 10kg/22lb |
Load Type | Top load |
Drive Transmission | Worm gear transmission |
Protection | IP66 |
Standard color of BIT-SPT30 pan positioner is light grey. We offer customized color services and paint the case with the color as the user wants.
Standard power supply of BIT-SPT30 is 24V DC. And also 24VAC is also available.
It is Pelco P or Pelco D.
RS485, RS422 or RS232 are available for single axis pan positioner. Ethernet control is available by adding encoder inside the unit, while the protocol is still Pelco D/P.
