· Maximum load capacity 30kg/66lb
· Servo motor direct drive, high precision, quick response
· Die-cast aluminum material
· 360 degree continuous pan/azimuth rotation
· Pan/azimuth speed 0.01°～120°/S
· Preset accuracy: ±0.05°
· Self-lock with memory after power failure
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Rated IP66 for dust and water ingress

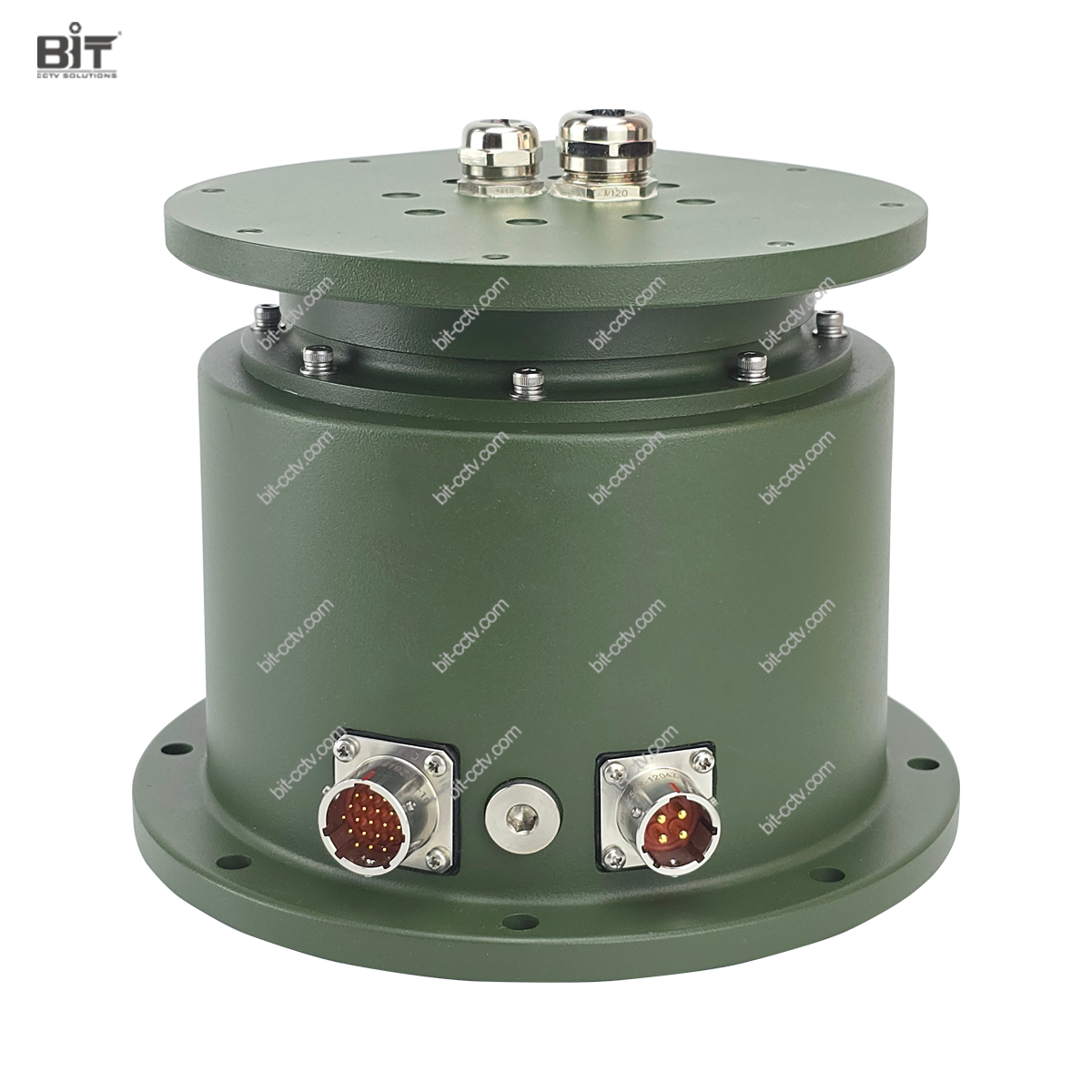

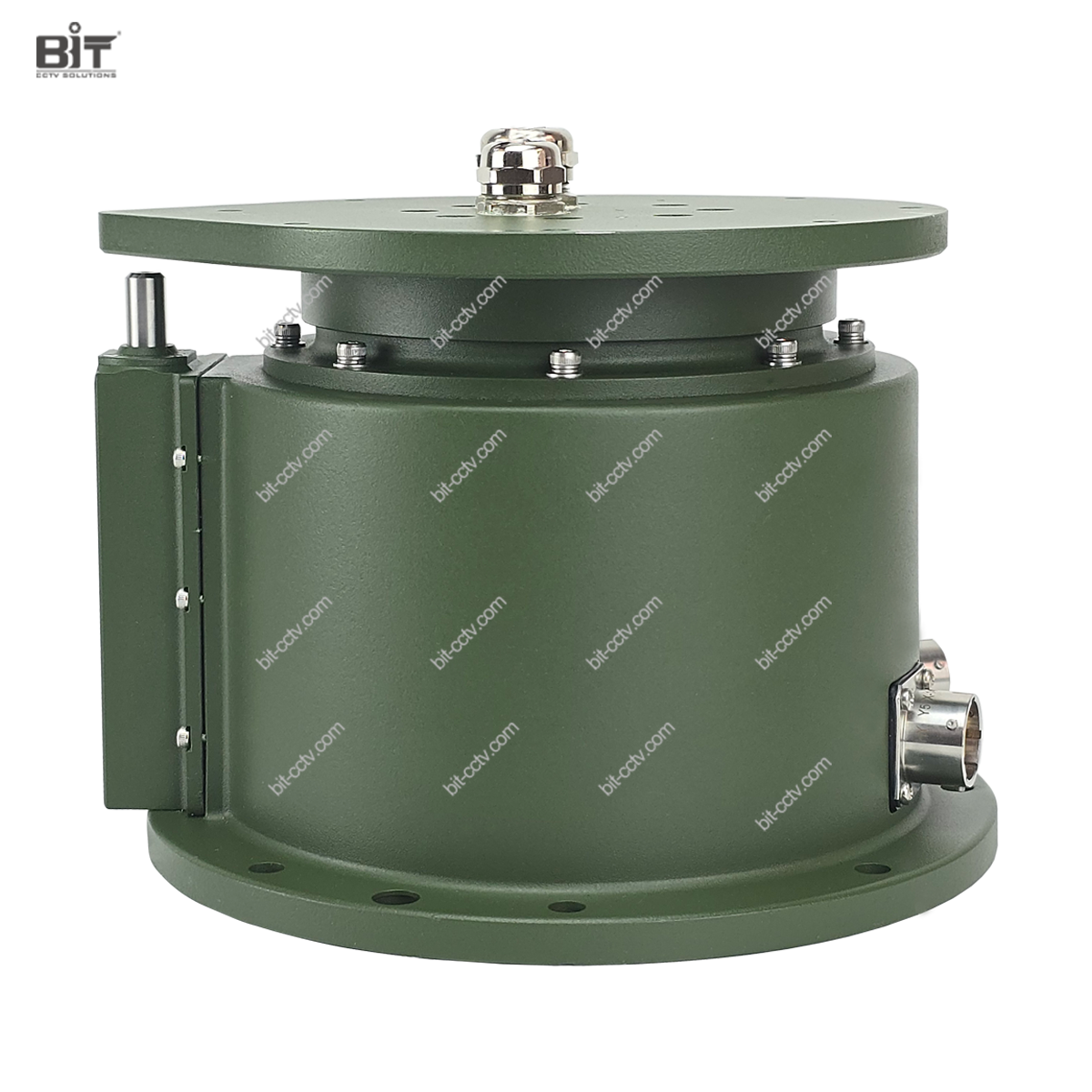

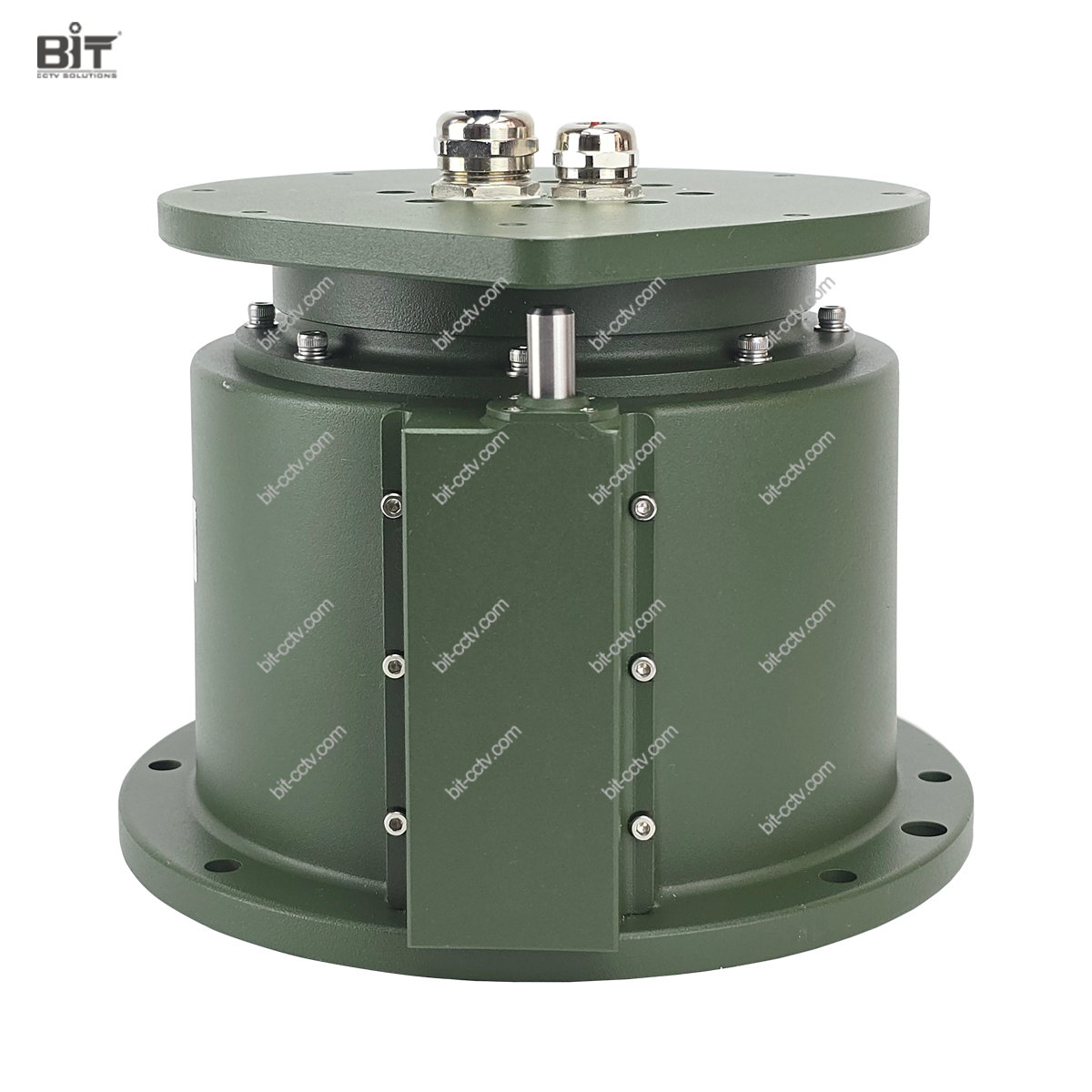

BIT-SPT30-D is a 30kg/66lb top load sing-axis pan rotator that will only rotate in pan direction, but not tilt direction. With built-in direct drive servo motor, its maximum rotation speed can reach up to 120°/S with 0.05 degree preset accuracy. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-SPT30-D, including preset, cruising track, auto scan and guard location.
BIT-SPT30-D pan r is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.
Model | BIT-SPT30-D |
Load Capacity | 30Kg/66lb |
Load Type | Top load |
Drive Transmission | Servo motor direct drive |
Rotation Speed | Pan 0.01°～120°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） |
Preset | 200 |
Repeat Accuracy | ±0.05° |
Cruising Track | 8, each with 10 positions |
Guard Location | Back to home position in 1～60 min |
Auto Scan | 1 |
Communication | PELCO_D/PELCO_P |
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） |
Interface | RS485（optional RS485/RS422/RS232） |
General | |
Power Input | DC24V ±20% |
Consumption | Max≤90W |
Working Temperature | -40℃～+65℃ |
Storage Temperature | -40℃～+70℃ |

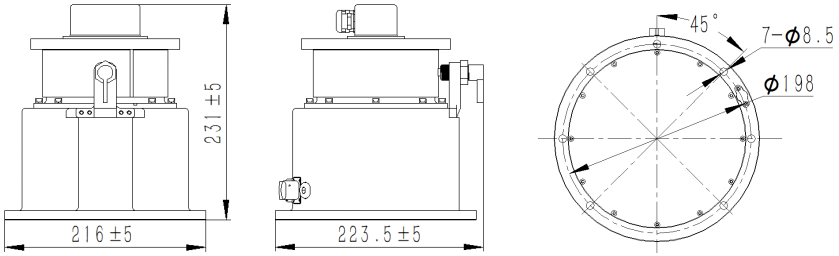

Top Plate Diameter | 198mm |
Dimension (mm) | 216×223×231mm/8.39x8.78x9.09in (L×W×H) |
Weight | 12kg/26lb |
Protection | IP66 |
Direct drive with servo motor makes the unit much more faster up to 120 degree/second and accurate as ±0.05° repeat accuracy. And the response speed will also be faster than worm/gear drive.

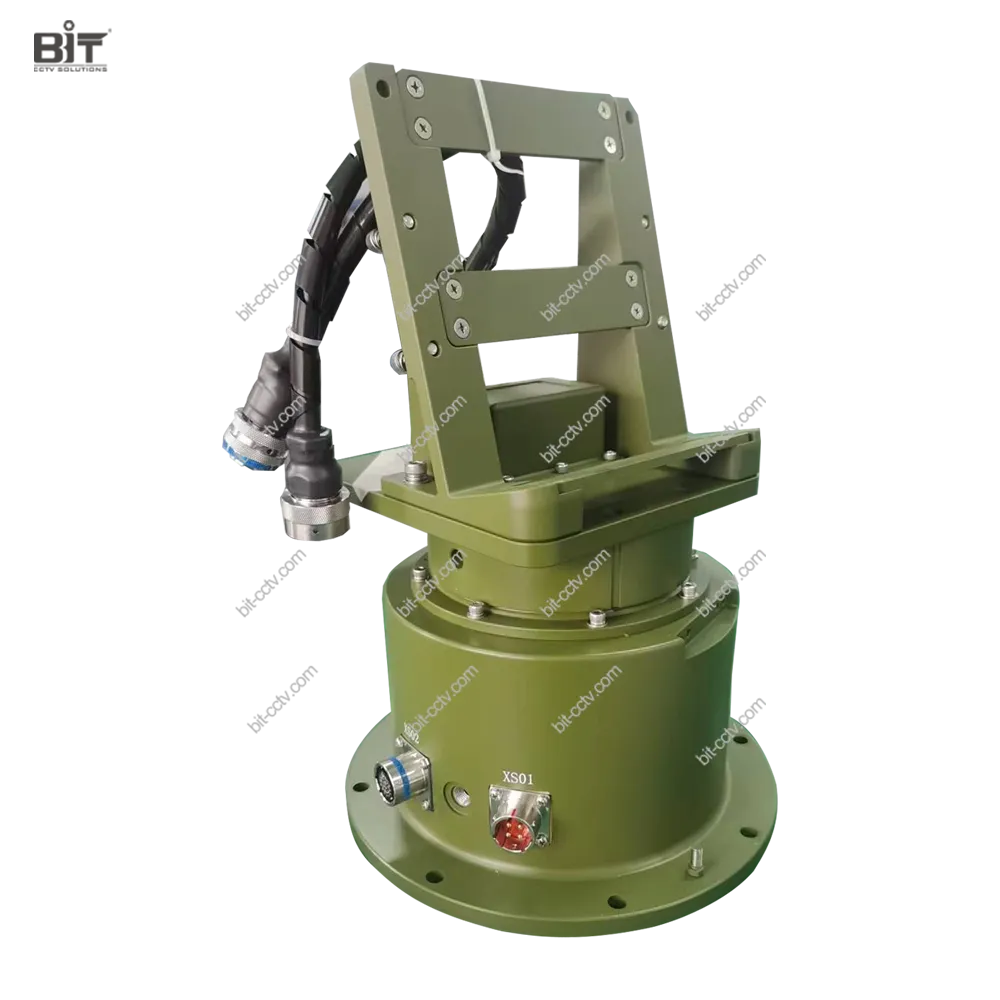

It is more suitable to load antenna, radar, etc.
IP rating is also known as Ingress Protection or International Protection ratings are defined to the international standard of EN 60529 (British BS EN 60529:1992). This standard is used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies such as tools, dirt and moisture.
BIT-SPT30-D single axis azimuth positioner features IP66 ingress protection. Below is explanation of IP66 rating:
Protected from total dust ingress.
Protected from high pressure water jets from any direction.
1 unit is acceptable for an order.
For small quantity standard BIT-SPT30-D single axis azimuth pan positioner, lead time will be around 3 week. For customized order, it depends.
