· Maximum load capacity 50kg/110lb
· Servo motor direct drive, high precision, quick response
· Die-cast aluminum material
· 360 degree continuous pan/azimuth rotation
· Pan/azimuth speed 0.01°～180°/S
· Preset accuracy: ±0.05°
· Self-lock with memory after power failure
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Rated IP66 for dust and water ingress

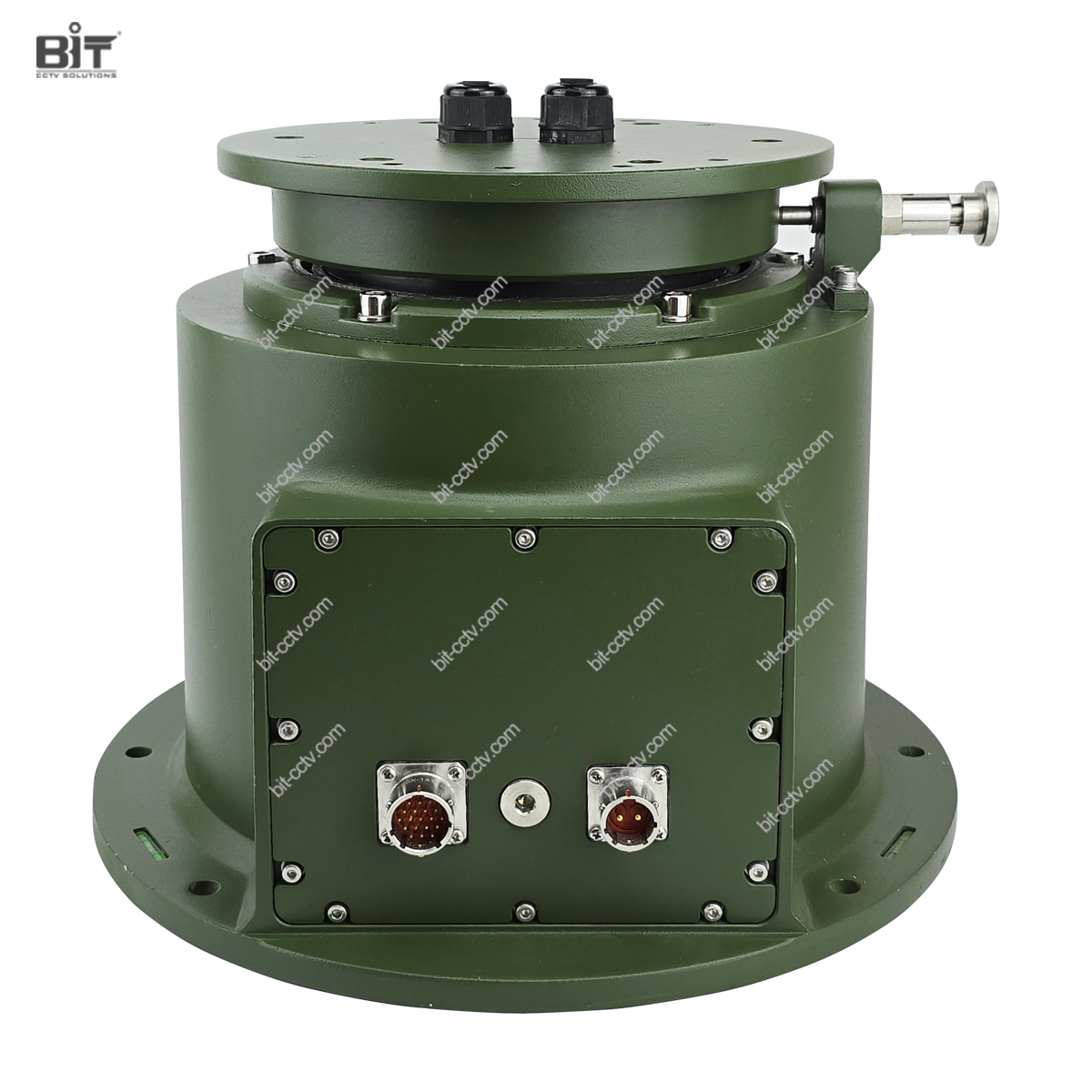

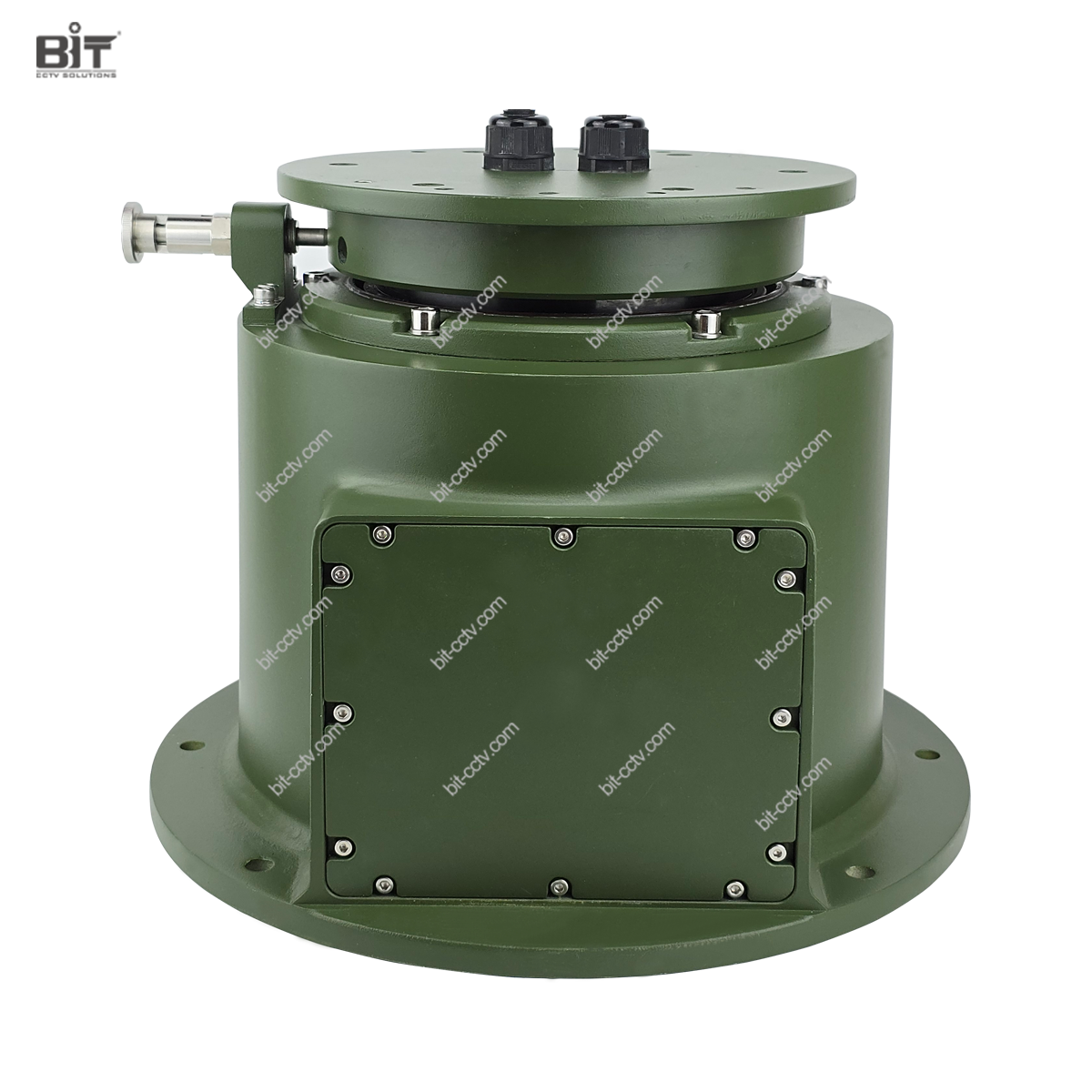

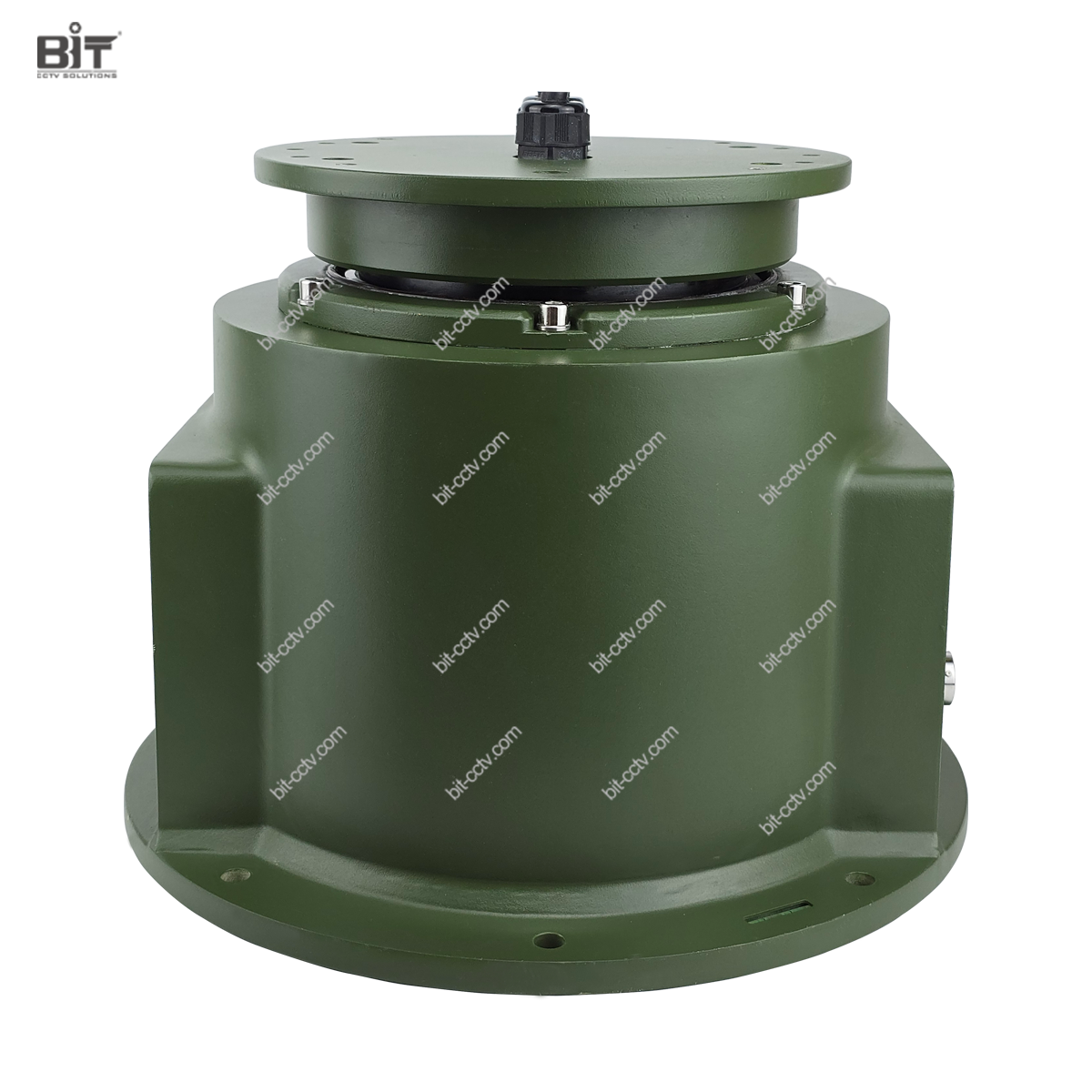

BIT-SPT50-D is a 50kg/110lb top load sing-axis pan positioner/azimuth rotator that will only rotate in pan direction, but not tilt direction. With built-in direct drive servo motor, its maximum rotation speed can reach up to 180°/S with 0.05 degree preset accuracy. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-SPT50-D, including preset, cruising track, auto scan and guard location.
BIT-SPT50-D pan positioner/rotor is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.
Model | BIT-SPT50-D |
Load Capacity | 50Kg/110lb |
Load Type | Top load |
Drive Transmission | Servo motor direct drive |
Rotation Speed | Pan 0.01°～180°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） |
Preset | 200 |
Repeat Accuracy | ±0.05° |
Cruising Track | 8, each with 10 positions |
Guard Location | Back to home position in 1～60 min |
Auto Scan | 1 |
Communication | PELCO_D/PELCO_P |
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） |
Interface | RS485（optional RS485/RS422/RS232） |
General | |
Power Input | DC24V ±20% |
Consumption | Max≤90W |
Working Temperature | -40℃～+65℃ |
Storage Temperature | -40℃～+70℃ |

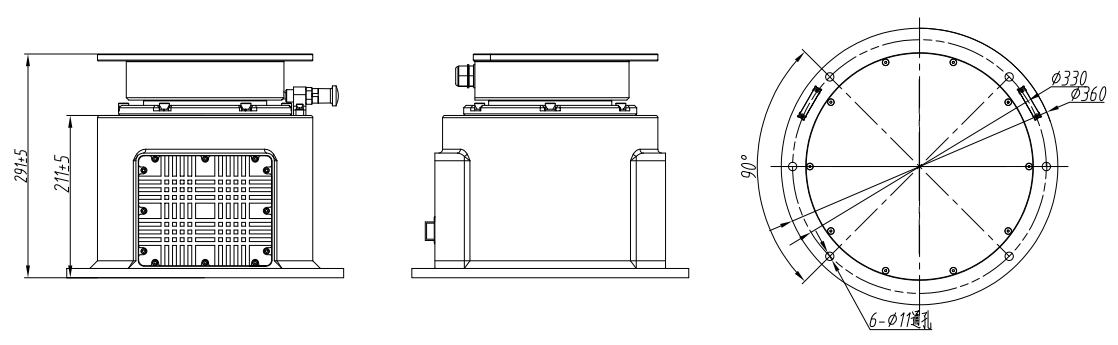

Top Plate Diameter | 330mm |
Dimension (mm) | 360×360×291mm/14.17x14.17x11.46in (L×W×H) |
Weight | 25kg/55lb |
Protection | IP66 |
BIT-SPT50-D Outdoor 50kg Load Servo Direct Drive Single Axis Pan Positioner will be properly packed in wood carton for long distance transportation.
Yes, logo printing is available for BIT-SPT50-D Outdoor 50kg Load Servo Direct Drive Single Axis Pan Positioner order.
The regular shipping methods are international courier like UPS/DHL/FedEx or by air.
For applications with radar, antenna, etc, it requires fast response, fast rotation speed and high accuracy. Pan positioner with servo motor direct drive makes it possible.
