· Maximum load capacity 60kg/132lb
· Die-cast aluminum material
· 360 degree continuous pan/azimuth rotation
· Pan/azimuth speed 0.01°～30°/S
· Preset accuracy: ±0.1°
· High precision worm/gear drive and stepper motor transmission
· Self-lock with memory after power failure
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Rated IP66 for dust and water ingress

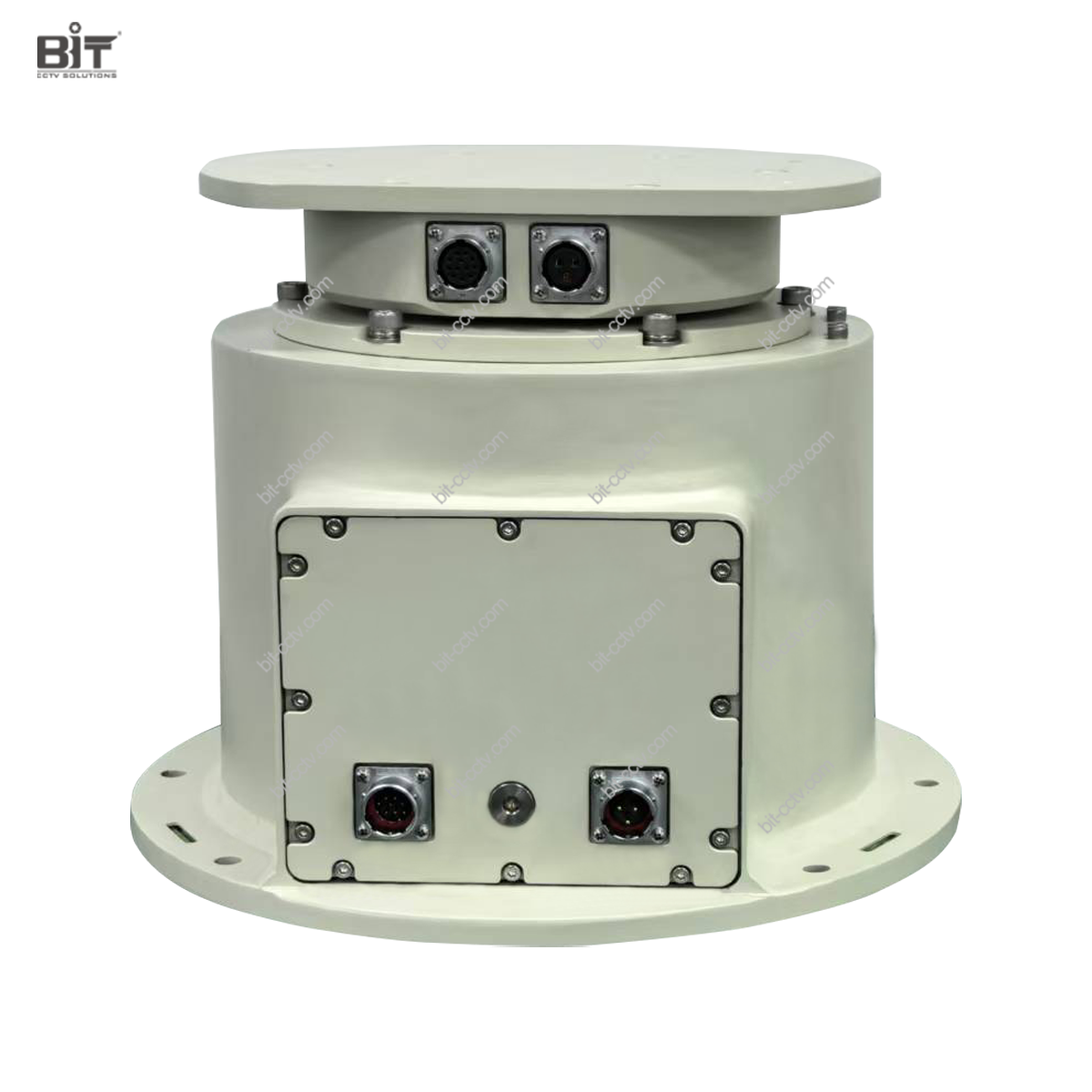

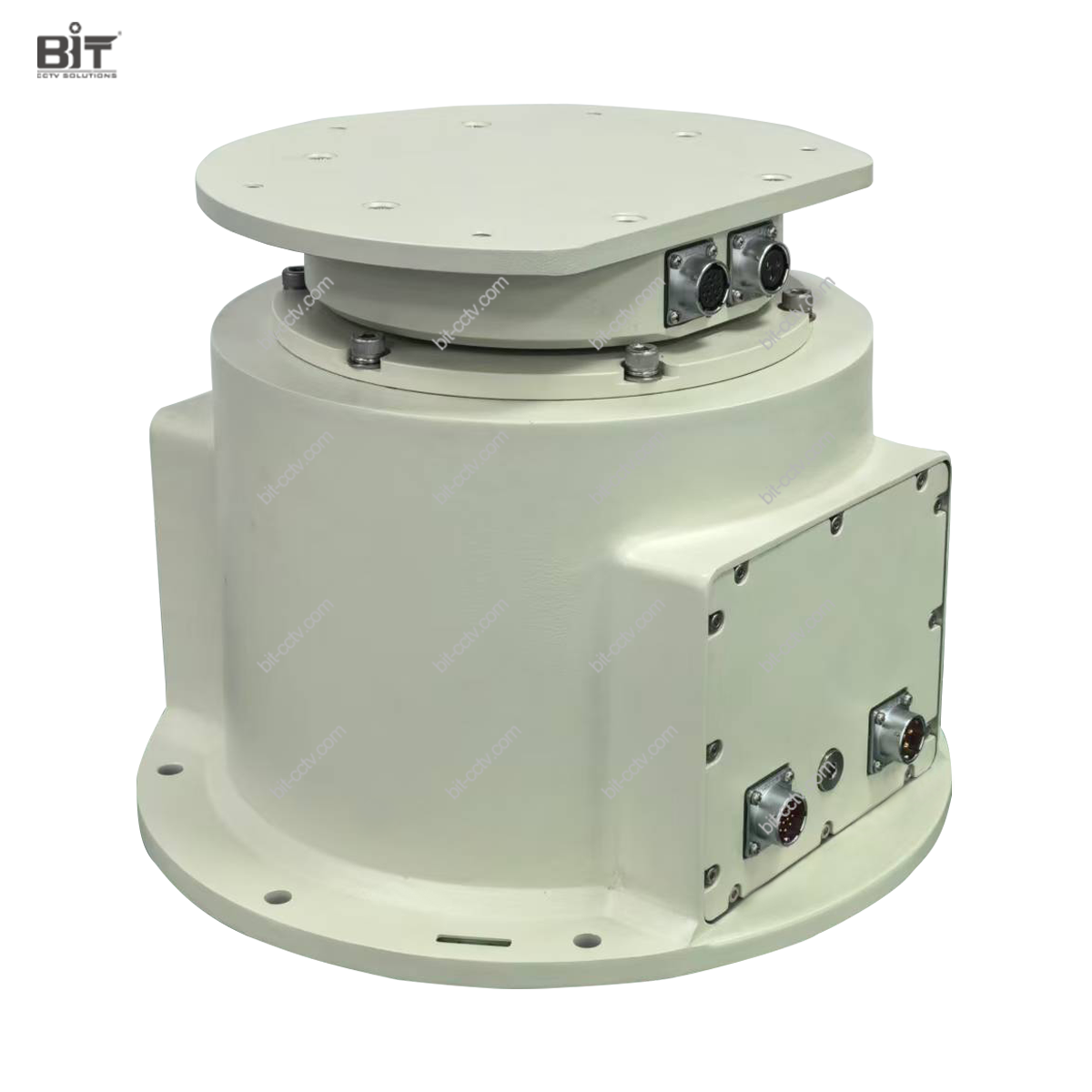

BIT-SPT60 is a 60kg/132lb top load heavy duty sing-axis pan rotator positioner that will only rotate in pan direction, but not tilt direction. With worm/gear drive transmission, its maximum rotation speed can reach up to 30°/S with 0.1 degree preset accuracy. It is made of die-cast aluminum material and equipped with default dual military level connectors. Many other advanced features are available on BIT-SPT60, including preset, cruising track, auto scan and guard location.

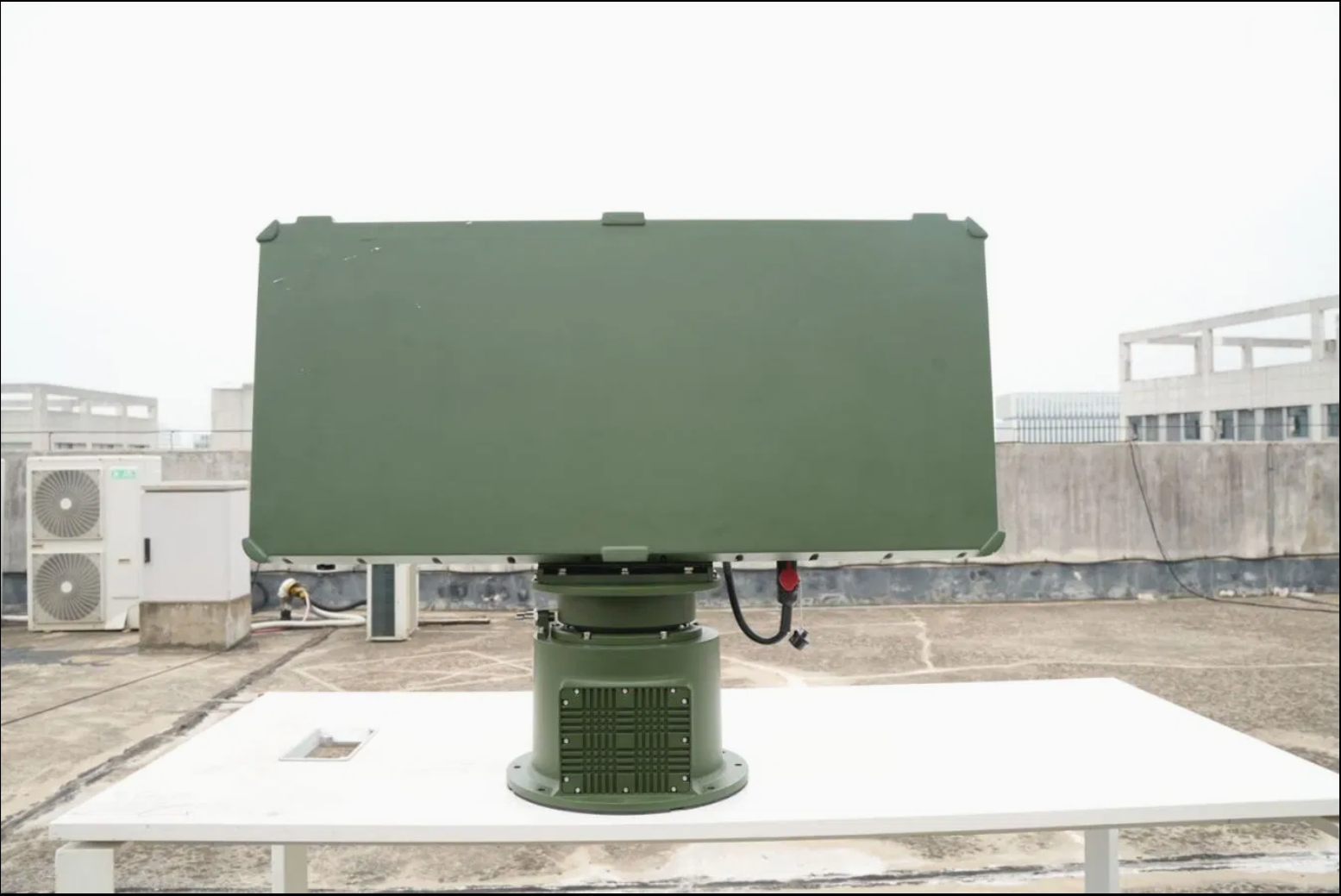

BIT-SPT60 pan positioner is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.
Model | BIT-SPT60 |
Load Capacity | 60Kg/132lb |
Load Type | Top load |
Drive Transmission | Worm gear transmission |
Rotation Speed | Pan 0.01°～30°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） |
Preset | 200 |
Repeat Accuracy | ±0.1° |
Cruising Track | 8, each with 10 positions |
Guard Location | Back to home position in 1～60 min |
Auto Scan | 1 |
Communication | PELCO_D/PELCO_P |
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） |
Interface | RS485（optional RS485/RS422/RS232） |
General | |
Power Input | DC24V ±20% |
Consumption | Max≤60W |
Working Temperature | -35℃～+65℃, 90%±3%, no condensing |
Storage Temperature | -40℃～+65℃ |

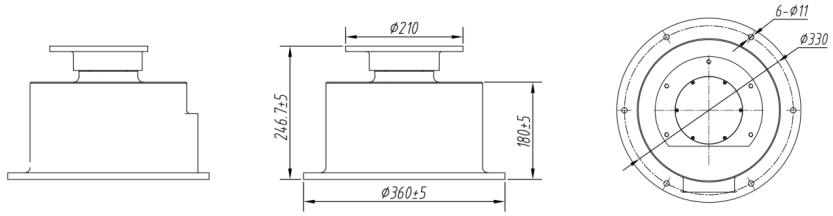

Top Plate Diameter | 330mm |
Dimension (mm) | 400×400×265mm/15.75x15.75x10.43in (L×W×H) |
Weight | 16kg/35lb |
Protection | IP66 |
It is made of die-cast aluminium alloy with oxidation treatment and high quality corrosion resistant surface painting for outdoor, all weather application.
The default control protocol is Pelco D, address is 01 and baudrate is 9600. If users need other settings for their system use, we can set in advance in factory or they can reset by themselves.
