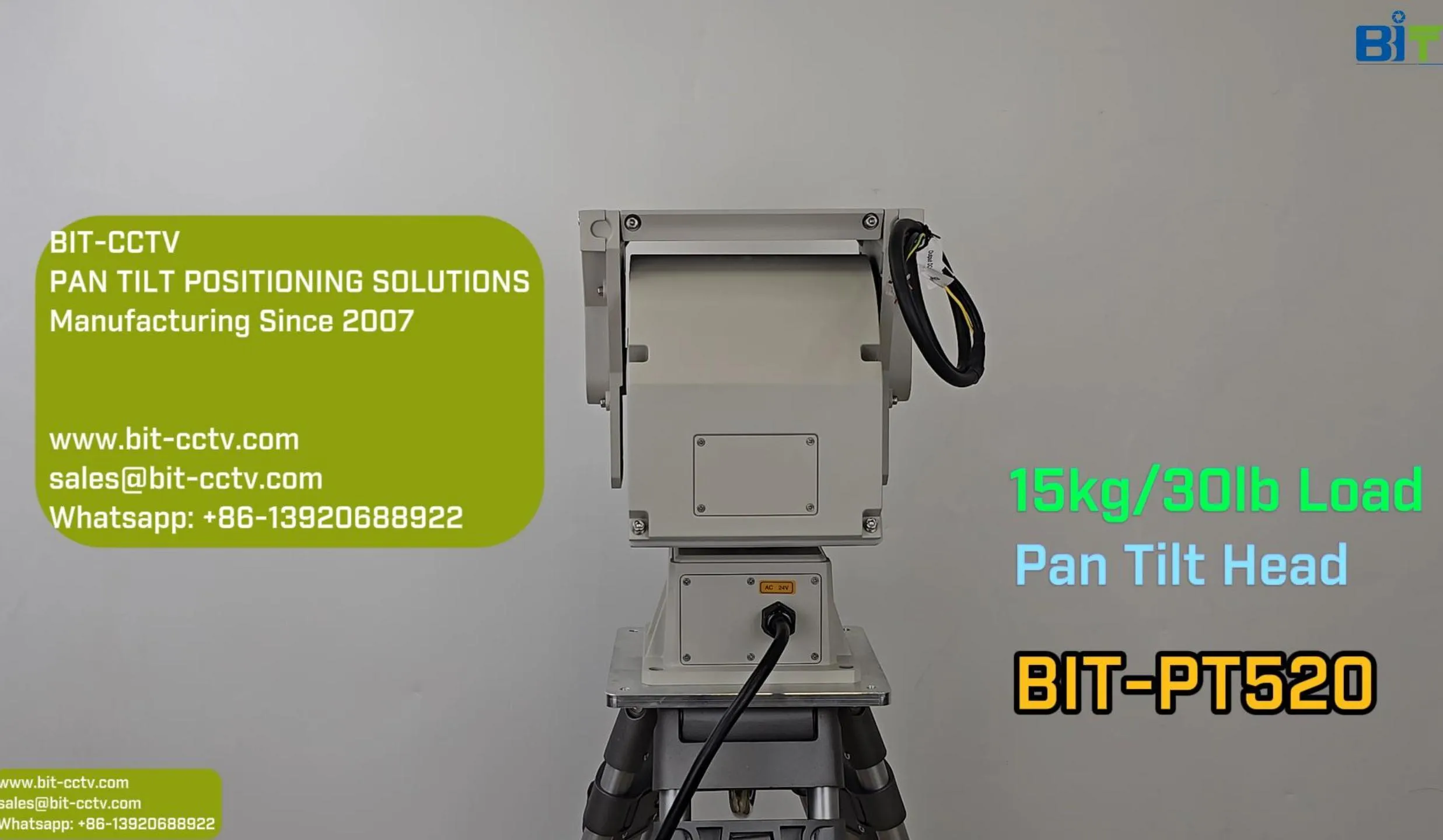

This BIT-P520 pan and tilt head provides all-round accurate pointing and operational stability for industrial monitoring and multi-sensor integration with an ultra-high positioning accuracy of ± 0.1 and a carrying capacity of up to 15kg. Bit-cctv is the source manufacturing plant that has been deeply cultivated in the industry for 19 years. It eliminates middleman profits, supports flexible customization and bulk procurement, and provides you with more competitive ex-factory prices and industry-leading delivery speeds.
Material
High strength aluminum alloy
IP Rating
IP66
Rotation Angle
horizontal 360 degree continuous
Load Capacity
15Kg
Working Temperature
-40 degree ~65 degree
Positioning Accuracy
0.1 degree
Communication
Pelco D/P Protocol
supports top-mounted or side-mounted installation, can carry infrared thermal imager and large-magnification visible light camera at the same time, and meets the synchronous pointing requirements of multi-spectral monitoring in complex environments.
the use of high-precision grinding stage worm gear structure, mechanical clearance reduced to less than 0.1 degrees, effectively eliminate the picture due to mechanical jitter caused by fuzzy, significantly extend the mechanical life of equipment.
Built-in industrial-grade heating and cooling cycle system, to ensure that the equipment in -40 degrees cold and 70 degrees high temperature environment can still maintain a stable rotation frequency and control accuracy.
supports real-time coordinate query and absolute pointing control, and can quickly return to the preset cruise position even after power failure and restart, ensuring that there is no dead angle coverage in key monitoring areas.
the surface of the fuselage has been treated with deep three defenses, with strong anti-salt spray and corrosion resistance, and can operate stably for more than 5 years in harsh environments such as coastal ports or chemical industrial parks.
The physical characteristics of the worm gear provide excellent dynamic self-locking ability, and can still maintain the pointing without drifting in the face of 12-level strong wind impact, protecting precision optical loads from structural vibration damage.
| Parameter categories | Technical indicators | Detailed data description |
| Mechanical properties | Transmission method | High-precision stepper motor with worm gear drive |
| Horizontal rotation range | Continuous rotation from 0° to 360° | |
| Vertical rotation range | +40° to -75° (customizable upon request) | |
| Horizontal rotation speed | 0.01°/s ～ 60°/s (speed adjustable) | |
| Load and materials | Maximum top load capacity | 15kg |
| Shell material | Die-cast aluminum alloy/stainless steel fasteners | |
| Electrical characteristics | Operating voltage | DC 24V / AC 24V |
| Communication interface | RS-485 / RS-422 | |
| Control Protocol | Pelco-D / Pelco-P | |
| Environmental adaptability | Protection level | IP66 Industrial Waterproof and Dustproof |
| Wind resistance | Normal working status: Level 10; Non-working status: Level 12 | |
| Operating humidity | Relative humidity less than 95% |
Bit-cctv high-precision pan-tilt through 0.01-degree micro-step control, to solve the long-distance tracking process, the common equipment due to the step angle is too large to cause the target to jump out of the center of the screen problem..
In view of chemical corrosion and salt spray environment, we have solved the problem of mechanical jam caused by corrosion of common metal shell through special surface coating process, and the maintenance period is extended by 2 times.
Bit-cctv supporting multiple standards and extended protocols, it solves the technical barriers of different brands of back-end platforms responding slowly or incompatible to control instructions in large-scale integration projects..

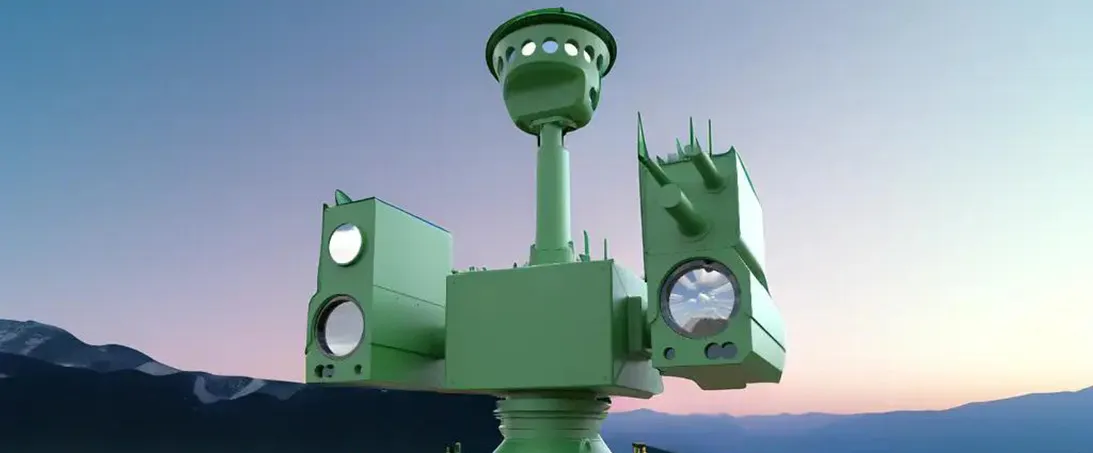

.webp "Security System Integrator")
Suitable for undertaking large smart cities, border security and military base enclosure monitoring projects of professional contractors, to meet the needs of high stability load pointing.

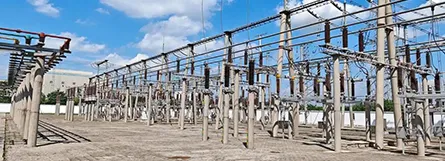

.webp "Energy and Infrastructure Engineers")
Provide monitoring platform support that meets industrial-grade anti-corrosion standards for harsh environments such as offshore wind farms, oil pipelines and nuclear power plants.

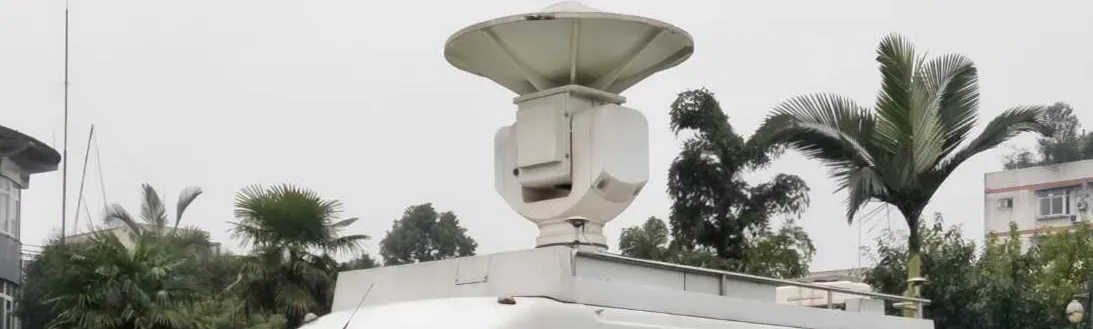

It is suitable for scientific research units that need to carry laser rangefinder, radar antenna or high-precision meteorological sensor to provide stable multi-dimensional rotating platform
.webp "Port and Logistics Hub Operation and Maintenance Party")
To solve the port large-scale lifting monitoring and shore-based defense system, heavy-duty cloud in the strong wind and high salt fog environment of the continuous operation of the problem.
according to the wiring definition diagram, connect the DC 24V power line and RS485 control signal line to ensure that the aviation plug is tightened in place..
Set the communication address code and baud rate through the internal dip switch or software management interface to ensure consistency with the back-end control system protocol..
The gimbal base is firmly installed on a stable column or bracket platform through M8 bolts, and the reference surface is calibrated with a level..
After power-on, the equipment will automatically perform horizontal and vertical full-stroke self-inspection rotation, and make sure that there is no physical obstacle interfering with the load operation within the rotation range..
Answer: The standard maximum top load of this model pan and tilt head is 15kg, which can stably support the dual-load monitoring system.
Answer: The default support industry common Pelco-D and Pelco-P protocol, and can be controlled through the RS485 interface.
Answer: No, the intelligent constant temperature system has been integrated inside the equipment, which can automatically start heating to ensure operation in a negative 40 degree environment.
Answer: Yes, we can customize the vertical pitch angle range to cover a specific monitoring area according to your specific application needs.
Answer: The whole machine meets the IP66 protection standard, which can completely prevent dust from entering, and can withstand strong water spray from all directions.
Answer: Yes, the current horizontal and vertical accurate angle coordinates of the PTZ can be obtained in real time through RS485 return instructions.
