BIT-CCTV independent bullet camera shield provides IP66 protection and aluminum alloy structure bearing for your existing camera to ensure long-term reliable operation of outdoor monitoring system. BIT-CCTV is the source manufacturer, with its own precision die-casting and machining production line, providing you with full-configuration shields from single warehouse to double warehouse, from basic type to temperature control and wiper, eliminating intermediate links and directly supplying them at ex-factory price.
Protection rating
Body material
Operating temperature
Input power
Maximum power consumption
Window Material
Optional temperature control
Optional accessories
The shield has passed the IP66 dust and powerful water spray protection test, which can resist wind, rain, dust and washing, ensuring the stable operation of the internal camera in outdoor all-weather...
The aluminum alloy die-casting main body is used to ensure sufficient impact stiffness while maintaining lightweight design, which is convenient for high-altitude or wall-mounted construction, and has...
The internal effective length of the single bin shield covers a variety of specifications of 174 mm to 550mm, and the width is 90 mm to 140mm. It can be installed in a box camera with zoom lens and a ...
The built-in heater starts automatically at 8°C ± 5°C, turns off at 20°C ± 5°C, and turns on the fan to exhaust heat at 37°C ± 5°C. The dual temperature control scheme effectively solves the ...
The optional sunshade can reduce the internal temperature rise caused by solar radiation, and the wiper can keep the window clear in rain, snow or dust weather and reduce the frequency of manual clean...
The basic model of the shield corresponds to the suffix of K (sunshade), SHK (sunshade heating/fan) and SHKW (sunshade heating/fan wiper) one by one to ensure that the configuration of each set of equ...
| model | External dimensions (mm) | Internal space (mm) | Window size (mm) | Weight (kg) | Protection level | Operating temperature |
|---|---|---|---|---|---|---|
| BIT-HS4512 | 376×137×160 | 174×90×72.5 | 67×57 | 1.9 | IP66 | -35°C to +60°C |
| BIT-HS4515 | 452×137×160 | 250×90×72.5 | 67×57 | 2.6 | IP66 | -35°C to +60°C |
| BIT-HS4718 | 585×189×194 | 280×125×104 | 102×89 | 5.0 | IP66 | -35°C to +60°C |
| BIT-HS4722 | 640×189×194 | 370×125×104 | 102×89 | 5.5 | IP66 | -35°C to +60°C |
| BIT-HS4823 | 740×235×190 | 400×140×125 | 134×108 | 6.5 | IP66 | -35°C to +60°C |
| BIT-HS4829 | 893×235×190 | 550×140×125 | 134×108 | 7.0 | IP66 | -35°C to +60°C |
| BIT-HS4211 (Dual Compartment) | 315×216×116 | Each of the two compartments measures 170×70×80 mm. | Diameter 58 | 2.5 | IP66 | -35°C to +60°C |
| BIT-HS4215 (Dual Compartment) | 524×366×185 | Each of the two compartments measures 190×108×130 mm. | 100×90 | 6.5 | IP66 | -35°C to +60°C |
| BIT-HS4218 (Dual Compartment) | 600×366×185 | Each of the two compartments measures 280×108×130 mm. | 100×90 | 7.5 | IP66 | -35°C to +60°C |
In scenarios where both cameras and infrared illuminators need to be deployed, two separate housings and two sets of brackets are typically required, which increases cabling complexity and installatio....
Most shields on the market are only marked with basic models, and optional accessories such as heaters, fans and wipers need to be placed separately. After arrival, there are often shortage of parts o....
The common shield only marks the external size, and does not provide accurate internal effective space and window light size. After the integrator selects the type, it is found that the lens collides ....

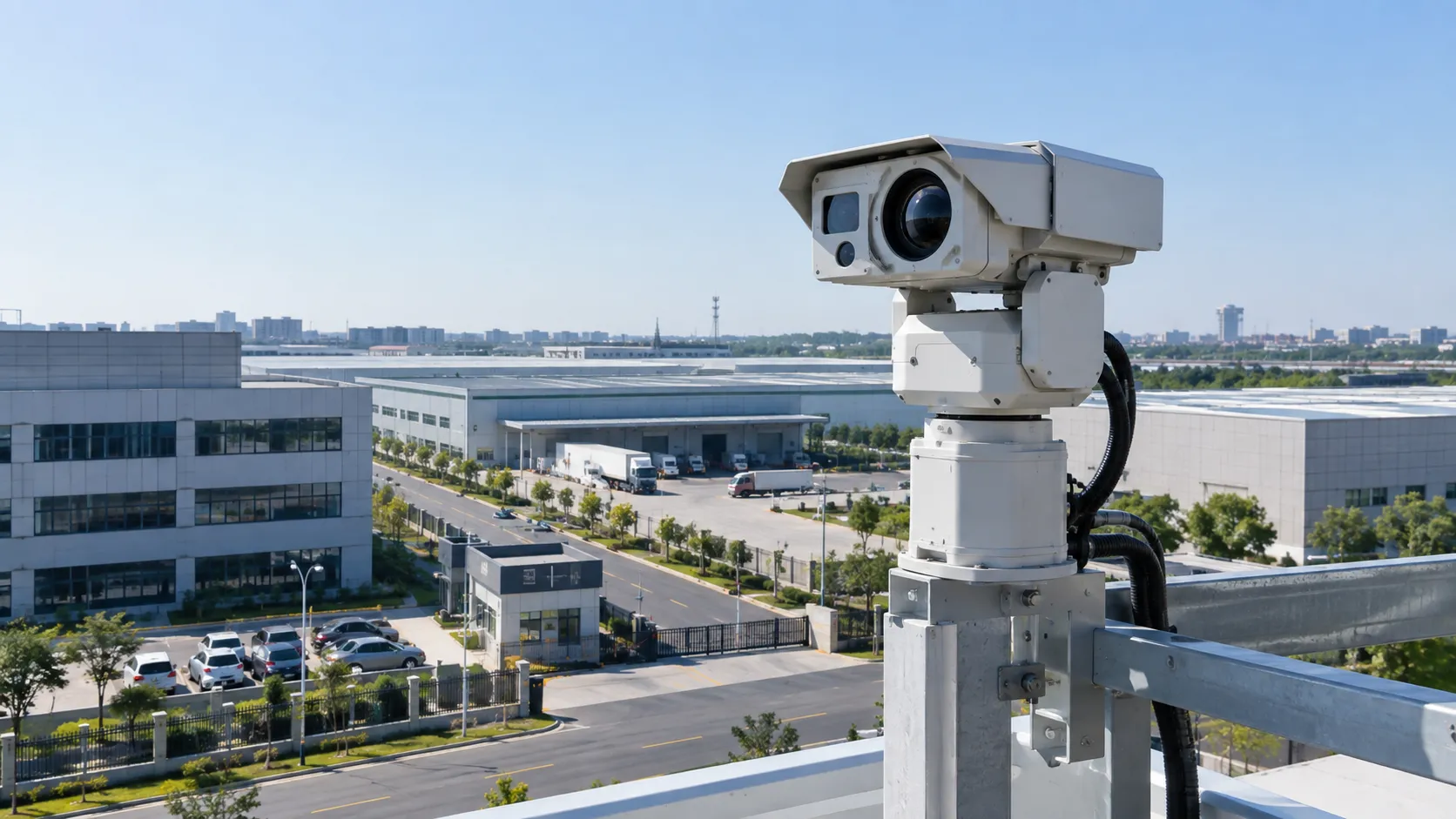

To design monitoring solutions for end customers such as factories, parks, parking lots, and commercial buildings, it is necessary to select and adapt outdoor shields for existing box cameras or integ...

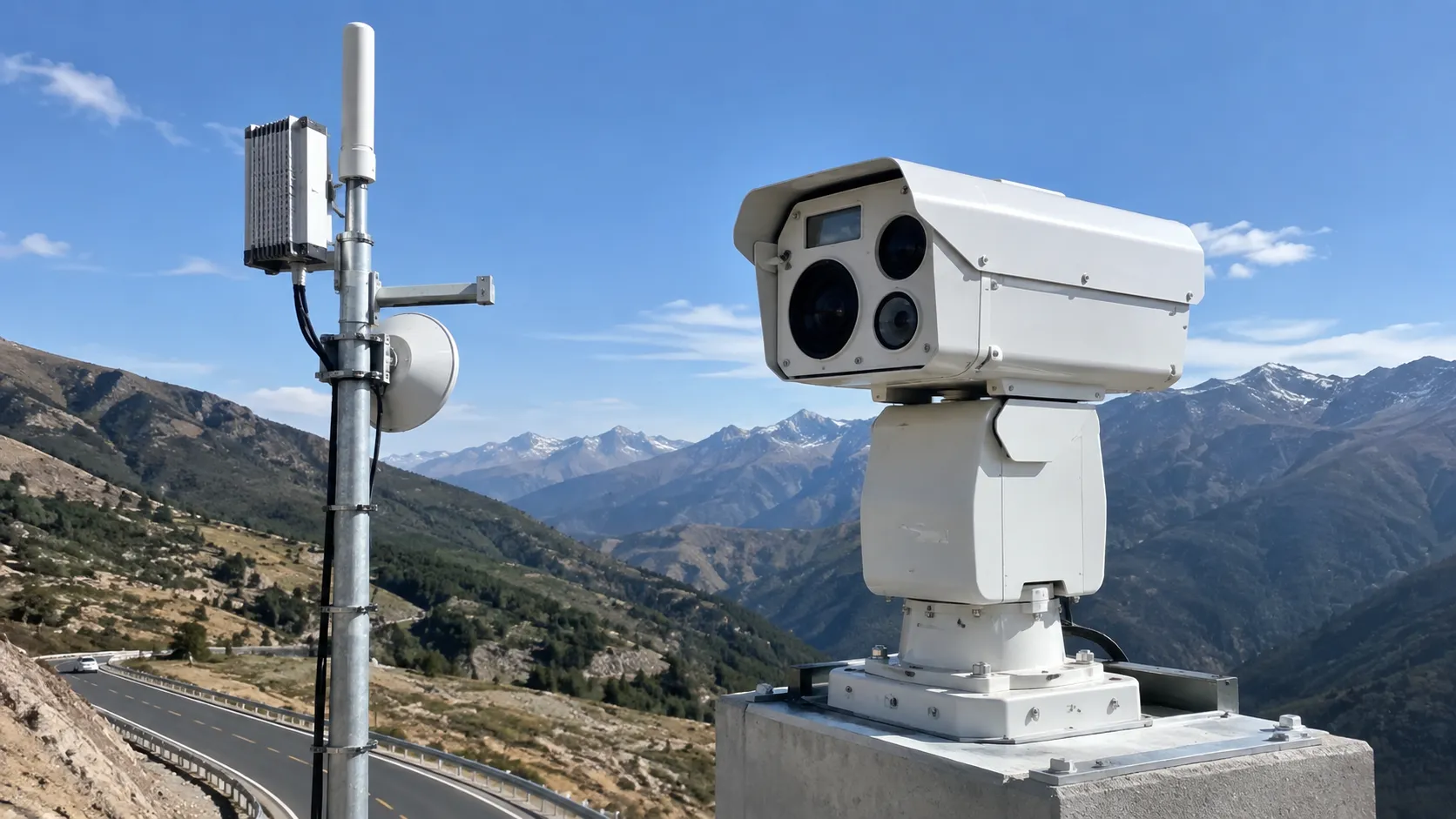

Responsible for on-site installation and commissioning, requires a spacious internal operating space and an intuitive tray adjustment mechanism for quick assembly and optical axis alignment when insta...

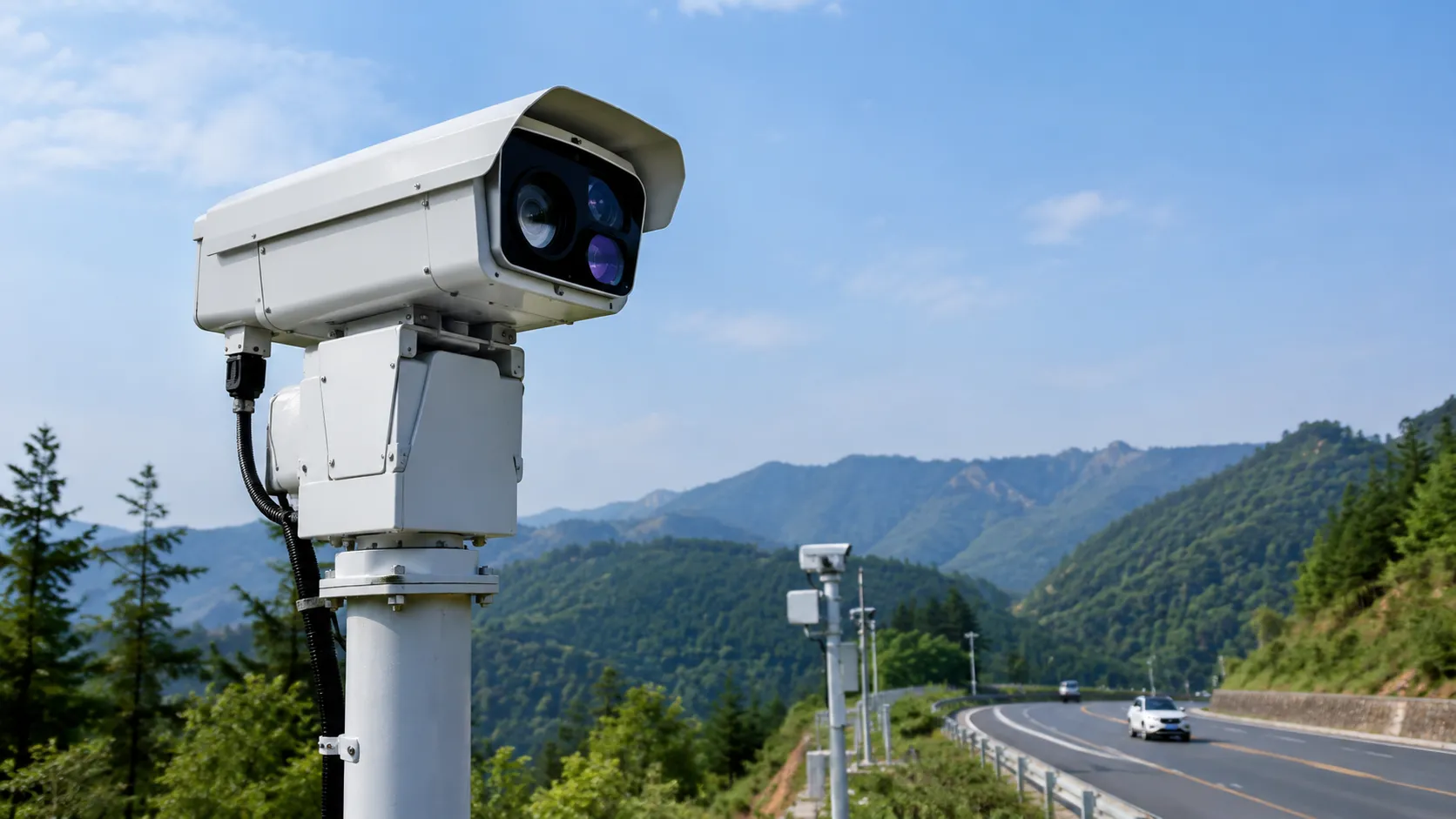

For small and medium-sized engineering companies to provide standardized shield products, the need for multi-size, multi-configuration model matrix to cover different project needs, while requiring tr...

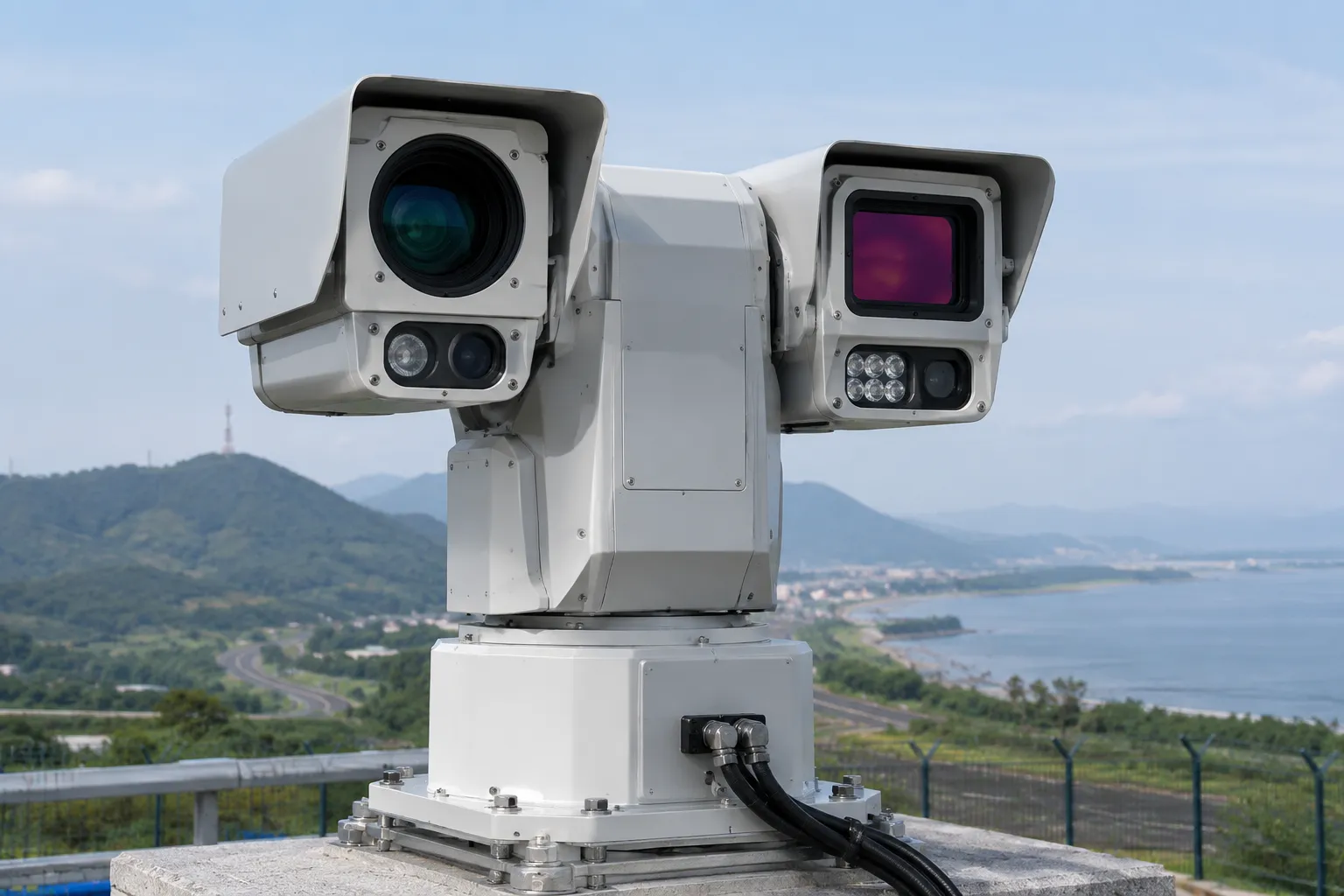

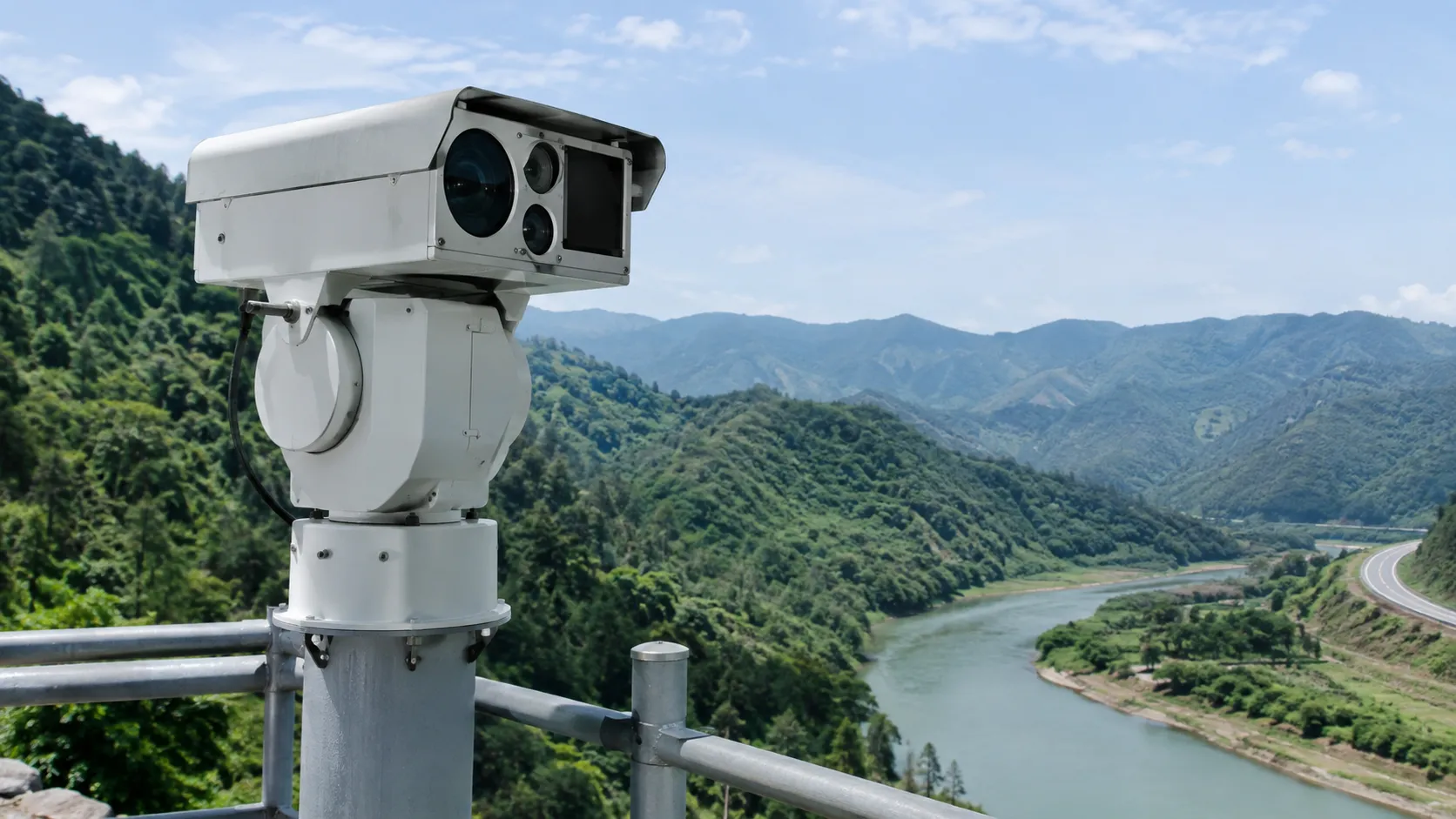

The shield needs to be integrated with its own camera module, infrared illuminator or heating module into a finished product. The BIT-CCTV double-bin shield provides independent equipment space to mee...
Compare the camera, lens and rear connector with the internal space of the shield and the aperture of the window to ensure that the zoom lens does not hit the front window or tray at the farthest end..
Fix the camera on the tray, adjust the height of the optical axis through the sliding slot or cushion block, make the center of the lens align with the effective area of the window, and confirm that t....
The cable gland shall be matched with the outer diameter of the cable and tightened according to regulations. The unused openings shall be closed with original plugs. A drip bend shall be reserved in ....
Before closing the shield, turn on the power and test the actual working status of the camera, heater, fan and wiper one by one. After confirming that there is no internal interference, lock the seali....

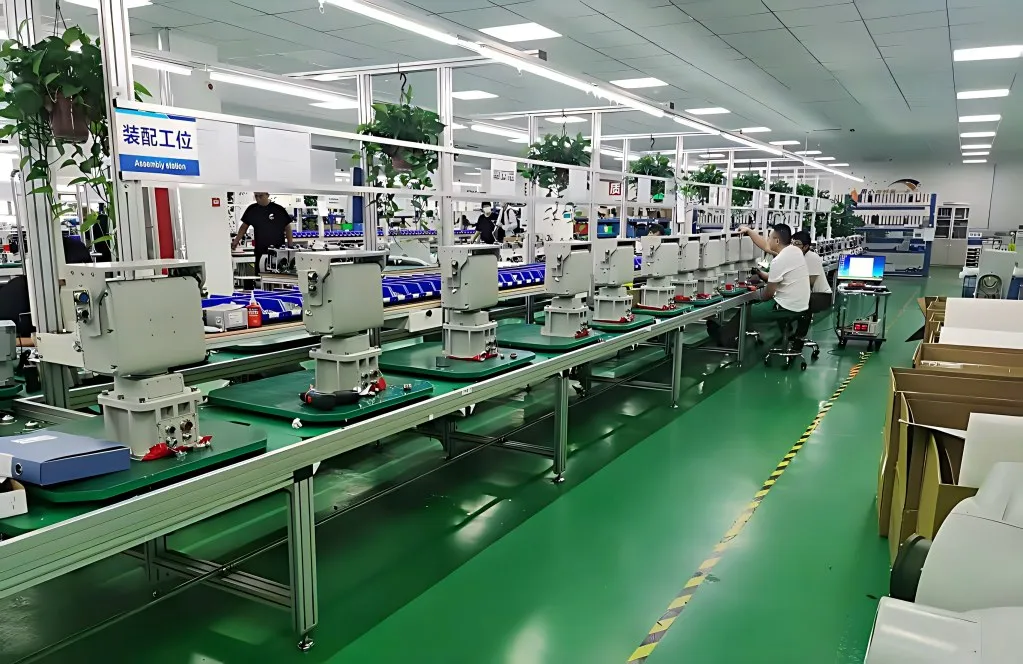

.webp "Factory")
Bullet camera housing is an independent protective shell, used to fit your existing camera and lens combination; The body and shell of the integrated bullet camera are an inseparable whole machine. Be...
Measure the length of your camera body plus the total length of the lens to the fully extended position, and check the rear video/power connector and cable bend space. This combination can be itemized...
IP66 can be completely dust and resistant to strong water spray, suitable for most outdoor monitoring scenarios, including wind and rain blowing and washing environment. IP67 or higher for temporary f...
In areas where the minimum ambient temperature may be lower than 0°C, heaters should be used to prevent frost and internal condensation; when the internal temperature rises significantly due to direc...
Sure. A variety of BIT-CCTV single warehouse shields (such as BIT-HS4512, BIT-HS4515, BIT-HS4718, BIT-HS4722, BIT-HS4823, BIT-HS4829) and double warehouse shields can be respectively adapted to BIT-PT...
No. The shield can be optionally equipped with wipers to remove attachments from the window surface, but the separate wipers do not contain the washer pump, reservoir and spray nozzles. If automatic c...
