bit-cctv is a leading manufacturer of bulletproof camera housings, integrating R&D, production, and quality testing. We supply directly to government security projects and system integrators, eliminating intermediaries to offer you high-quality, UL 752–certified products at highly competitive factory prices.
Bulletproof rating
Housing material
Protection rating
Operating temperature
Window glass
Impact resistance rating
Power supply
Maximum power consumption
Product net weight
The shell adopts IP68 fully sealed design to support internal nitrogen positive pressure, completely prevent moisture, dust and corrosive gases from entering, and ensure long-term stable operation in ...
the shell has passed the independent ballistic test of UL 752 standard in the United States, and can resist different grades of ammunition attacks from 9mm pistol to 7.62mm rifle, ensuring the continu...
the double-layer shell design of 1026 cold-drawn high-strength steel is adopted. When a bullet hits, the outer shell absorbs impact kinetic energy, and the inner bulletproof bushing blocks penetration...
built-in intelligent heating and heat dissipation air circulation system, automatically adjust the temperature of the cavity, to ensure that the camera can start normally and work continuously in extr...
the window adopts four-layer composite bulletproof insert, which maintains high optical clarity while realizing bulletproof reliability, and does not affect the daytime and infrared night vision imagi...
all fasteners adopt tamper-proof special screws, and the shell and wall-mounted bracket are integrated locking design, effectively preventing human prying, disassembly or damage, and meeting the requi...
| Parameter categories | Parameters | Specifications |
|---|---|---|
| bulletproof performance | Certification Standards | UL 752 (Level 1-8 customization available) |
| Can withstand ammunition | 9 mm FMJ / .357 Mag / .44 Mag / 5.56 mm / 7.62 mm | |
| Observation window protection | Four-layer composite bulletproof inserts, 1.25 inches thick | |
| Shell structure | Main materials | 1026 cold-drawn high-strength steel / 304 stainless steel |
| Surface treatment | Outdoor-grade UV-resistant powder coating | |
| Impact resistance level | IK10 | |
| Environmental adaptability | Protection level | IP68 (Completely dustproof and water-resistant) |
| Operating temperature | -40°C ~ +60°C | |
| Operating humidity | ≤95% RH (non-condensing) | |
| Corrosion resistance level | NEMA 4X / C5-M | |
| Electrical parameters | Power input | PoE+ (IEEE 802.3at) / AC 24V / AC 110-240V |
| Maximum power consumption | 30W (including heater/fan) | |
| Surge protection | TVS 6000V | |
| Mechanical parameters | External dimensions (reference values) | 523 × 297 × 221 mm |
| net weight | 15-30 kg (depending on bulletproof rating) | |
| Installation method | Wall-mounted/pole-mounted/corner-mounted bracket adapter | |
| compatibility | Compatible with cameras | 1/3-inch and 1/2.8-inch CCD/CMOS format cameras |
| Interior available space | Supports custom tray adaptation for mainstream cameras and lens groups | |
| appendix | Standard configuration | Wall mount brackets, tamper-proof screw tool kit |
| Optional | Nitrogen filling kit, universal mounting bracket, explosion-proof flexible conduit |
The bit-cctv adopts high-strength lightweight steel design, and the overall weight is controlled at the lower limit of similar products through shell structure optimization, reducing the additional in....
bit-cctv each batch of shells are ballistic tested according to UL 752 standard and provide test reports to ensure that your bidding project acceptance is well documented..
bit-cctv bulletproof camera housing supports customization of camera tray. You only need to provide the camera model, and we can pre-install the adapter base. Direct installation on arrival does not r....

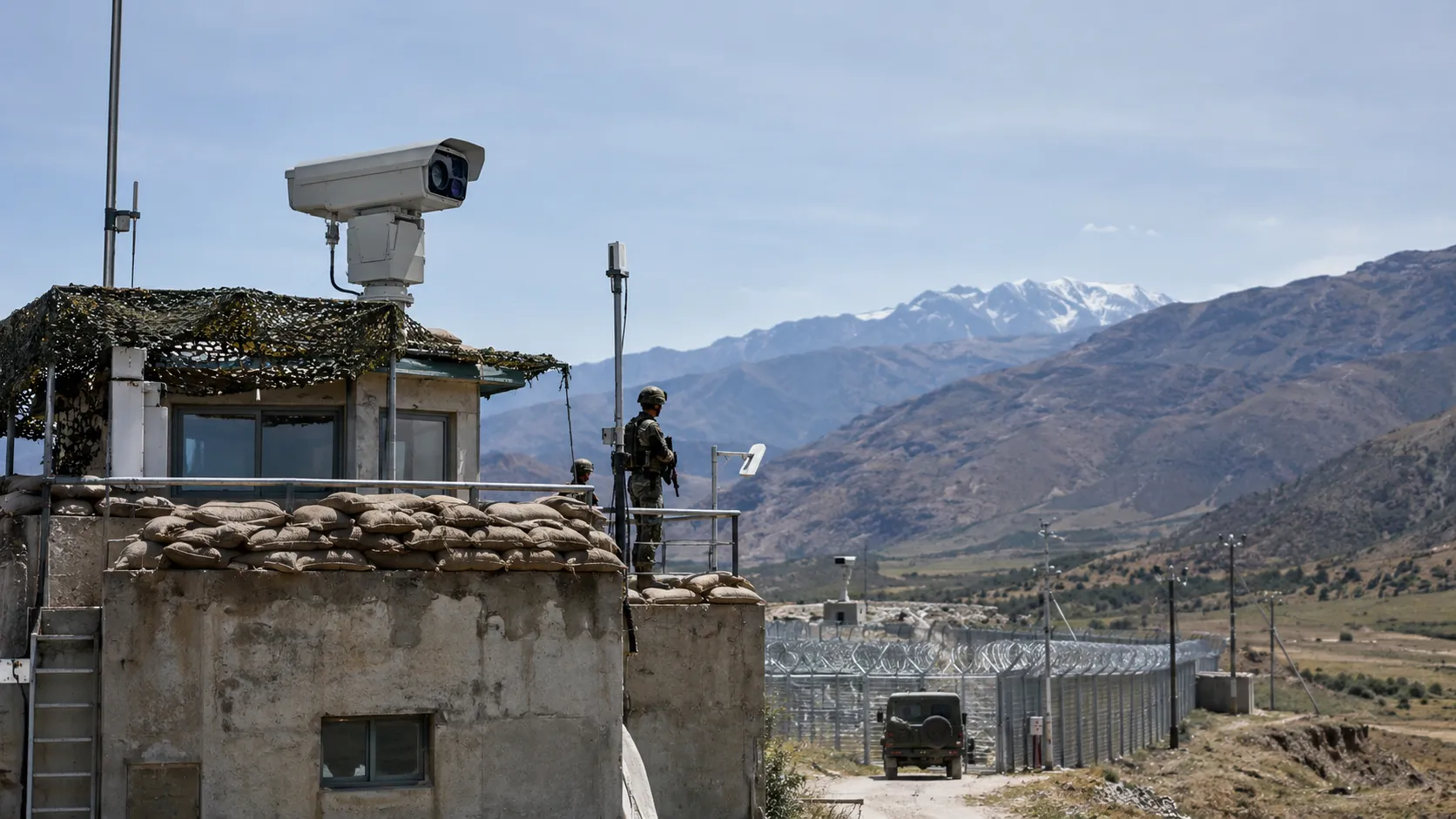

military units responsible for perimeter monitoring and access control in high-threat areas need bulletproof protective housings that can continuously record images in gunshot attacks, explosive shock...

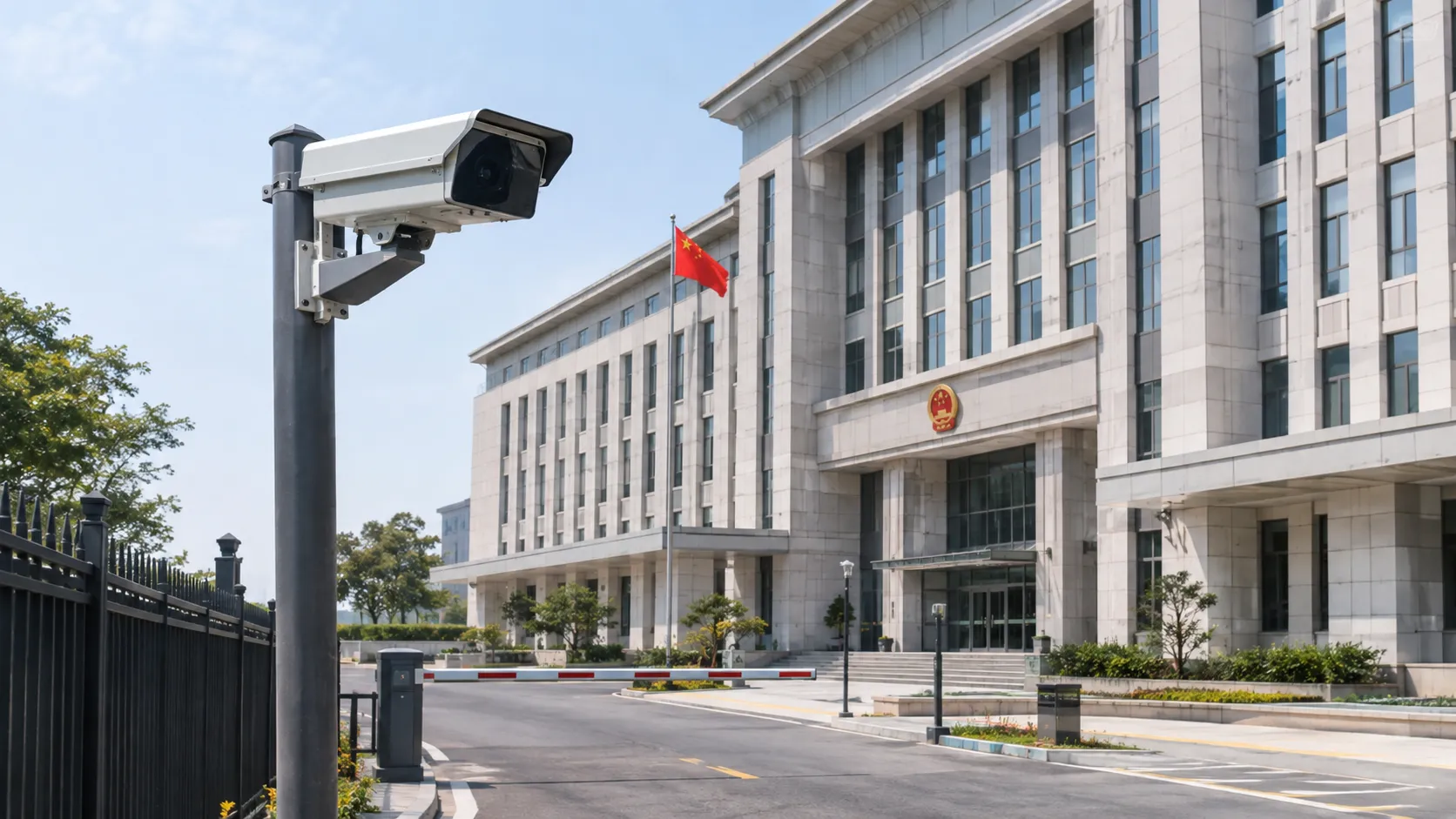

the designers and constructors of security systems for large government projects need to have UL 752 full-level certified product lines, so as to flexibly configure the bulletproof level of the shell ...

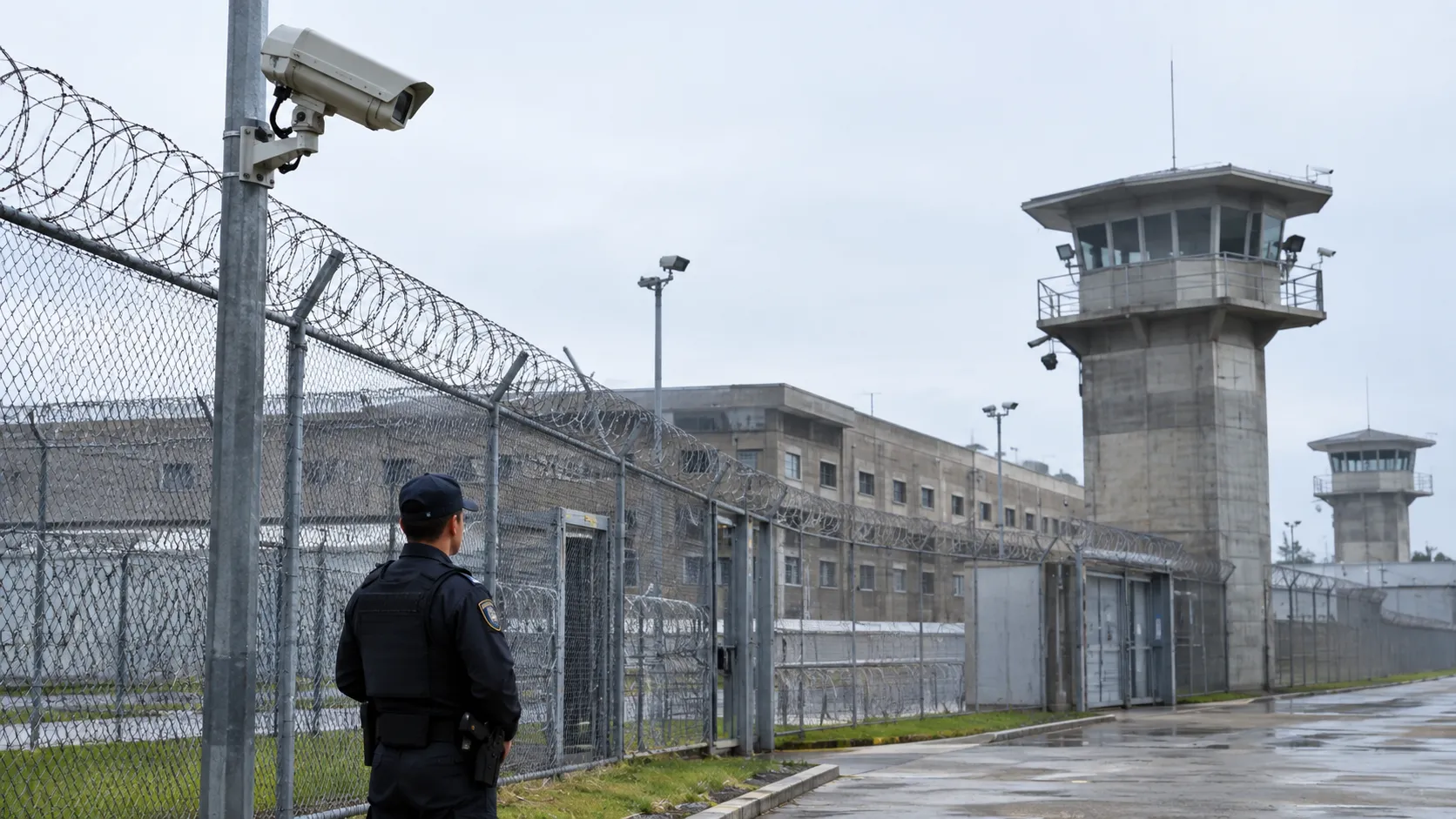

bulletproof and riot-proof camera shells with reliable grades to prevent detainees or foreign attackers from creating security loopholes by destroying monitoring facilities, while ensuring the complet...

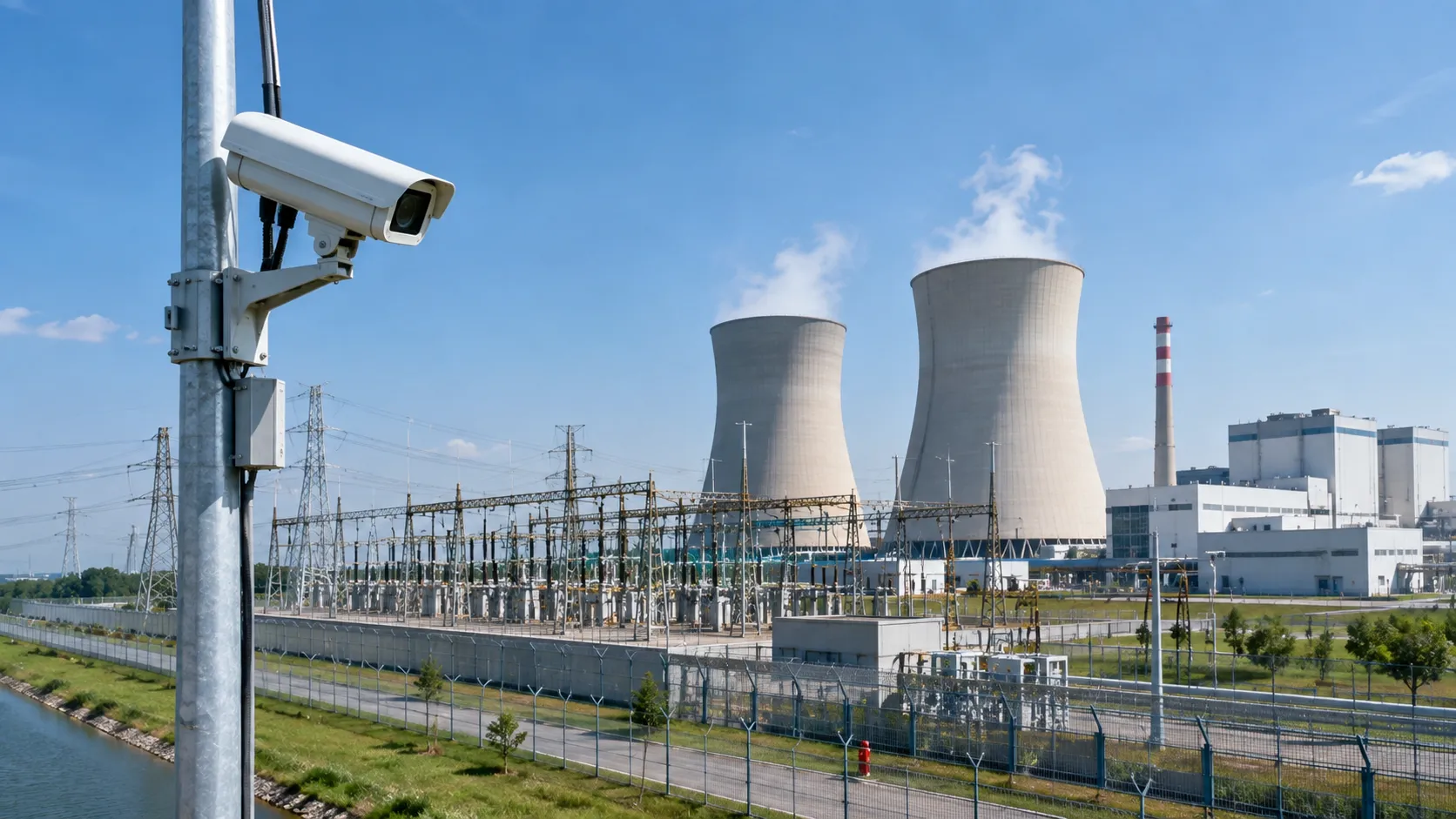

safety directors of national key infrastructure such as nuclear power plants, substations, water treatment plants, etc. require bulletproof camera shells to have IP68 protection and ultra-wide operati...
check the shell, observation window, bracket and accessories list after unpacking, check the shell appearance for transportation damage, and confirm that the bulletproof grade label is consistent with....
remove the top cover of the shell, fix the camera on the adjustable tray, adjust the center of the lens to the center of the observation window and lock the tray, connect the video and power cables an....
Make sure that all cable inlets at the bottom of the shell are equipped with waterproof sealing joints or explosion-proof flexible pipes. Apply silicone sealant and lock the cover plate to ensure that....
check the appearance of the shell for depression or rust every quarter, clean the surface stains of the observation window, verify the normal operation of the heater and fan, and check whether the sea....
.webp "Factory")
The bulletproof shell is made of high-strength steel and ballistic-tested composite bulletproof windows, which can resist direct fire from 9mm pistol to 7.62mm rifle ammunition. However, ordinary outd...
UL 752 Level 1 can withstand a 9mm handgun (3 rounds), and Level 3 can withstand… 44 Magnum revolver (3 rounds),Level 5 against 7.62mm rifles (1 round) and Level 8 against 7.62mm rifles (5 rounds). Y...
No. The observation window of the bit-cctv bulletproof camera shell adopts multi-layer composite bulletproof glass. After optical optimization design, it has high transmittance in both visible and inf...
Needed. The bit-cctv bulletproof camera housing comes standard with an intelligent temperature control system, which automatically starts the heater to prevent internal icing in a low temperature envi...
Sure. bit-cctv provide customizable camera installation tray. You only need to provide the camera model and lens size to be installed, and we can adapt the corresponding internal base and routing sche...
The factory cycle of conventional models is 15-25 working days, and the cycle of customized models is confirmed according to the specific plan. The bit-cctv provides a 2-year product quality guarantee...
