This cctv camera enclosure box provides all-weather IP66 physical protection and precision temperature control scheme to ensure the stable operation of the camera movement in harsh outdoor environment. As a source manufacturer with independent production lines and R & D capabilities, Bit-cctv eliminate all middleman costs and provide you with highly competitive factory direct supply prices and high-volume fast delivery support.
IP66
Protection Rating
die-casting aluminum alloy
Body material
-40 degrees to 60 degrees
Working temperature
more than 98%
Glass transmittance
300mm long
Internal space
IK10 grade
Impact resistance
polyester powder spraying
Coating process
customized double-layer silicone sealing ring is used with high-precision die-casting mold to ensure that the inside of cctv camera enclosure box is absolutely dry under heavy rainfall environment of 100mm per hour, thus completely eliminating the hidden danger of water vapor condensation.
built-in high-sensitivity heating module and silent exhaust fan, can automatically start heating when the temperature is lower than 5 degrees, prevent glass frosting, ensure that the camera does not go down under extreme temperatures, and extend the life of the equipment for 3 years.
the front window window is made of 4mm thick physically strengthened glass, which has extremely high light transmittance and the surface is treated with hydrophobic coating to prevent rainwater from hanging beads and ensure that the monitoring screen still maintains high contrast and clarity in rainy days.
the unique side-opening structure is equipped with a stainless steel safety lock, which enables engineers to open it with one hand when working at high altitude, thus improving the maintenance efficiency by more than 50% compared with the traditional sliding shield and reducing the construction cost.
the surface of the shell is sprayed with outdoor-grade polyester powder after three pickling and phosphating treatments, and passes the 800-hour neutral salt spray test. It will not peel off or rust for 10 years in the coastal high salt spray environment, thus ensuring the structural strength of the shield.
The bracket connection adopts reinforced universal joint design, and standard cross mounting holes are reserved, which can be perfectly adapted to mainstream brand movements such as Haikang and Dahua, and can withstand static pressure 5 times of its own weight to ensure that the picture does not shake.
| Technology Projects | Specifications and parameters details |
| Product Model | BIT-EB-3000 Industrial Series |
| External dimensions | 450mm x 165mm x 140mm |
| Internal effective dimensions | 300mm x 110mm x 95mm |
| working power supply | 24V AC / 12V DC power options available |
| Power consumption | Heater 15W / Fan 2W |
| Incoming interface | 2 PG11 waterproof cable locks |
| Surface color | Light gray (custom color options available) |
| Product weight | 2.8kg (excluding support) |
aiming at the phenomenon of water mist inside the glass caused by large temperature difference, we solved the problem of monitoring failure caused by blurred vision by internal circulating airflow and window heating..
through the multi-layer protective coating process, solve the industry pain points of shell perforation and bracket fracture after one or two years of use of ordinary shields in coastal or industrial areas..
the Bit-cctv adopts anti-falling screws and an integrated lock structure, which solves the safety hidden danger of parts falling and the problem of low construction efficiency of installation personnel during high-altitude debugging..

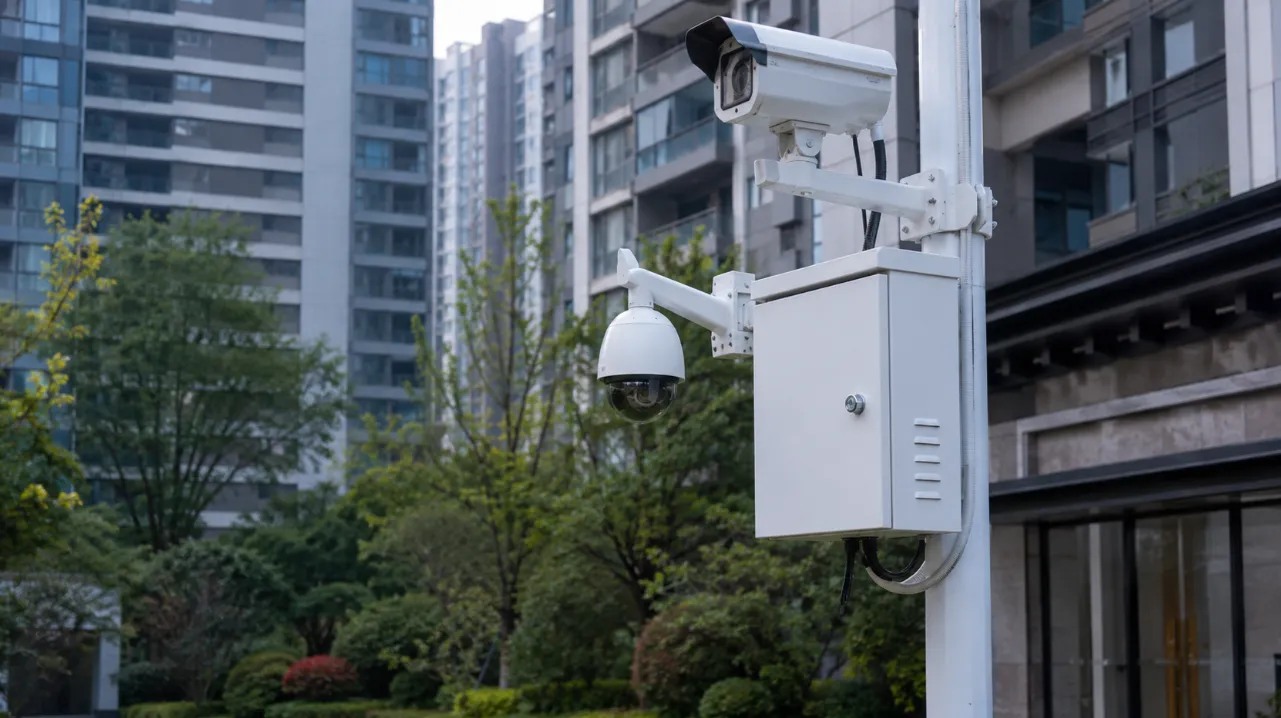

suitable for integrators undertaking high-standard government bidding projects such as smart cities and safe campuses. The products provided by Bit-cctv can significantly reduce the hardware repair cost during the project warranty period.

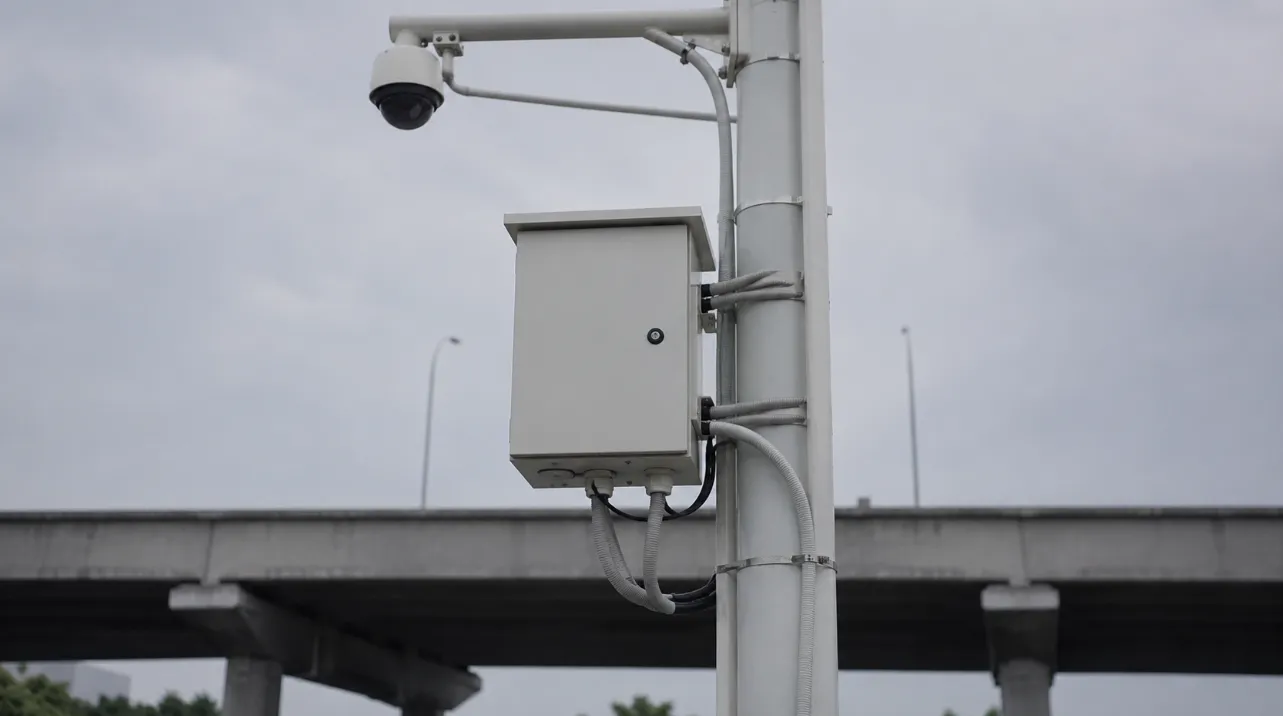

provide easy-to-install and high-durability cctv camera enclosure box scheme for the project team that needs fast delivery and efficient construction, and ensure that the project can pass the strict acceptance process of party a smoothly.

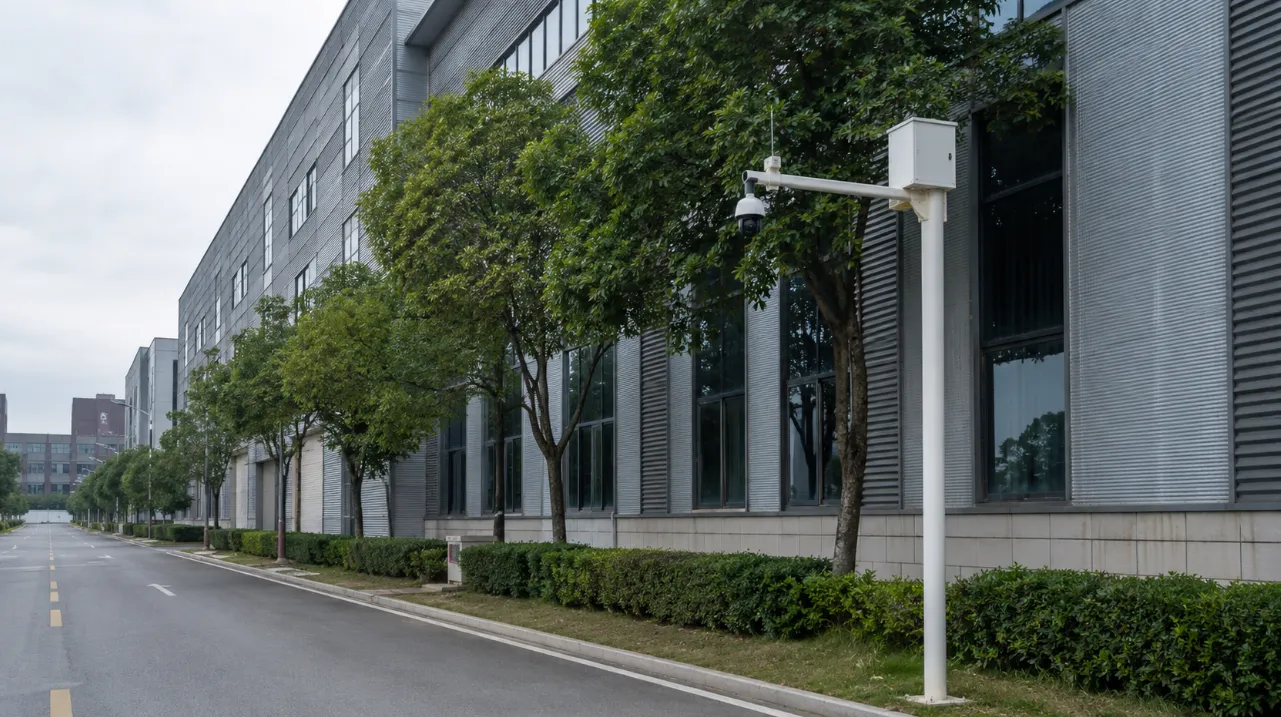

For special operation environments such as petrochemical industry, power substation and large mining area, it provides professional camera physical protection scheme with high protection level and extreme weather resistance.

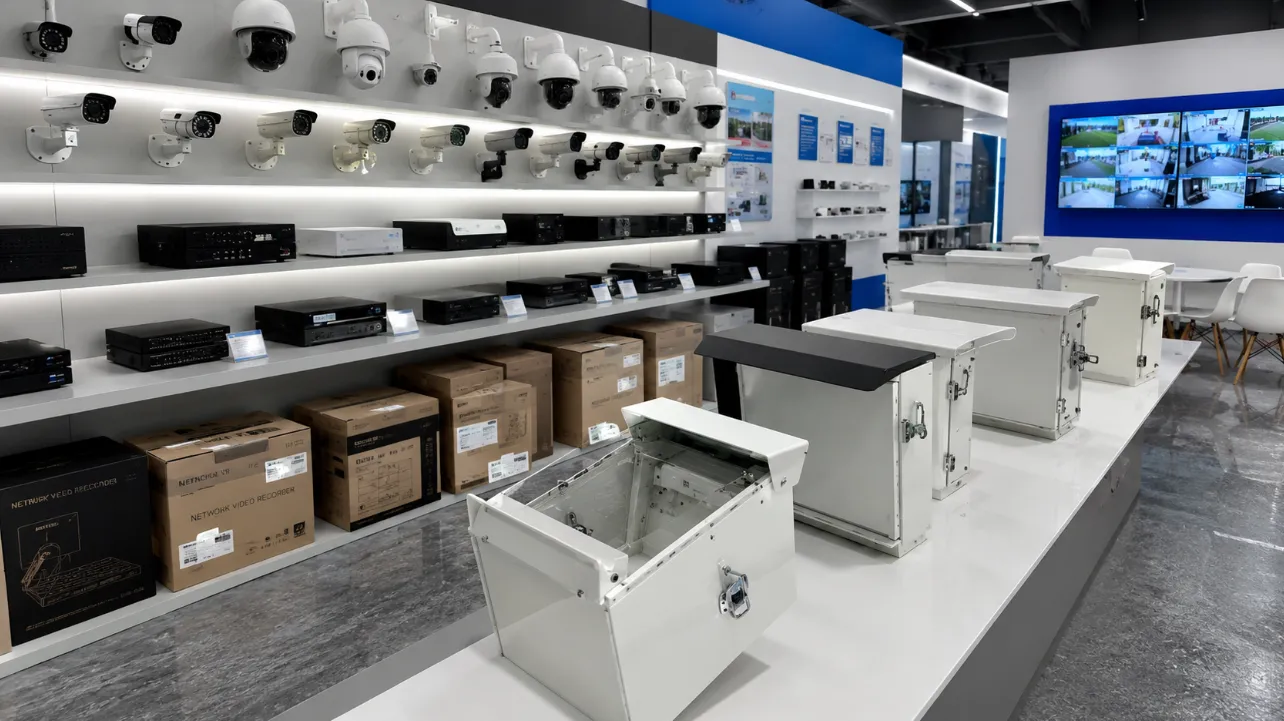

Bit-cctv as the source factory, provide distributors with stable supply and competitive profit margins, and support OEM packaging and customization of specific environmental needs.
According to the wall or pole environment, use expansion bolts or hoops to firmly fix the supporting bracket to ensure that the bracket is in a vertical or horizontal force state..
open the side cover of the protective cover, align the screw hole at the bottom of the camera with the internal sliding plate, and adjust the position of the movement to make the lens as close to the front window glass as possible to prevent the picture reflection..
insert the power cord and network cable through the waterproof connector at the bottom, connect the internal wiring terminals, and confirm that the heater and fan can respond normally under specific temperature settings..
After checking that the sealing strip is free of foreign matter, close the side cover and lock the safety buckle, adjust the angle of the universal joint of the bracket according to the rear display screen, and finally tighten the bracket adjustment screw..
answer: the internal effective clearance length is up to 300mm, which is enough to accommodate most industrial telephoto lenses of 5-100mm or higher specifications, and will not produce black edges in...
A: No. We use an IP66 grade fully sealed design, with double-layer silicone strips, as long as the waterproof connector is properly fastened, external moisture cannot penetrate into the inside of the ...
A: Aluminum alloy itself has high heat dissipation efficiency, with our built-in automatic induction cooling fan, can quickly export the internal heat, effectively prevent the camera movement due to e...
A: Yes. As a source factory, Bit-cctv accept RAL color number customization and specific inlet aperture processing under the condition that the order quantity meets.
A: Yes. For simple protection needs in ambient-temperature environments, we offer a basic configuration without the temperature-control component, which can further optimize your procurement budget.
A: High-strength wall-mount bracket is included as standard. If you need a pole-mounted hoop base, you can inform customer service for additional selection when placing an order.
