This cctv camera housing is designed for strict outdoor environment, providing excellent waterproof, dust-proof and temperature control protection, and ensure the stable operation of the internal core module all day long. Bit-cctv, not only can provide you with flexible customized services, I.
-40 degrees to 60 degrees
Working temperature
IP66 protection
IP grade
die-cast aluminum alloy
Material
300x 105x 90mm
Interior size
4mm tempered glass
Glass window
2.5kg
Weight
24V AC
Power supply voltage
double-layer silicone sealing strip and tight die-casting structure are adopted to ensure that the inside of cctv camera housing remains dry under heavy rainfall environment of 100mm per hour, effectively preventing image blur caused by water vapor condensation.
built-in automatic temperature control heater and silent cooling fan, when the temperature is lower than 5 degrees, automatically start heating, higher than 45 degrees to start heat dissipation, the internal working temperature fluctuation control within 10 degrees, extend the life of the camera more than 30%.
the window is made of 4mm thick optical grade tempered glass, the light transmittance is as high as 98%, and the surface is treated with hydrophobic coating to prevent the accumulation of rainwater hanging beads and dust, and ensure that the night monitoring picture is clear and there is no halo interference.
the unique side opening cover design is equipped with a special lock catch, which can be opened by construction personnel with one hand when working at high altitude, thus improving the maintenance efficiency by more than 50%, and avoiding the potential safety hazard that the traditional front sliding cover design is easy to loosen and fall off in extreme weather.
The surface is coated with outdoor polyester powder. After 800 hours of salt spray test, even in coastal high salt spray or acid rain corrosive environment, the shell coating can maintain 10 years without peeling and fading, ensuring Lasting protective rigidity.
the bracket connection is designed with thickened reinforcing ribs, which supports universal adjustment and adapts to various standard hole positions, can bear static pressure 5 times of its own weight, and ensures that the monitoring picture of cctv camera housing does not shake under strong wind impact.
| Technical indicators | Specifications |
| Product Model | BIT-CH-4055 Industrial Series |
| Main material | Die-cast aluminum alloy/SUS304 stainless steel optional |
| External dimensions | 450mm x 165mm x 140mm |
| Effective use of space | 320mm x 110mm x 95mm |
| Effective diameter of window | 75mm |
| Surface treatment | UV-resistant outdoor spray coating (light gray/white) |
| Inlet connector | 2 PG11 waterproof connectors |
| Heating/Fan Control | On: 5℃/45℃; Off: 15℃/35℃ |
| Impact resistance level | IK10 level |

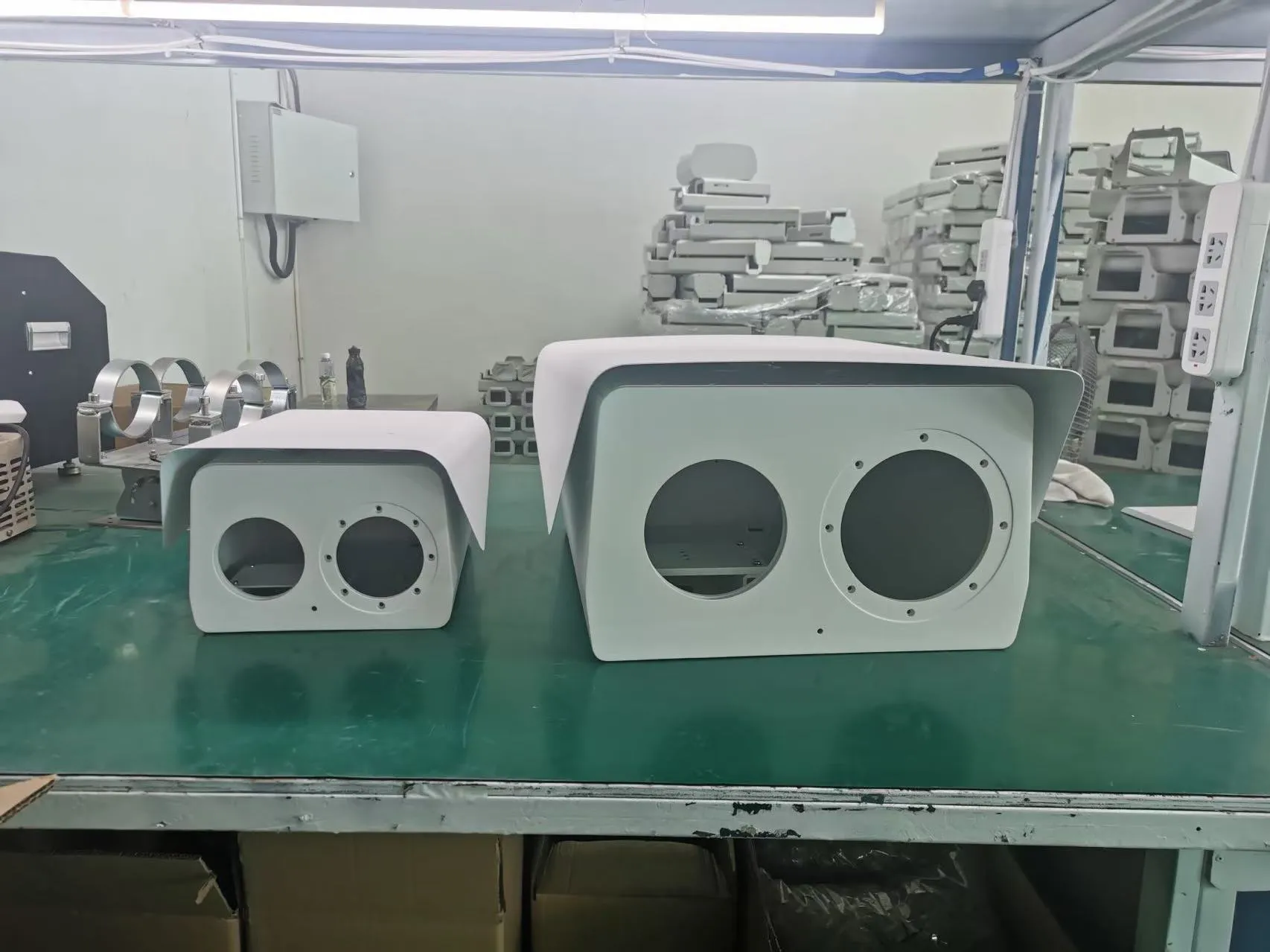

conventional protective covers are mostly designed with front sliding covers, which require both hands to operate and screws are easy to fall off when disassembling at high altitude. This product adopts a hidden side cover structure equipped with a special lock catch, which can be opened by construction personnel with one hand, thus improving the safety of high-altitude operation and daily maintenance efficiency..
Conventional housings typically use a single-layer gasket or no gasket at all, making them prone to aging and cracking under prolonged sun exposure. This product features a double-layer silicone seal combined with a tightly die-cast structure, achieving an IP66 protection rating that effectively reduces the risk of water ingress and internal condensation/fogging in heavy-rain environments..
conventional protective covers usually have no temperature control or are only equipped with one-way fans, and the camera is easy to stop in extremely cold or hot environments. This product has built-in intelligent dual temperature control system (heater ≤ 5 ∘ C ≤ 5 ∘ C start, fan ≥ 45 ∘ C ≥ 45 ∘ C start), which helps to control the internal working temperature within a reasonable range and slow down the aging of the device..

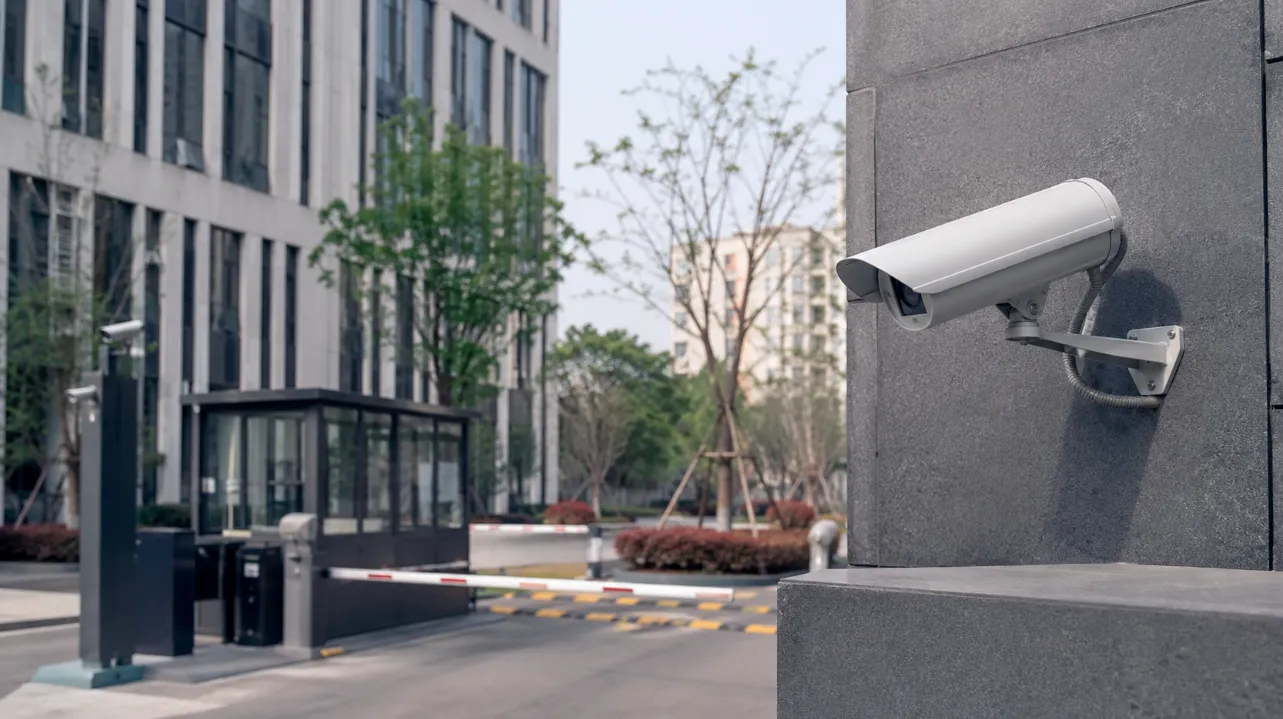

For large-scale bidding projects such as government, transportation, and water conservancy, the high-standard cctv camera housing provided by the Bit-cctv can meet extremely high technical access requirements and help integrators improve the project acceptance rate.

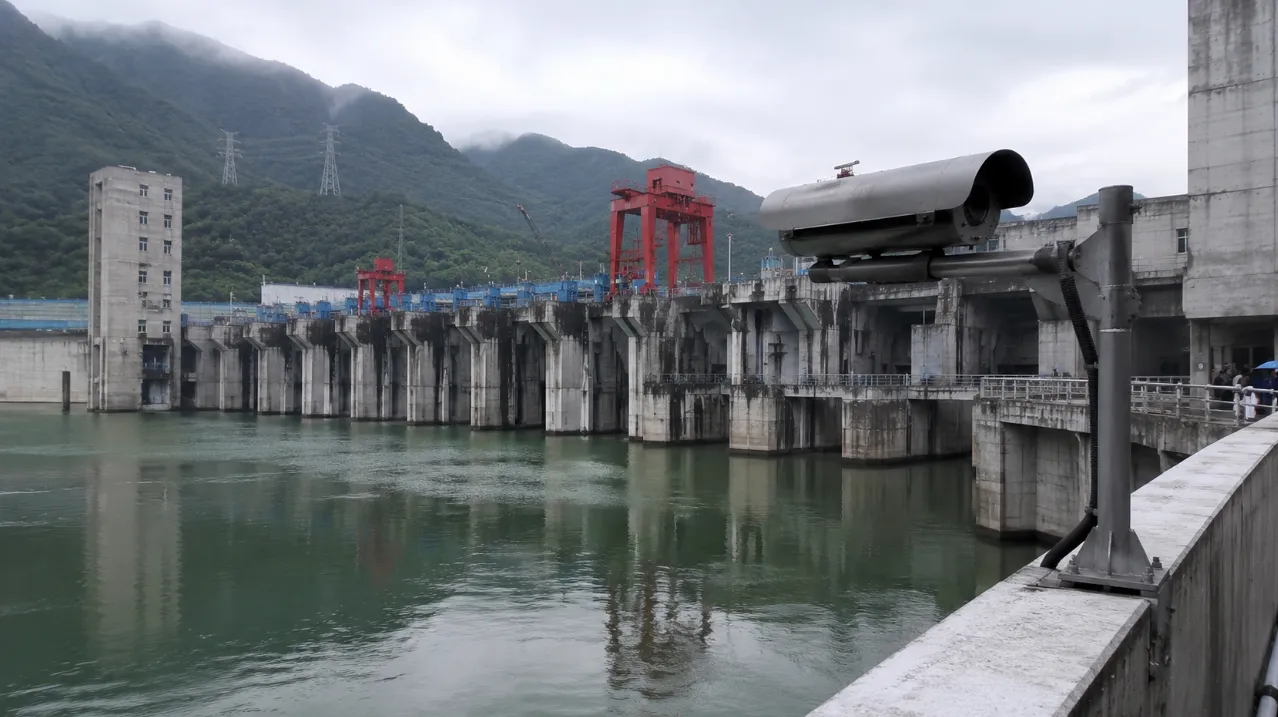

For special application scenarios such as chemical plants, steel plants or polar surveys, our customized temperature control scheme can solve the industry problems of high failure rate of ordinary shields in extreme environments and vulnerable equipment.

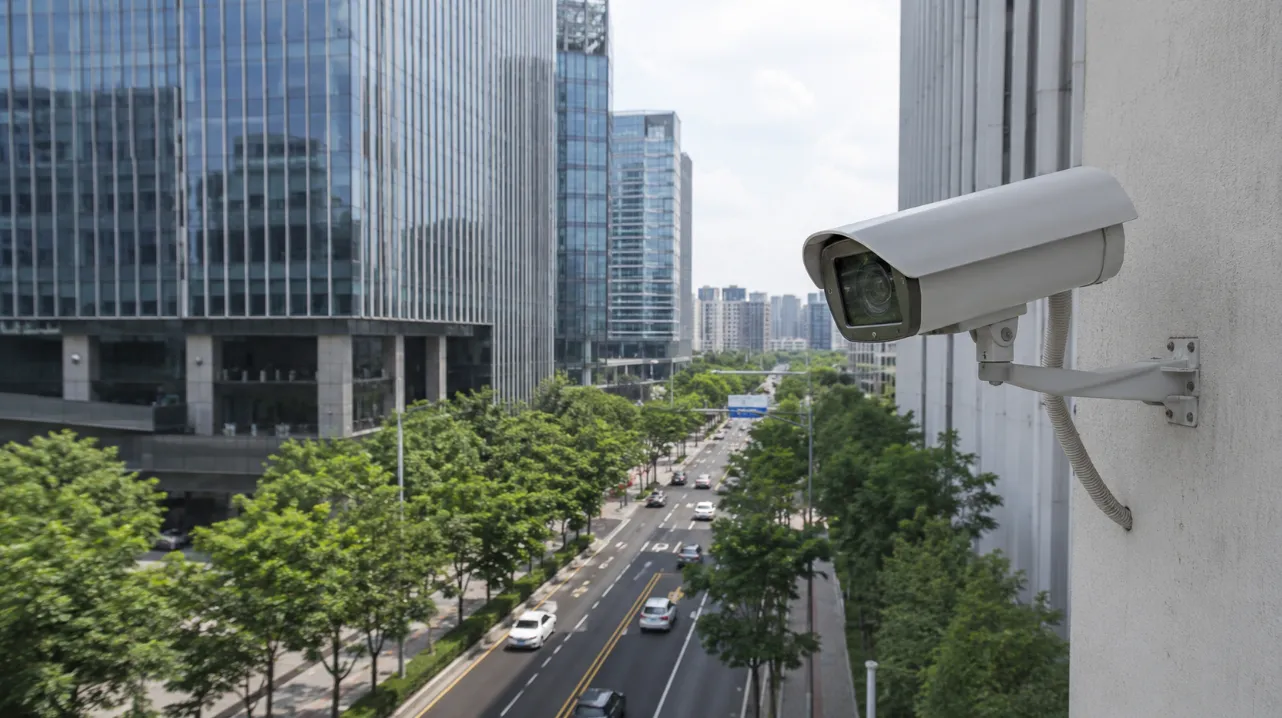

Bit-cctv provide OEM contract manufacturing services for global security brands. Taking advantage of our large-scale production advantages, brand manufacturers can quickly expand their cctv camera housing product lines and reduce R & D and mold opening costs.

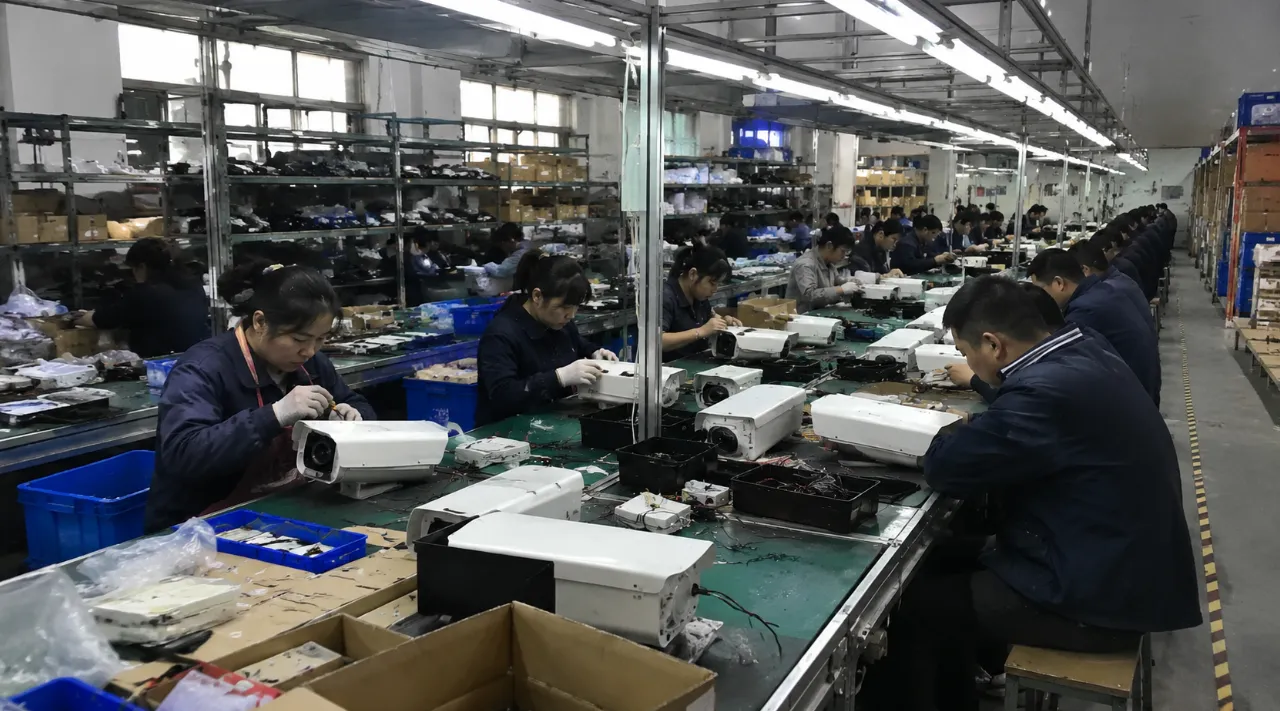

to provide manufacturers who need to package semi-finished movement with stable structure and standardized interface, simplify their production and assembly process, and ensure the physical protection performance of finished products in outdoor use.
Before use, please be sure to check the overall size of the camera and lens. Ensure that it does not exceed the internal available space to allow reasonable physical space for wiring, air circulation,....
The standard operating voltage of the temperature control system (heater and fan) is 24V AC. When wiring, please introduce the cable through the PG11 waterproof connector at the bottom, and be sure to....
fix the protective cover on the matching heavy-duty aluminum alloy bracket, adjust the monitoring angle to the required position by using the universal adjustment joint, and then lock the positioning ....
it is recommended to check the elasticity of EPDM rubber sealing strip every two years. If aging or deformation is found, please replace it in time. At the same time, according to the dust condition o....
A: Each housing undergoes a rigorous negative-pressure sealing test. Combined with an IP66-rated enclosure, it can withstand continuous, high-pressure water jets, ensuring that the internal electronic...
A: No. Our aluminum alloy substrate, combined with a specialized chemical pretreatment and an anti-corrosion coating, effectively prevents salt spray penetration, thereby inhibiting metal oxidation an...
A: The internal clear space is 300x 105x 90 mm, which is sufficient to accommodate most bullet cameras on the market equipped with telephoto lenses, as well as their associated network power supply mo...
A: Bit-cctv is equipped with an intelligent heating module that quickly raises the temperature around the window, eliminating frost and fog caused by temperature differences between the inside and out...
A: We provide a supporting heavy-duty aluminum alloy bracket, the installation hole position and the shield completely match, you can also according to the specific pole or wall environment to buy dif...
A: As a source factory, Bit-cctv have an independent mold workshop, which can change the appearance color, add interfaces or customize specific internal functions according to the needs of bulk purcha...
