This heavy-duty pan and tilt camera has 360-degree infinite rotation and 2,000-meter infrared night vision, providing all-weather accurate monitoring for extreme environments. bit-cctv are source manufacturers, eliminate middlemen, support bulk purchase, and provide you with competitive ex-factory prices and faster delivery speeds.
Horizontal rotation
Vertical pitch
Load weight
Protection grade
Working temperature
0.01 degrees per second
Control accuracy
The shell is made of high-strength die-cast aluminum alloy and has undergone special anti-corrosion treatment to reach IP68 waterproof and dustproof standards. The service life of the equipment is ext...
equipped with high-energy-efficient laser infrared lighting system, the visual distance at night is as high as 2,000 meters, and the outline of human body and vehicle can be accurately identified even...
pure copper brushless servo motor is adopted, the control accuracy reaches 0.01 degrees per second, and it can still smoothly track high-speed moving targets under high-power zoom state from two kilom...
double-worm self-locking transmission structure is adopted inside, with a maximum carrying capacity of up to 50kg. It supports simultaneous mounting of visible light and thermal imaging dual-channel l...
built-in automatic heater and intelligent fan circulation temperature control module, the lens will not freeze and fog in the extreme cold environment of minus 40 degrees, ensuring that the all-weathe...
The system fully supports the mainstream standard protocols and open interfaces in the market, can seamlessly interface with the existing security command center, shorten the deployment and debugging ...
| Parameter categories | Parameter Items | Parameters and Specifications |
| Mechanical properties | Horizontal rotation range | 360-degree continuous rotation |
| Vertical pitch range | -90 degrees to +90 degrees | |
| Horizontal rotation speed | 0.01 degrees per second to 100 degrees per second | |
| Vertical pitch speed | 0.01 degrees per second to 60 degrees per second | |
| Maximum payload | 50 kg | |
| Optics and Vision | zoom capability | 30x, 40x, or 90x optical zoom available |
| Night vision assistance | Coaxial laser-infrared linkage, up to 2000 meters. | |
| Sensor type | Starlight-level low-light sensor | |
| Environmental adaptability | Protection level | IP68 standard |
| Applicable temperature range | -40 degrees Celsius to 70 degrees Celsius | |
| Wind resistance | Normal operating speed: 130 km/h; Damage resistant speed: 200 km/h. | |
| Electrical and Communications | Power supply method | 24V AC or 48V DC |
| Communication Protocol | Compatible with mainstream standard video network protocols |
In view of the blind area of the lens caused by sudden temperature difference, the product has built-in intelligent temperature control defrosting module and external wiper. The equipment can automati....
In view of the image tremor that is easy to appear under high zoom, we use high-precision servo motor and self-locking transmission technology to ensure that the enlarged image of the long-distance ta....
In view of the repeated construction problems caused by software incompatibility, we fully open the underlying standard communication protocol interface to ensure that the equipment can be directly co....

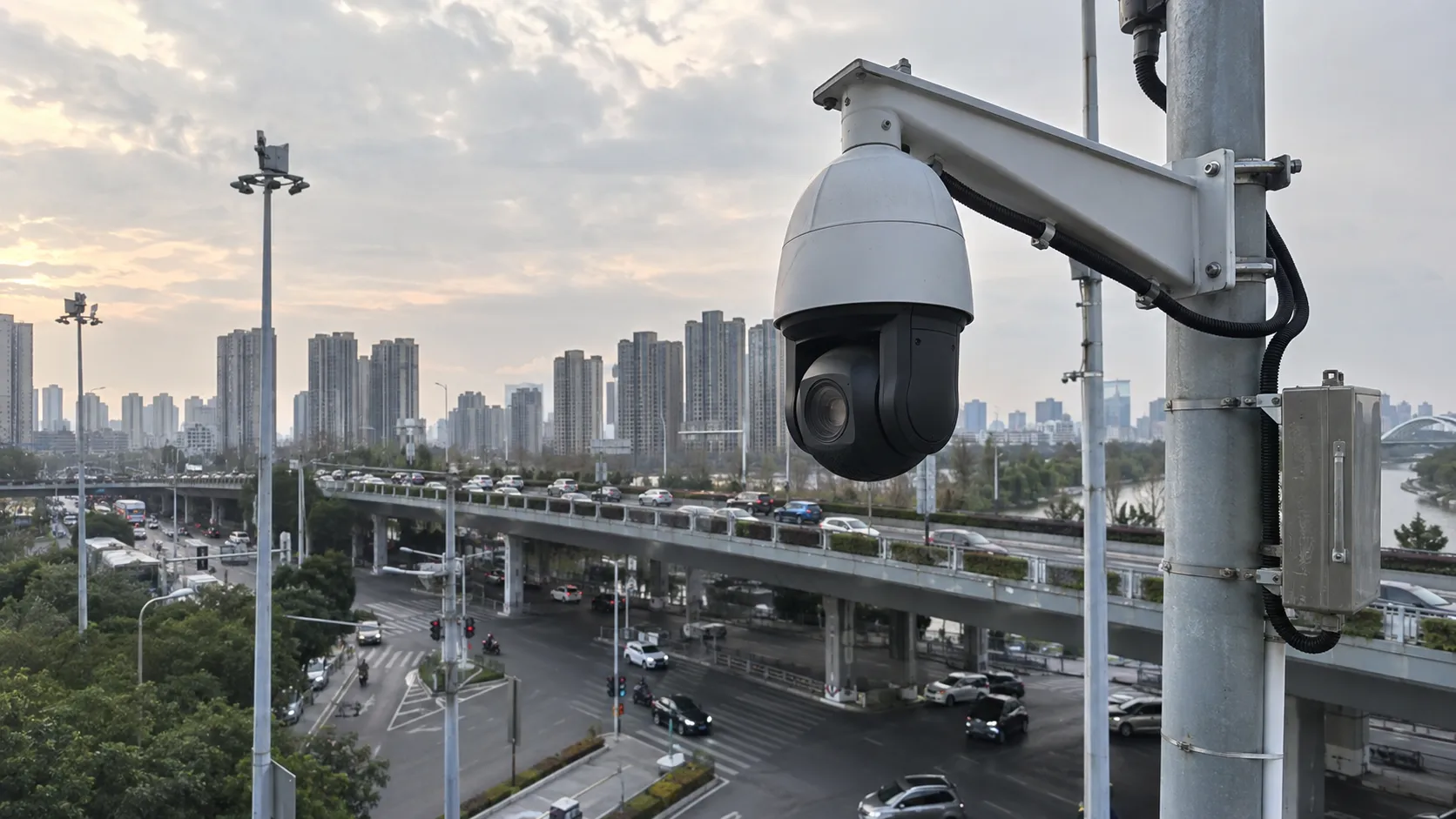

Such purchasers are responsible for the construction of urban security monitoring networks. this pan and tilt camera has panoramic coverage without dead corners and excellent night vision capability, ...

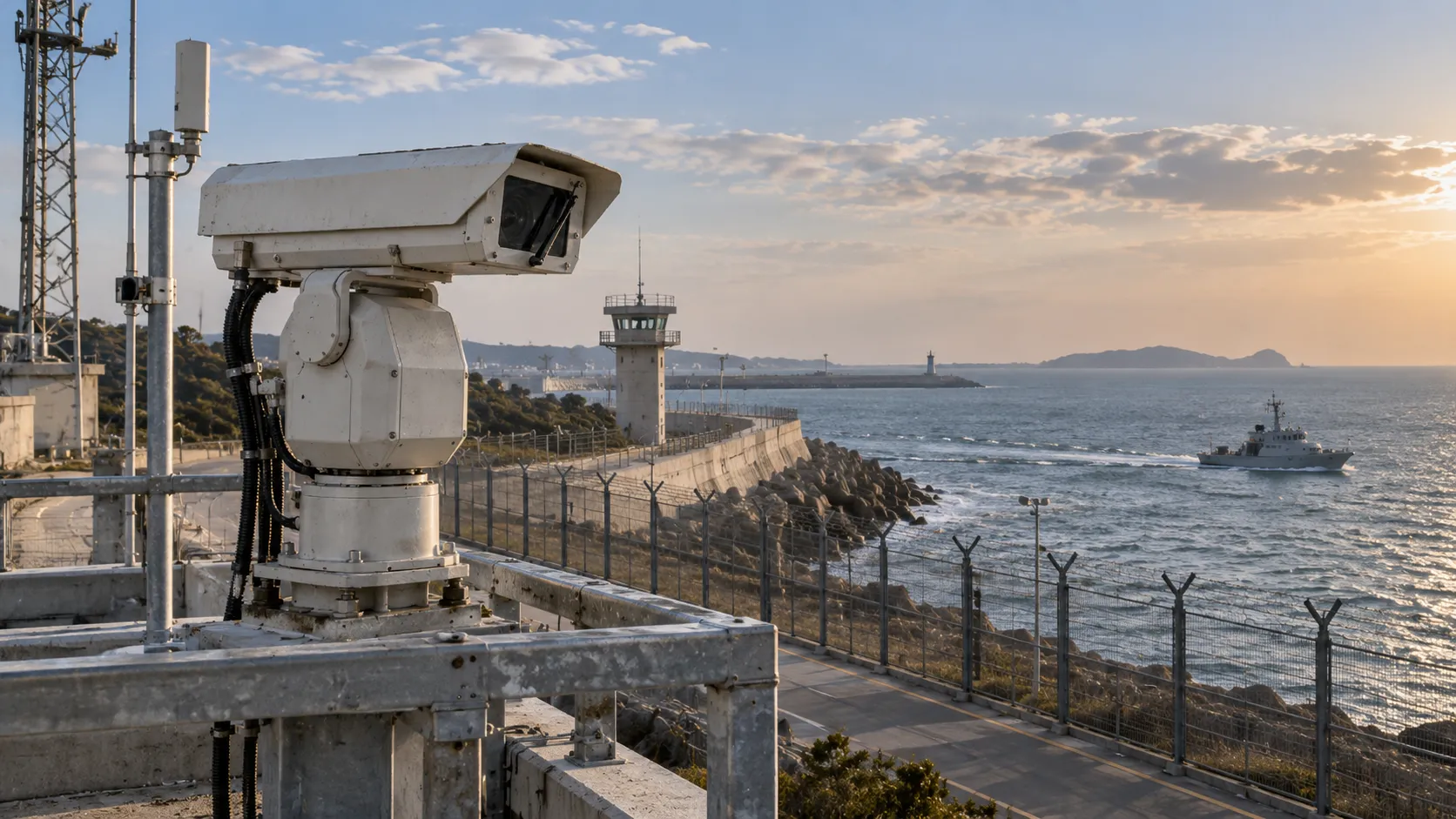

In view of the extremely harsh environment of border defense and coastal defense, the product adopts a heavy shell to prevent salt spray corrosion and a 2,000-meter infrared detection system to help c...

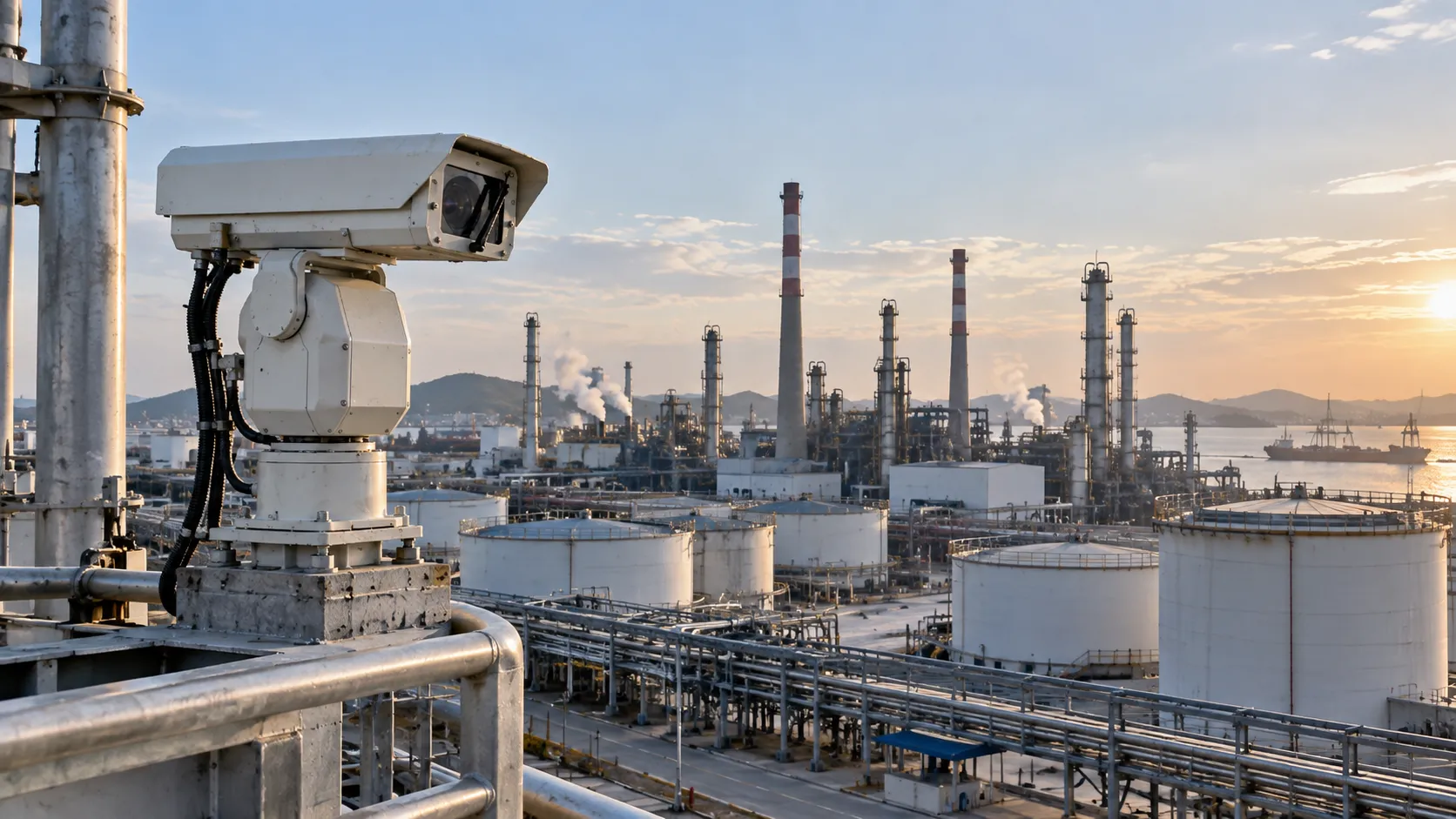

Chemical plants and mining areas need to prevent illegal operations and hidden dangers. This equipment supports dual-channel thermal imaging mount, which can monitor the abnormal high temperature in t...

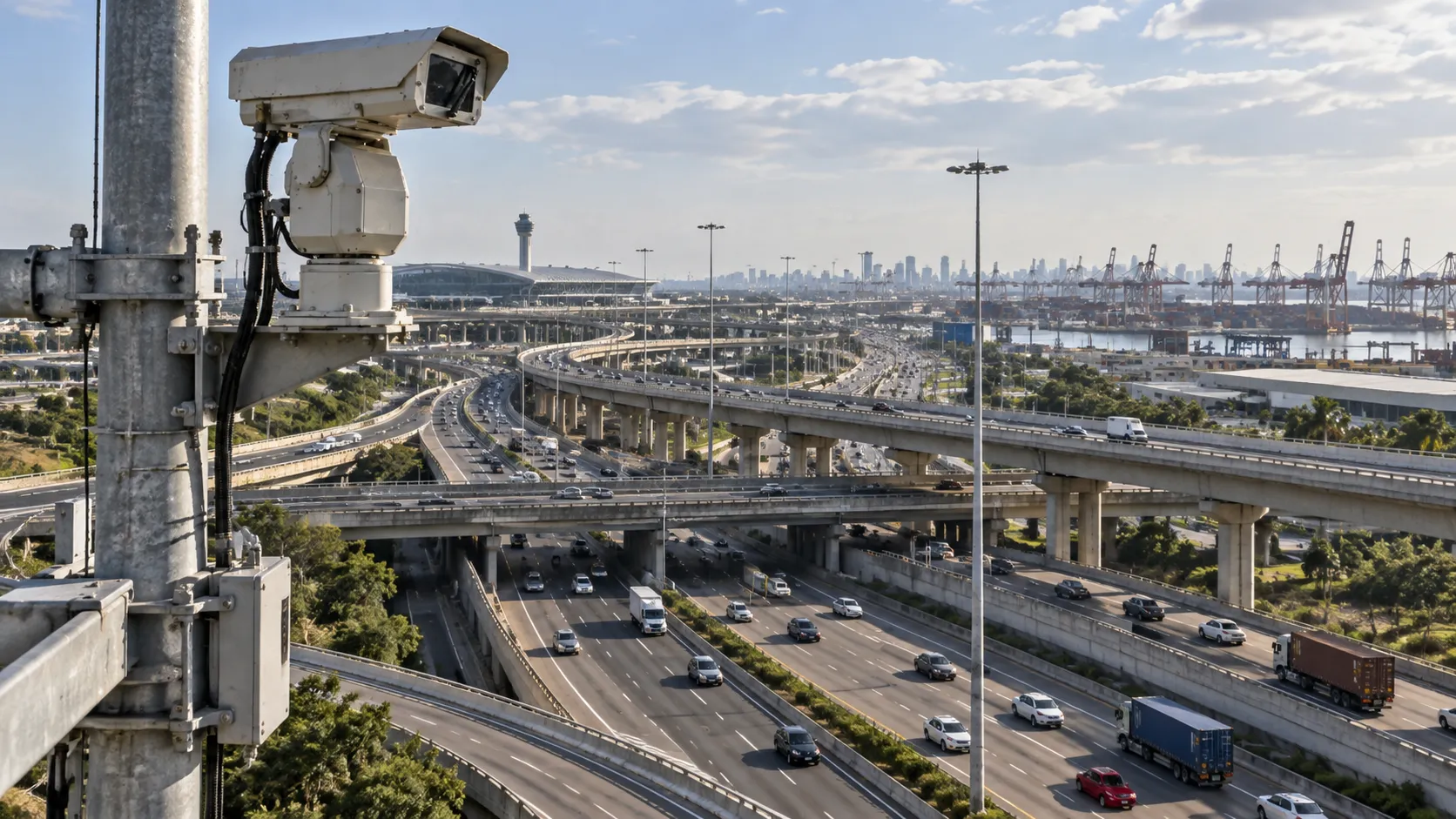

Highways and airports require long-distance and accurate identification of high-speed vehicles. This product has extremely high-precision servo operation ability and high-speed zoom capture system, ea...
Secure the base horizontally to the riser or wall bracket using high-strength stainless steel bolts, connect the special waterproof aviation plug power cable and network communication cable, and ensur....
The AC 24-volt power supply is turned on, and the device is connected to the local network through the network cable. Log in to the device’s default background address, modify the base network parame....
Open the gimbal operation interface in the security control software, control the device to turn to the key monitoring area through the rocker and save it as a preset point. Orchestrate multiple prese....
The device has an intelligent temperature control defrost function, and the wipers can be turned on with one click through the center in heavy rain or snow. Physical wiping of the exterior glass lense....
.webp "Factory")
We chose a high-torque pure copper brushless servo motor with a control accuracy of up to zero point and one degree per second. Whether it is extremely slow smooth tracking or high-speed positioning j...
The heavy equipment uses a reinforced twin-turbine worm self-locking transmission system inside, which can withstand payloads of up to fifty kilograms in both horizontal and vertical directions, and c...
Definitely not rusty. The casing is made of special anti-corrosion coating and high-strength die-cast aluminum alloy. The whole machine meets the industry’s highest level of waterproof and dustproof ...
There will be no fall. The vertical control shaft of the gimbal applies a purely mechanical self-locking transmission mechanism. Once an accidental power outage occurs, the mechanical structure will a...
The device is particularly equipped with a high-efficiency zoom laser infrared lighting component, whose beam illumination angle can be automatically and synchronously scaled according to the lens mag...
Absolutely. Our equipment is natively compatible with the world’s mainstream standard network video communication protocols when it leaves the factory, and provides a complete underlying development ...
