The pan-and-tilt CCTV gimbal positioner from bit-cctv provides security integrators with a high-precision, all-condition stable remote monitoring and rotation‑support solution. Blue Icon (Tianjin) Technology Co., Ltd., established in 2005, specializes in independent design, engineering, and manufacturing. As a national high-tech original equipment manufacturer, the company ensures end-to-end quality control across the entire value chain, from R&D to delivery.
Maximum load
Protection rating
Horizontal rotation
Elevation range
Repeat accuracy
Control Protocol
Communication interface
Operating temperature
high-precision worm gear drive structure is adopted, which is automatically locked after power failure, and the anti-strong wind performance is improved by 60%, ensuring that the remote monitoring scr...
the preset return accuracy reaches plus or minus 0.1 degrees, and the position does not drift after long-term operation, meeting the strict requirements of high-precision scenes such as multi-preset p...
cast aluminum alloy shell with three anti-coating process, completely dust-proof, anti-high-pressure water spray, through salt spray corrosion resistance test, can be deployed in the sea, chemical pla...
supports Pelco-D and Pelco-P dual protocols, compatible with mainstream NVR and VMS management platforms, integrators do not need additional protocol converters, greatly reducing the complexity of sys...
with built-in intelligent heating module, the whole machine can work stably in the high temperature environment from minus 40 ℃ to minus 65 ℃, which is suitable for northern winter border defense, p...
support up to 255 preset points and 8 independent cruise routes, each route can be set up with 10 cruise points, realizing full-automatic, multi-angle, all-weather round-trip monitoring of key areas.
| Parameters | bit-cctv standard series |
|---|---|
| Product Series | BIT-PT series |
| Bearing method | Top load/side load |
| Maximum load capacity | 15 kg – 90 kg (depending on model) |
| Horizontal rotation angle | 360-degree continuous rotation |
| Vertical pitch angle | -75 degrees to +45 degrees |
| Horizontal rotation speed | 0.01-60 degrees/second |
| Vertical pitch speed | 0.01-30 degrees/second |
| Repeatability | ±0.1 degrees |
| Preset number of bits | Maximum 255 |
| Cruise route | 8 routes (10 patrol points per route) |
| Communication interface | RS485 / RS422 |
| Control Protocol | Pelco-D / Pelco-P |
| Angle Feedback | Supports query return/real-time return |
| Lens preset | Supports adaptive multi-brand lenses |
| Power supply voltage | AC24V / DC24V-DC48V |
| Power consumption | 45W-150W (depending on model) |
| Protection level | IP66 |
| Operating temperature | -40℃ to +65℃ |
| shell material | Cast aluminum alloy |
| Corrosion protection | Three-proof coating (optional salt spray corrosion resistant) |
| Lightning protection | TVS 8000V Surge Protector |
ordinary outdoor Yuntai is easy to corrode or jam in high salt spray or extremely cold areas along the coast. bit-cctv Yuntai can choose three-proof coating and intelligent heating module, which pass ....
the same type of product only supports a single protocol, while the bit-cctv PTZ is compatible with Pelco-D and Pelco-P dual protocols, seamlessly connecting mainstream NVR and VMS platforms without i....
after 1 years of operation of ordinary products, the return difference increases, resulting in preset offset, bit-cctv the high-precision worm gear with closed-loop control scheme, the repeated positi....
engineers undertaking medium and large-scale monitoring projects such as factory parks, warehouses, construction sites, etc. need to 1 pan and tilt cctv tripod head with transparent parameters, compat...

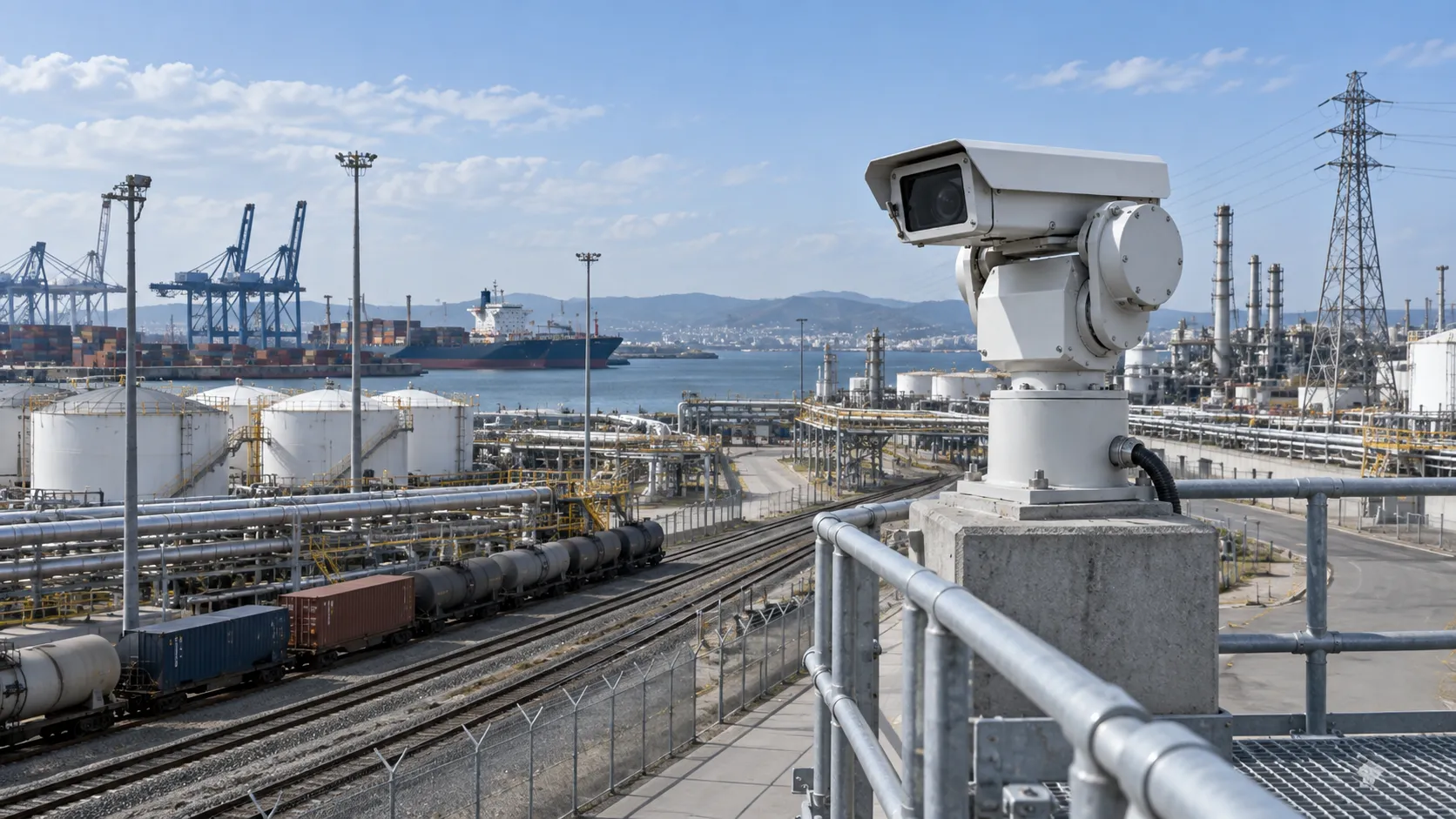

the team responsible for the security operation and maintenance of key infrastructure such as port terminals, railways, oil and gas fields, power pipelines, etc., needs cloud positioning equipment tha...

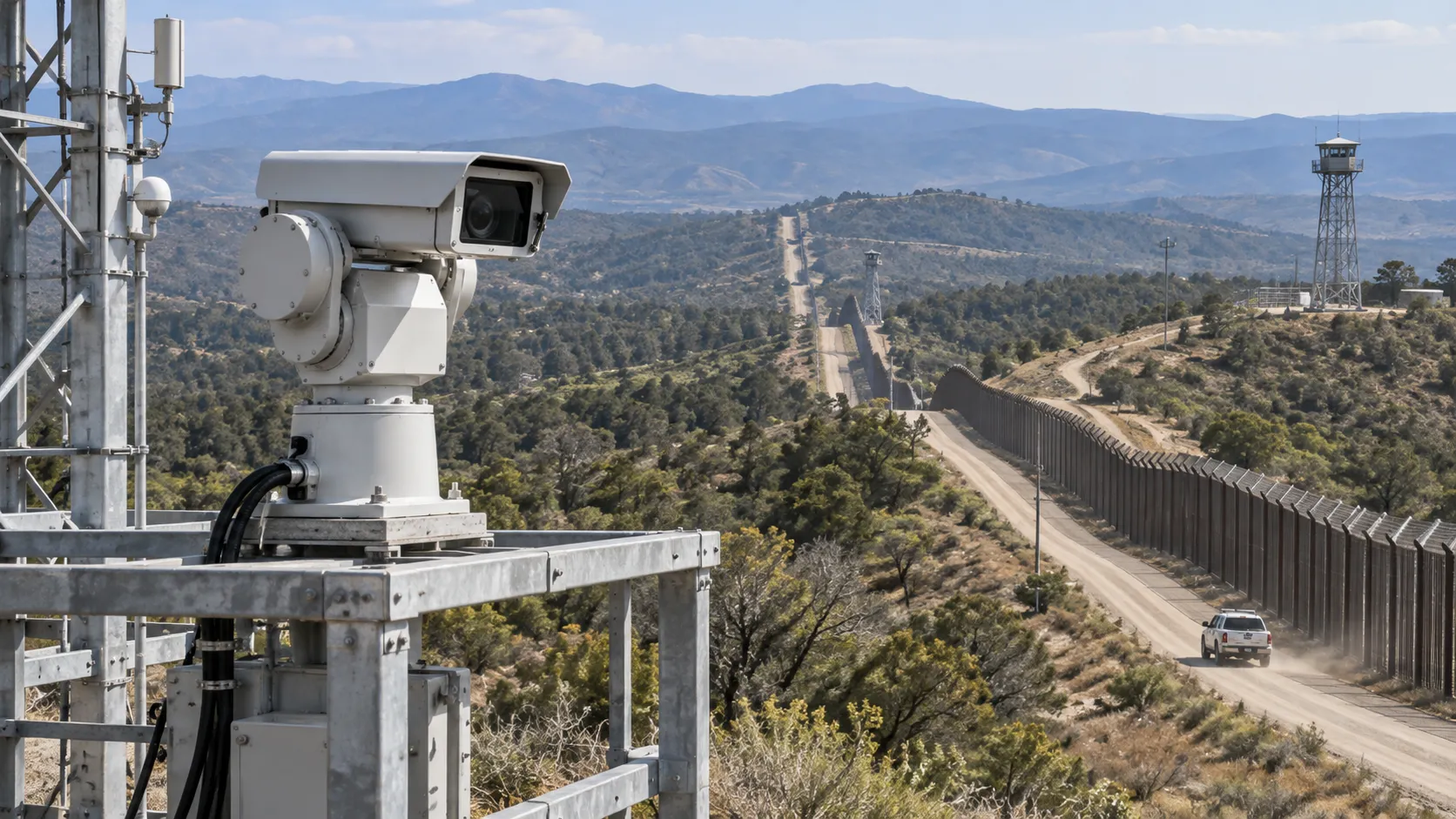

public security agencies responsible for border patrol, urban high point monitoring, forest fire prevention, border monitoring and other tasks have strict requirements on the positioning accuracy, all...

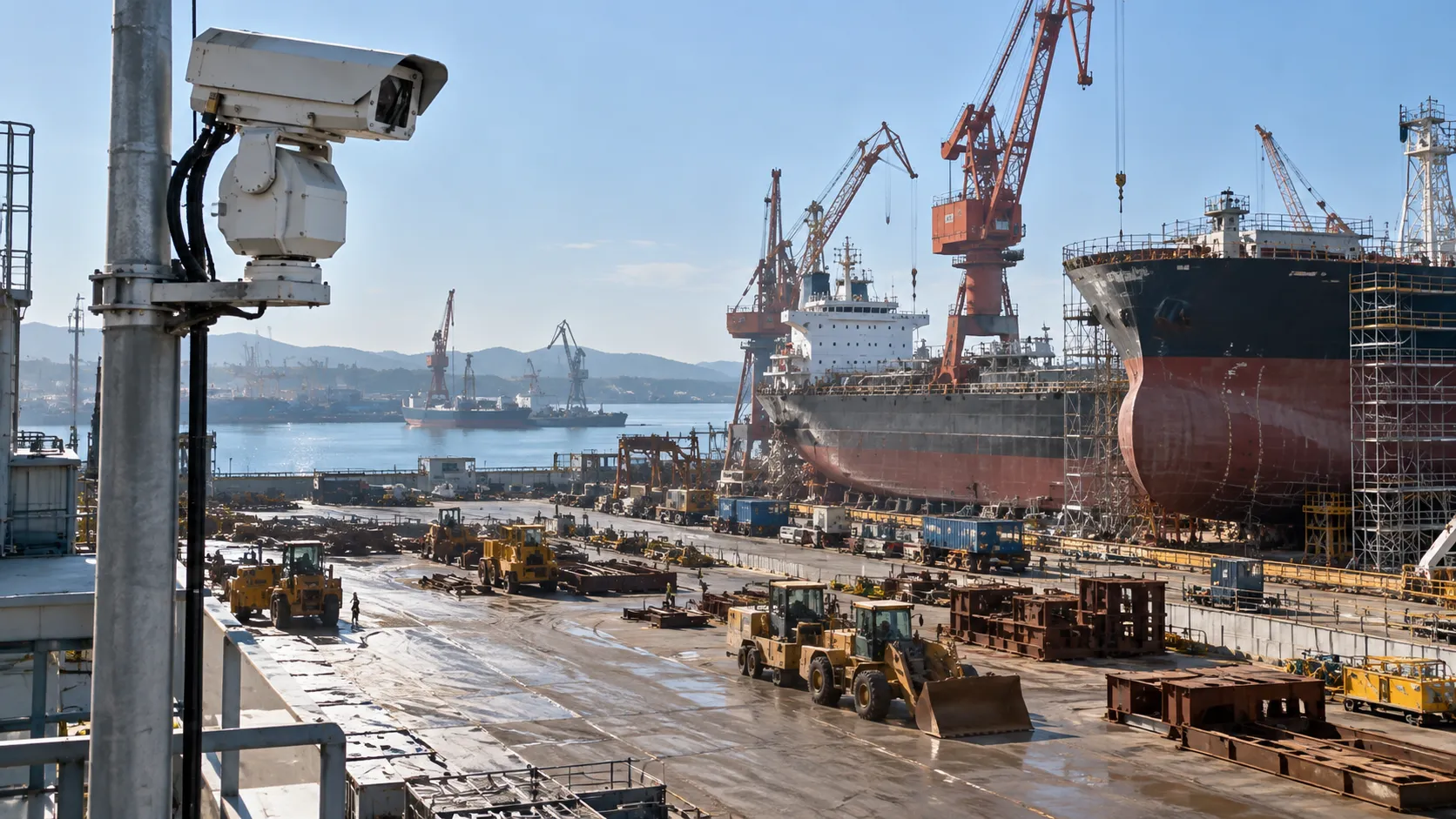

enterprises engaged in the development of schemes in special fields such as vehicle monitoring, unmanned ground platforms and marine surveillance of ships need to customize the load mode, protection l...
confirm that the power supply voltage is consistent with the nominal value of the product, and check that the polarity of RS485 bus wiring is correct to avoid abnormal communication..
set the device address and communication baud rate through the dip switch of the pan/tilt body to ensure consistency with the control system..
each monitoring point is set through the keyboard controller or VMS software, and each cruise route can store up to 10 preset bits..
check the sealing of the gimbal shell every quarter, clean up the dust on the surface, and ensure that the IP66 protection effect does not decrease..
.webp "Factory")
Support Pelco-D and Pelco-P two mainstream protocols, can be switched by DIP switch, the default factory settings for the Pelco-D protocol.
Sure. The product has IP66 protection grade, fully sealed cast aluminum alloy shell dust-proof, anti-high-pressure water spray, and built-in intelligent heating module to support -40 ℃ to 65 ℃ wide ...
Connect PTZ and DVR/NVR or keyboard controller through RS485 bus. After setting the same protocol and baud rate, you can remotely control rotation, preset and cruise through Pelco protocol.
The repeated positioning accuracy is plus or minus 0.1 degrees, and the high-precision worm gear drive and closed-loop control scheme are adopted. After long-term operation, stable accuracy can still ...
Yes. The worm gear drive has self-locking characteristics, and the pan-tilt is automatically locked in the final position after the power is off, and the wind resistance is strong, so there is no need...
Provided. Blue Icon(Tianjin)Technology Co., Ltd. is the source manufacturing facility that supports bulk ordering and customization of loads, shields, communication interfaces and coatings according t...
