The high-torque turbine worm transmission structure is adopted to provide 20kg heavy load capacity and 0.1 degree repeated positioning accuracy, meeting the anti-shake requirements of remote monitoring and telephoto shooting. Bit-cctv is the source manufacturing factory, with a complete CNC machining production line, excluding the middleman price difference, to provide you with a very competitive factory wholesale price and faster delivery speed.
Maximum load
Horizontal rotation angle
Vertical angle
Repeatability accuracy
Protection grade
Main material
Control Protocol
Input voltage
the fuselage adopts an integrated die-cast aluminum alloy shell, with a multi-layer sealing ring design, and passes 72 hours of salt spray test. Even in the high salt fog or desert dust environment, t...
Built-in high-subdivision stepper motor driver, through the closed-loop control algorithm to refine the minimum step angle to 0.1 degrees. When used with a telephoto lens, it can effectively eliminate...
the use of precision cutting copper turbine and steel worm combination, different from ordinary belt drive. The self-locking function after power failure keeps the pan-tilt from shifting, and the wind...
The power supply module supports DC 12V to DC 24V wide voltage input, with built-in overcurrent and overheat protection chips. When the load exceeds 20% of the rated value, the power supply of the mot...
support 0.1 degrees per second to 60 degrees per second stepless speed regulation. The system has 6 built-in cruise scanning paths, and each path can store 16 preset positions to meet complex requirem...
the bottom is equipped with standard 5/8 inch and 3/8 inch screw holes, and the top quick-fitting board is compatible with mainstream photography and monitoring equipment. Support RS485 control interf...
| Parameter categories | Technical Specifications Details |
|---|---|
| core keywords | Pan and tilt head for tripod |
| Maximum load capacity | Top 20 kg / Side 12 kg |
| Horizontal rotation range | 0 to 360 degrees infinite continuous rotation |
| Vertical rotation range | -90 degrees to +90 degrees |
| Horizontal rotation speed | Adjustable from 0.1 degrees per second to 60 degrees per second. |
| Vertical rotation speed | Adjustable from 0.1 degrees per second to 40 degrees per second. |
| Preset number of positions | 128 |
| Control Protocol | Pelco-D / Pelco-P (Automatic Recognition) |
| Communication baud rate | 2400 / 4800 / 9600 bps |
| Operating temperature | -35 degrees Celsius to 65 degrees Celsius |
| Overall power consumption | Static power less than 2 watts / Dynamic power less than 15 watts |
| Main body weight | 3.8 kg |
| Surface treatment | Electrostatic powder coating (corrosion resistant) |
Bit-cctv Yuntai built-in protocol adaptive chip can automatically identify baud rate and control protocol, no manual dial code setting is required, and on-site installation and debugging time is short....
the self-locking transmission structure of the worm and turbine ensures that the pan-tilt does not move after power failure, and with the 12-level wind resistance design, the lens pointing is still st....
integrated die-casting aluminum alloy shell with electrostatic powder spraying process, after 72 hours of salt spray test verification, high salt spray, high humidity environment can still operate nor....

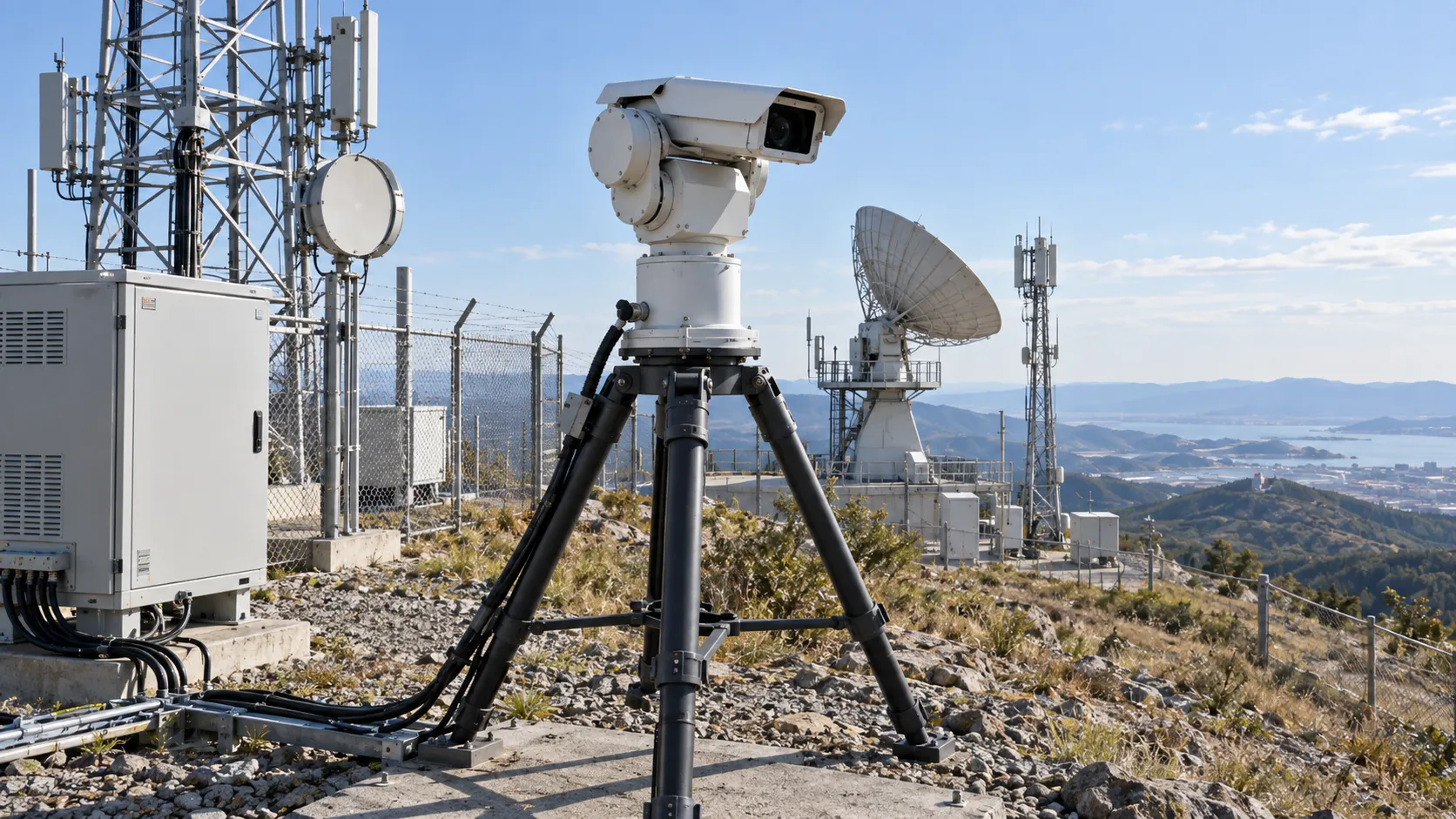

need for antenna rotating platform, radar positioning system, signal orientation equipment supporting high-precision pan-tilt base. The worm self-locking transmission and 12-level wind resistance ensu...

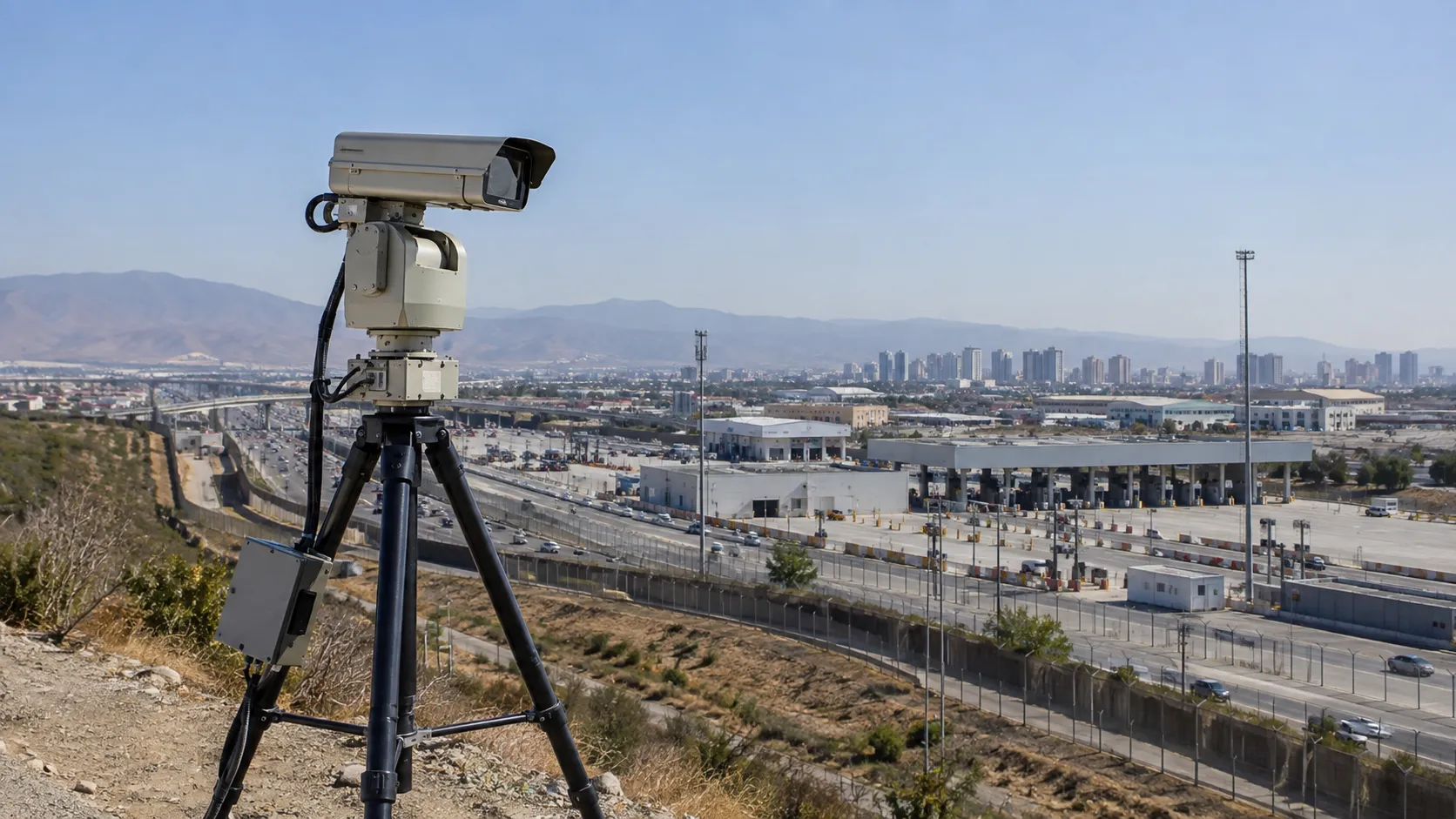

need to provide all-weather outdoor cloud platform solutions for urban monitoring, transportation hubs, border defense and other projects. The Bit-cctv PTZ has IP66 protection and low temperature star...

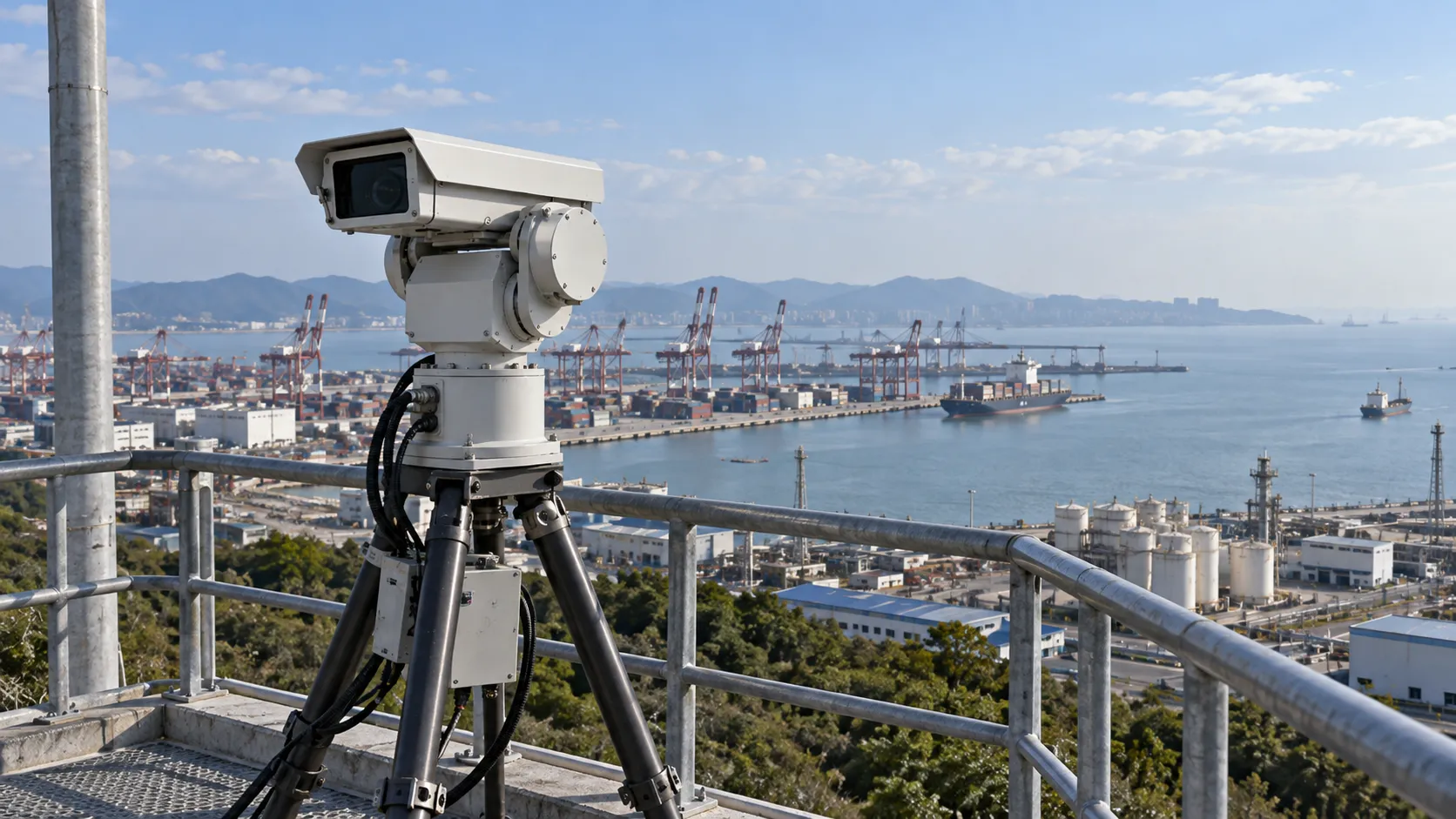

for watchtowers, nature reserves, ports and other scenes that require ultra-long distance monitoring. The load capacity of 20kg can carry large telephoto lens and thermal imaging equipment, and the 0....

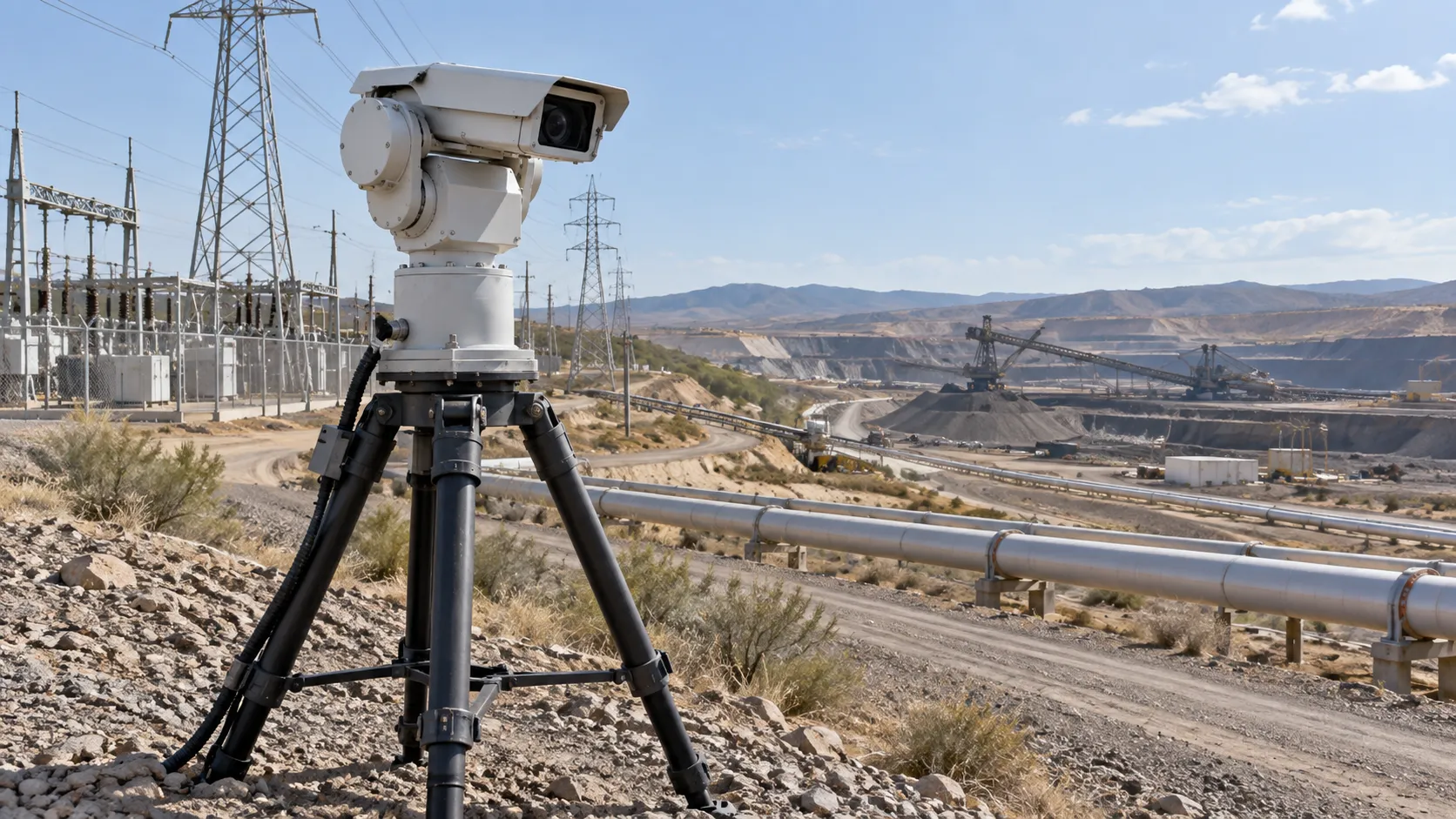

serving power tower inspection, oil pipeline monitoring, mine unattended and other scenarios. The intelligent cruise and preset position function can set the automatic inspection route, and cooperate ...
align the 5/8 inch or 3/8 inch screw hole at the bottom of the pan/tilt with the top plate of the tripod, use matching bolts to lock and confirm that the horizontal bubble is centered to ensure that t....
Connect the DC 24V power supply to the PTZ power interface. The positive and negative poles are correct. Use RS485 communication line to connect the control keyboard or video recorder. Confirm that th....
After the PTZ is powered on, it will automatically identify the Pelco-D or Pelco-P protocol and baud rate without manual dialing. To modify the parameters, enter the setting menu through the control k....
check the waterproof sealing ring and bolt fastening state of outlet once a quarter, use soft cloth to clean the dirt on the surface of the shell, and avoid using strong corrosive cleaning agent. Disc....
.webp "Factory")
Answer: The maximum load in the top installation mode is 20kg, and the maximum load in the side installation mode is 12kg. It is recommended to select products with a load capacity of 1.5 to 2 times t...
Answer: Support Pelco-D and Pelco-P two standard protocols, can automatically identify without manual switching. The communication interface is RS485, and the baud rate supports 2400, 4800 and 9600 bp...
Answer: The whole machine has passed the IP66 protection level certification. It adopts an integrated die-cast aluminum alloy shell with a multi-layer sealing ring design. After 72 hours of salt spray...
Answer: Yes, it is possible. The PTZ adopts standard Pelco-D/P protocol and RS485 communication interface, which can be seamlessly connected with mainstream video recorders such as Haikang and Dahua a...
Answer: No. The pan-tilt adopts a worm gear transmission structure, has a power-off self-locking function, and has a wind resistance level of 12. Even in coastal typhoons or high-altitude strong wind ...
Answer: Supported. As the source manufacturing plant, Bit-cctv has a complete CNC machining production line, and can provide OEM services such as Logo customization, packaging customization, and shell...
