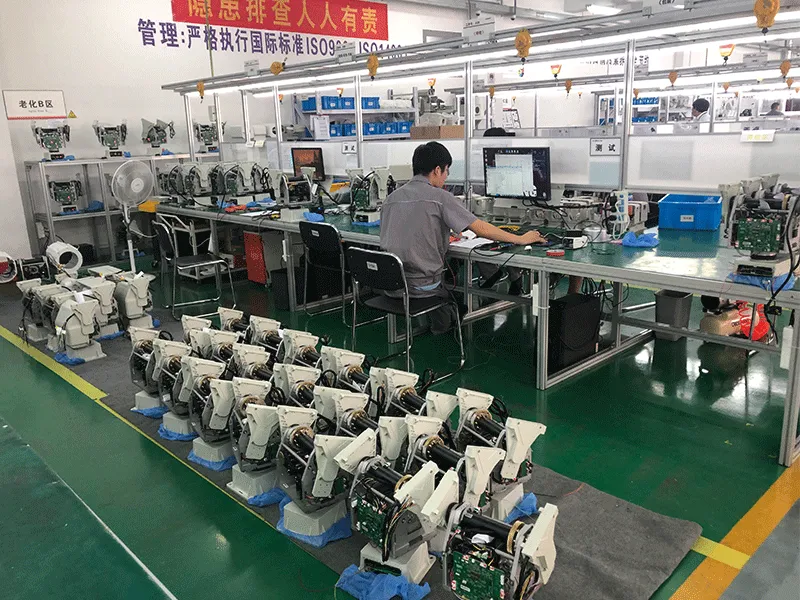

The high-torque turbine worm transmission structure is adopted to provide 360-degree continuous rotation and 20kg heavy load capacity, ensuring that the telephoto shooting and monitoring pictures have no jitter and the repeated positioning accuracy reaches 0.1 degrees. Bit-cctv are the source manufacturer with a full set of CNC production lines, excluding the price difference of traders, to provide you with very competitive factory wholesale prices and faster delivery speed.
20kg
Maximum load
360 degrees
continuousHorizontal rotation
plus or minus 90 degrees
Vertical angle
0.1 degrees
Repeatability
IP66
Protection class
aluminum alloy
Body material
Pylgao D/P
Control Protocol
DC 24V
Input voltage
RS485
Communication interface
Built-in high-subdivision stepper motor driver, through the closed-loop control algorithm to refine the minimum step angle to 0.1 degrees, with the use of telephoto lens, effectively eliminate the screen in the start and stop of the moment of jitter and rebound phenomenon.
The power supply module supports DC12V to DC24V wide voltage input, and has built-in overcurrent and overheat protection chips. When the load exceeds 20% of the rated value, the power supply of the motor is automatically cut off to prevent the core components from burning due to accidental overload.
Different from ordinary belt drive, we use precision-cut copper turbine and steel worm. The self-locking function ensures that the pan-tilt does not move after power failure, and the wind resistance level reaches 12, effectively preventing lens shift in strong wind environment.
The fuselage adopts integrated die-casting aluminum alloy shell, with multi-layer sealing ring design, through 72 hours of salt spray test, even in the seaside high salt spray or desert dusty environment, the internal gear and circuit board can be protected from corrosion, and the service life is extended by more than 5 years.
It supports stepless speed adjustment from 0.1 degrees per second to 60 degrees per second. The system has 6 built-in cruise scanning paths, and each path can store 16 preset positions to meet the complex requirements of fixed-point cruise and panoramic automatic shooting.
The bottom is equipped with standard 5/8 inch and 3/8 inch screw holes. The top fast-loading board is compatible with mainstream photography and monitoring equipment, supports RS485 control interface, and can be seamlessly connected to mainstream video recorders such as Haikang and Dahua and third-party control keyboards.
| Parameter categories | Technical Specifications Details |
| Core keywords | Pan and tilt head for tripod |
| Maximum load capacity | 20kg (top load) / 12kg (side load) |
| Horizontal rotation range | 0° ~ 360° unlimited continuous rotation |
| Vertical rotation range | -90° ~ +90° |
| Horizontal rotation speed | 0.1°/s ~ 60°/s (adjustable) |
| Vertical rotation speed | 0.1°/s ~ 40°/s (adjustable) |
| Preset number of positions | 128 |
| Control Protocol | Pelco-D / Pelco-P (Automatic Recognition) |
| baud rate | 2400 / 4800 / 9600 bps |
| Operating temperature | -35℃ ~ +65℃ |
| Overall power consumption | Static < 2W / Dynamic < 15W |
| Main body weight | 3.8kg |
| Surface treatment | Electrostatic powder coating (corrosion resistant) |
In view of the problem that the picture is easy to shake under high zoom, the Bit-cctv tripod head introduces electronic anti-shake algorithm and mechanical gap compensation technology to ensure that the picture is still stable and clear without any virtual focus under 30x optical zoom..
In view of the problem that the traditional tripod head is easy to enter water and short circuit in rainstorm days, we redesigned the waterproof structure of the outlet, and adopted the military-grade waterproof aerial insertion and internal glue filling technology, thus completely eliminating the hidden danger of water vapor penetrating into the fuselage through the cable gap..
In view of the problem of protocol mismatch during on-site debugging by integrators, Bit-cctv PTZ has a built-in protocol adaptive chip, which can automatically identify baud rate and control protocol without manual dialing, thus shortening the on-site installation and debugging time by 50%..

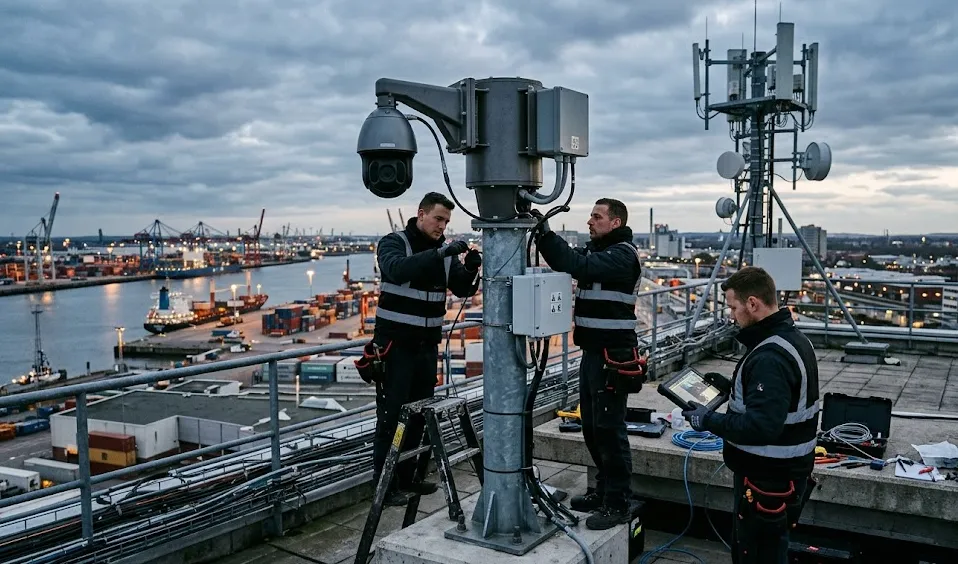

Engineers who need to purchase high-reliability Pan and tilt head for tripod for outdoor projects such as border patrol and forest fire prevention. They focus on the IP protection level, load capacity and compatibility with existing monitoring systems.

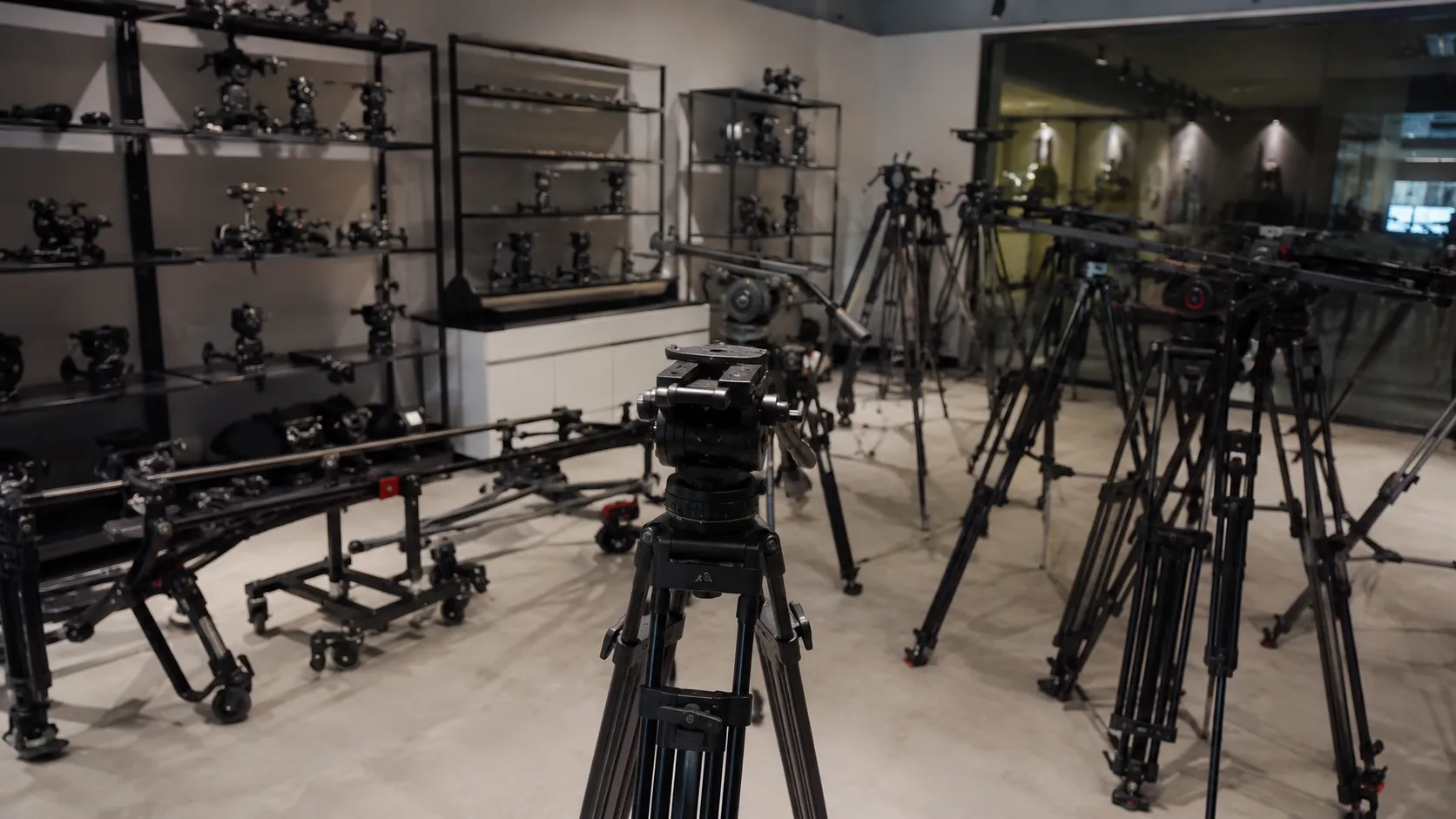

For the pursuit of the ultimate quality of photography studio supply dealers. This group requires the gimbal to have extremely high repetitive positioning accuracy and smoothness of low-speed operation to meet the needs of long-span outdoor dynamic time-lapse photography.

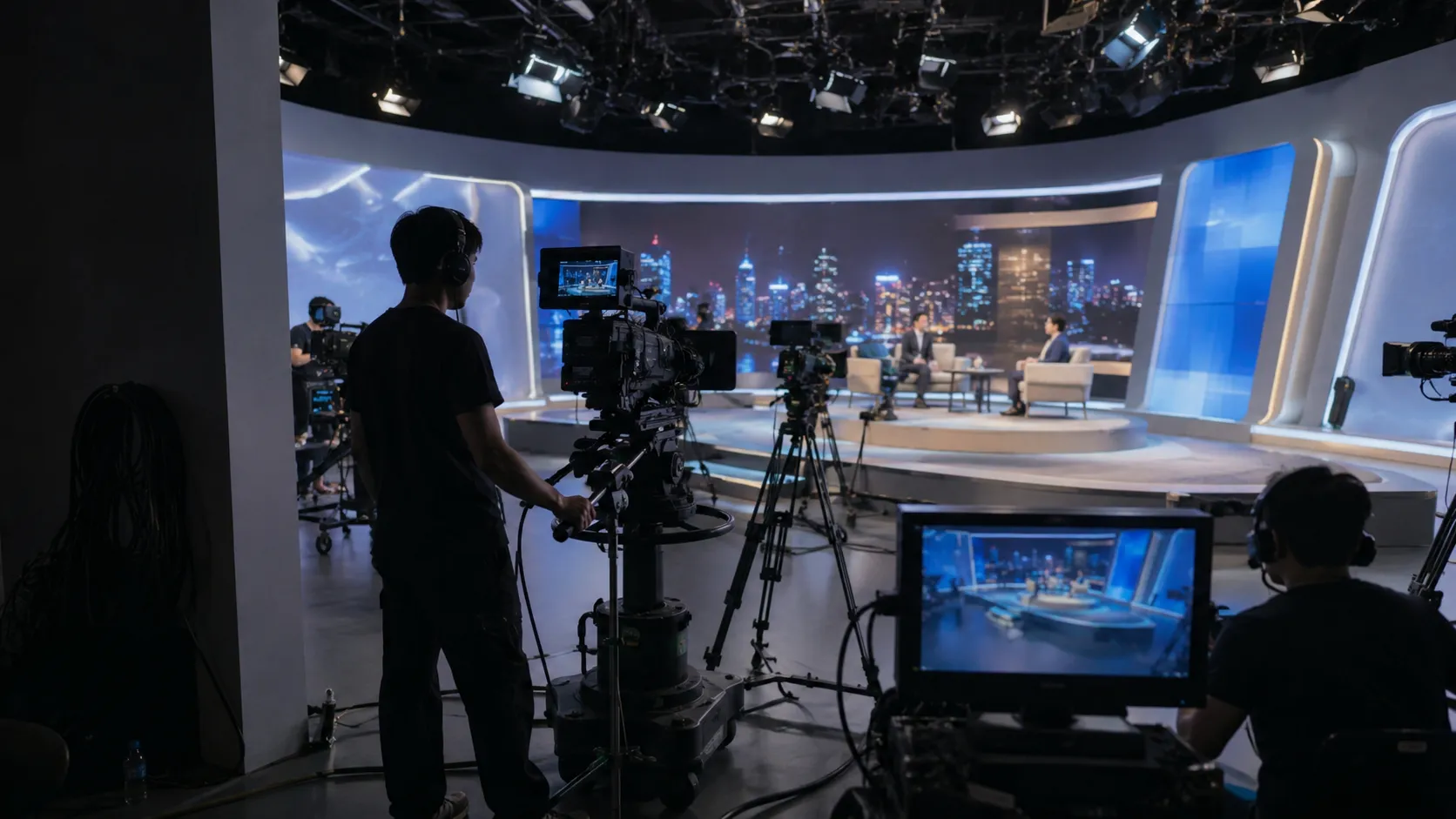

A company that provides equipment rental services for sporting events and concerts. They need a solid structure, wear-resistant and quick installation and removal of the gimbal, requiring the product to maintain stable performance under frequent transportation and high-intensity use.

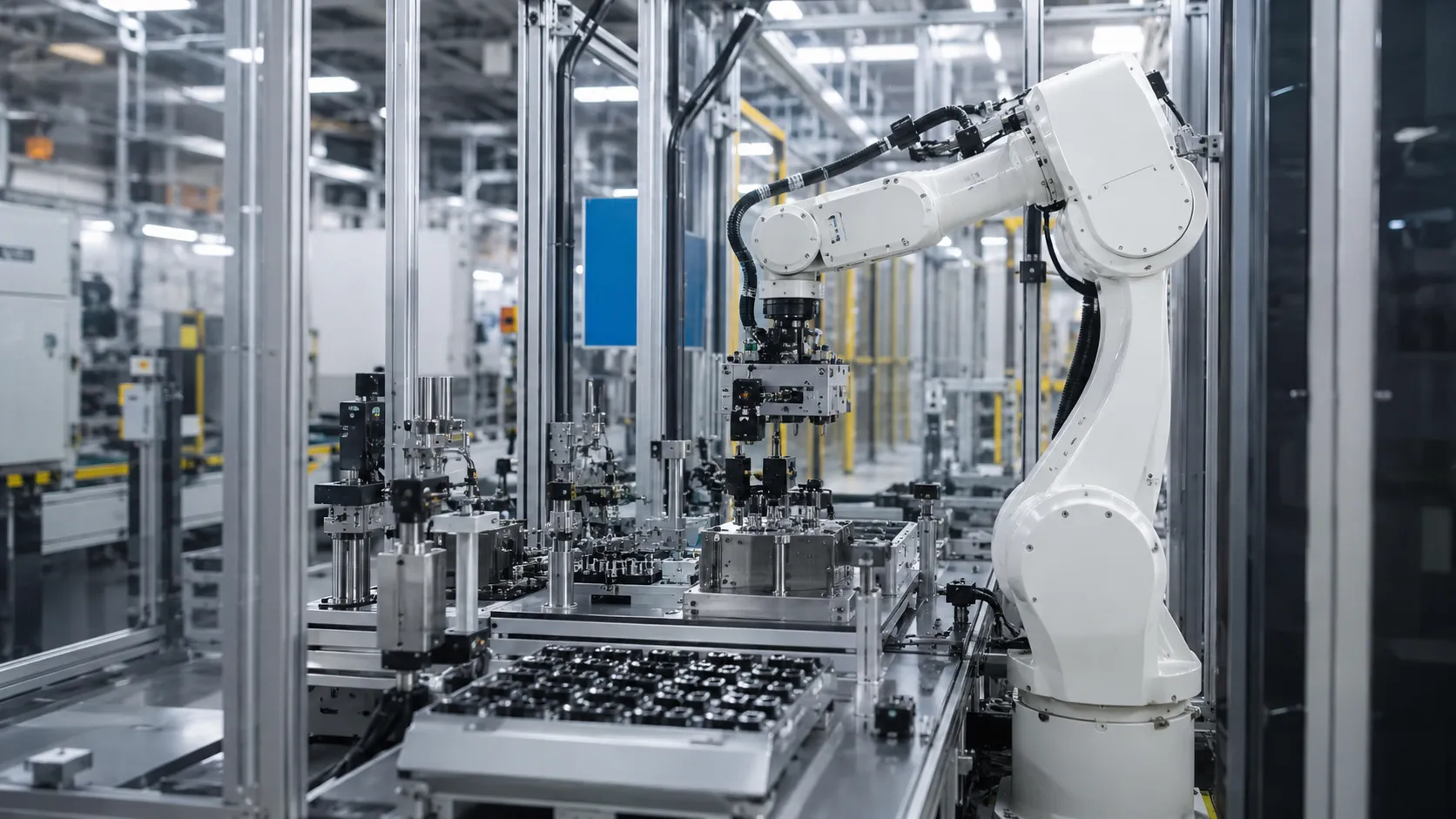

Responsible for the factory assembly line or power inspection robot equipped with vision system of the enterprise. They use Bit-cctv pan-tilt to carry industrial cameras or infrared thermal imagers for all-round equipment status scanning and troubleshooting.
Align the 3/8-inch screw hole at the bottom of the gimbal with the mounting screw of the tripod, turn it clockwise until it is locked, and tighten the anti-rotation screw on the side to ensure that the base will not loosen when the gimbal is rotated..
Install the camera or camera on the quick-mounting board on the top of the pan-tilt, and adjust the center of gravity of the equipment by sliding back and forth to ensure that the equipment can maintain horizontal balance under power-off conditions to reduce the load on the motor..
According to the label instructions, connect the RS485 control line to the corresponding positive and negative ports, and connect the power line after confirming that the voltage is 24 volts DC. Note that the positive and negative poles cannot be connected in reverse, otherwise the circuit may be damaged..
According to the dial code table in the manual, set the communication address and baud rate of the pan-tilt through the dial code switch at the bottom to ensure that it is completely consistent with the settings of the control keyboard or video recorder, and then the control can be started..
.webp "Factory")
When using standard RS485 shielded twisted pair for control, the theoretical maximum transmission distance can reach 1200 meters. If a wireless data transmission module or a fiber optic transceiver is used, the control distance can be extended to several kilometers or even farther.
Support. Bit-cctv the built-in memory chip of the gimbal, when the power is turned on again after an unexpected power failure, the gimbal will automatically return to the angular position and focal length state before the power failure without recalibration, thus ensuring the continuity of monitoring data.
As the source factory, our minimum order quantity for wholesale is 5 sets. At the same time, we provide in-depth OEM services, including silk-screen customer brand logos, customized shell colors, and modification of special control agreements. Customized MOQ is usually 50 units.
The standard version of the operating temperature of minus 35 degrees to 65 degrees. If you need to use in the extreme cold area of minus 40 degrees, please explain when ordering, we will install a built-in temperature control heating module for you to ensure that the internal grease does not solidify.
Our design uses a modular structure. If it is a motor failure, you only need to disassemble the side cover, unplug the terminal and unscrew the fixing screws to replace the motor module. There is no need to return to the factory for maintenance, and ordinary technicians can complete the replacement within 10 minutes.
The standard factory package includes: Pan and tilt head for tripod host, waterproof aviation plug, mounting screw kit, Allen wrench tool, and 1 detailed Chinese operating instructions and warranty card. The power adapter needs to be selected separately according to your voltage requirements.
