bit-cctv pan-tilt camera uses industrial-grade all-metal pan-tilt head combined with long-distance optical zoom and AI intelligent tracking technology to provide a dynamic monitoring scheme covering the whole field for large-area security monitoring scenes. Blue Icon has been established since 2005. It is a source factory integrating design, engineering and manufacturing. It has a 5000 square meter factory building and ISO 9001 certification, which is delivered directly from the factory to customers.
Image resolution
Optical zoom
Protection grade
Night vision distance
Horizontal rotation
Vertical range
Power supply mode
Protocol compatibility
Fully supports ONVIF Profile S/G/T standards, seamlessly connects with mainstream brand NVR and video management platforms, and there is no need to worry about system integration obstacles caused by b...
The 30x optical zoom magnifies distant targets without losing image quality, and can clearly identify vehicle license plates and facial features from hundreds of meters away, providing reliable materi...
With 360-degree continuous horizontal rotation and large vertical pitch, a single gimbal camera can cover the monitoring range of multiple traditional fixed cameras, significantly reducing the number ...
The built-in AI algorithm automatically identifies people and vehicle targets. After triggering, it autonomously tracks and keeps the target centered, eliminating the need for manual control by securi...
The all-aluminum alloy die-cast shell, combined with the IP67 dust and water resistance rating, withstands extreme temperatures from -40 degrees to 70 degrees, rain, snow, wind and sand, ensuring stab...
Simultaneous transmission of data and power through a single Ethernet cable, eliminating the need for independent power cabling and significantly reducing installation complexity. It is especially sui...
| Parameter categories | Parameters | Specifications |
|---|---|---|
| Imaging system | Image sensor | 1/2.8-inch progressive scan CMOS |
| Effective pixels | 8MP (3840 × 2160) | |
| Minimum Illumination | Color 0.001 Lux / Black and White 0.0005 Lux | |
| Video compression | H.265 / H.264 | |
| Lens system | Optical zoom | 30 times |
| Focal length range | 4.8 – 154 mm | |
| Aperture range | F1.6 – F4.8 | |
| PTZ system | Horizontal rotation | 360-degree continuous rotation |
| vertical angle | -90 degrees to +90 degrees | |
| Horizontal speed | 0.1 – 120 degrees/second | |
| Vertical rotation speed | 0.1 – 60 degrees/second | |
| Preset number of positions | 255 | |
| Night vision system | Infrared illumination distance | 200 meters |
| Intelligent Infrared | Supports automatic adjustment to prevent overexposure of close-up scenes. | |
| Protection and Electrical | Protection level | IP67 dustproof and waterproof |
| Riot control level | IK10 Impact Resistance | |
| Operating temperature | -40 degrees to 70 degrees | |
| Power supply method | PoE+ (IEEE 802.3at) or DC 24V | |
| Maximum power consumption | 35W | |
| Networks and Protocols | Network interface | RJ45 10/100M |
| Support Agreement | ONVIF Profile S/G/T, TCP/IP, RTSP | |
| AI Functions | Person/vehicle detection, automatic tracking, and area intrusion detection | |
| storage | Local storage | MicroSD cards, supporting up to 512GB |
| Remote storage | NVR Network Recording / NAS |
the bit-cctv pan-tilt camera supports preset cruise paths and 255 preset positions, and cooperates with fixed cameras to supplement blindness, thus realizing zero dead angle coverage in key areas..
all-metal IP67 protection plus IK10 impact resistance design, after -40 degree low temperature start-up and 70 degree high load operation test, ensure continuous operation in high temperature, high co....
it is fully compatible with ONVIF Profile S/G/T standards, and can be directly connected to mainstream NVR and VMS platforms without additional protocol conversion intermediate equipment, thus reducin....

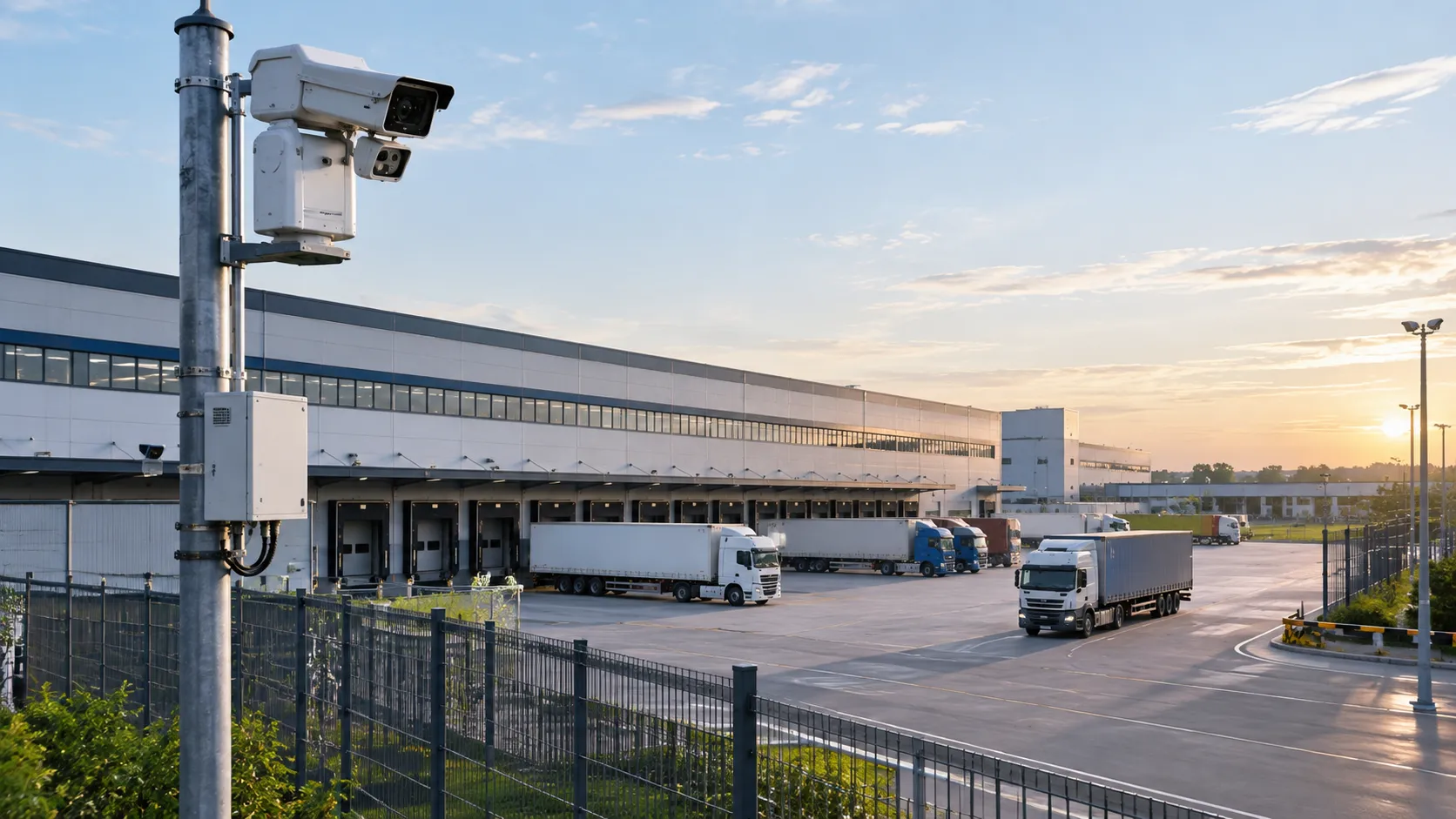

manage the security deployment of multiple stores or storage centers. A PTZ is needed to cover a large area of parking lots, loading and unloading areas and warehouses, combined with PoE to simplify w...

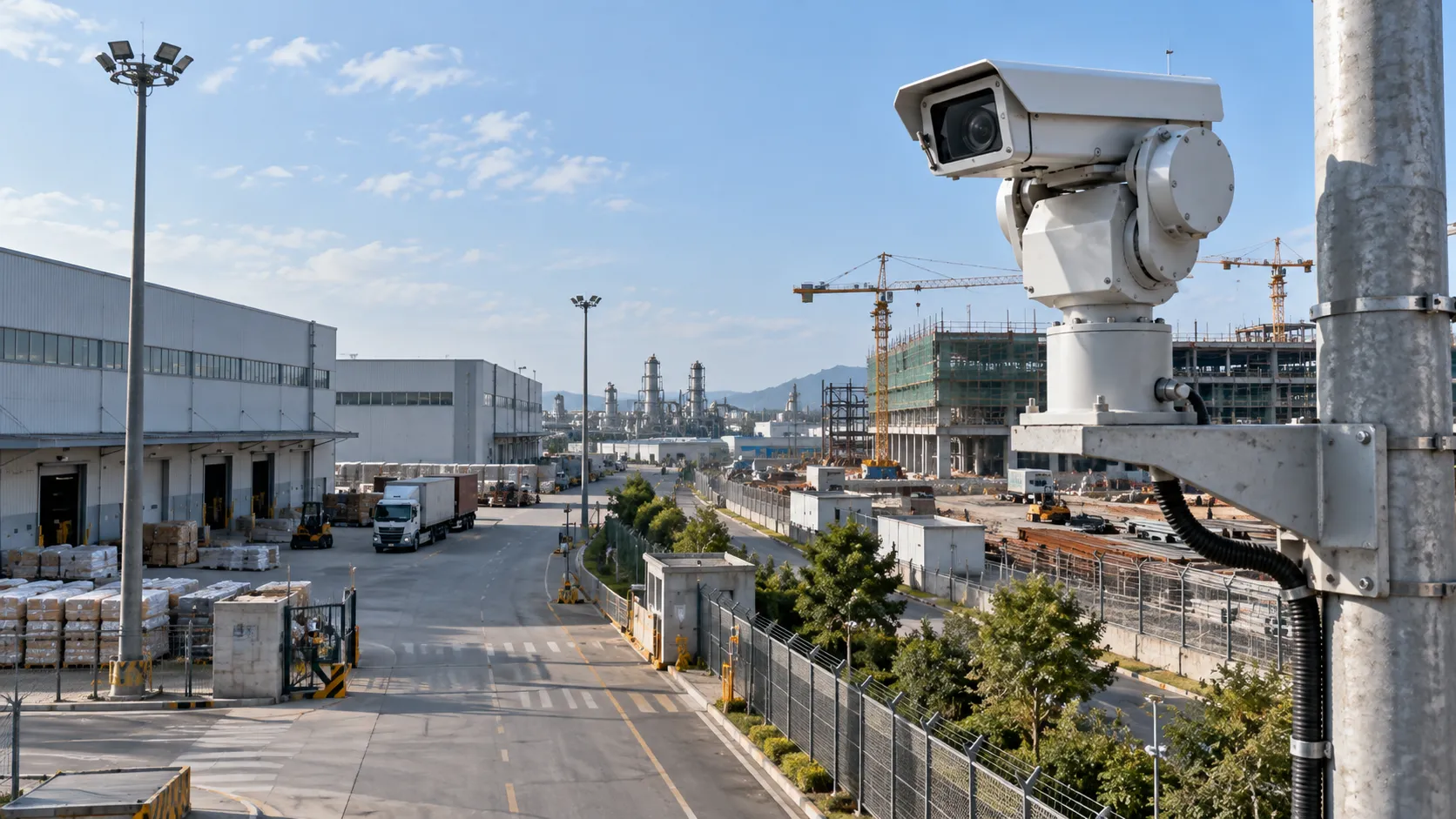

responsible for the daily security management of large industrial parks, logistics parks, manufacturing plants. A monitoring system with wide coverage, automatic AI tracking and remote inspection is n...

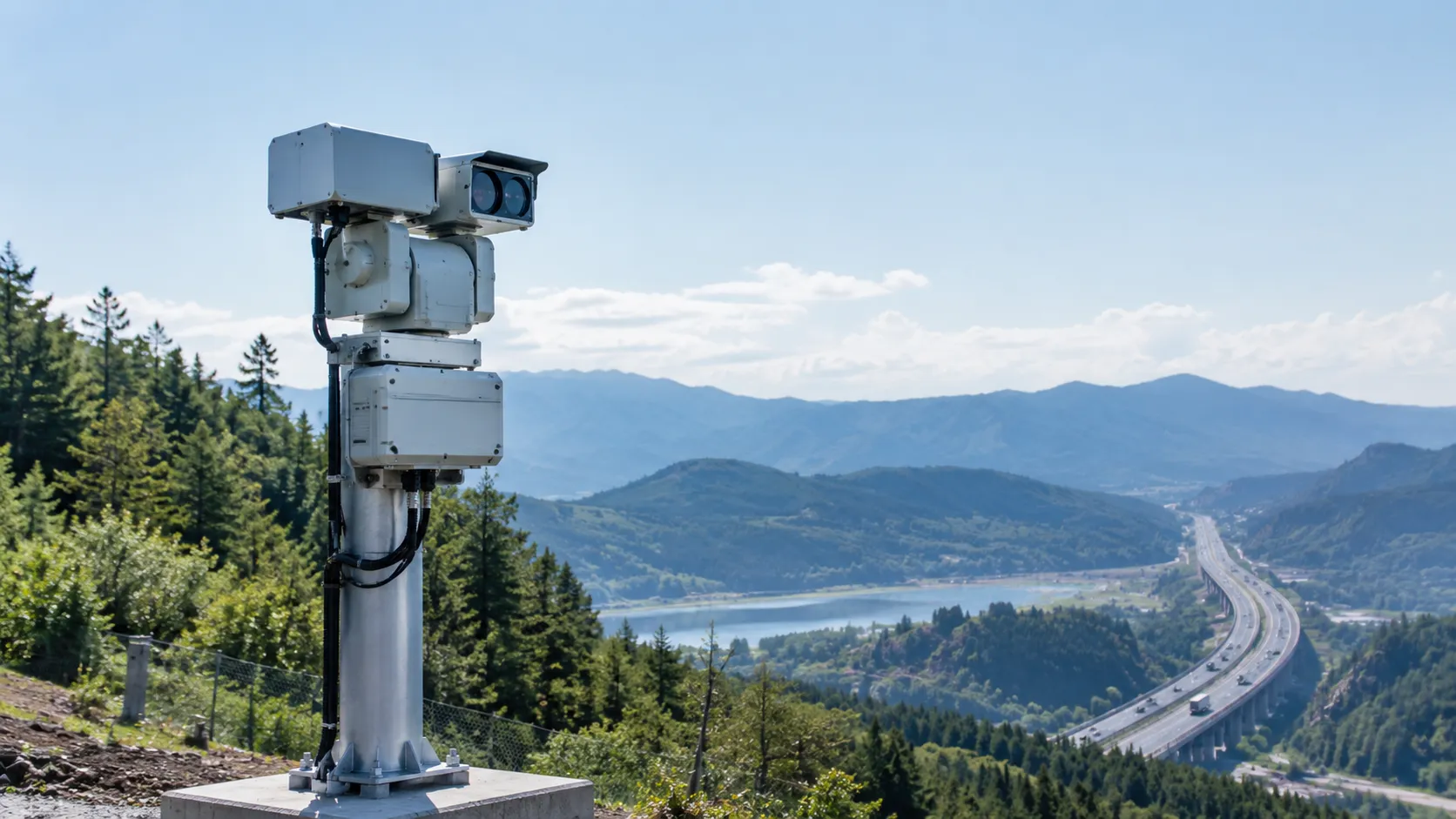

to undertake commercial buildings, government projects, transportation hubs and other security projects. The pan-tilt camera with flexible selection and open interface (ONVIF compatible) is required t...

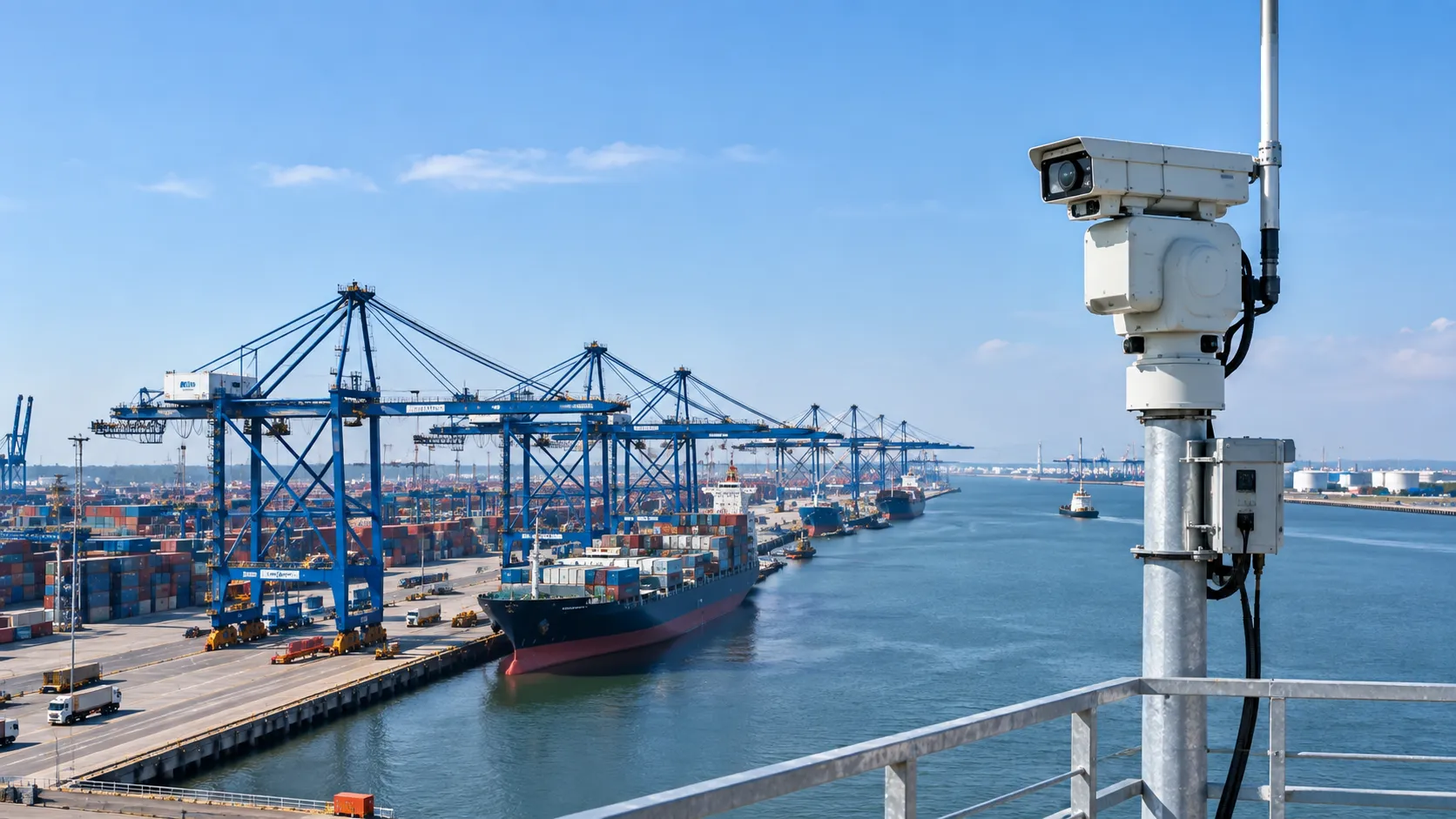

responsible for the perimeter and regional protection of core facilities such as ports, airports, power stations, and water treatment plants. It needs to have long-distance optical zoom, high protecti...
confirm that the load-bearing capacity of the mounting bracket is greater than the total weight of the equipment, the embedded network cable must support the PoE power supply standard, and ensure that....
connect the switch or NVR through PoE Ethernet cable, and confirm that the indicator light is on; DC 24V power adapter can also be used to supply power to avoid abnormal PTZ motor caused by unstable v....
Use a LAN browser or a supporting client tool to search for devices. The administrator password must be modified for the first login. It is recommended to turn on HTTPS encrypted transmission at the s....
set the key position presets according to the monitoring area. After saving the common target points such as gate, loading and unloading area and passage entrance, set the cruise path and let the came....
.webp "Factory")
A1: Pan-tilt camera is a motion surveillance camera that supports horizontal rotation, vertical tilt and optical zoom. One PTZ can cover the area of multiple fixed cameras, and can remotely adjust the...
A2: Supported. The protection grade of the fuselage is IP67, with IK10 impact-resistant shell and all-aluminum alloy material. The working temperature range is minus 40 degrees to minus 70 degrees, an...
A3: No, it’s not necessary. The device supports PoE power supply, and only needs to 1 a standard Ethernet cable to transmit data and power at the same time, eliminating power wiring and making instal...
A4: Yes, it is possible. The device fully supports the ONVIF Profile S/G/T standard protocol, and can access the NVR and video management software of mainstream brands without worrying about brand loc...
A5: The device has a built-in AI detection algorithm that can automatically identify people or vehicles entering the monitored area. Once triggered, the gimbal autonomously follows the target and rema...
A6: Yes, it is possible. As the source manufacturing plant, bit-cctv provides multi-dimensional customized services such as pan-tilt rotation angle, cable routing, paint color, military connectors, et...
