Bit-CCTV pan-tilt unit adopts high-precision worm gear drive and industrial-grade stepping motor drive to provide stable and reliable two-dimensional precision positioning solutions for security monitoring systems. Blue Icon (Tianjin) Technology Co., Ltd. Since 2005, it has focused on the design and manufacture of PTZ equipment. It is a source factory integrating R & D, production and sales, providing you with competitive ex-factory prices and shorter delivery cycles.
Maximum load:
Horizontal rotation angle:
Pitch angle range:
Horizontal rotation speed:
Pitch rotation speed:
Repeatability:
Protection rating:
Control protocol:
The use of high-subdivision stepping motor drive combined with worm gear closed-loop control algorithm, with the use of long-focus lens, the screen start and stop instant no jitter rebound, to ensure ...
Different from ordinary belt drive, the combination of precision copper worm wheel and steel worm provides power-off self-locking function, with wind resistance level of 12, load non-offset under stro...
Integrated die-casting aluminum alloy shell with multi-layer sealing ring design, through 48 hours of salt spray test, in the coastal high salt spray or desert dusty environment, the internal gear and...
Each cruise track can store 10 preset positions, support automatic scanning, timing homing and power-off position memory, and meet the needs of all-weather automatic monitoring in unattended scenarios...
Standard RS485/RS422 interface supports Pelco-D/P protocol, optional Ethernet RJ45 control, seamless docking mainstream DVR/NVR and third-party control keyboard, on-site debugging without additional p...
Support AC24V ± 20% or DC24V ± 10% wide voltage input, working temperature covers -35 C ~ +65 C, built-in lightning protection surge protection (power supply 4000V/signal 2000V), suitable for extrem...
| Parameter categories | Technical indicators | Specifications Details |
|---|---|---|
| Load capacity | Maximum load | 50kg (top mounting) / 35kg~120kg optional |
| Rotation range | Horizontal rotation | Continuous rotation from 0° to 360° |
| Pitch and Rotation | -45° to +45° (wider angles available upon request) | |
| Rotation speed | Horizontal speed | 0.01°/s~30°/s (adjustable speed) |
| Pitch speed | 0.01°/s~15°/s (adjustable speed) | |
| accuracy | Repeatability | ±0.1° |
| Preset number of positions | 200 (expandable) | |
| driving method | Transmission structure | Precision worm gear self-locking drive |
| Motor type | High-resolution stepper motor | |
| Control and Communication | Control Protocol | Pelco-D/P |
| Communication interface | RS485/RS422 (RS232 or Ethernet RJ45 optional) | |
| baud rate | 2400/4800/9600/19200bps | |
| Electrical parameters | Input voltage | AC24V±20% 50/60Hz or DC24V±10% |
| Power consumption | ≤80W (excluding heater) | |
| Lightning protection | Power supply 4000V / Signal 2000V | |
| Environmental adaptability | Protection level | IP66 |
| Operating temperature | -35°C to +65°C | |
| Operating humidity | <90%RH (non-condensing) | |
| Salt spray protection | No abnormalities were observed after 48 hours of continuous spraying at pH 6.5~7.2. | |
| physical parameters | Main material | Die-cast aluminum alloy + electrostatic powder coating |
| Total weight | ≤23kg | |
| External dimensions | 350×206×380mm (Length×Width×Height) | |
| Smart functions | Cruise Track | 8 lines, 10 preset positions per line |
| Automatic scanning | 1 path | |
| Automatic return to position | The time can be set from 1 to 60 minutes. | |
| Angle Feedback | Supports query-based (RS485) or real-time data transmission (RS422) | |
| Lens preset | Supports and adapts to various lenses. | |
| Installation method | Load mode | Top mounting/side mounting optional |
In view of the problem of virtual focus caused by the traditional pan-tilt start-stop jitter when the optical zoom is more than 30 times, the built-in electronic anti-shake algorithm and mechanical ga....
In view of the problem that the traditional Yuntai outlet is prone to water seepage and causes internal circuit short circuit in rainstorm days, the military-grade waterproof aviation plug and interna....
In view of the problem that the protocol mismatch needs to be dialed repeatedly during the integrator’s on-site debugging, the built-in protocol adaptive chip can automatically identify the baud rate....

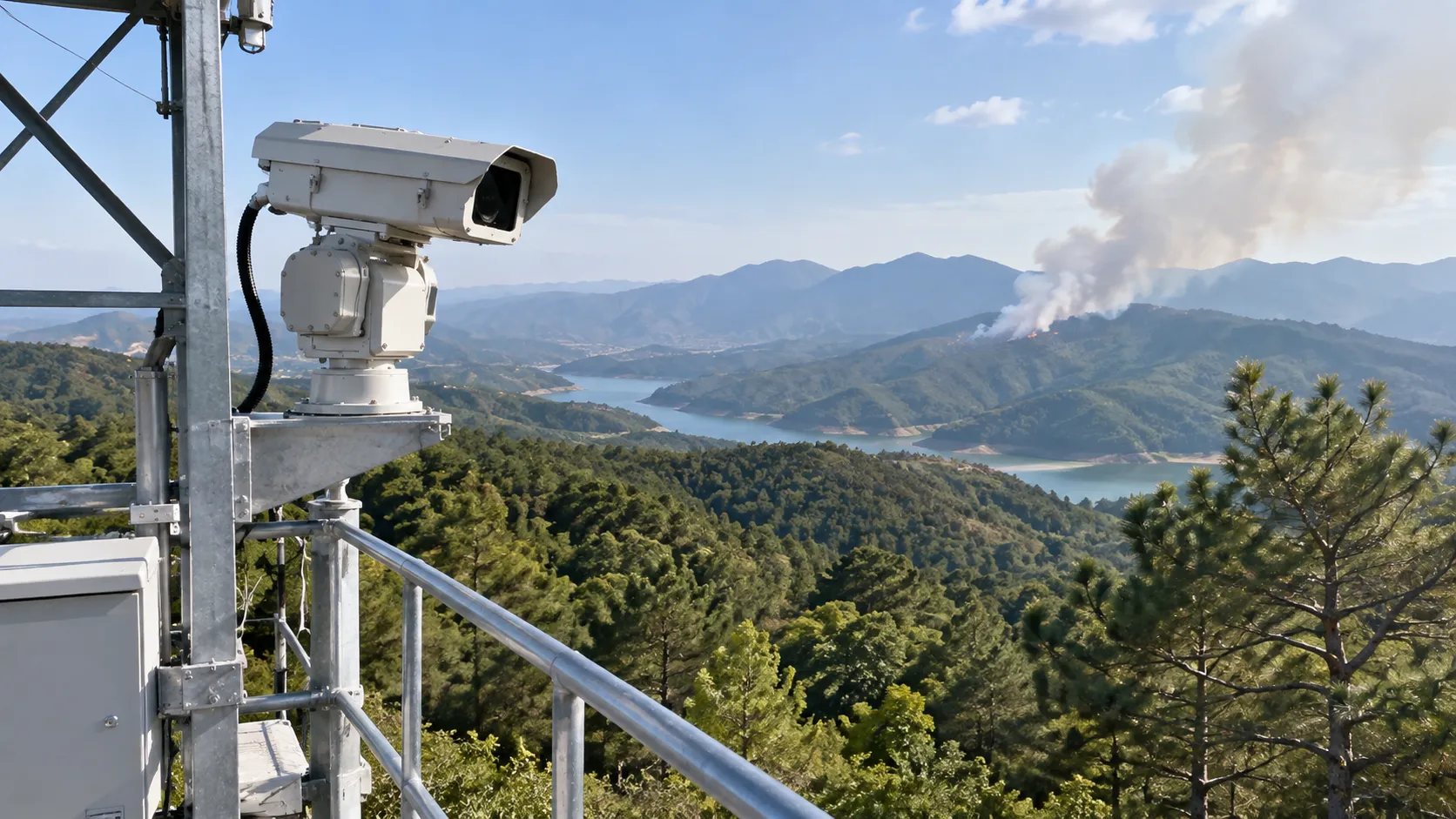

Procurement personnel of the Forestry Bureau or forest fire early warning projects. the pan-tilt unit, which needs to be installed in an elevated position such as a high tower in the field, uses its l...

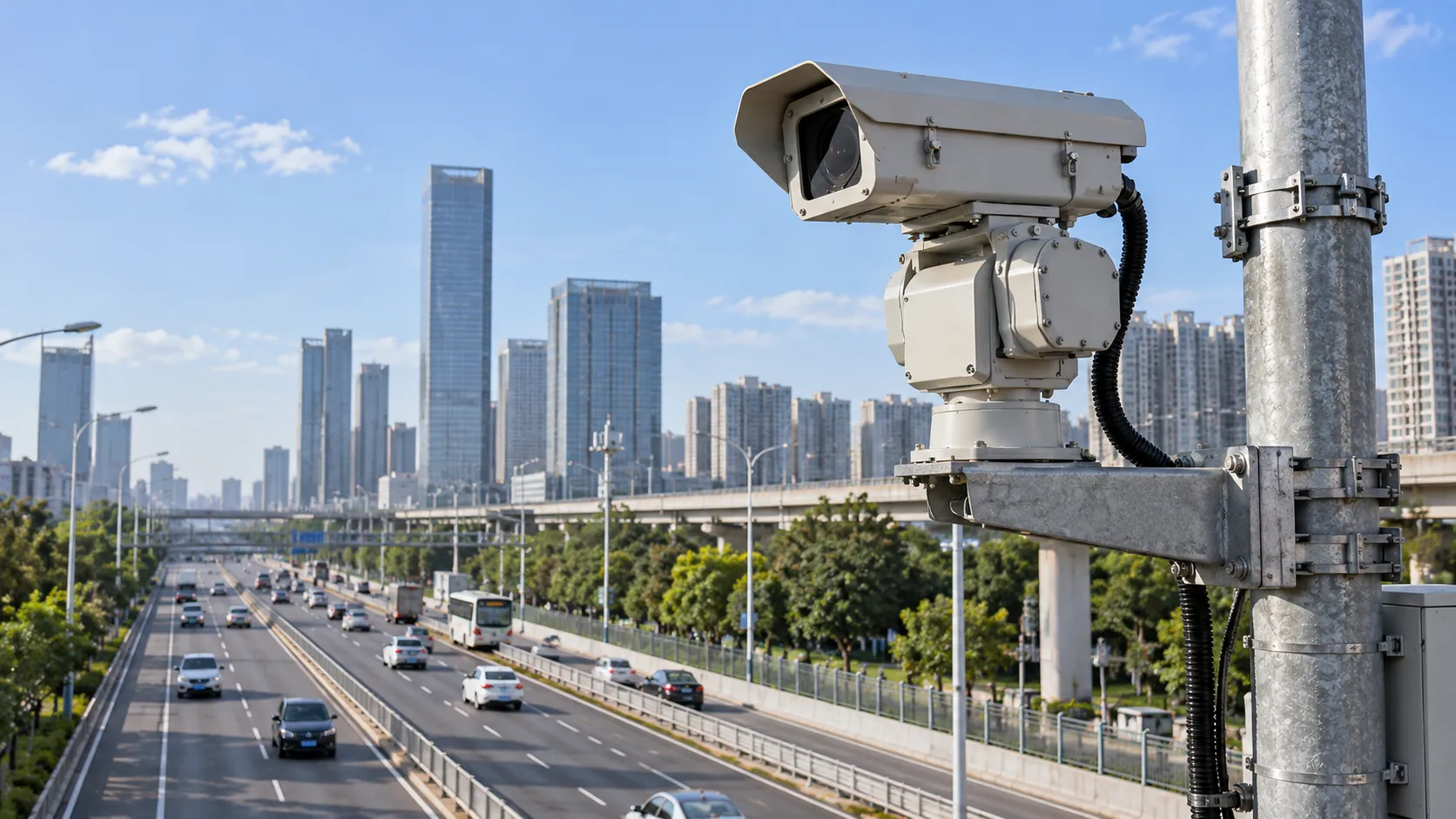

To undertake urban monitoring, safe city, intelligent transportation and other large-scale security project system integrators. It is necessary to 1 a pan-tilt unit with reliable load, compatible prot...

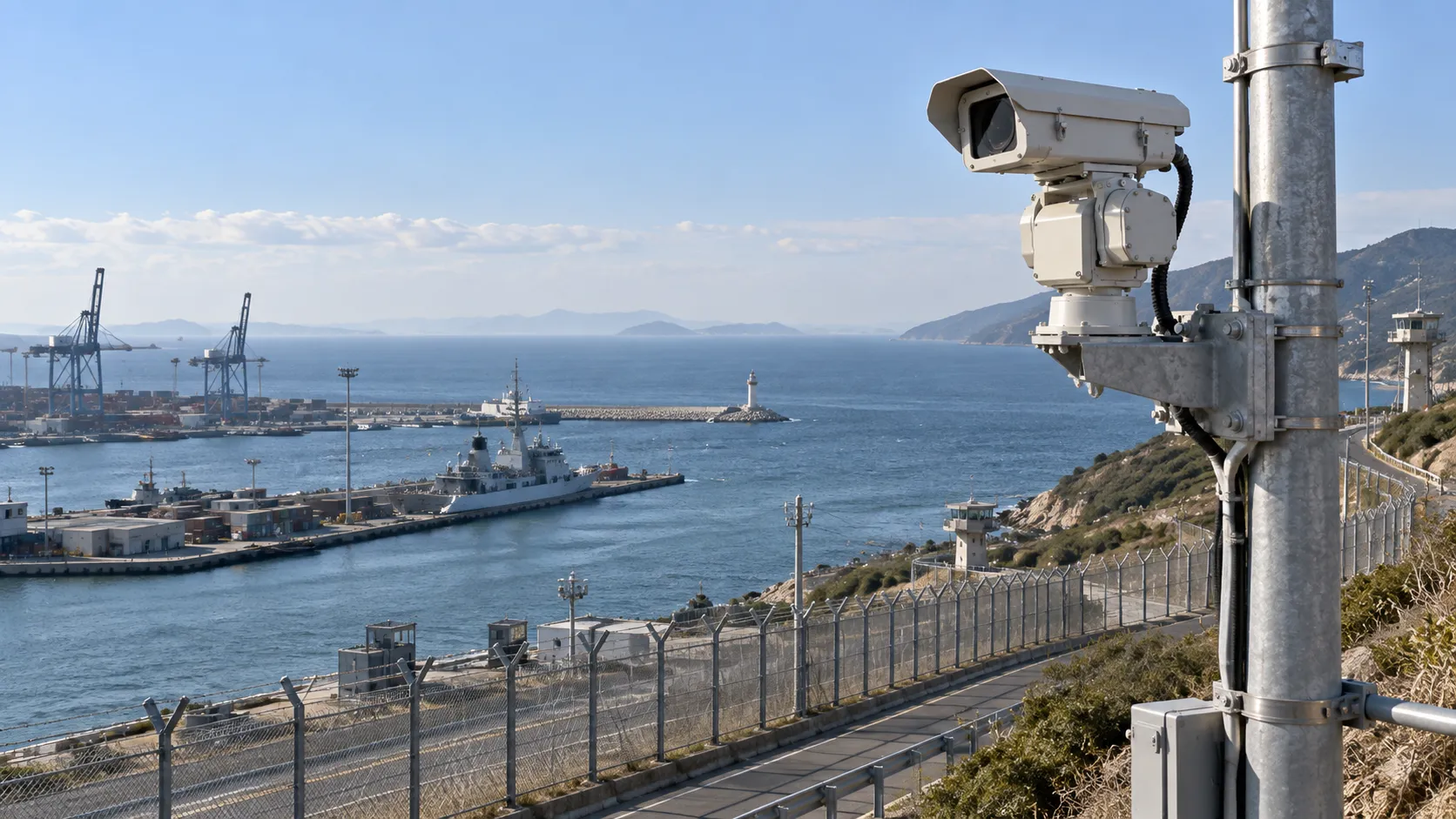

Government departments or military units responsible for long-distance perimeter monitoring of borders, coastlines, ports and docks. Need IP66 protection, self-locking transmission, anti-salt spray co...

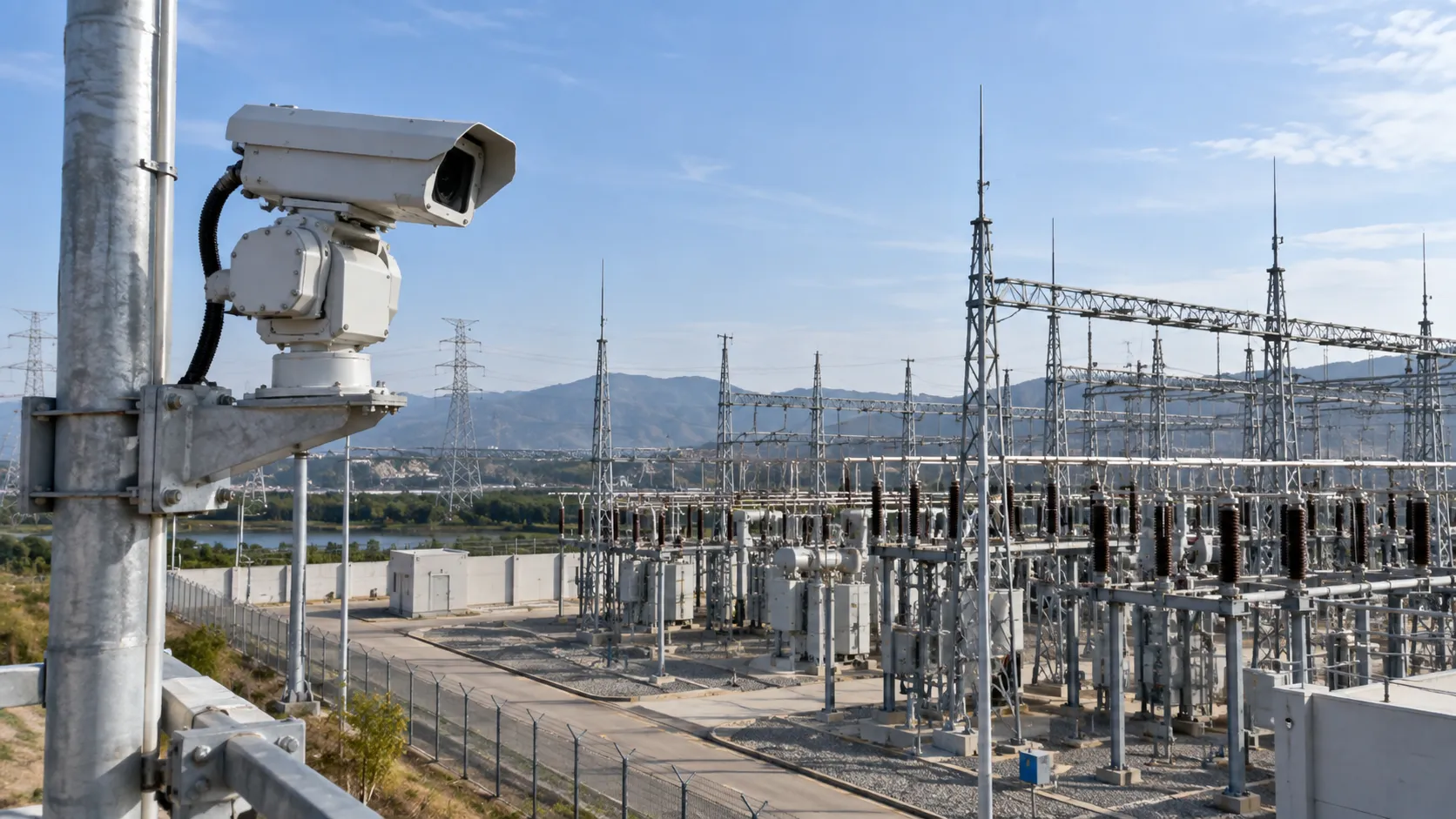

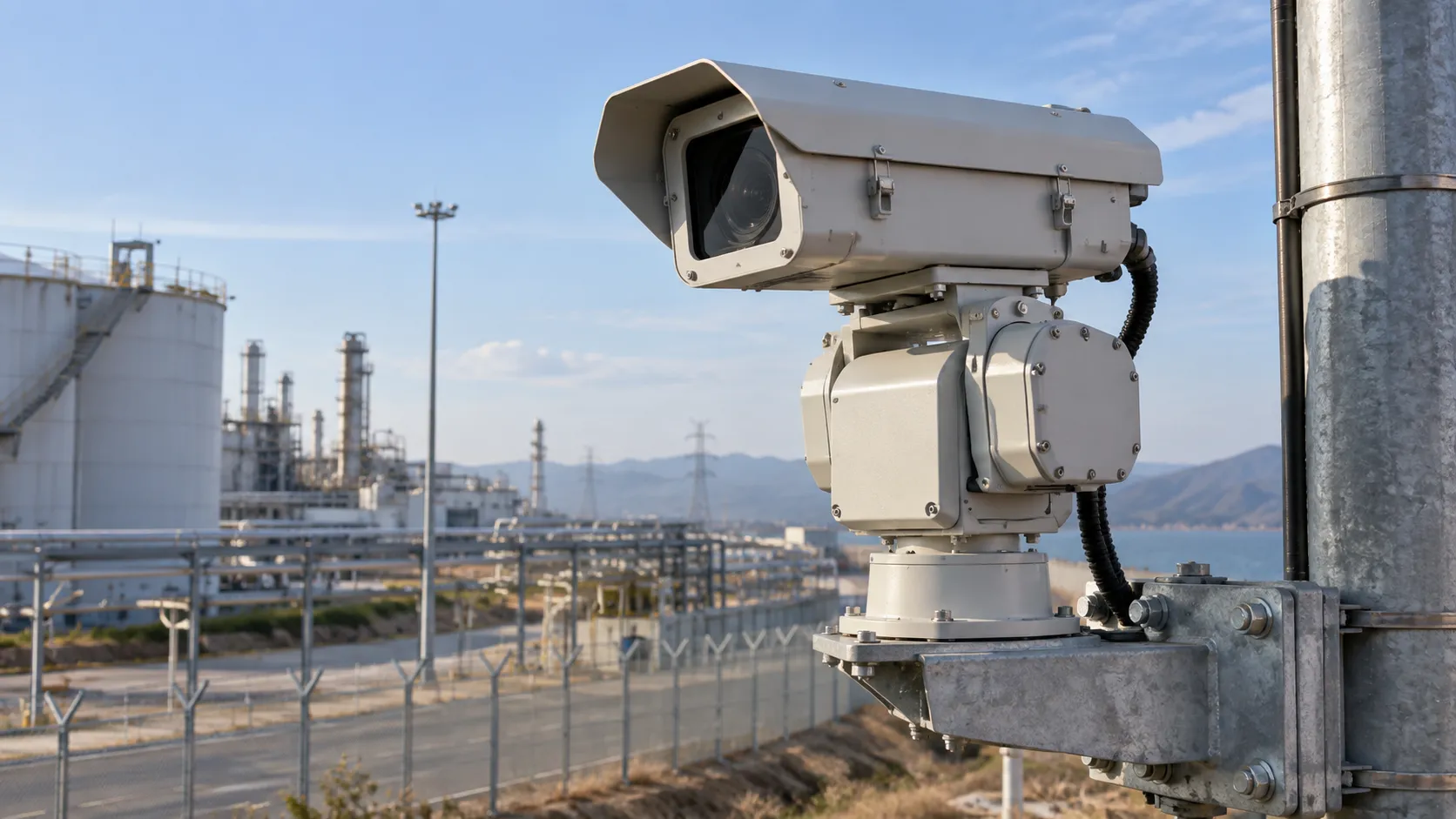

A service provider that provides remote inspection solutions for unattended scenarios such as substations, oil and gas pipelines, and photovoltaic power plants. pan-tilt unit supporting automatic crui...
Provide the total weight and center of gravity height data of the camera and shield to the manufacturer to ensure that the load margin of the selected gimbal model is not less than 120 percent of the ....
Use AC24V or DC24V regulated power supply to supply power and confirm that the polarity is correct; RS485 control line adopts twisted pair shielded line, A/B line cannot be connected in reverse, and r....
It is normal that the gimbal will perform a series of auto-calibration movements when powered on. During the calibration, ensure that there is no obstruction within the rotation range of the pan/tilt,....
Check the tightening status of the shell sealing ring and external screws every 12 months, clean the contact surface between the outlet and the aviation plug, and ensure the long-term effective IP66 p....
.webp "Factory")
The maximum load refers to the total weight of the equipment that can be carried on the top mounting surface of the pan/tilt, including the total weight of all accessories such as the camera, shield, ...
IP66 means that the pan-tilt is completely dust-proof and can withstand strong water spraying. It will not enter water or accumulate dust due to heavy rain, high-pressure water gun cleaning or dust en...
Both are mainstream PTZ control protocols in the security industry. Pelco-D is more widely used and compatible with the largest number of devices; Pelco-P has a slight advantage in long-distance trans...
The self-locking of the worm gear means that the gimbal can remain stationary at the current position after the power is off, and will not slip due to load gravity or external wind. This is crucial fo...
Sure. The Bit-CCTV provides a pair of 1 technical consulting and customization services, which can adjust the pitch angle range (e. g. customized ± 60 ° or ± 90 °), the upper horizontal rotation s...
Please send your front-end equipment weight, center of gravity height, required control protocol and power supply type to Bit-CCTV technical team. We will provide accurate adaptation suggestions accor...
