this pole mount for cctv cameras is specially designed for harsh outdoor environment. it adopts high-strength die-cast aluminum alloy and stainless steel fasteners to ensure the stable installation of monitoring equipment in various vertical pole environments. As the source manufacturing plant of deep-cultivated security hardware, Bit-cctv has a full-process production line and strict industry quality standards, eliminating middlemen, providing you with highly competitive direct supply prices and large-scale fast delivery guarantee.
high strength aluminum alloy
(bracket)/ 304 stainless steel (hoop)
Material
100mm to 400mm optional
Adapt rod diameter
10kg (static load)
Maximum load
white polyester powder spraying
Surface treatment
IP66
Protection class
0.32kg (excluding hoop)
Product weight
-40 ℃ to 70 ℃
Working temperature
using high-density aluminum alloy material, the gravity die-casting molding, with high mechanical fatigue resistance, even if the long-term load 10kg heavy camera, the bracket will not produce structural deformation or small displacement.
equipped with 12mm widened stainless steel hoop, the locking torque can reach more than 10Nm, with anti-skid back groove design, to ensure that after the bracket is fastened on the round bar or square bar, the picture will still not move in the 12-level strong wind environment.
The surface is coated with white polyester powder. After 500 hours of neutral salt spray test, it not only has a beautiful appearance, but also can effectively resist acid rain erosion and ultraviolet aging. It does not powder or peel off when used outdoors for a long time.
the panel presets standard cross and matrix holes, which can directly match the ball machines and guns of mainstream brands such as Haikang and Dahua and Bit-cctv own brands, thus completely solving the problem of secondary opening caused by different hole spacing of equipment on site.
spacious cabling hole routing groove is reserved inside the bracket to support hidden cable threading, effectively prevent natural aging or man-made cutting damage caused by line exposure, and improve the safety of the overall monitoring system.
thanks to the optimized structural mechanics design, the weight of the bracket is only about 0.32kg, which greatly reduces the construction burden of aerial workers, and a single person can complete all operations from positioning to locking in 3 minutes.
| Parameter Items | Detailed specifications (using BIT-WS2779) |
| Product Model | BIT-WS2779 / BIT-WS2774 series |
| Main body size | 297.3mm x 88mm x 116.6mm |
| Compatible clamp models | BIT-WS100 / WS200 / WS300 / WS400 |
| Optional clamp diameter | 30mm-100mm, 20mm-200mm, 80mm-300mm, 100mm-400mm |
| Installation method | Pole Mount |
| Mechanical strength | Industrial-grade tensile and shear resistance design |
| Supporting accessories | 304 Stainless Steel Screws and Clamps |
| Environmental adaptability | It can still work normally in an environment with a humidity of 90%±5% RH. |
For the post-wind residual image jitter caused by the lack of rigidity of ordinary brackets, the thickness of the bones and muscles at the root of the bracket is Bit-cctv strengthened to ensure the stable operation of the camera and solve the frequent false positives caused by the jitter of the intelligent identification algorithm..
the pain point that engineers need many people to cooperate to fix on the pole has been solved. Our fast bayonet design enables hoop positioning to be completed in one go, improving the delivery efficiency of large-scale projects by more than 40%..
solve the industry problem of a large amount of yellow rust and water pollution of expensive poles after the corrosion of low-cost iron supports, and protect the overall image and acceptance reputation of the project party..

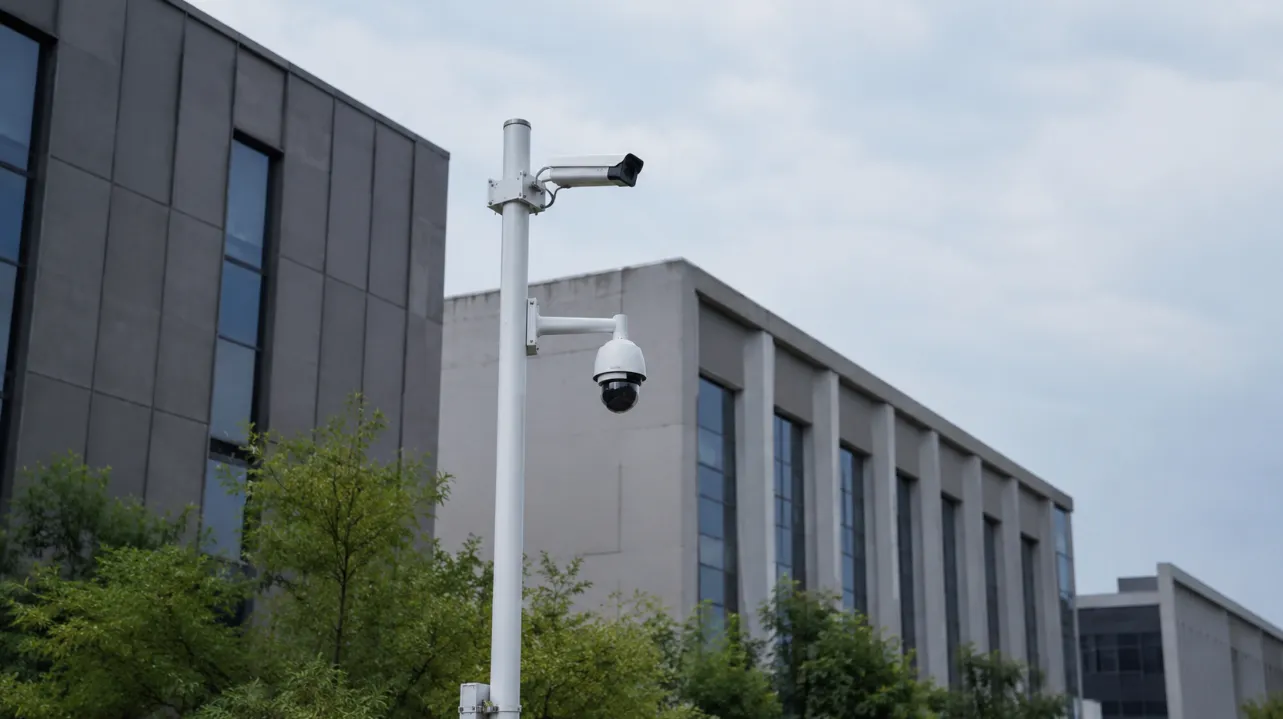

provide high-standard hardware for integrators undertaking large-scale monitoring projects such as safe cities and smart parks. The durability of the Bit-cctv can significantly reduce the labor cost of bracket repair during the operation and maintenance period.

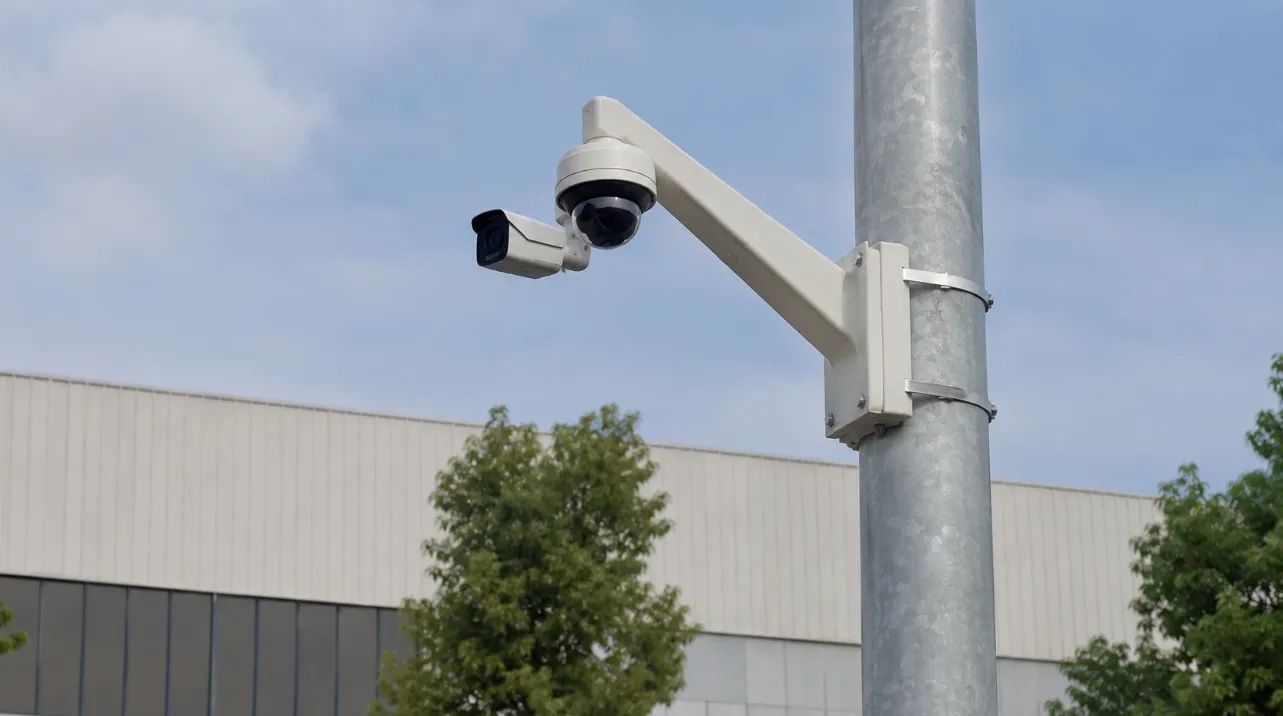

Bit-cctv as the source factory, to provide distributors with stable and price advantage of the spot supply, support customized OEM packaging, help partners in the local security market to establish a professional reputation.

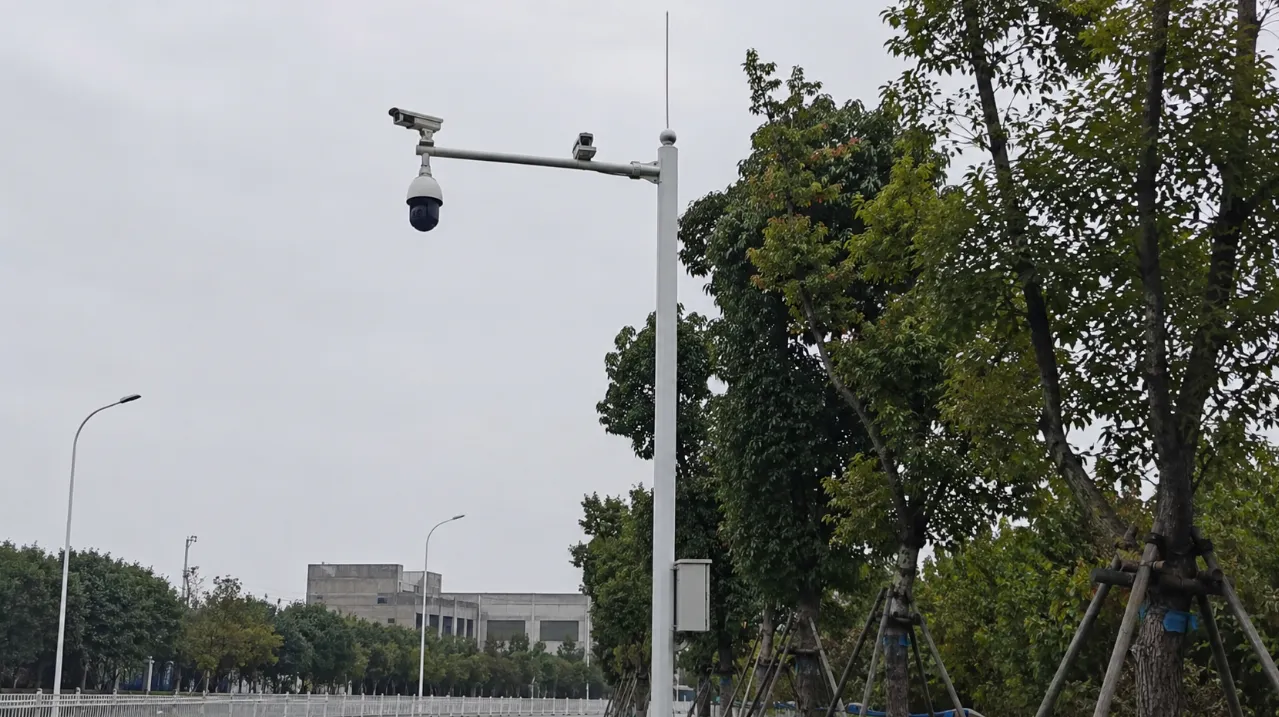

provide easy-to-install pole mount for cctv cameras for the engineering team that needs quick turnover and efficient construction, and ensure that the project conforms to the national secondary and above security construction acceptance specification.

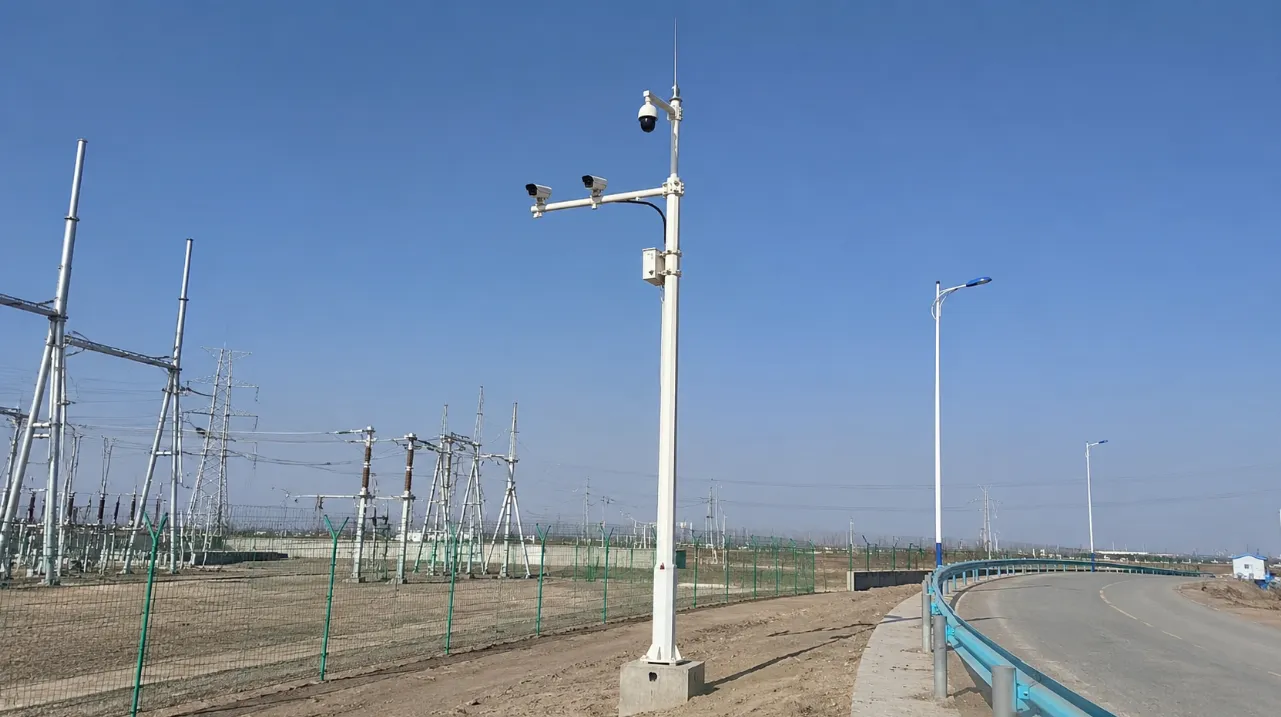

suitable for oil fields, power grids, highways and other special industries with high physical strength and weather resistance requirements for monitoring hardware.
select matching BIT-WS series stainless steel hoop according to the diameter of on-site pole, and mark the height position of bracket installation on the pole..
pass the stainless steel hoop through the fixing hole on the back of the bracket, fit the bracket on the upright pole, and hook the hoop lock to the edge of the steel belt..
Use a special screwdriver or sleeve to lock the hoop bolt evenly until the bracket cannot be manually rotated or slide up and down on the vertical rod to ensure the installation fastness..
the camera base is fixed on the bracket panel by bolts, and the network cable and power cord are inserted into the outlet hole of the bracket to complete the final angle adjustment..
A: Completely. The BIT-WS series bracket panel is designed with multiple sets of universal mounting holes, which can perfectly adapt to heavy ball machines and various specifications of bolt shells.
A: Our standard is 304 stainless steel hoop, with excellent tensile properties and never rust. The lock buckle comes with a self-locking structure, which will not loosen due to temperature changes or ...
Answer: The Bit-cctv adds a non-slip tooth groove design on the back of the bracket, which forms a physical engagement with the pole, and can be stably stressed even on the smooth metal pole.
A: Yes, as a source factory, we can customize spraying according to your project needs, such as dark gray, black or traffic yellow.
A: Yes. The aluminum alloy body and polyester powder coating have strong chemical stability, which is the ideal choice for monitoring projects in coastal and chemical parks.
A: The Bit-cctv adopts automatic die-casting and spraying lines, and each batch of products undergoes strict mechanical load and salt spray sampling inspection to ensure that all products meet the factory standards.
