  • BIT-HS3912
  • BIT-HS3912
  • BIT-HS3912

12 inch Cost-Effective Camera Housing Enclosure

Features OF BIT-HS3912 12 inch Cost-Effective Indoor/Outdoor CCTV Camera Housing


  • Indoor or outdoor application

  • Cost-effective with aluminum body and ABS plastic front/back cover, extra sunshield

  • Side open design with two stainless steel latches, easy camera installation

  • Extra large window and internal camera space

  • IP65 protection level


Contact Us

Overview


BIT-HS3912, a cost-effective camera housing, can provides IP65 ingress protection for security camera inside. With extra large window and internal camera space, it can be used both indoor and outdoor.


Technical Specifications


Model

BIT-HS3912

Housing





Application

Indoor/outdoor

Dimensions
(L)x(W)x(H)

383x 175x140mm
15.08x6.89x5.51 in

Internal Space
(L)x(W)x(H)

300x134x110 mm
11.81x5.28x4.33 in

Window
(W)x(H)

115x85 mm
4.52x3.45 in

General





Protection Level

IP65

Material

Alloy aluminum+ ABS plastic (Front/Back cover)

Finish

Beige

Weight

1.95kg (4.30 lb)

Related Products





Wallmount Bracket

BIT-WS1293, BIT-WS2771

Polemount Bracket

BIT-WS830, BIT-WS2774/2779

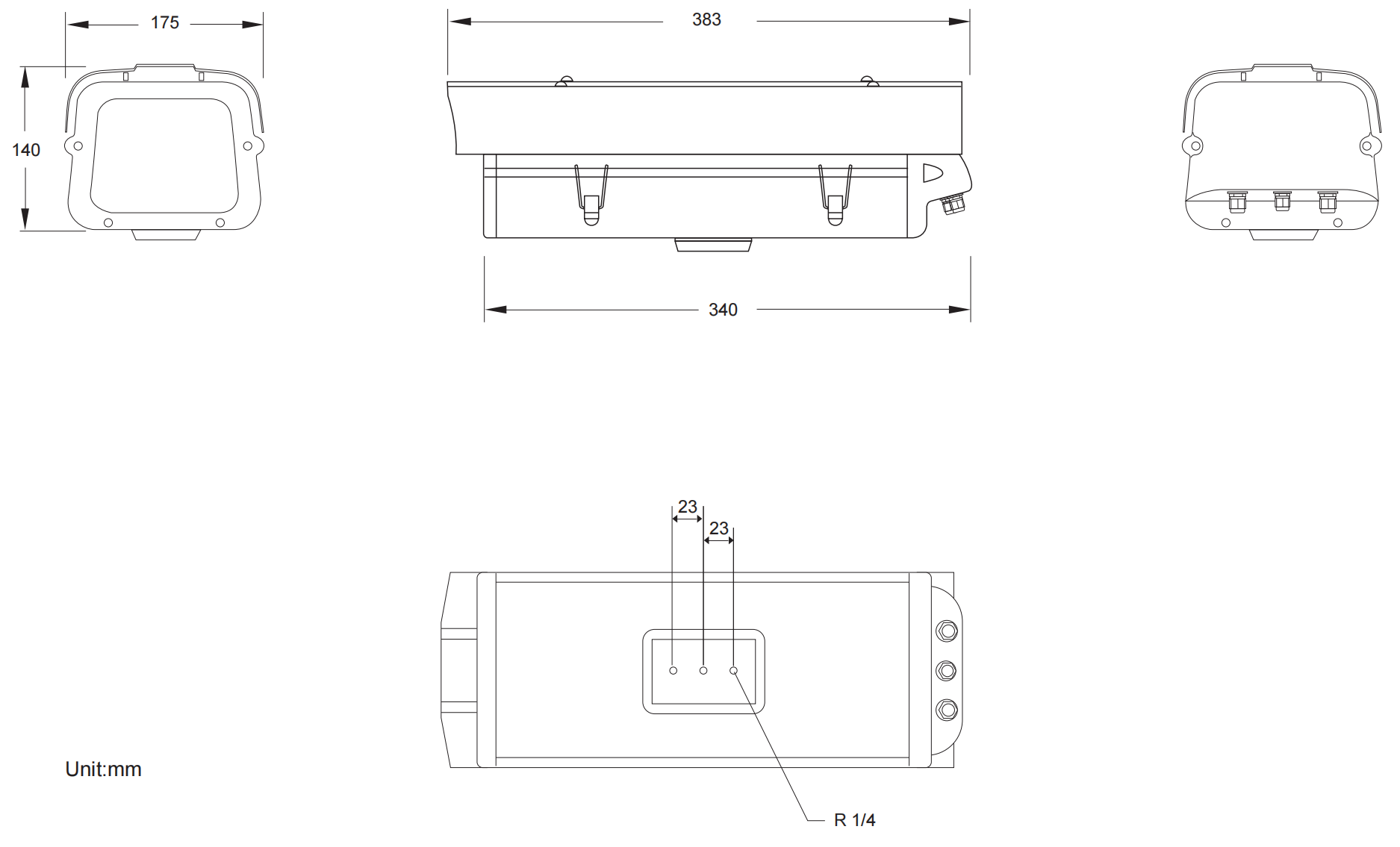

Dimension:
