4km day/2km night long range 24 hour surveillance
1080P HD network camera, 0.0002lux color to B/W
23~750mm lens, motorized zoom, auto focus
15W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -45°~+40°
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing, IP66 ingress protection

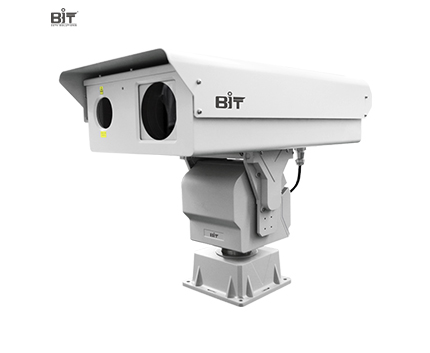

BIT-RC2075W, a 4km long range night vision laser network PTZ camera is designed for 24 hour monitoring at all-weather condition. With super homogeneous NIR laser and low illumination megapixel telephoto lens, its max detection distance for object is 4km at day and 2km at night.
It features built-in industrial grade embedded control electronic system, HD network camera operation like zoom, focus, video switch and pan tilt rotation is stable and accurate. One integral aluminum alloy housing features weatherproof IP66 to make sure its great performance outdoor.
Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.
Model | BIT-RC2075W | |
Detection Range | Day:4km/Night:2km | |
Consumption | 15W, 808nm Military NIR | |
Laser Angle | 0.5°～20° | |
Angle & Distance Matching Technology | 1. DSS digital stepper illumination angle control, advanced laser angle and distance match technology, min 0.1° follow-up zoom | |
2. GHT-II super homogenizing HD illumination technology | ||
3. 0.01°SLM optical axis aiming and lock | ||
Camera | 1/1.8'' CMOS | |
0.0002lux high sensitive color to B/W CCD | ||
2MP, 1920*1080, Automatic ICR switch | ||
H.264/MPEG4/MIPEG video format, support dual stream | ||
Video Bitrate 32Kbps~16Mbps, 60Hz30 frame/S | ||
Support SD card storage | ||
Photo Cell Control | Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night | |
Lens | 23-750mm | |
F4.5~360 | ||
FOV: (H)15.7°～0.48° | ||
MOD:4M | ||
HD infrared correction, same focus at day and night | ||
Motorized /manual zoom, DC 8~12V, auto IRIS,DC5V | ||
Fog Penetration | AFR enhanced image processing technology (fog filter optional) | |
LPR (optional) | Avoid strong light for license plate recognition | |
Housing | 1. Material: Die-cast aluminum alloy housing, sealed and waterproof | |
2. Structure: double window design | ||
3. Surface treatment: PTA three-resistance coating, anti corrosion(optional) | ||
4.Weather proof: IP66, waterproof, dustproof | ||
5.Connector：Aviation water-proof connector | ||
PT | Pan: 360° continuous rotation，tilt: +40°～-45° | |
Rotation speed： Pan: 0.01°～30°/S, Tilt: 0.01°～15°/S | ||
Positioning accuracy: 0.1° | ||
Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | ||
Support coordinate query/feedback and absolute control | ||
Interface | 1*RJ45，1*AC/DC 24V | |
Optional: Reserve RC422/485 and BNC, connect with radar, GIS or others | ||
Military aviation water-proof connector | ||
Protocol | 1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and more 2. Support Onvif 2.4 2. Protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional) | |
Power supply | AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option) | |
Working Environment | 1. Working temperature: -25℃～+55℃ (-40℃ optional) 2. Storage temperature:-35℃～+65℃ 3. Working Humidity:<90% 4. Anti-Shaka 5.Anti-shock 6.IP66 protection | |
Weight | ≤45kg | |
Unit: mm
A 1080P full HD network camera and a 23~750mm long focal length lens are used in BIT-RC2075W for long range day/night surveillance.
Bit-RC2075W pan tilt is a heavy duty pan tilt unit with load capacity of 50kg, high precision 0.1 degree positioning.
BIT-RC2075W laser long range PTZ camera is equipped with independent photocell with precision control of laser illumination on/off.
BIT-RC2075W laser network PTZ camera housing is made of die-cast aluminum alloy, not machined material, integrated design with IP66 rating.
