Maximum top load capacity 10kgs (20.05lb)
Pan/Azimuth angle: 0-360°; Tilt/Evelation angle: -90°~-+40°
Pan/Azimuth speed 0.01~100°/s; Tilt/Elevation speed 0.01~40°/s
Preset accuracy: ±0.1°
High precision stepper motor and tilt worm gear drive transmission
Pan/Azimuth speed up to 100°/s
RS485 or RS422 pan tilt control with Pelco P/D protocol
Support position feedback and absolute position
Support self-lock in tilt direction
Rated IP66 for dust and water ingress
BIT-PT410 is an advanced high speed light duty pan tilt unit for both indoor/outdoor application. With a maximum 10kg (20.05lb) load capacity, its pan rotation speed can be up to 100°/s for quick target positioning. Taking advantage of its high precision stepper motor and worm/gear drive mode, it features 0.1 degree positioning accuracy for repeat positioning and extremely low speed control. It also features 360 degree pan rotation and -90°~-+40° tilt rotation for wide angle surveillance. Camera housings are also available for your easy integration with cameras.

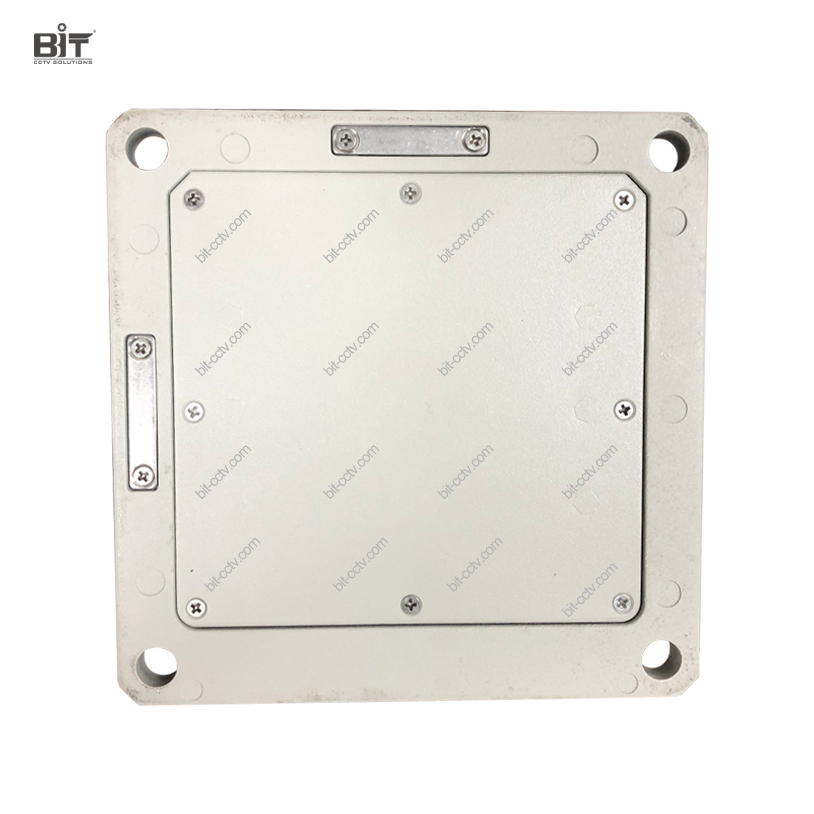

Model | BIT-PT410 |
Max. Load Capacity | 10kg (20.05lb), top load |
Rotation Angle | Pan/Azimuth: continuous 360° , Tilt/Elevation: -90°~+40° |
Rotation Speed | Pan/Azimuth: 0.01°/s-100°/s, Tilt/Elevation: 0.01°/s-40°/s |
Preset Accuracy | ± 0.1° |
Programmable Presets | 255 |
Cruising Track | 8, each with 32 preset positions |
Scan | Support |
Position Feedback | Support position query/feedback via RS485 or optional real-time feedback via RS422 |
Absolute Position | Support |
Guard Location | Support with1 preset or 1 cruising track or 1 auto scan |
Power Failure Memory | Support, back to PT position, scan/preset movement before power failure |
Self-lock | Support in tilt direction, not support in pan direction |
Protocol | Pelco P/D |
Communication Interface | RS485 or RS422 |
Baud Rate | 2400/4800/9600/19200 bps |
Transmission | Worm gear in tilt direction, belt in pan direction |
Wiring/Interface | |
Pan Tilt Base | 100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire), 24V AC/DC (2 wire), GND |
Pan Tilt Top | 100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire), 12V DC (2 wire), 24V AC/DC (2 wire), GND |
General | |
Operating Voltage | AC24V±20 %, 50/60Hz or DC24V±10 % |
Power Consumption | ≤40W |
Lighting Surge Protection | Power: 4000V (line to ground: 4000V, line to line: 2000V) Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V) |
Working Temperature | -40ºC～+65 ºC (-40 ºF ~ 149 ºF ) |
Working Humidity | 90±5% RH |
Storage Temperature | -40 ºC～+70 ºC (-40 ºF ~ 158 ºF) |
Protection Level | IP66 |
Material | Aluminium Alloy |
Weight | 12kg (26.45lb) |
Dimension（L×W×H） | 214×213×360mm (8.42x8.38x14.17in ) |
Unit: mm
BIT-PT410, designed with high precision stepper motor and worm/gear drive mode, is high accurate pan tilt unit with ± 0.1 degree repeat positioning.
Yes, BIT-PT410 support angle/coordinate feedback and advanced absolute position control via “Pelco D extended commands” , that includes some advanced commands for positioning control of the positioner.
Pelco Extended Commands
Set Pan Position – Set Tilt Position – Set Zoom Position – Set Focus Position
Query Pan Position – Query Tilt Position – Query Zoom Position – Query Focus Position
Yes, please find the suitable one in our camera housing enclosure products category or contact us directly for advice.
BIT-PT410 pan tilt unit is IP66 rated for water and dust ingress for all weather application.
