Outdoor Variable Speed Medium Duty Pan Tilt Head Positioner Max. 30kg (66.14lb) Load Capacity

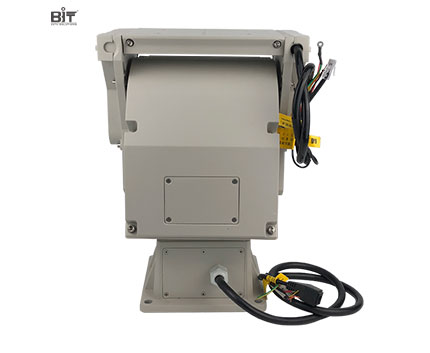

Features of BIT-PT540 Outdoor Variable Speed Medium Duty Pan Tilt Head with Payload up to 30kg (66.14lb)


  • Maximum top load capacity 30kg (66.14lb)

  • Pan angle: 0-360°, tilt angle: -45°~-+40°

  • Pan speed: 0.01°~20°/S, Tilt speed: 0.01°~10°/S

  • Preset accuracy: ±0.1°

  • High precision stepper motor, worm and gear drive transmission

  • Self-lock with memory after power failure, strong wind-resistance

  • Support angle feedback and absolute control

  • Support lens preset, adaptive speed to zoom rate

  • Support analogue or network camera

  • Rated IP66 for dust and water ingress


Overview of BIT-PT540 Outdoor Variable Speed Medium Duty Pan Tilt Head with Payload up to 30kg (66.14lb)


BIT-PT540 high precision variable speed pan tilt head postioner, a medium size unit with maximum top load capacity up to 330kg (66.16lb). With worm/gear drive, many advanced control features are available: absolute positioning, coordinate query/readout, Pelco D extended protocol, self-lock, power failure memory, guard location, preset.

Custom services like wiring, painting, connectors are available for your pan tilt system.



Technical Specifications of BIT-PT540 Outdoor Variable Speed Medium Duty Pan Tilt Head with Payload up to 30kg (66.14lb)

Model

BIT-PT540

Max. Load Capacity

30kg (66.14lb), top load

Rotation Angle

Pan: 360° continuous, Tilt: -45°~+40°

Rotation Speed

Pan: 0.01°/s-20°/s , Tilt: 0.01°/s-10°/s

Preset

200

Preset Accuracy

± 0.1°

Cruising Track

8

Scan

8

Angle Feedback/Control

Support angle query feedback/real-time feedback

Lens Preset

Support

Lens Control Speed

Continuously adjustable zoom, focus speed

Adaptive PT Speed to Zoom

Speed up while zooming out, slow down while zooming in

Guard Location

Support with 1 preset or 1 cruising track or 1 auto scan

Power Failure Memory

Support, recover to PT position, scan/preset/cruising track movement before power failure

Self-lock

Support

Protocol

Pelco P/D

Baud Rate

2400/4800/9600/19200 bps

Communication Interface

RS485 (Optional RS422) or RJ45

Transmission

Worm gear transmission

Wiring/Interface

Pan Tilt Base

100M Ethernet with RJ45 (4 wire, pass-through), 24V AC/DC (2 wire), GND

Pan Tilt Top

100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire),

12V DC (2 wire), 24V AC/DC (2 wire), GND

General

Operating Voltage

AC24V±25 %, 50/60Hz or DC24V±10 %

Power Consumption

≤100W

Working Temperature

-40ºC~+70 ºC /-40 ºF ~ 158 ºF ( with heater)

Working Humidity

90±5% RH

Storage Temperature

-40 ºC~+70 ºC /-40 ºF ~ 158 ºF

Protection Level

IP66

Material

Aluminium Alloy

Weight

15kg (30.06lb)

Dimension

227×249×362mm(L×W×H)

8.93x9.8x14.25in (L×W×H)



Video

Dimension of BIT-PT540 Medium Duty Pan Tilt Head


Unit: mm



FAQs of BIT-PT540 Medium Duty Pan Tilt Head

  • How is BIT-PT540 medium duty pan tilt unit controlled by your loaded devices like IP/network camera?

    As long as loaded camera, either analogue or IP/network camera is equipped with RS485 interface supporting Pelco P/D protocol, RS485 output data can be connected directly to the RS485 telemetry receiver built in pan tilt head mainboard through its RS485 input wires to control pan tilt head.


    How is BIT-PT540 medium duty pan tilt unit controlled by your loaded devices like IP/network camera?

  • Shall the BIT-PT540 high precision medium duty pan tilt positioner be powered with AC or DC input?

    BIT-PT540 medium duty motorized pan tilt head is AC/DC 24V self-adaptive.


  • What is the material of BIT-PT540 pan tilt head postioner?

    It is made of die-cast aluminium alloy with oxidation treatment and high quality corrosion resistant surface painting for outdoor, all weather application.


  • What is the motor and drive mode in BIT-PT540 medium duty pan tilt head positioner?

    High precision, strong power stepper motor are used and the drive mode is worm/gear drive for accurate repeat positioning 0.1 degree.
