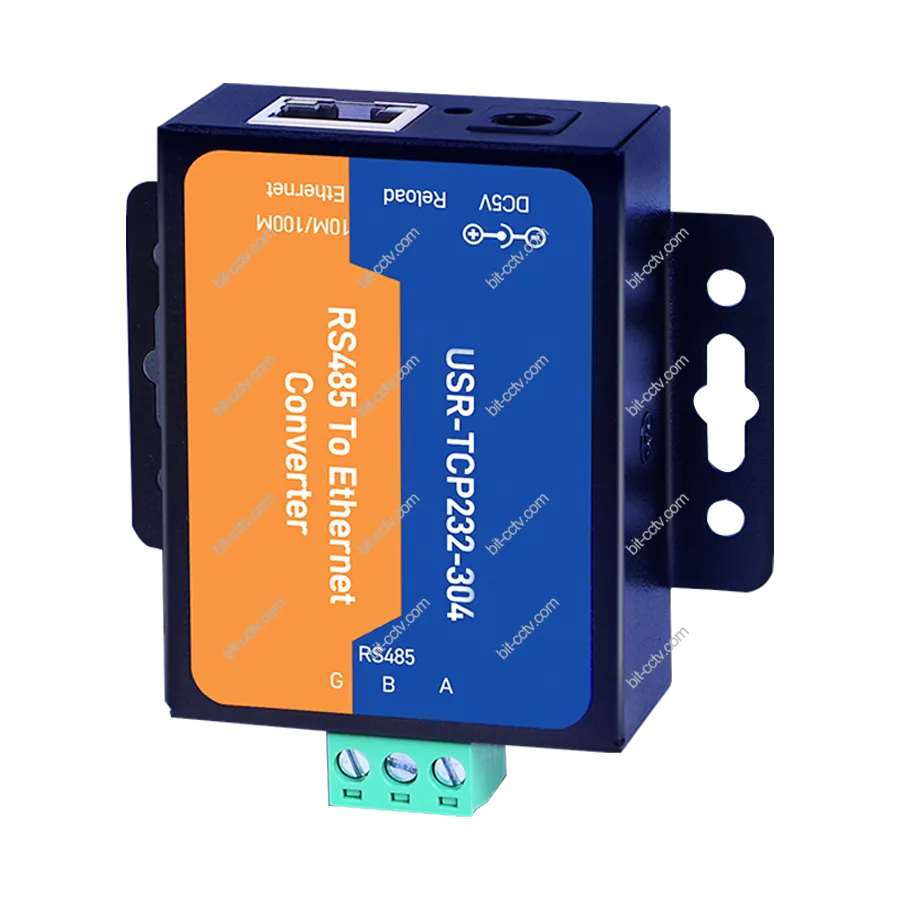

USR-TCP232-304/306 RS232/RS485/RS422 to Ethernet Converter for Pan Tilt Control

Processor

ARM Cortex-M0, 48MHz

Power Input

DC: 5.0～7.0 V，

Connector: DC 5.5*2.1 mm

DC: 5.0～36.0 V，

Connector: 5.5*2.1 mm & 2 pin terminal block

Consumption

150mA@5V

116mA@5V, 53mA@12V

Ethernet Port

1 x RJ45, 10/100Mbps, auto MDI/MDIX

Serial Port

RS485

RS232/485/422(Not work at the same time)

Baud Rate

600~230.4 Kbps

Data Bits

5,6,7,8

Stop Bit

1,2

Parity Bit

None, Odd, Even, Mark, Space

Serial Packeting

Packeting Time: Four-byte sending time

Packeting Length: 400 Bytes

Serial Packet Cache

Receive:2KBytes

Reload Button

√

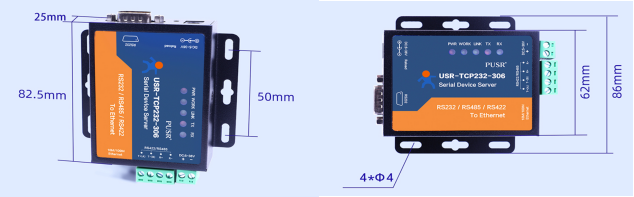

Dimension(L*W*H)

73.2*70.0*25.0 mm

98.0×86.0×25.0 mm

Installation

Wall Mounting

Operating Temp

-25~75℃

Storage Temp

-40~105℃

Operating Humility

5%~95% RH(non-condensing)

Storage Humility

5%~95% RH(non-condensing)

Indicators

None

PWR, WORK,LINK,TX,RX

Network Protocol

IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS

IP Mode

DHCP, STATIC IP

DNS Service

√

Config Method

AT Command, Built-in webpage,

Config Software, Config Protocol

Work Mode

TCP Server/TCP Client/UDP Server

/UDP Client/Httpd Client

Modbus Gateway

Modbus RTU to Modbus TCP, Multi-host Modbus Polling

User-Defined Webpage

√

TCP Server

16 clients

Network Packet Cache

Send: 6K Bytes

Receive: 4K Bytes

Additional Features

RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart
