Pan Rotator & Positioner

As a kind of pan tilt positioner/platform, but different from regular pan tilt positioner/unit that rotates in both pan and tilt direction, BIT-CCTV single axis pan rotator & positioner can rotate only in pan/azimuth direction, but can't rotate in tilt/elevation direction. Single axis pan rotator/positioner is designed for demands and applications requiring rotating/positioning only in pan direction.

Single axis pan rotator/ positioner is an ideal choice to load devices like video camera, dish/yagi antenna, loud speaker, spot light, etc and to work as positioning or tracking part of various systems including video surveillance, telecommunication, and border & costal defence.

Pan rotator/positioner control is based on Pleco P/D protocol with RS485/RS422/RS232 interfaces. They also features the same as pan tilt positioner as preset positions, scans and absolute positioning, etc.

Pan rotor/positioner are driven in two ways as worm/gear drive and servo motor direct drive. Servo motor direct drive provides fast speed and more accurate performance.

To make sure that the most suitable sing axis pan rotor/positioner will be chosen for your system/solution among our sing axis pan rotator/positioner products line, it is highly suggested to send us an email to sales@bit-cctv.com with your detailed technical requirements and specifications, so that you will get your perfectly customized pan positioner for your solution/project.

Products

News & Blog

L Bracket For CCTV Camera
A good CCTV L-shaped bracket must solve 3 core pain points: unstable structure, compatibility, and long-term environmental loss. A high-quality professional bracket-such as the heavy-duty aluminum alloy model produced by Bit-CCTV-should have universal mounting holes suitable for mainstream brands, as well as super load-bearing capacity to ensure that the heavy PTZ ball machine or bullet camera will not shake when installed. In addition, there must be a weatherproof powder spraying process, otherwise in places like seaside or industrial areas, oxidation will be scrapped within a few days. If the engineer can give priority to the “universal” professional L-shaped bracket with line management function, it will not only save trouble and need not drill holes everywhere on site, but also completely eliminate the “callbacks” for later maintenance. This is the absolute principle to reliability drives project profitability and the most reliable system.
Read More >

F9, Macalline Business Center, No. 29, Heiniucheng Rd., Hexi District, Tianjin, China
E-mail: sales@bit-cctv.com
TEL: +86-139-2068-8922

Antenna/Radar Rotator & Positioner

+ BIT-SPT15 15kg/33lb Load Pan Rotator & Positioner
Single aixs pan rotator, worm/gear drive and transmission, 360° continuous pan rotation with self-lock, max. 15kg top load capacity, up to 30°/s rotation speed, ±0.1° preset accuracy, IP66 waterproof

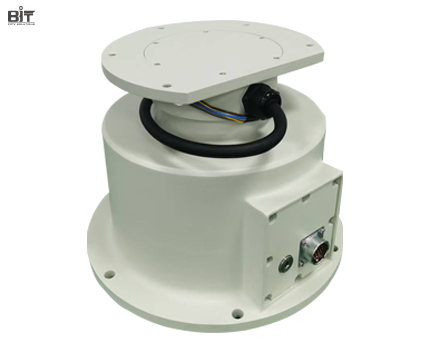

+ BIT-SPT30 30kg/66lb Load Pan Rotator & Positioner
30kg/66lb load pan rotator/positioner, worm/gear drive, 360 degree x N pan rotation, antenna rotor, radar rotator, pan speed 0.01°～30°/S, IP66 ingress protection
+ BIT-SPT60 60kg/132lb Load Pan Rotator & Positioner
Worm/gear drive and transmission, single axis pan rotor for antenna or radar, pan/azimuth speed 0.01°～30°/s, preset accuracy: ±0.1°, coordinate feedback and position, die-cast aluminum material, IP66 protection
+ BIT-SPT30-D 30kg/66lb Load Servo Drive Antenna/Radar Rotator
Servo Motor Direct Drive Pan Rotator, 30kg/66lb Top Load, 360 Degree Continuous Rotation, Fast Rotation Speed: 0.01°～120°/S，Fast Response, Preset accuracy: ±0.05°, Die-cast Aluminum Material，Rated IP66 for Dust and Water ingress
+ BIT-SPT50-D 50kg/110lb Load Servo Drive Antenna/Radar Rotator
Single Aix Antenna Rotator/Rotor, Servo Drive, Fast Speed up to 0.01°～180°/S, Continuous 360 Degree Pan Rotation, Pelco D/P Protocol, RS485/RS422/RS232 Interface, Preset, Absolute Position, Custom Serive
+ BIT-SPT80-D 80kg/176lb Load Servo Drive Antenna/Radar Rotator
Servo Drive Antenna Rotor, Single-Axis Pan Positioner, Accuracy ±0.05°，360 Degree Continuous Pan/Zzimuth Rotation, Self-lock, Support Coordinate Feedback and Position Control, Customized Design

Information Needed to Choose & Build The Suitable Pan Rotator/Positioner

Load Capacity:

Base on the weight/size, and gravity center of the device and the way to load on the top of pan positioner, we will evaluate the load capacity required.

Rotation Speed/Angle:

let us know the pan/azimuth rotation speed and rotation angle required for your system. We can limit the rotation angle other than 360 continuous degree.

Wiring/Cabling:

We need to know the wiring that your device will need like power supply, video, signal, and control. In many cases, customized slip ring supporting these wires will be needed.

Colors and Others:

We offer custom services for different colors for our pan positioner and match with your devices as a complete system. We will also customize mount or installation holes for the connection between your devices and our pan positioner.

Single Axis Pan/Azimuth Positioner Model Selection

Drive Type	Top Load Capacity	Model	Rotation Angle	Rotation Speed	Repeat Accuracy	Power Supply
Worm/Gear Drive	15kg/33lb	BIT-SPT15	Pan: continuous 360°	Pan: 0.01°/s-30°/s	± 0.1°	24V DC
	30kg/66lb	BIT-SPT30	Pan: continuous 360°	Pan: 0.01°/s-30°/s	± 0.1°	24V DC
	60kg/132lb	BIT-SPT60	Pan: continuous 360°	Pan: 0.01°/s-30°/s	± 0.1°	24V DC
Servo Motor Direct Drive	30kg/66lb	BIT-SPT30-D	Pan: continuous 360°	Pan: 0.01°/s-120°/s	± 0.05°	24V DC
	50kg/110lb	BIT-SPT50-D	Pan: continuous 360°	Pan: 0.01°/s-180°/s	± 0.05°	24V DC
	80kg/176lb	BIT-SPT80-D	Pan: continuous 360°	Pan: 0.01°/s-180°/s	± 0.05°	24V DC
