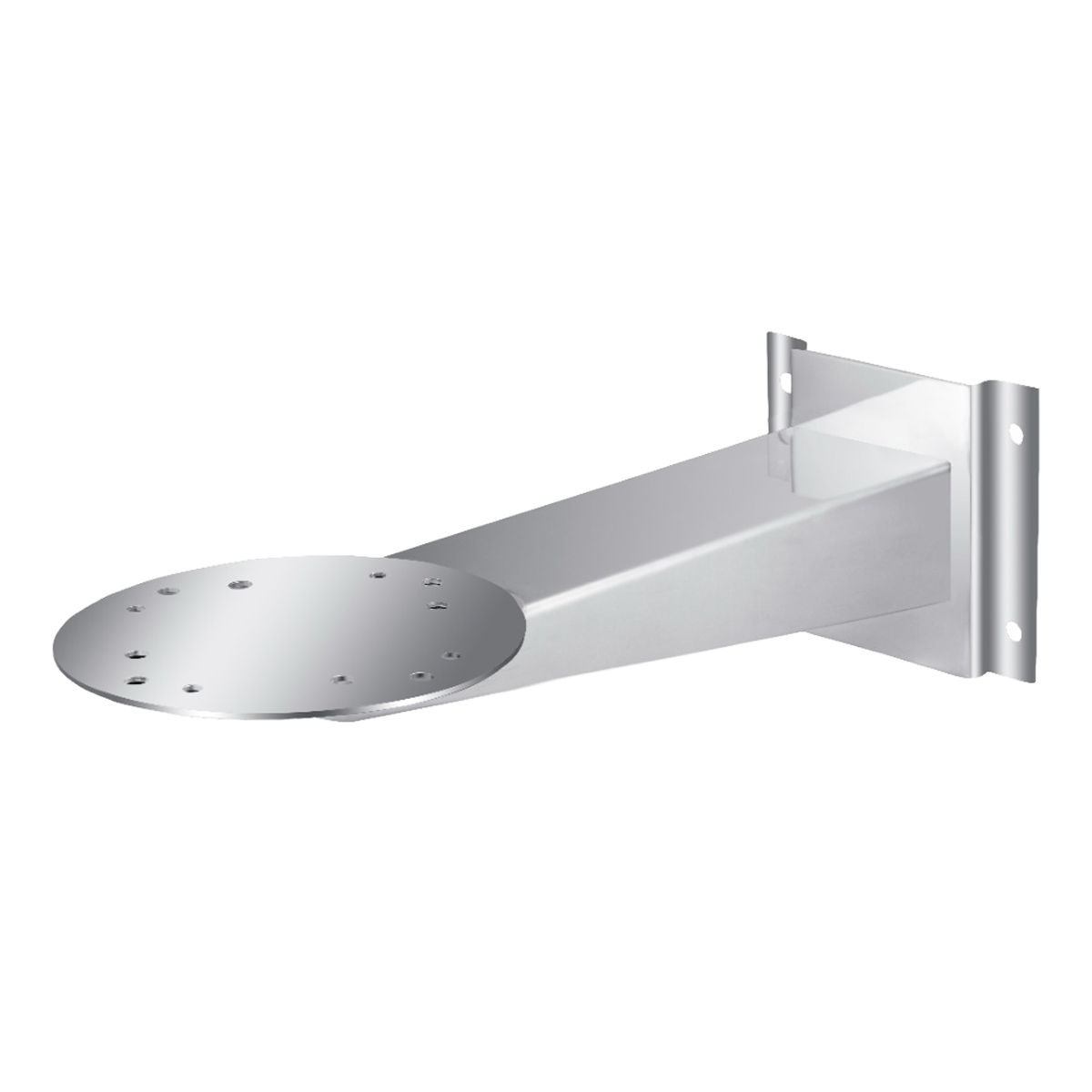

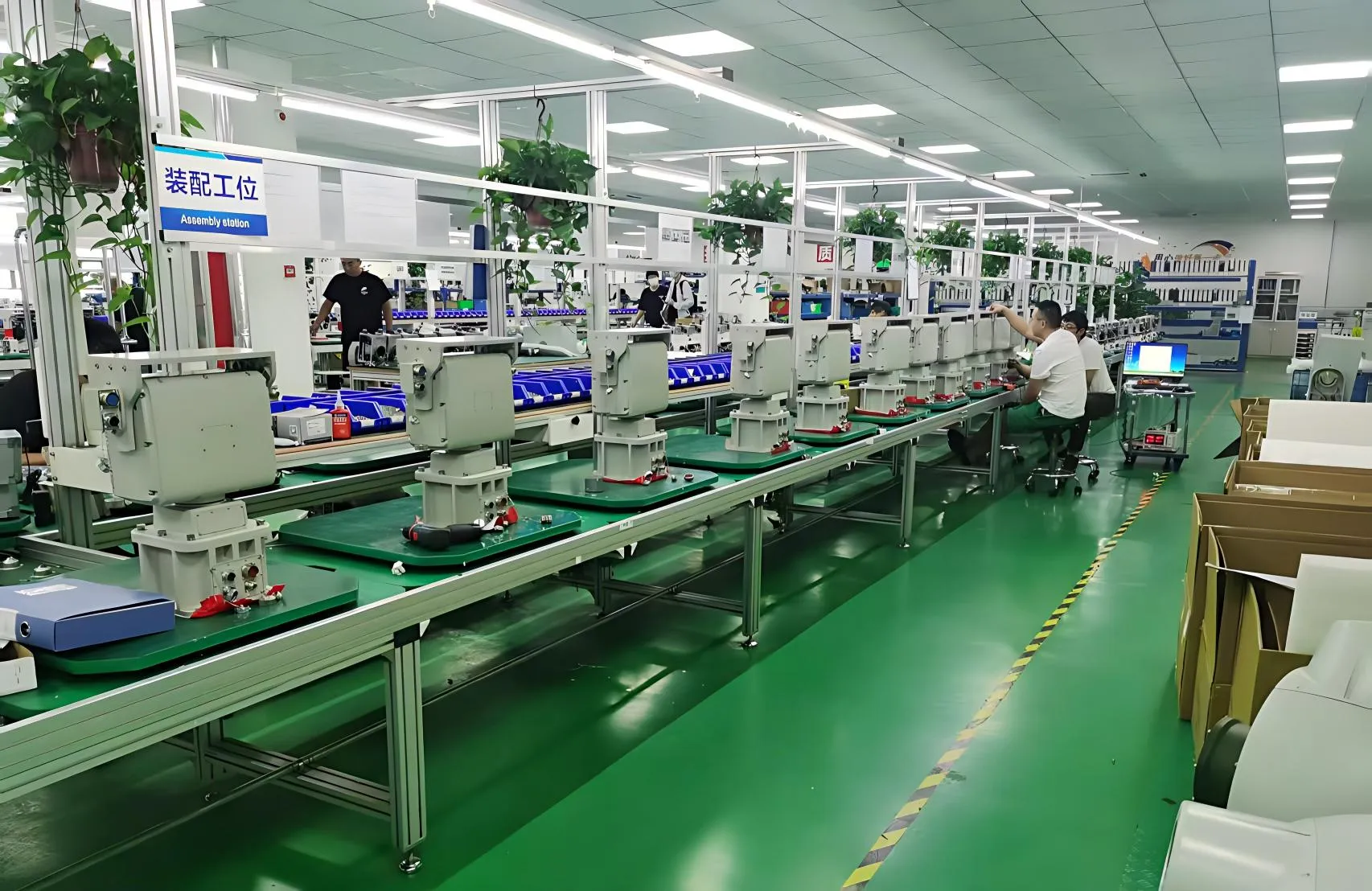

The PTZ camera mounts provided by Bit-cctv are made of high-strength aluminum alloy, with hole compatibility and minimalist quick-fitting structure, which significantly improves on-site construction efficiency and reduces labor costs. As a source manufacturing plant with independent production lines, we eliminate all middlemen links and provide engineers with highly competitive direct supply prices and large quantities of spot reserves.
die-cast aluminum alloy and cold rolled steel
Housing material
15kg
Maximum load
360 degree manual adjustable
Translation range
negative 90 degrees to positive 15 degrees
Tilt range
anti ultraviolet electrostatic spraying
Surface treatment
Compatibility
wall, ceiling, column
Installation method
the base integrates standard four holes and central single hole, compatible with Sony, Panasonic and more than 95% of pan-tilt cameras in the market, reducing the pressure on contractor inventory.
the main body of the bracket adopts high-pressure cast aluminum process, the structural strength is 40% higher than that of ordinary sheet metal parts, and the small vibration during high magnification zoom is effectively suppressed.
The bracket has a large-diameter routing slot inside, which can accommodate power, video and control cables to ensure visual aesthetics after project delivery and protect the wires from physical damage.
with innovative slider locking structure, a single person can complete the equipment mounting in 3 minutes, saving about 50% of the climbing operation time compared with the traditional screw fixing method.
The surface is treated by double-layer electrostatic powder spraying, and passed the 48-hour salt spray test. Even in coastal or high humidity environments, it can be guaranteed not to rust or paint for 5 years.
the thickness of the base plate reaches 5mm, which can effectively disperse the stress on the wall surface, prevent the bracket sagging caused by long-term load-bearing, and ensure the long-term accuracy of the camera preset position.
| Parameters | Detailed specifications |
| Product Model | BC-PTZ-M01 series |
| Main material | ADC12 Aluminum Alloy / SPCC Cold Rolled Steel |
| Safe load | 10kg – 20kg (depending on the material of the mounting surface) |
| Product weight | 1.2kg – 2.8kg |
| Surface coating | Matte White/Frosted Black Anti-oxidation Sandblasting |
| Mounting hole spacing | Flexible adjustment from 46mm x 46mm to 120mm x 120mm |
| Weather resistance rating | Operating temperature -40 degrees to +60 degrees Celsius |
| Pipe Specifications | 30mm diameter internal hollow conduit |
Through the integral casting rigid bracket, the problem of microvibration caused by the lightweight bracket when the camera rotates at high speed or zooms at high power is solved..
matrix chute porous base is adopted to solve the hidden danger of re-drilling by construction personnel on site due to differences in camera base specifications..
The internal hollow hidden wiring structure solves the risk of cable cracking and unstable signal transmission due to rain and ultraviolet erosion during outdoor installation..

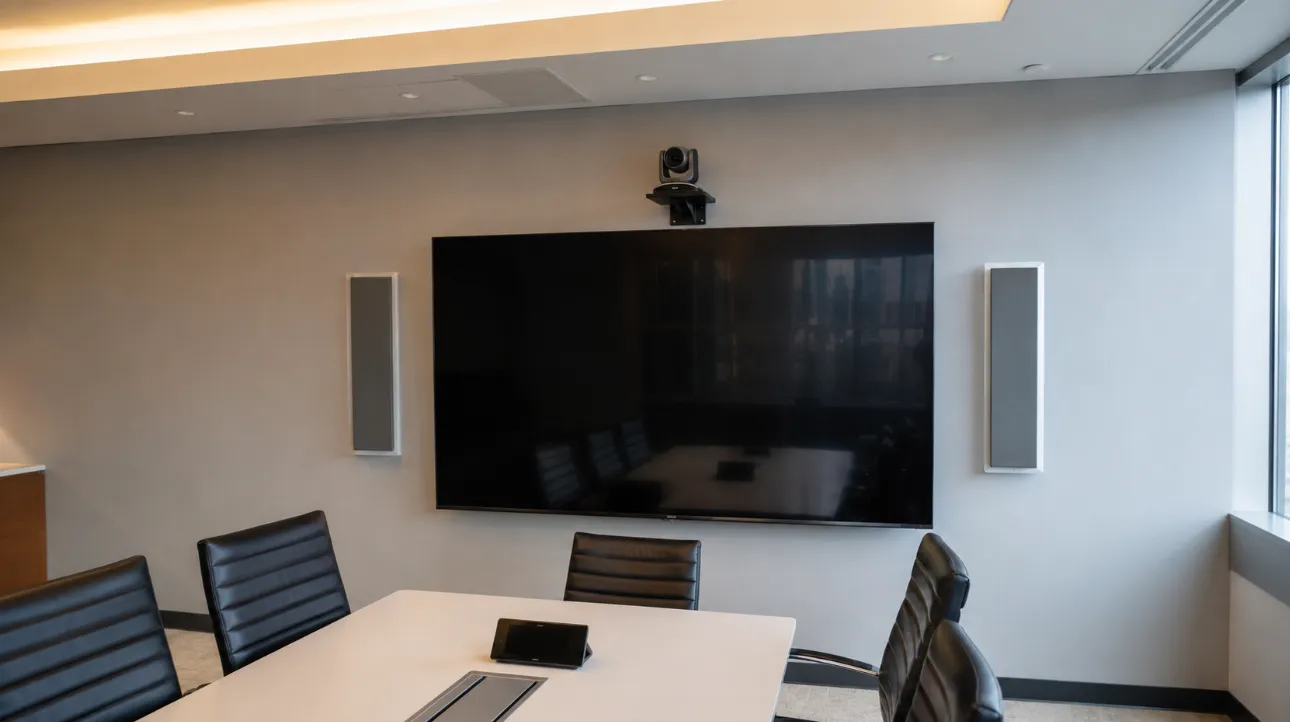

For teams that need to provide turnkey projects for governments and enterprises, the rapid installation feature of this bracket helps to complete the deployment of hundreds of meeting rooms within a tight schedule.

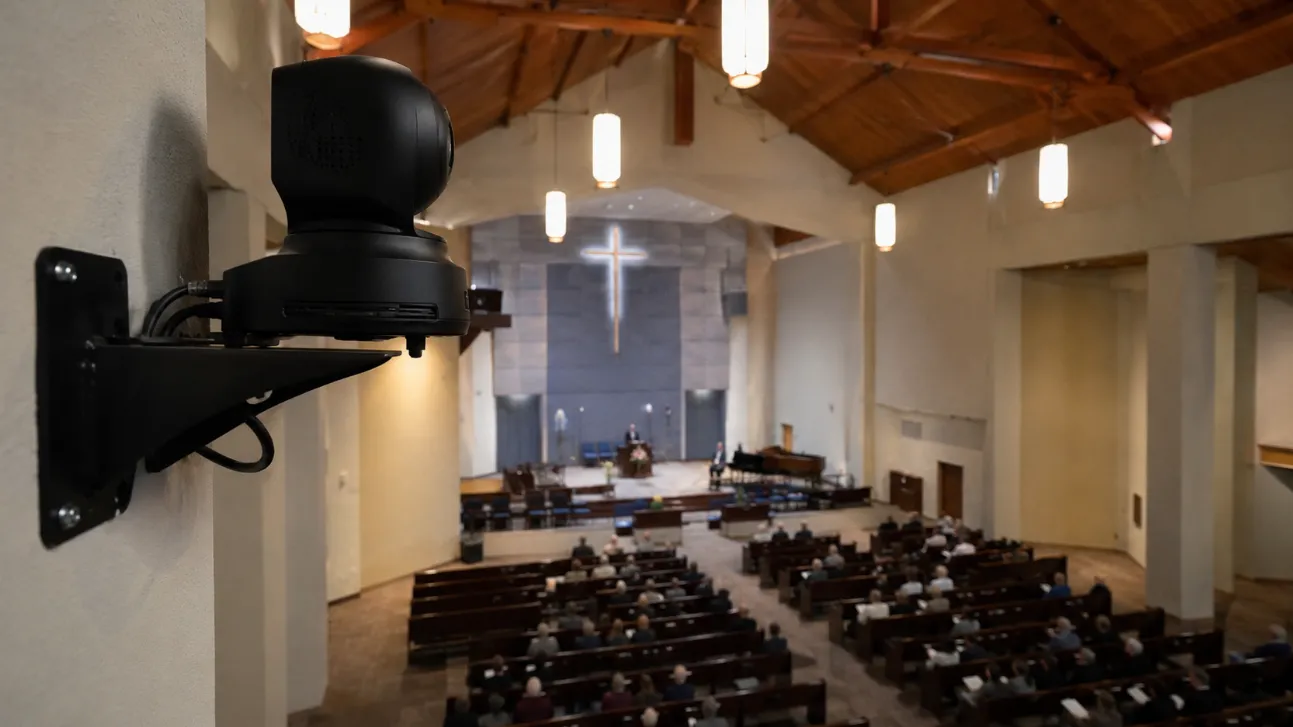

to meet the dual needs of the church for beauty and stability, the thickened base can withstand large high-magnification cameras, and realize the smooth picture of remote live broadcast.

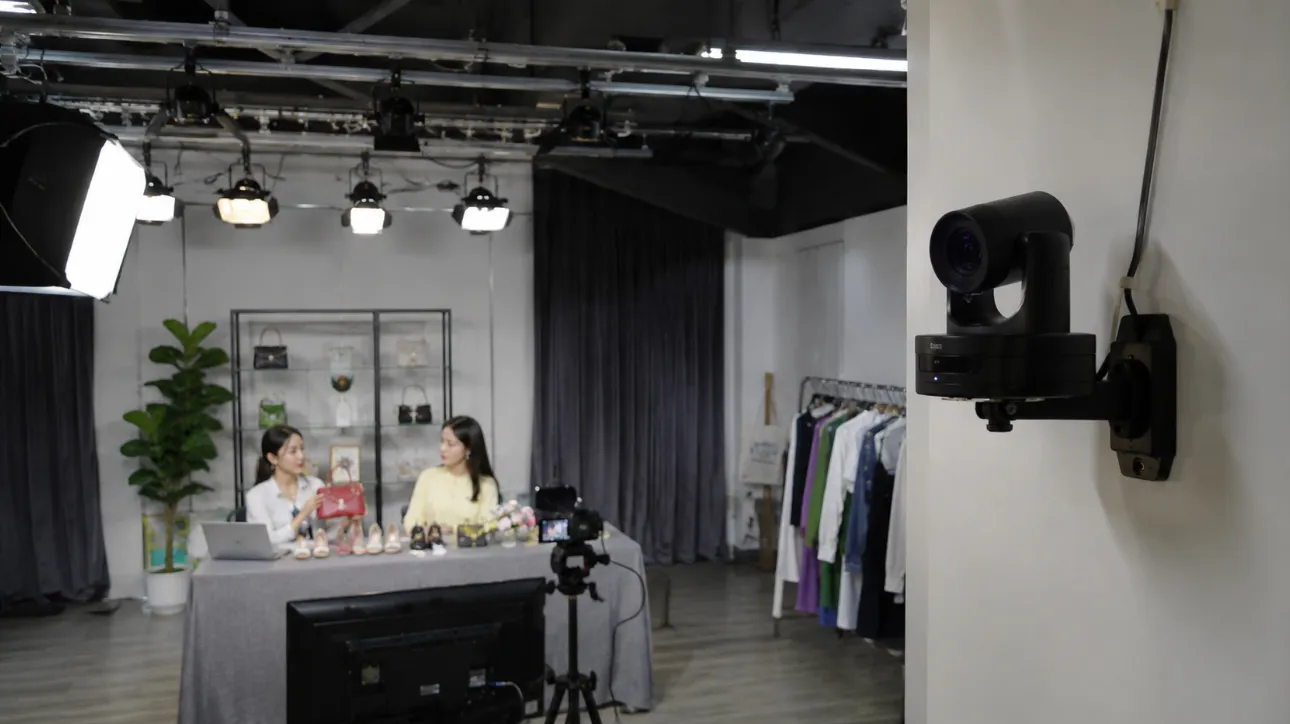

flexible adjustment angle is very suitable for multi-camera switching of online red live broadcast or electric competition competition, and more impactful overhead shooting angle can be realized through column installation.

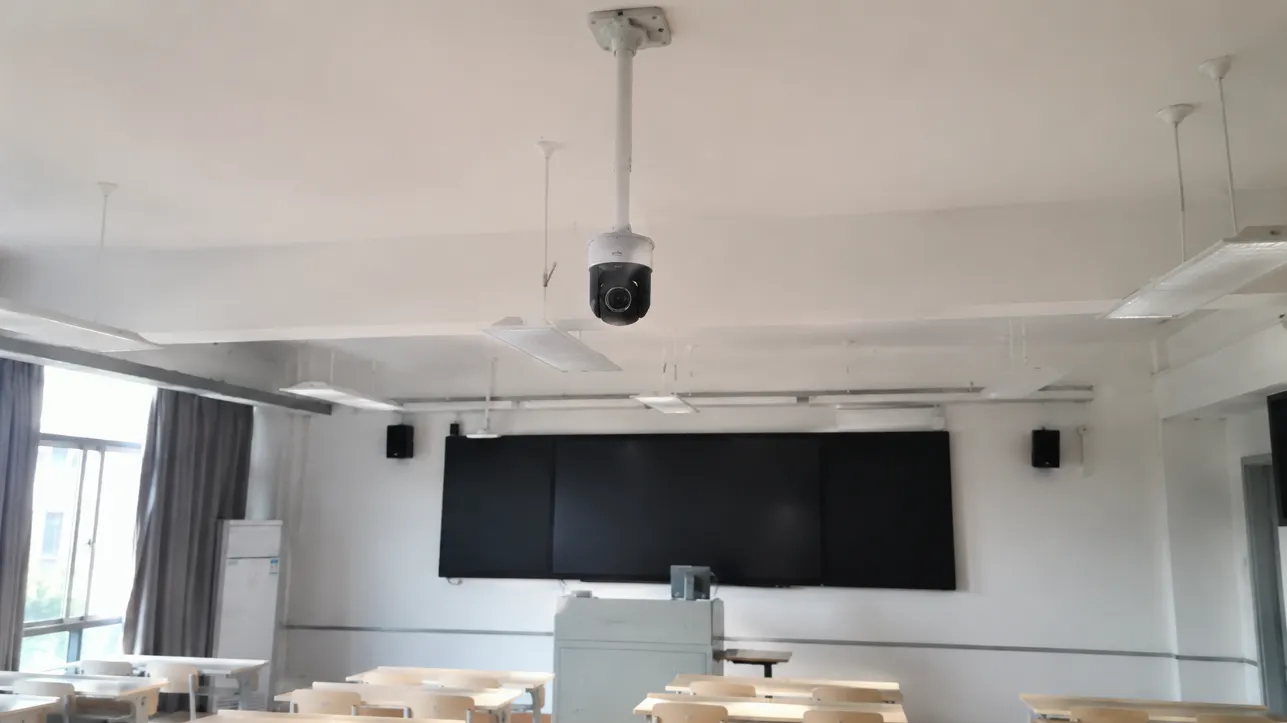

for the large-scale transformation of campus recording and broadcasting classrooms, cost-effective factory direct supply price can significantly improve the contractor’s project profit margin.
slide into the camera base to lock, manually adjust the vertical angle and fix the fasteners. Fasteners are made of 304 stainless steel to prevent rust after long-term stress. Surface treatment using AkzoNobel outdoor powder, with strong adhesion and anti-aging properties..
Use paper templates to position, drill holes and insert expansion bolts on the wall..
align the bottom plate of the bracket with the hole, and tighten the 4 load-bearing bolts with a socket wrench..
Pass power and network cables through hollow channels to ensure no distortion..
Yes. We provide a special column installation kit, which can be firmly fixed with stainless steel cable ties without on-site welding.
No. Thickened cast aluminum structure with stiffener design, with high torsional stiffness, in the conventional outdoor wind can keep the picture stable.
All the necessary mounting screws and Allen wrench are included in the package, and you only need to bring your own impact drill to complete the construction.
As the source factory, when the order reaches the minimum order quantity, we support customized color painting according to the Raul color card provided by the customer.
This series of brackets adopts the design of long adjusting hole, which covers the hole distance of most mainstream brands on the market, and usually does not need additional drilling.
Yes. We provide tiered pricing for engineering wholesale, and direct docking with the factory can save you at least 30% of the purchase cost.
