The BIT-CCTV remote control pan-tilt base is the 1 electric pan-tilt platform integrating high-precision worm drive, IP66 protection and Pelco-D/P protocol compatibility. It is specially designed for security monitoring, industrial inspection and remote control of special equipment. Blue Icon (Tianjin) Technology Co., Ltd(BIT-CCTV) is a national high-tech enterprise with 17 years of R & D and manufacturing experience. It has its own factory and supplies directly to system integrators. It eliminates intermediate circulation links and provides you with more competition. The ex-factory price and faster delivery cycle.
Maximum load
Horizontal rotation
Vertical angle
Horizontal speed
Vertical speed
Preset position accuracy
Protection rating
Operating temperature
The precision worm deceleration drive scheme is adopted, the transmission gap is as low as 0.1 degrees, the pan-tilt automatically locks the current position after power failure, prevents the angle de...
Horizontal support 0 ° ~ 360 ° infinite position continuous rotation, with -45 ° ~ 45 ° vertical pitch range, can achieve panoramic coverage, a single device can complete a wide range of scene mon...
The fuselage is made of high-strength die-casting aluminum alloy material, surface powder spraying treatment, through IP66 dustproof and waterproof grade certification, can be in -35 ℃ to 65 ℃ wide ...
Built-in RS485 communication interface, support Pelco-D and Pelco-P protocols, compatible with mainstream DVR, NVR and control keyboard, can be quickly integrated into the existing security system wit...
Support up to 200 preset position programming, with automatic cruise, automatic scanning and watch position functions, can preset multiple inspection routes, to achieve all-weather unattended monitori...
The top load-bearing structure is adopted, and the panel is reserved with standard installation holes, which can quickly carry a variety of front-end equipment such as surveillance cameras, infrared t...
| Parameter categories | Parameters | BIT-CCTV Remote Control Pan/Tilt Base |
|---|---|---|
| Mechanical parameters | Maximum load | 20 kg |
| load-bearing method | Top load | |
| driving method | Worm gear reducer | |
| Shell material | Die-cast aluminum alloy | |
| Motion parameters | Horizontal angle | Continuous rotation from 0° to 360° |
| vertical angle | -45°~+45° | |
| Horizontal speed | 0.1°~30°/s | |
| Vertical velocity | 0.1°~15°/s | |
| Preset position accuracy | ±0.1° | |
| Control parameters | Preset number of positions | 200 |
| Communication interface | RS485 | |
| Communication Protocol | Pelco-D / Pelco-P | |
| baud rate | 2400/4800/9600/19200bps | |
| Automatic cruise | support | |
| Automatic scanning | support | |
| Electrical parameters | Input voltage | DC 24V ± 10% |
| Maximum power consumption | ≤ 100 W | |
| Environmental parameters | Protection level | IP66 |
| Operating temperature | -35℃ ~ +65℃ | |
| Operating humidity | < 90% RH | |
| Lightning protection | Power supply ≤4000V, signal ≤2000V | |
| physical parameters | net weight | ≈ 17 kg |
| External dimensions | 300×206×365 mm |
The worm drive self-locking structure is adopted, and the power is automatically locked at the moment of power failure. Regardless of the outdoor strong wind or vibration environment, the gimbal alway....
The whole machine has passed IP66 protection grade certification, and the key interface is equipped with TVS 4000V anti-surge protection circuit, which can work stably for a long time in a wide temper....
Factory preset standard Pelco-D/P protocol and RS485 interface can directly interface with mainstream brand DVR and NVR control platforms, and support baud rate and communication address on-site diali....

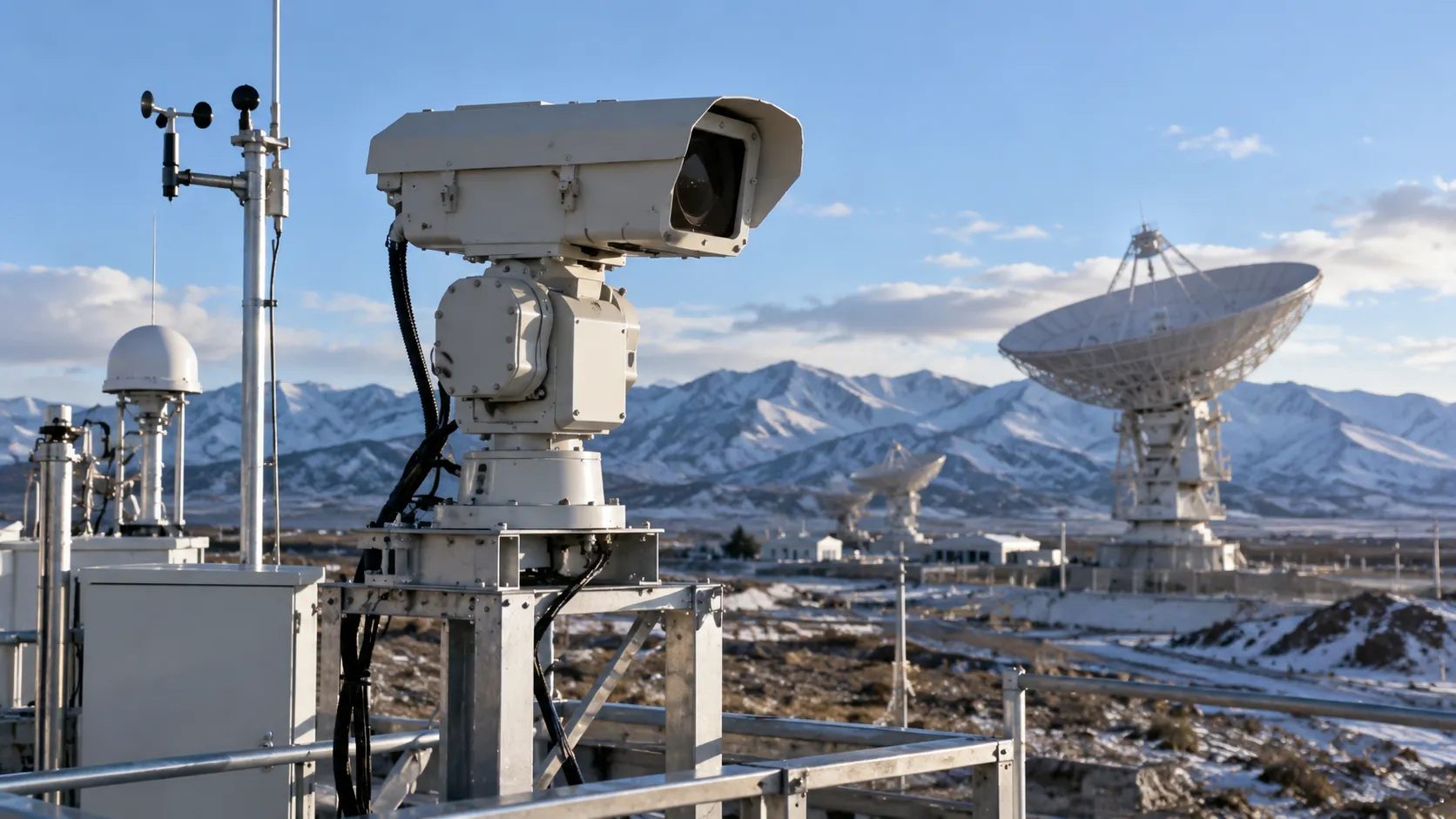

Such as laser ranging positioning, radar antenna scanning, environmental protection testing instruments and other scientific research or special applications that require precise angle control, the pa...

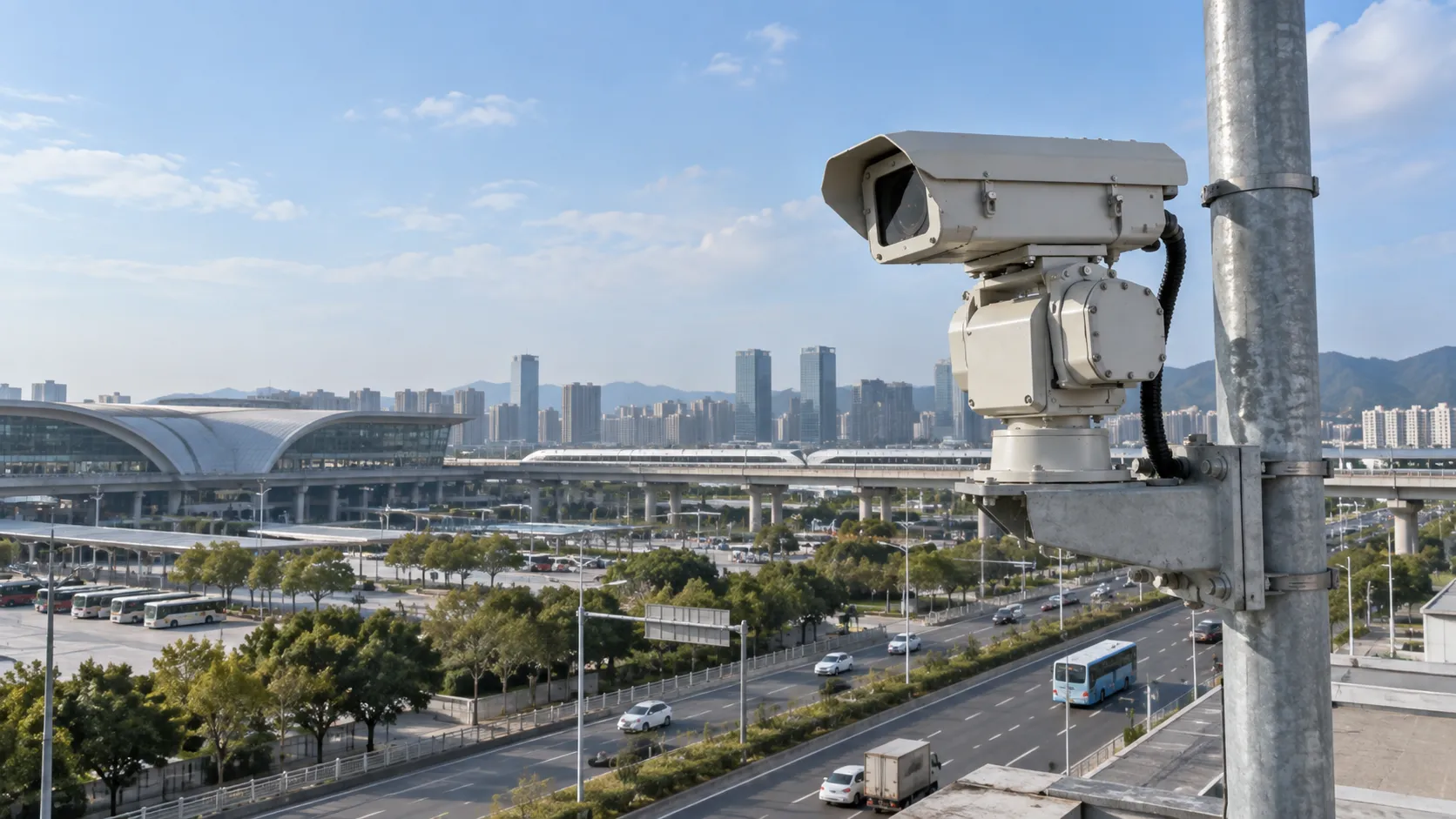

Integrators who need to select pan-tilt bases for large-scale security projects such as safe cities, transportation hubs, school parks, etc., BIT-CCTV provide complete electrical and communication int...

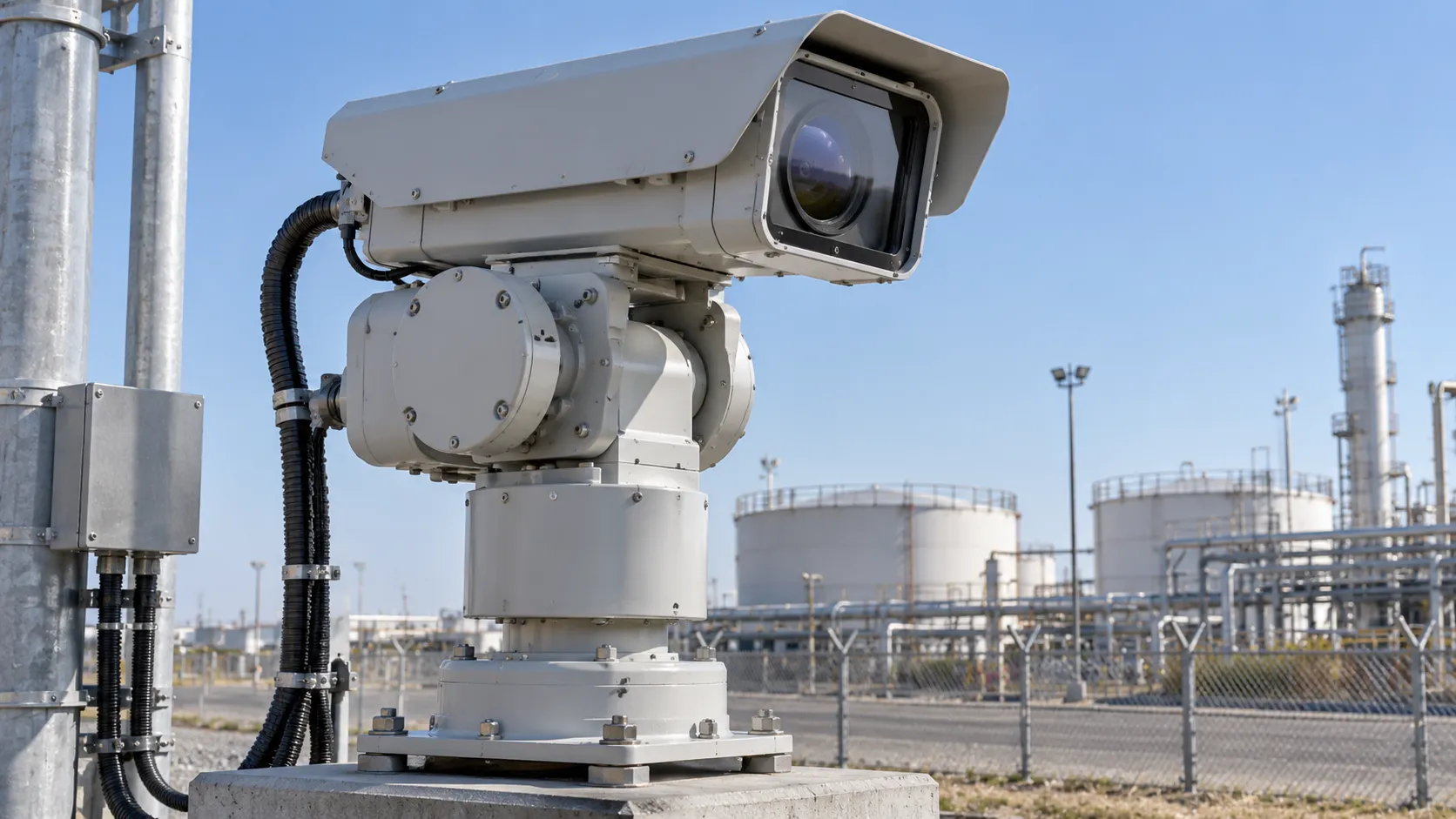

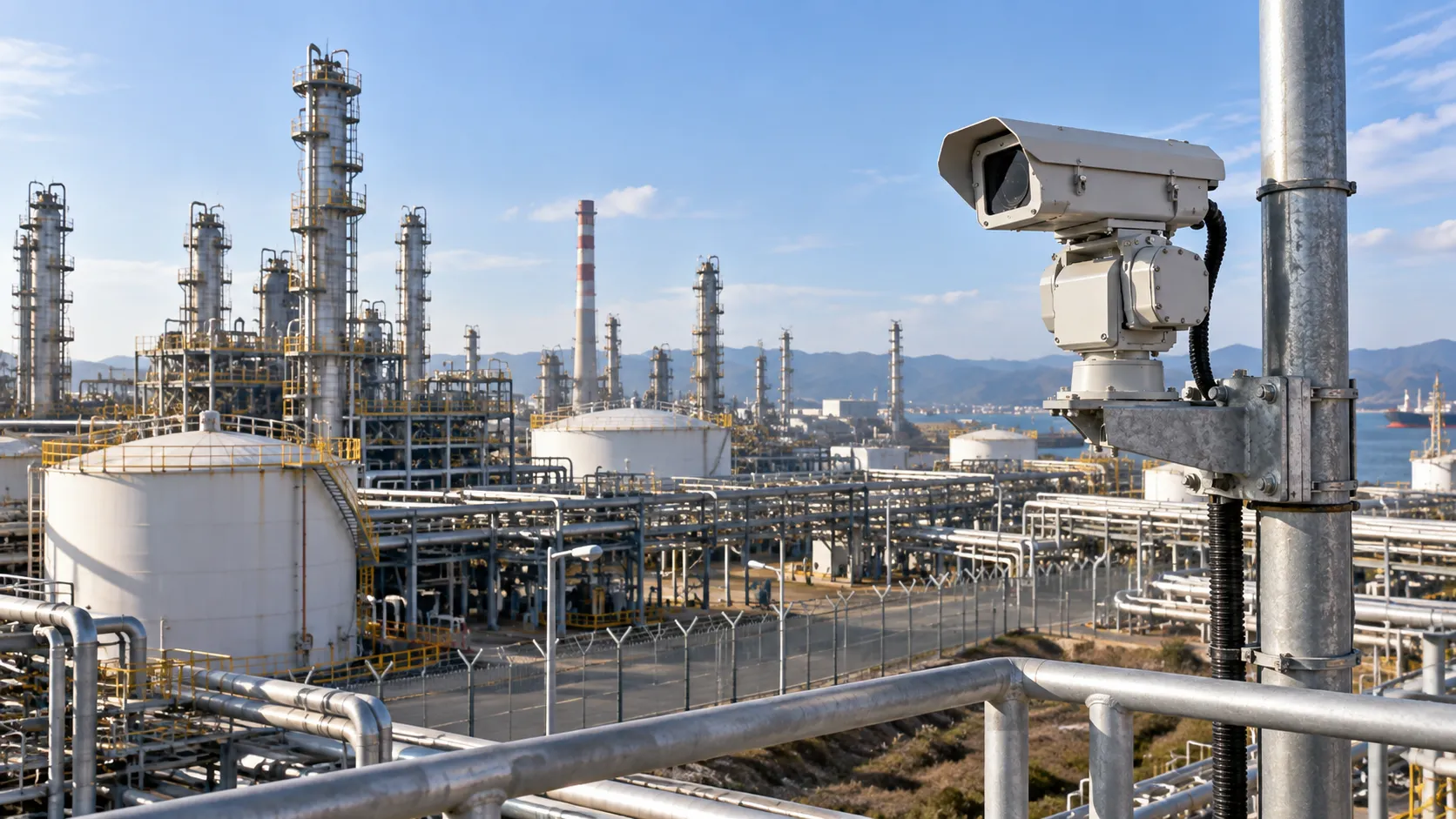

For the remote video inspection needs of industrial scenes such as chemical plants, substations, oil and gas pipelines, the platform base supports high-precision preset position cruise and long-term u...

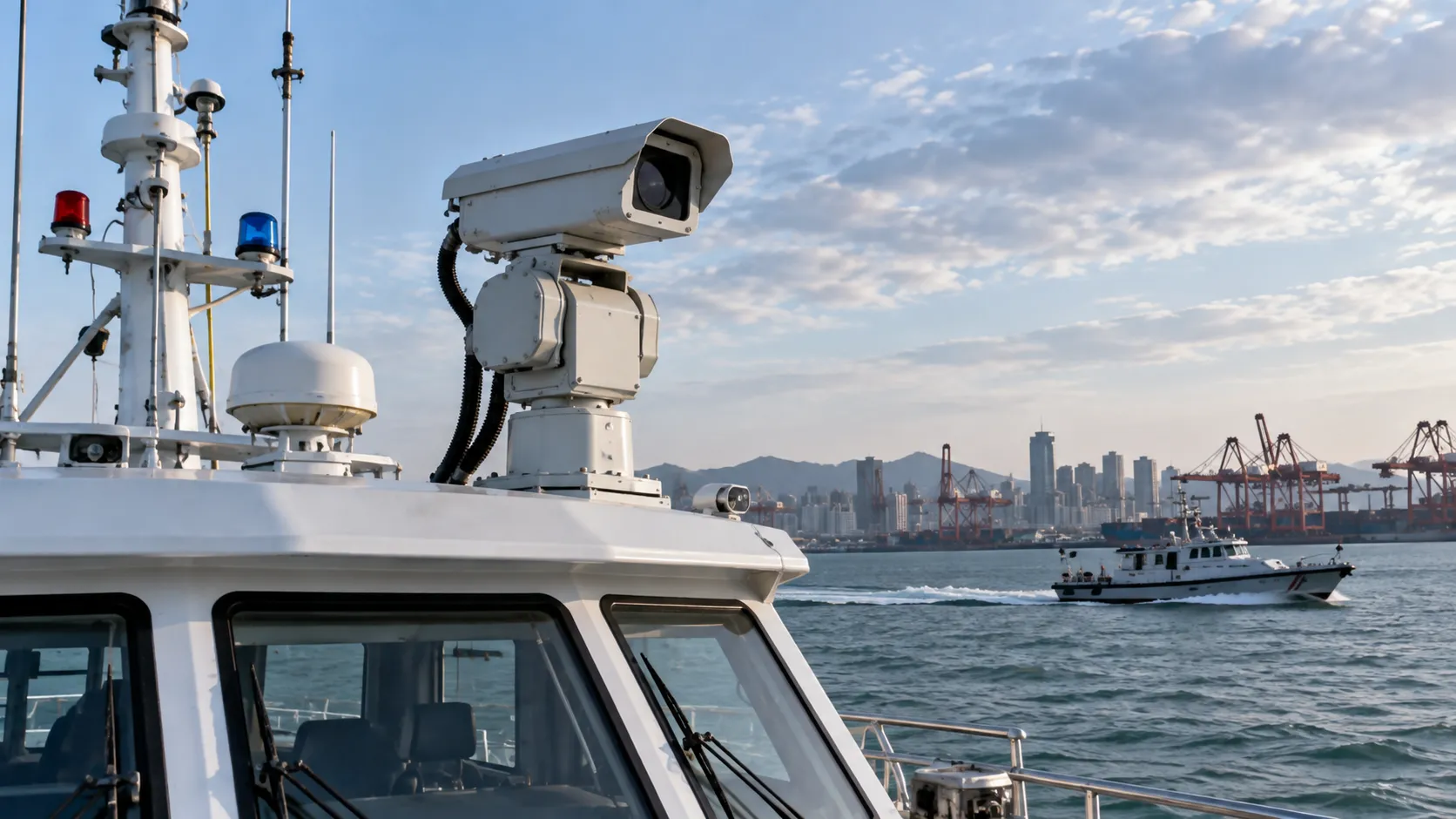

Integrators who need to install monitoring equipment on mobile platforms such as vehicles and ships. The pan-tilt base adopts aluminum alloy lightweight structure and shockproof design, and is suitabl...
Place the pan-tilt base on the flat installation surface, and fix it with M8 bolts through the reserved through holes at the bottom four corners to ensure that the installation surface can bear the to....
connect the positive and negative poles of the DC 24V power supply to the corresponding terminals at the bottom respectively, connect RS485 A/B to the corresponding ports of the controller with twiste....
align the mounting plate of the camera or other front-end equipment with the top panel of the pan/tilt, and fasten it with matching stainless steel bolts to ensure that the center of gravity of the lo....
after power-on, Pelco-D/P protocol control commands are sent through the keyboard or upper computer to test whether functions such as horizontal left and right rotation, vertical up and down pitch, pr....
.webp "Factory")
The remote control pan-tilt base is an independent electric rotating platform, which does not contain cameras and lenses. Any brand and any type of camera (visible light, thermal imaging, laser, etc.)...
Factory preset supports Pelco-D and Pelco-P two common protocols in the industry. It can be selected through dip switch. Baud rate supports 2400, 4800, 9600 and 19200 bps 4 file settings. It is compat...
Sure. The whole machine has passed the IP66 protection level certification, which can completely prevent dust from entering and strong water spray. The shell is made of anti-corrosion aluminum alloy m...
The standard model is rated for a maximum load of 20kg, with a top load-bearing structure, and can be equipped with surveillance cameras, infrared thermal imagers, laser illuminators, antennas and oth...
No. The gimbal adopts a worm reduction transmission structure with self-locking characteristics. After power failure, the transmission mechanism is automatically locked, and the gimbal and the equipme...
Sure. The pan-tilt base supports the programming setting of up to 200 preset positions, can set the automatic cruise route through the control protocol, and automatically circulates between multiple p...
