In the security systems industry, when we talk about “best pan and tilt heads,” we are referring to heavy-duty motorized positioning equipment that can survive in harsh outdoor environments and provide precise control over long distances.
It is completely different from a consumer-grade photography pan and tilt head. A real industrial pan-tilt must have several critical specifications: a high-torque worm gear transmission system (used to ensure self-locking stability under strong winds), at least IP66 protection level (corrosion prevention is necessary), and general support for RS485/Pelco-D/P protocol. This kind of pan and tilt head is usually regarded as the “backbone” of the system, which is used to mount thermal imaging cameras, laser fill lights and ultra-long focus surveillance lenses. Only equipment capable of carrying payloads from 20kg to over 50kg with high-precision movement can ensure 24/7 continuous operation for border defense, coastal monitoring, forest fire prevention, and Intelligent Transportation Systems (ITS).

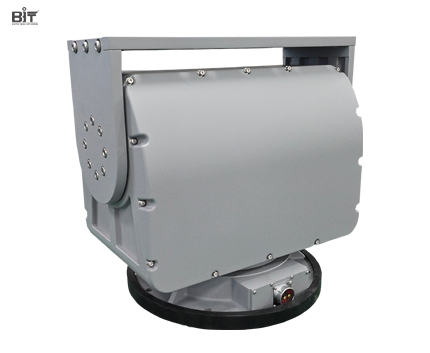

重型云台的产品特写图
If the selection of industrial projects, the drive system is the most obvious watershed to distinguish between “professional goods” and “civilian goods. The best choice must be made with a high torque worm gear drive system. This engineering design provides two non-negotiable core advantages for security monitoring:
Power-off Self-locking: In high altitude or coastal projects, the equipment faces very high wind resistance. The worm gear system can ensure that the gimbal is still mechanically locked in the current position in case of power failure. This is too important, it can prevent the camera from shifting during a big storm-I have seen too many belt-driven or direct-drive consumer-grade pan and tilt head fail for this reason on site, and that is a real pain point.
High Positioning Precision: For long-distance monitoring, even if the gear gap is only 1mm of jitter, it will be several meters of deviation to the target several kilometers away. The best heavy-duty pan-tilt can eliminate this backlash, ensuring that the moment the operator releases the rocker, the camera can stop as accurately as a nail without any shaking.

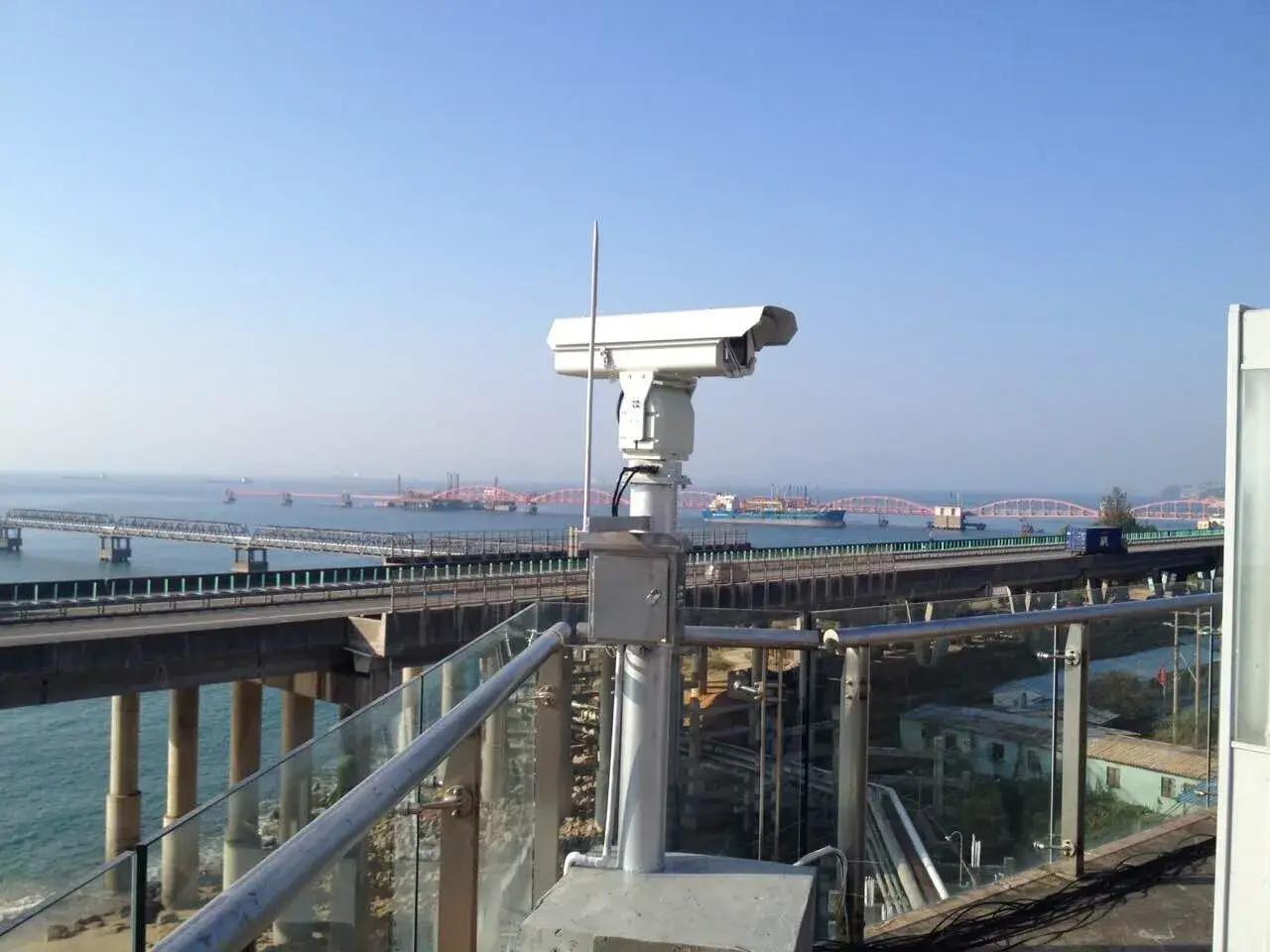

一个安装在海边、边境高塔或雨雪环境中的云台设备
A good gimbal is not designed to stay in the studio in the building, it is designed for survival in the wild. To be called a top industrial unit, the IP66 protection level is the threshold, but it is not just a number on a sticker, it is a guarantee of operational integrity in harsh environments:
Corrosion protection: Many times we deploy the equipment at the seaside, beside the road full of exhaust gas or in wet forest areas. High-quality manufacturing means that reinforced aluminum alloys treated with a special anti-corrosion coating must be used to resist rust and salt spray.
Fully sealed design: The shell must be completely dust-proof and can resist strong water spray. Engineering people know that this means that the internal sensitive motors and electronic components can work normally regardless of whether it is raining rain, sandstorms or snow outside, which greatly reduces the maintenance frequency that makes us headache.
In the field of professional monitoring integration, the best PTZ must be able to speak the “common language” of the security system “. Private interfaces will only limit the use, so the top industrial platforms will support standard communication protocols, especially RS485, Pelco-D and Pelco-P. This compatibility allows for seamless access to existing legacy systems, modern video management software (VMS) and standard joystick controllers. Whether you want to “benefit the old” equipment of an old border post or design a new intelligent transportation system (ITS), being able to communicate through standard protocols means that the “backbone” of your system is future-oriented and easy to control.
搭载多传感器的“完全体”装备图
Different from the light photography head, these electric positioners are veritable “heavy-duty engineering marvels” with design loads usually ranging from 20kg to more than 50kg. This high load capacity is essential for multi-sensor fusion. Most of the time, we need a PTZ to mount a set of complex equipment arrays at the same time, including:
Thermal imaging camera: for night vision and heat source detection.
Telephoto surveillance lenses: those heavy “cannons” used for long-range target recognition “.
Laser fill light: used for active night lighting a few kilometers away.
Only if it can hold up these heavy guys and also provide smooth electric control, is such a unit worthy of such critical tasks as coastal defense and forest fire prevention. In these scenarios, reliability and load-bearing capacity are the lifeblood of 24-hour continuous operations.
Author：Robert Chen
“With over 18 years in the intelligent security industry, I specialize in designing heavy-duty positioning systems for harsh environments. My expertise lies in optimizing high-torque worm gear drives and integrating multi-sensor payloads for border defense and ITS projects.”
