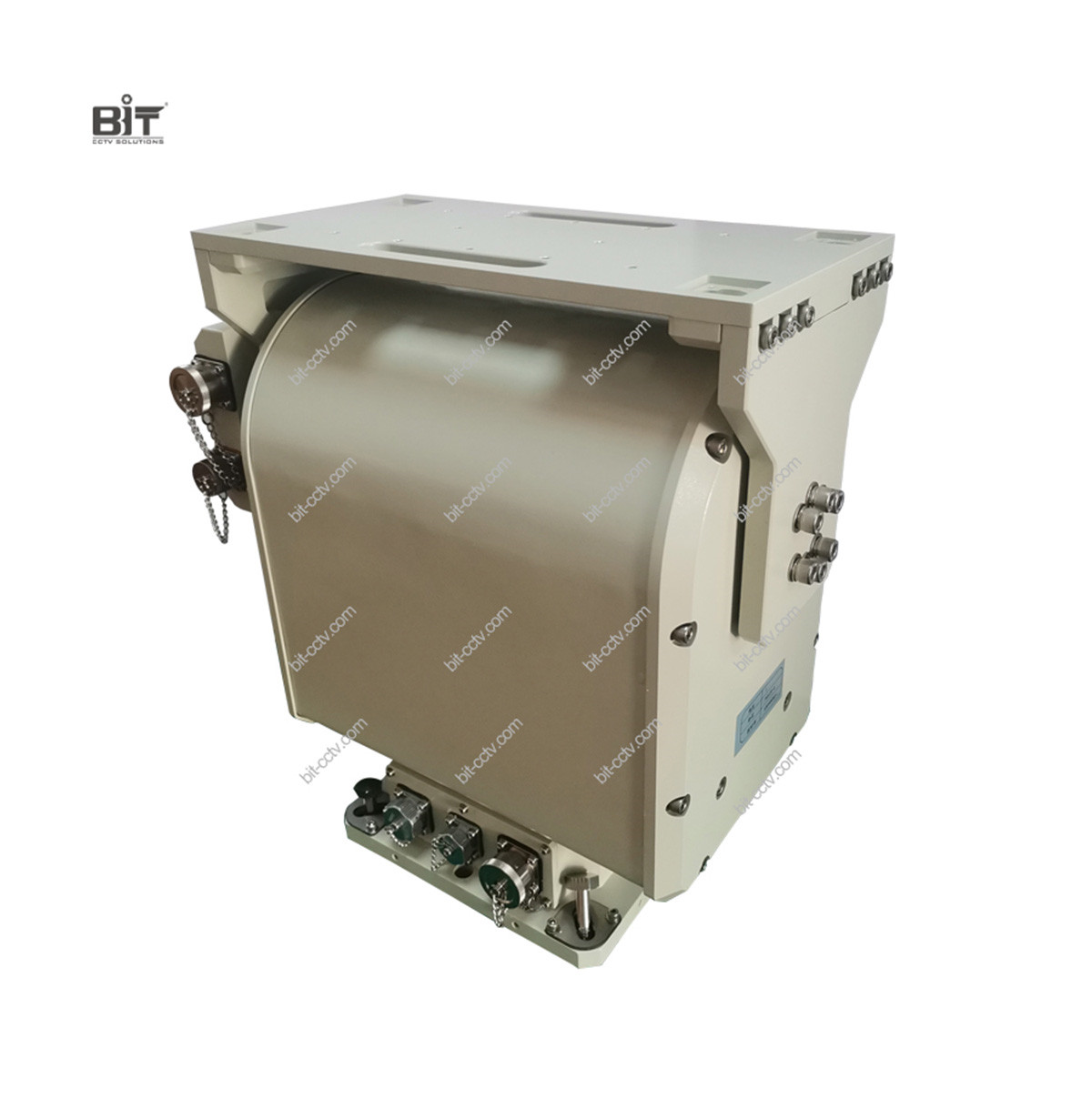

  • BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
  • BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
  • BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner

Features of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner

  • Maximum top load capacity 120kg (264.55lb)

  • Pan angle: continuous 360°, tilt angle: -45°~-+45°

  • Pan speed 0.005°/s~15°/s, tilt speed 0.005°/s~7°/s

  • Preset positioning accuracy: ±0.1°

  • Double pitch worm and gear driving, electronic image stabilization and anti-loose design, self-lock after power failure, strong wind resistance, high stability

  • 256 subdivision design, smooth rotation at low speed

  • Whole structure with PTA three-proofing coating, key component sealed with pure nitrogen

  • Aviation circular connector design, easy for installation and maintenance.

  • Self-lock with memory after power failure, strong wind-resistance

  • RS485/RS422 control with Pelco P/D protocol

  • Support position feedback and absolute control

  • Anti-corrosion surface treatment and coating

  • Rated IP66 for dust and water ingress


Overview of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner


BIT-PT8120 is a large size,military level, multi-functional heavy duty pan tilt head positioner with load capacity up to 120kg (264.55lb). Powered with DC48V and equipped with double pitch worm and gear, it features a minimum speed of 0.005°/s, electronic image stabilization, anti-loose technology, self-lock to make sure smooth and stable view for a long range surveillance. With IP66 ingress protection design and corrosion resistance surface treatment and coating, PT8120 is a good choice for application in corrosive environment like the coast.


Technical Specifications of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner


Model

BIT-PT8120

Max. Load Capacity

120kg (264.55lb)

Load Type

Outdoor, top load

Pan Angle

Continuous 360°

Tilt Angle

+45°~-45°

Rotation Speed

Pan: 0.005°/s~15°/s
Tilt: 0.005°/s~7°/s

Preset Accuracy

± 0.1°

Programmable Presets

255

Cruising Track

Support

Scan

Support

Position Feedback

Support, position query feedback (default)/real-time feedback

Absolute Control

Support with Pelco D extended commands set

Guard Location

Support with1 preset or 1 cruising track or 1 auto scan

Power Failure Memory

Support, recover to PT position, scan/preset/cruising track movement

before power failure

Self-lock

Support

Protocol

Pelco P/D

Baud Rate

2400/4800/9600/19200 bps

Communication Interface

RS485 (Optional RS422)

Transmission

Worm gear transmission

Default Wiring/Interface

Pan Tilt Base

100M Ethernet with RJ45 (4 wire, pass-through), 48V DC (2 wire), GND

Pan Tilt Top

100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire)

12V DC (2 wire), 48V AC/DC (2 wire), GND

General

Operating Voltage

DC48V±10%

Power Consumption

≤200W

Working Temperature

-30ºC~+65 ºC (-40 ºF ~ 149 ºF)

Working Humidity

90±5% RH

Storage Temperature

-40 ºC~+70 ºC (-40 ºF ~ 158 ºF)

Protection Level

IP66

Material

Aluminium Alloy

Weight

45kg

Dimension  (L×W×H)

337×264×469mm (13.27x10.39x18.46in)


Video


Dimension of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner

BIT-PT8120_120kg_Load_Multi-functional_Military_Level_Heavy_Duty_Pan_Tilt_Unit_Positioner.png



Unit: mm
