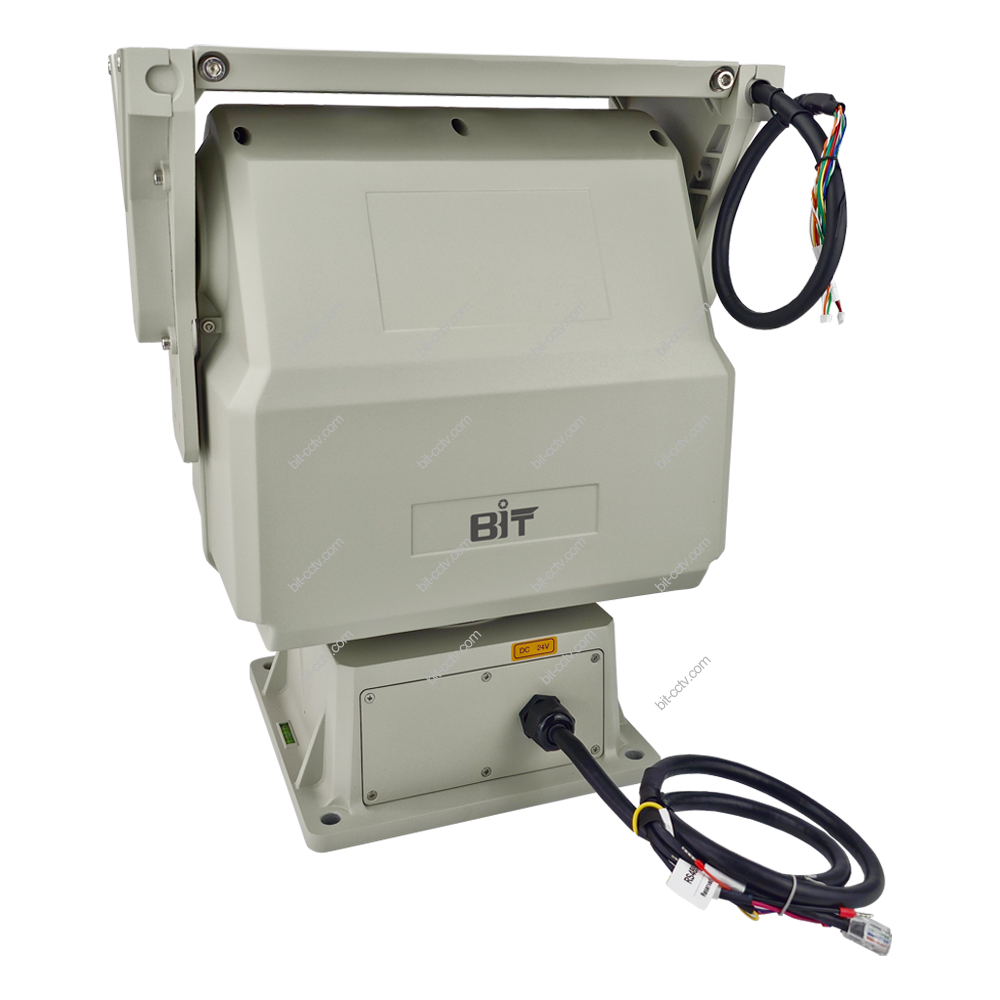

Pan-Tilt is simply a mechanical system that allows a camera or device to move horizontally and vertically. Its core value lies in “motion”-through left and right scanning and up and down pitching, covering a much wider area than a fixed lens, or tracking a moving target in real time.
In the field of security, film and television shooting, it is usually combined with zoom function, that is, we often say PTZ camera, to achieve remote, automated monitoring. This is not only an extension of the perspective, but also a qualitative change from “passive recording” to “active observation”, which allows us to capture amazing details in a wide range of scenes.
How Does It Move
The reason why this system is different from those fixed devices depends on the axial movement of the two cores. Of course, a third optical dimension is usually added.
The word “Pan” describes the movement of equipment on a horizontal plane. Technically, this is a rotation around a vertical axis.
Action pattern: The device turns from left to right, or vice versa.
Visual analogy: Imagine you’re standing still, just turning your head to scan the horizon. This is how Pan works-the base does not move and the field of view sweeps.
“Tilt” refers to movement along a vertical plane, I.e. rotation about a horizontal axis.
Action form: the device looks down from above, or heads up.
Visual analogy: It’s like looking up at the top of a skyscraper and then looking down at the pavement beneath your feet. In practical applications, this function is essential for observing objects of different heights (such as looking at both road signs and roads).
Although Pan-Tilt defines mechanical motion, in engineering practice, this system is almost always tied to a zoom, which is our common PTZ camera.
Function: Zoom adds the ability of optical magnification.
Advantage: This is key-it can “zoom in” on distant objects without losing quality. Without Zoom, Pan-Tilt can only see. With Zoom, you can see the details clearly and instantly turn a wide-angle lens into a close-up observation.
The flexibility of Pan-Tilt technology depends on how you control and deploy it. Whether it is for safety or creation, the operation mode can be highly customized.
This is the Pan-Tilt system’s housekeeping skills-you don’t need to climb to a pole or stand next to a camera.

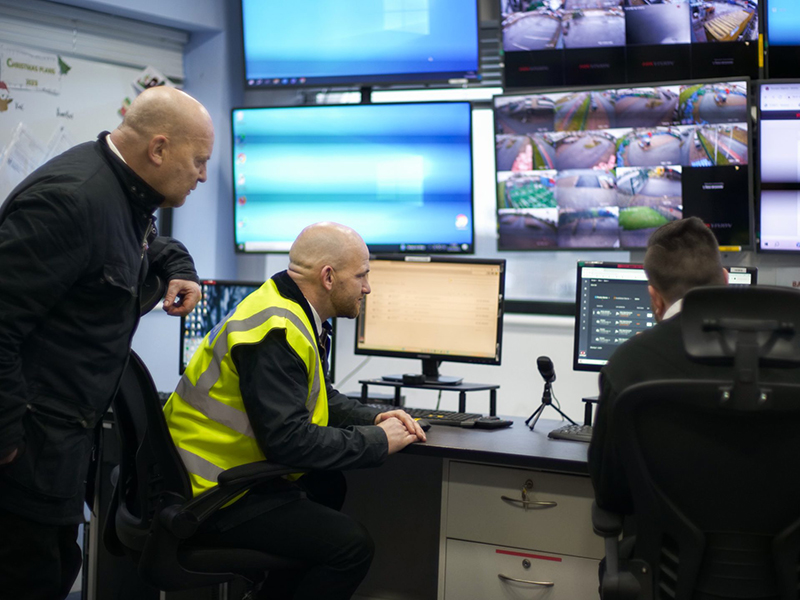

Manual control: The operator can adjust the camera posture in real time through the physical joystick (the best way to feel), professional software interface or mobile phone App.
Automated movement: Today’s systems mostly support programming. You can set a specific “cruise path” or preset position, so that the device automatically scan a specific area, no need to keep an eye on the human.
Modern Pan-Tilt systems are no longer mere mechanical devices, they are getting smarter. Especially in the field of security, many devices with autonomous tracking function-once a moving object appears in the picture, the lens will automatically lock and follow, just like having its own consciousness.
Because it can perfectly simulate the human head’s ability to rotate and focus, the Pan-Tilt mechanism is popular in all industries.
This is the most common application scenario and the main battlefield of Pan-Tilt. It is especially suitable for environments that are too big to be true:
Large car parks: scan rows of vehicles to track suspicious activity.
Warehouse and lobby: this kind of open internal space, if you use fixed guns, you may have to install several, but you can cover it with a Pan-Tilt.

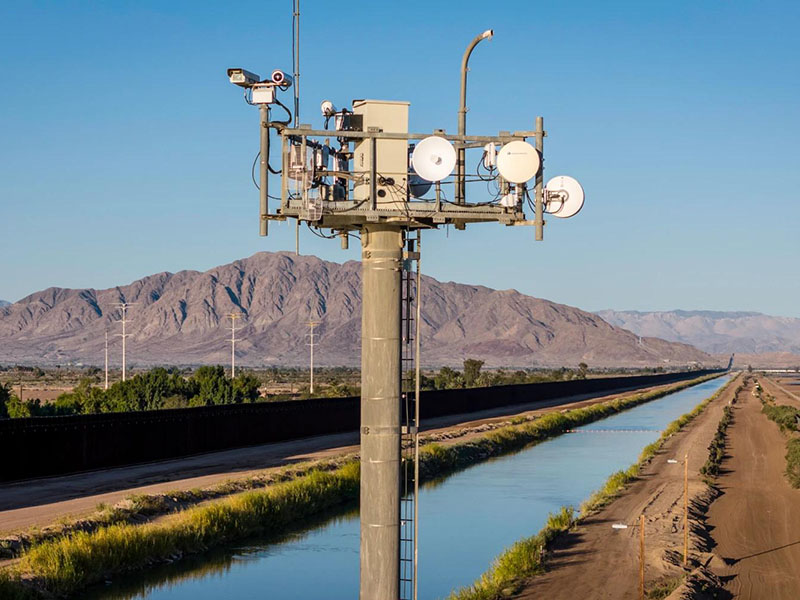

Patrol execution: set the preset point, a device can act as an all-weather electronic security in a large area.
In the media circle, Pan-Tilt head is mainly to add dynamic feeling to the picture.
Follow the action: Whether the actor is running or the car is speeding, the gimbal can ensure that the subject is always in the frame.
Revealing the subject: Starting from a detail, moving slowly through Tilt or Pan, and finally revealing the entire scene or protagonist, this is a very classic lens language.
Panoramic shooting: shoot that silky smooth landscape sweeping lens.
In addition to cameras, this mechanical structure is also used for special equipment:
Radar system for horizon scanning.
Laser indication equipment.
Fire control systems that require extremely high aiming accuracy.
The biggest advantage is the field of view (FOV). A Pan-Tilt system can provide a field of view of 180° or even 360°. From a cost point of view, although a single machine is expensive, it can be one to ten, which actually reduces the cost of laying infrastructure.
The fixed system is “dead” and the Pan-Tilt system is “live. The operator can adjust the focus and angle in real time according to the situation. When an emergency occurs, this ability to instantly switch from global monitoring to focused tracking is unmatched by a fixed machine.
When Pan-Tilt meets high-power zoom, it becomes a forensic weapon. Seeing license plates tens of meters away in the parking lot, or recognizing faces in a crowded crowd, this clarity is beyond the reach of wide-angle fixed cameras. This is often decisive in many key forensics.
Author：Alex Morgan
With a decade of experience in surveillance technology and videography, I specialize in explaining camera mechanics. I write to help you understand how systems like pan-tilt and PTZ enable wider coverage, precise tracking, and dynamic visual storytelling.
