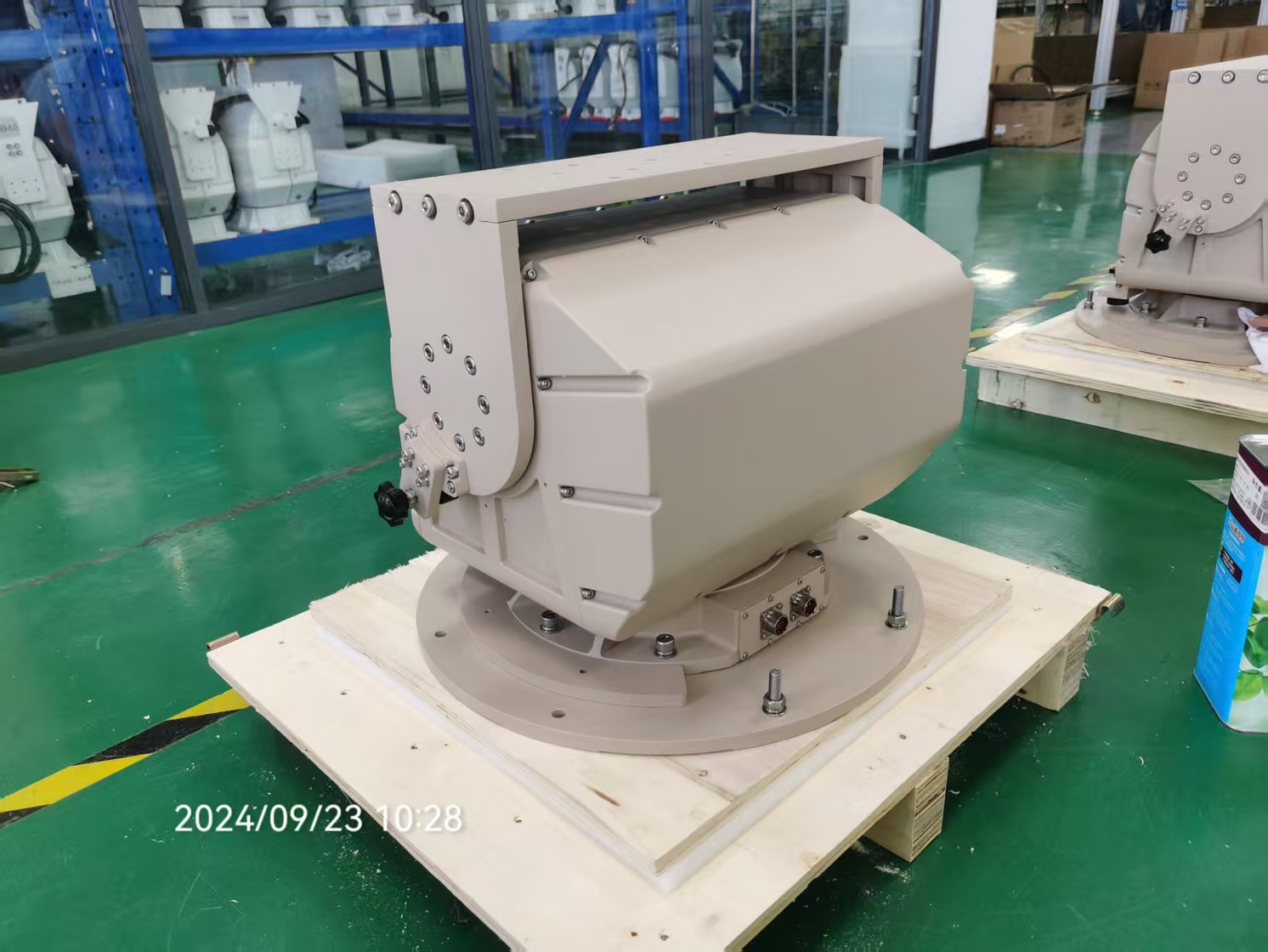

A motorized pan-tilt head is not just a simple camera stand, it is essentially a precision positioning system with reinforced design.
We designed this device to carry the “carry heavy-duty equipment“-multi-sensor loads weighing 20kg to 50kg or more, such as long-distance thermal imagers, laser illuminators and radar antennas. This is completely different from the consumer-grade SLR tripod. The core of the industrial-grade pan-tilt head is that a high-torque worm gear drive must be used, which is mainly to achieve power-off self-locking and prevent “drooping” in the event of strong winds or accidental power failure.
Also critical is the level of protection. The all-weather enclosure of IP66 or IP67 is a crucial requirement, otherwise it will not be able to withstand extreme outdoor environments. At the control level, it is necessary to support standard industrial protocols such as RS485(Pelco-D/P) to seamlessly interface with existing PTZ controllers. In addition, if your project requires endless 360° continuous rotation, then the built-in conductive slip ring is a must, only through it, power, video stream and Ethernet signals can be transmitted through the rotating interface without interfering with each other.
When evaluating industrial electric pan-tilt head, load capacity is often the key differentiator that distinguishes between “professional” and “consumer” equipment. As mentioned earlier, today’s industrial projects-whether border security or fire warning-often require complex systems to be mounted at the same time, including:
Thermal imaging cameras for remote detection;
Laser illuminators required for night vision applications;
A radar antenna for drone detection or ship tracking.
Put these devices together, and the weight can easily exceed the limits of the standard bracket. A pan-tilt head that can robustly handle loads of 20kg to 50kg or more ensures that the motor will not be overloaded for a long time and can maintain high precision even under full load. This is very important for system integrators, which means that they can build multi-spectral monitoring solutions on a single positioning unit without worrying about the integrity of the mechanical structure.

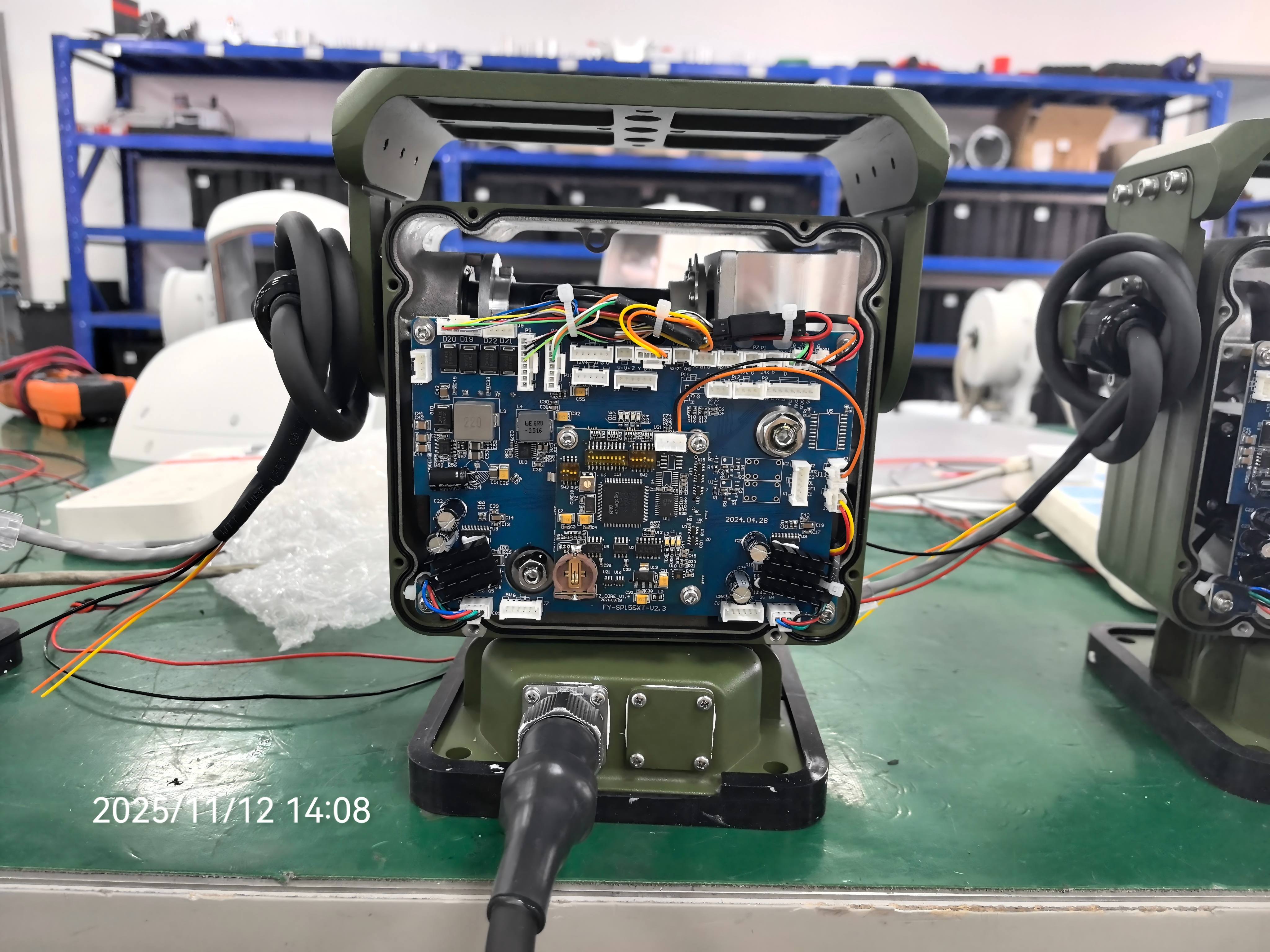

The internal mechanical structure of the electric pan-tilt determines its reliability in the field. This gear mechanism mainly solves two pain points in outdoor deployment:
Self-locking stability: In high security applications, the camera must not move when it is stationary. The worm gear is naturally resistant to back-driving. Simply put, if there is a sudden power failure, the pan-tilt head will not “hang down” or lose its target position due to gravity.
Wind resistance: Outdoor towers are often attacked by wind gusts. The high torque provided by the worm gear ensures that the pan-tilt head remains stable under wind pressure. It is important to note that thermal imaging, a little jitter will cause the picture to be unusable, and this structure can effectively prevent image jitter.
Industrial monitoring systems are rarely installed in comfortable rooms, they are usually deployed in deserts, coastal defense lines or deep forests. Therefore, the housing of the electric head must meet strict protection standards, especially IP66 or IP67.
IP66 rating: Ensure that the equipment is completely dust-proof and can withstand strong water spray, which is a basic requirement for heavy rain and storm environments.
IP67 grade: higher protection level, can withstand short time immersion. In maritime applications, this rating is critical given the constant threat of salt spray and high humidity.
The choice of equipment with this level of protection is actually to protect the internal sensitive electronic components and gears from corrosion, thereby extending the life of the asset.
For an electric head to work, it must be able to communicate perfectly with the control room. At present, the “common language” of the industry is still RS485, using mature protocols such as Pelco-D or Pelco-P.
Support for these protocols means that the hardware can be “plug and play” with the vast majority of existing PTZ controllers, matrix systems, and VMS (video management software). This compatibility greatly reduces installation time and debugging complexity, allowing operators to remotely control the pan/tilt, tilt and zoom functions with low latency and high accuracy.
One common limitation of basic positioning systems is the inability to rotate continuously because of cable tie-down. But for applications like perimeter scanning or tracking a moving target, such as a drone or vehicle, 360° continuous rotation is required.
This requires an integrated conductive slip ring. The slip ring acts as an electromechanical interface, allowing power and data signals to be transmitted from the stationary base to the rotating top. According to the current market demand, high-quality slip rings must support the specific signal types required by modern loads:
Power: Drives the connected camera and sensor.
Video: Transmit high-definition signals (SDI, HDMI, or analog).
Ethernet: Essential for IP-based camera and network integration.
By preventing cable entanglement, the slip ring allows the electric head to perform automatic cruise and continuous tracking operations, completely eliminating the risk of cable fatigue or disconnection. This can save a lot of trouble in the actual operation and maintenance.
Author：David Ross
“I’m a Senior Systems Engineer specializing in industrial surveillance hardware. With over 11 years of experience integrating long-range thermal and radar systems, I help security professionals select ruggedized positioning solutions that withstand the harshest environments.”
