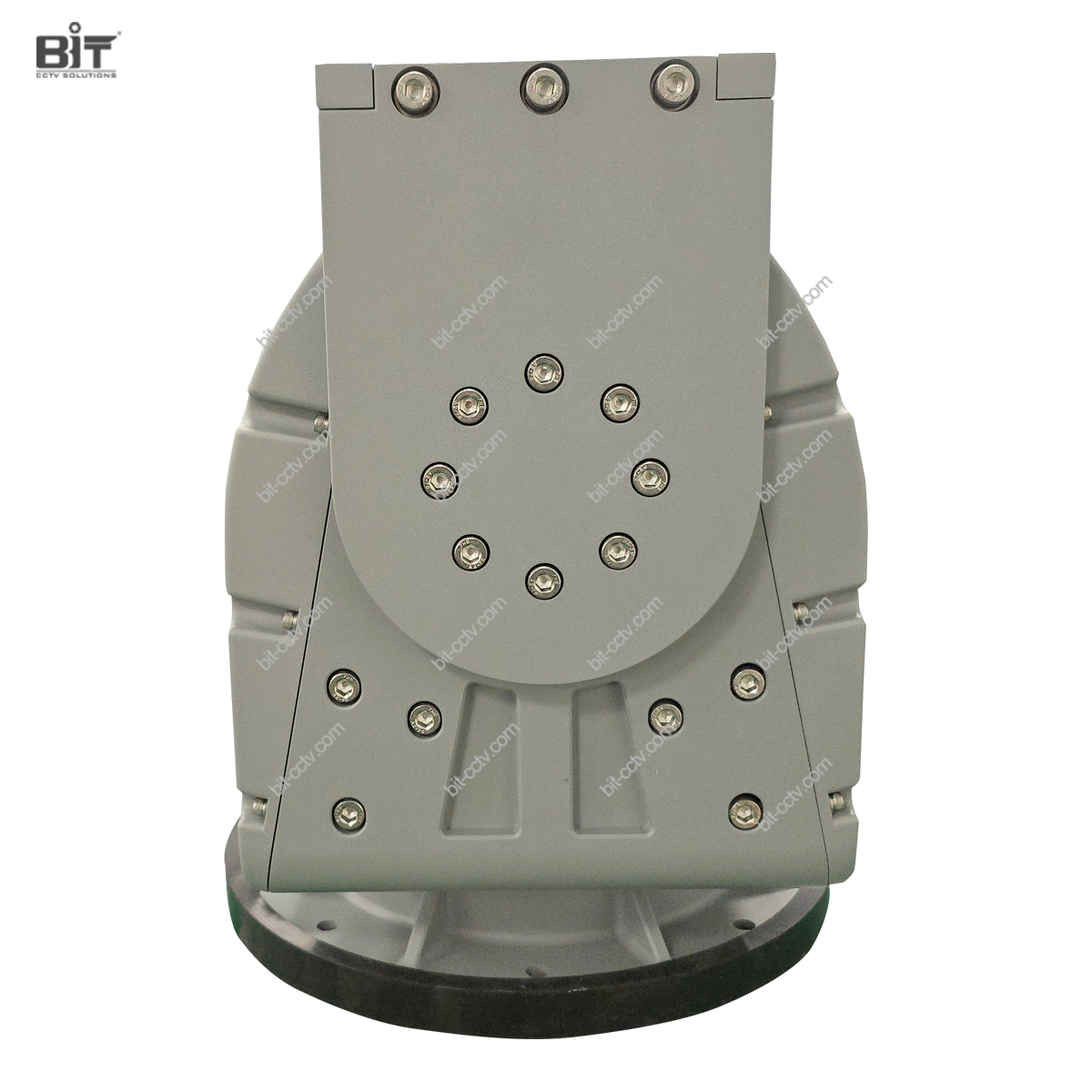

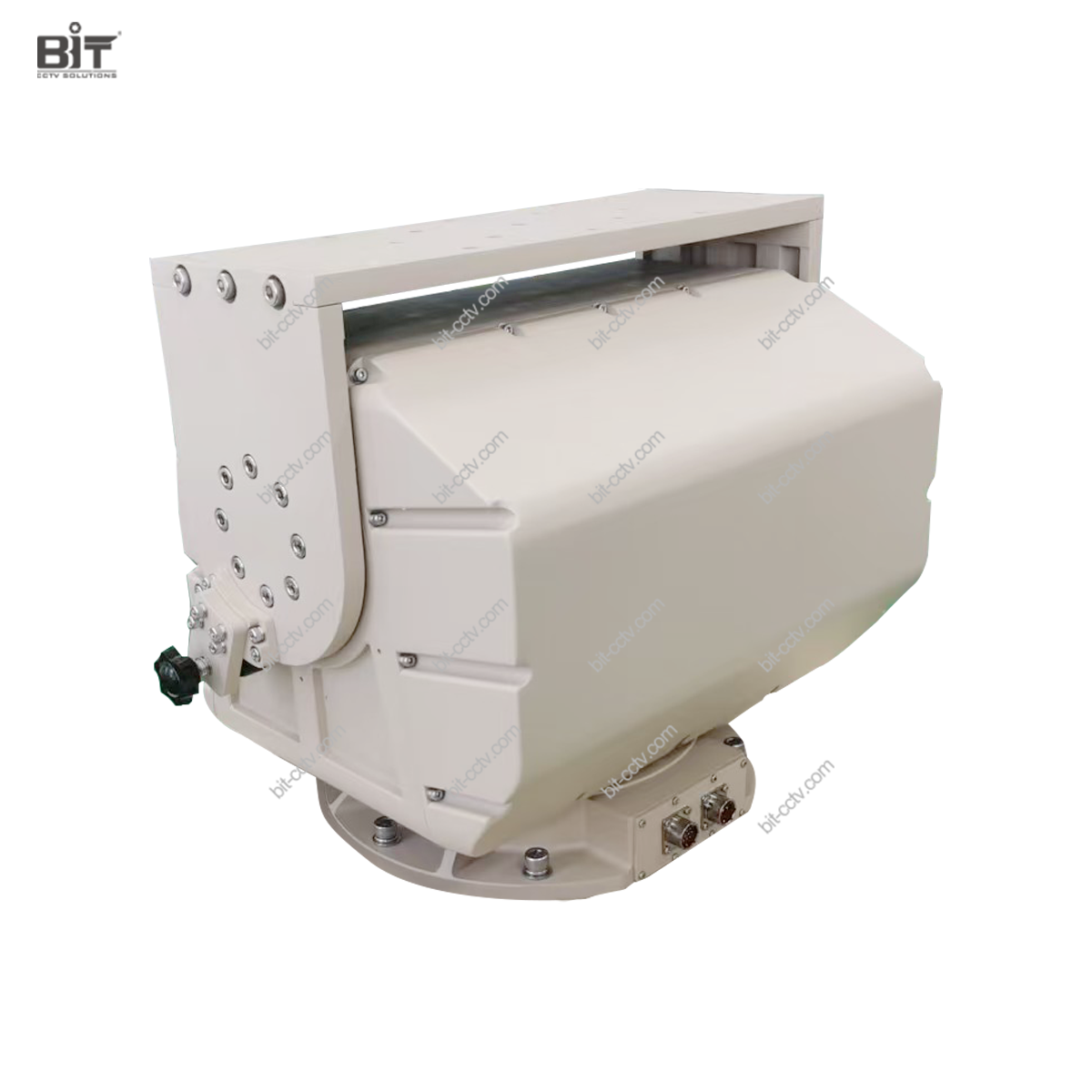

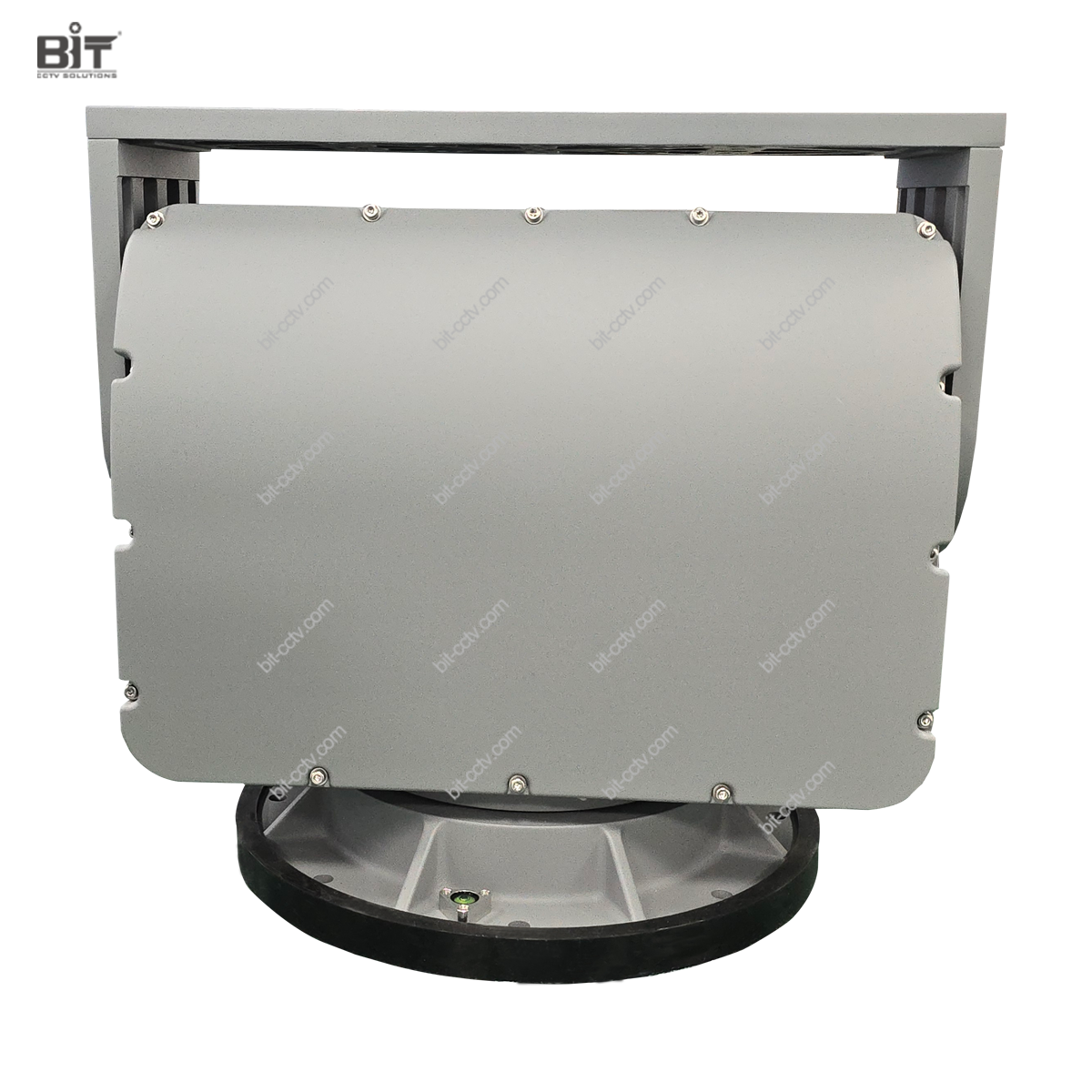

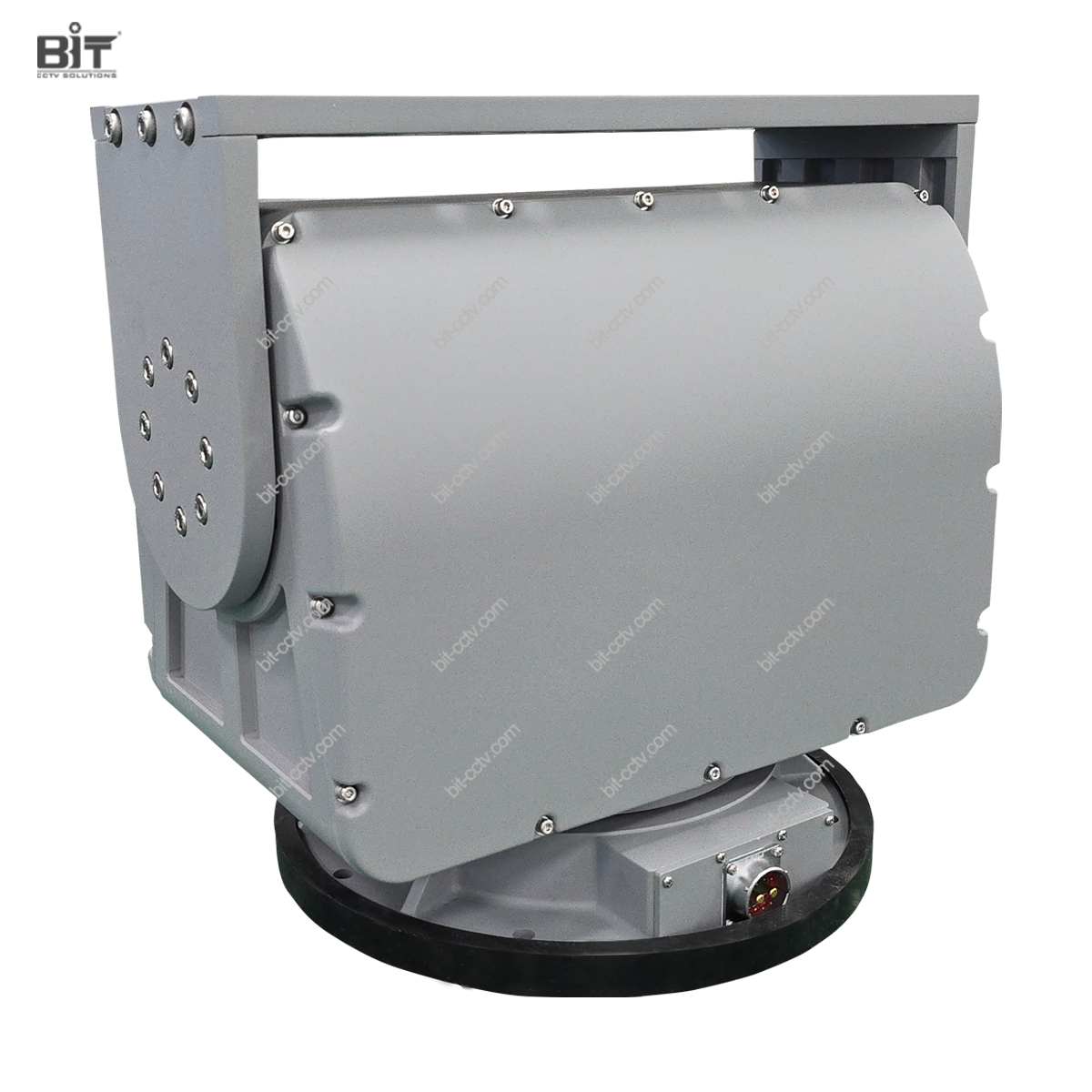

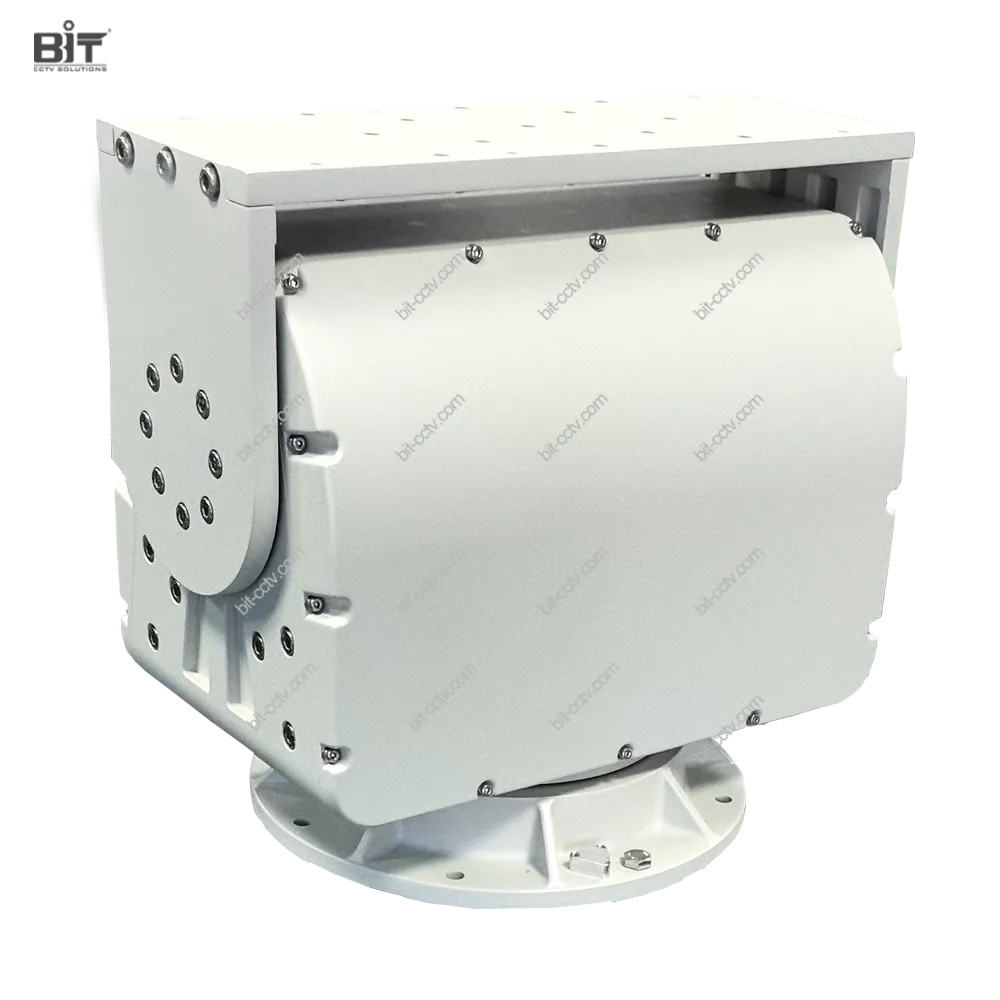

Name: BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb
Brand: Blue Icon (Tianjin) Technology Co., Ltd.

Specialized in Design, Engineering & Manufacturing of
High-Quality CCTV Surveillance Equipments Since 2005!

Features of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

• Maximum top load capacity 100kg/220lb

• Optional 70kg load with fast pan speed 50º/s

• Top mount or side mount

• Pan angle: 0-360°; Tilt angle: -70°~-+70°

• Pan speed 0.01~20°/s; Tilt speed 0.01~5°/s

• Positioning accuracy: ±0.1°

• Support coordinate feedback and control

• 4000V lighting surge protection

• Rated IP66 for dust and water ingress

Overview of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

BIT-SP8100 is a large size, multi-functional heavy duty pan tilt positioner with load capacity up to 100kg/220lb.

Powered with DC48V and built-in precision stepper motor and metal worm/gear, it features fast speed up to 50º/s with wide tilt angle ± 70 degree, self-lock to make sure smooth and stable view for a long range surveillance. With IP66 ingress protection design and corrosion resistance surface treatment and coating, BIT-SP8100 is a good choice for application in corrosive environment like the coast.

Technical Specifications of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

Model

BIT-PT870

BIT-PT8100

Payload Capacity

70kg/154lb

110kg/220lb

Mount Type

Top mount or side mount

Rotation Angle

Pan: continuous 360°, Tilt: -70°~+70°

Rotation Speed

Pan: 0.01°/s-50°/s, Tilt: 0.01°/s-10°/s

Pan: 0.01°/s-20°/s, Tilt: 0.01°/s-5°/s

Preset Accuracy

±0.1 degree

Programmable Presets

200

Cruising Track

8, each with 10 preset positions

Scan

Guard Location

Support time period from 1-60 mis

Position Feedback

Support position query/feedback via RS422

Start Movement

A series of movements for calibration when the unit is powered on

Trasmission

Worm/Gear

Power Failure Memory

Support, back to PT position,scan/preset movement before power failure

Absolute Position

Support

Protocol

Pelco P/D

Communication Interface

RS485, RS422 or RS232

Baud Rate

2400/4800/9600/19200 bps

Wiring/Interface

Pan Tilt Base

1000M Ethernet pass-through, RS422 input, 48VDC input (2 wire), GND

Pan Tilt Top

1000M Ethernet pass-through, RS422 input, 12V DC output (2 wire), 48V DC output(2 wire), GND

General

Operating Voltage

48V DC±10 %

Power Consumption

≤200W

Working Temperature

-35ºC~+65 ºC

Working Humidity

90±5% RH

Storage Temperature

-40 ºC~+70 ºC

Protection Level

IP66

Material

Aluminium Alloy

Weight

50kg

Dimension L×W×H

469*325*405mm(L*W*H)

BIT-PT8100 Outdoor High Precision Heavy Duty Pan Tilt Positioner Max. 100kg/220lb Load Capacity

Features of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

Overview of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

Technical Specifications of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 100kg/220lb

Video

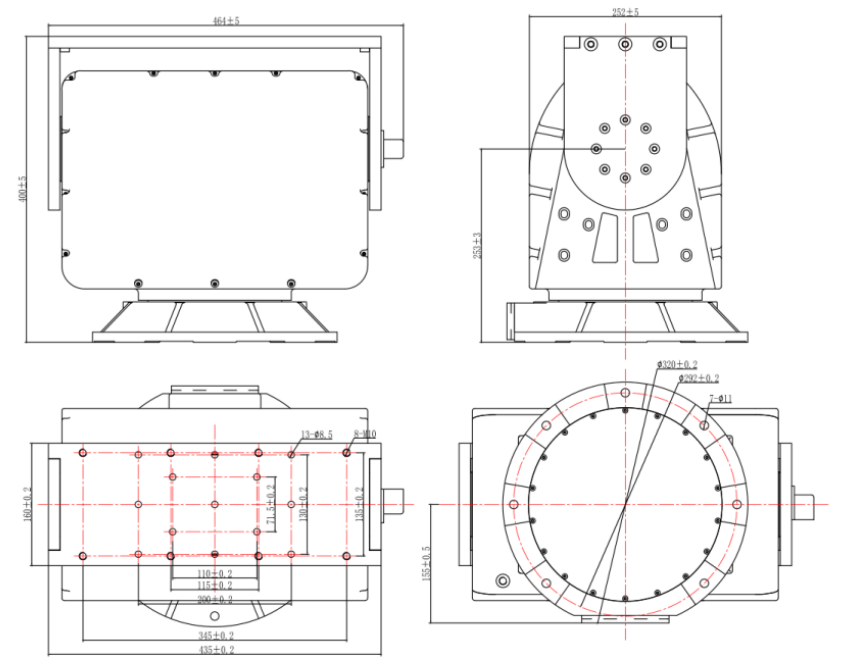

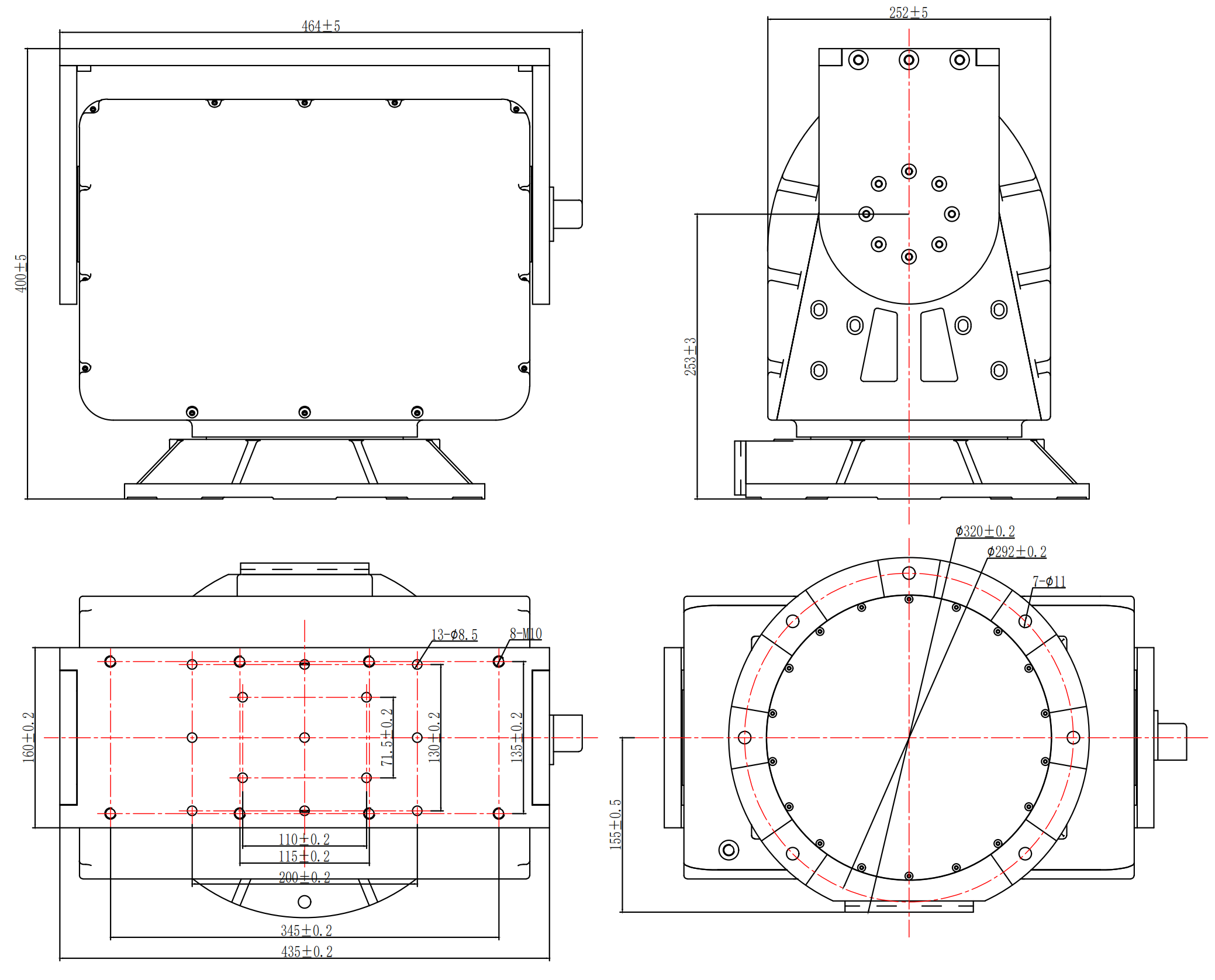

Dimension of BIT-PT8100 Outdoor Variable Speed Heavy Duty Pan Tilt Positioner with Payload up to 100kg/220lb
