• Maximum top load capacity 65kg/143lb
• Optional 35kg and 50kg load, faster speed
• Top mount or side mount
• Pan angle: 0-360°; Tilt angle: -45°~-+45°
• Pan speed 0.01~20°/s; Tilt speed 0.01~10°/s
• Positioning accuracy: ±0.1°
• Support coordinate feedback and control
• 4000V lighting surge protection
• Rated IP66 for dust and water ingress
• 48VDC input

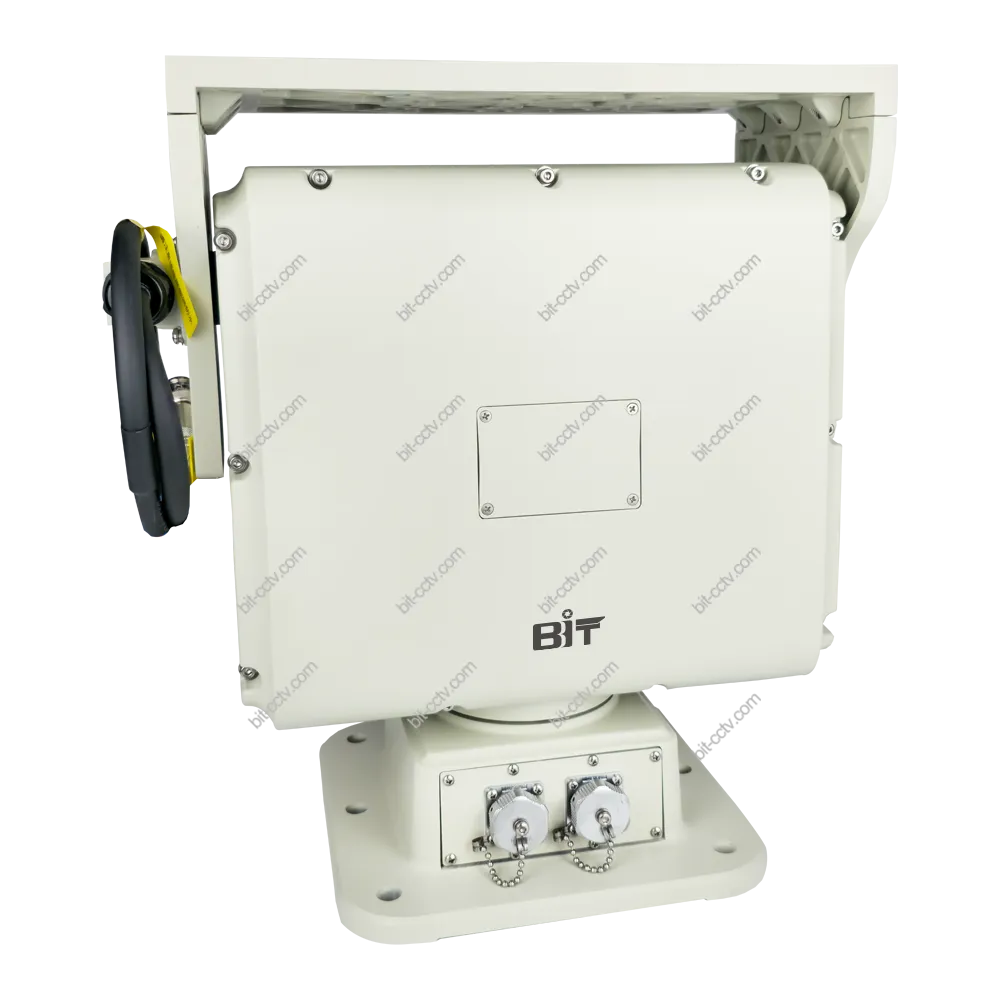

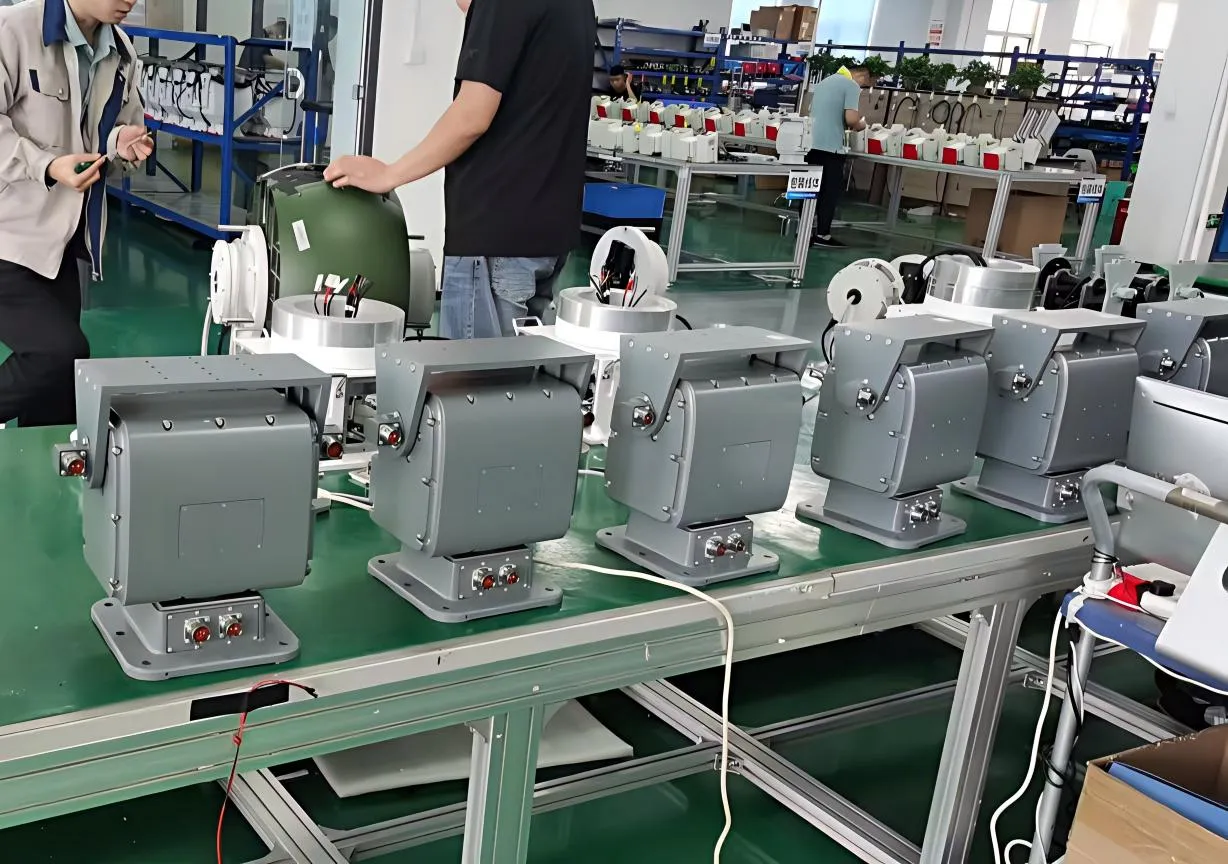

BIT-PT865 PT unit is designed for large pan tilt positioning system for video surveillance, communication or board defence etc. With powerful stepping motor/additional driver and precision worm/gear, it is capable of carrying up to 65/143lb devices with smooth rotation speed at minimum 0.01 degree/second, which makes targeting and tracking object at the maximum zoom possible.

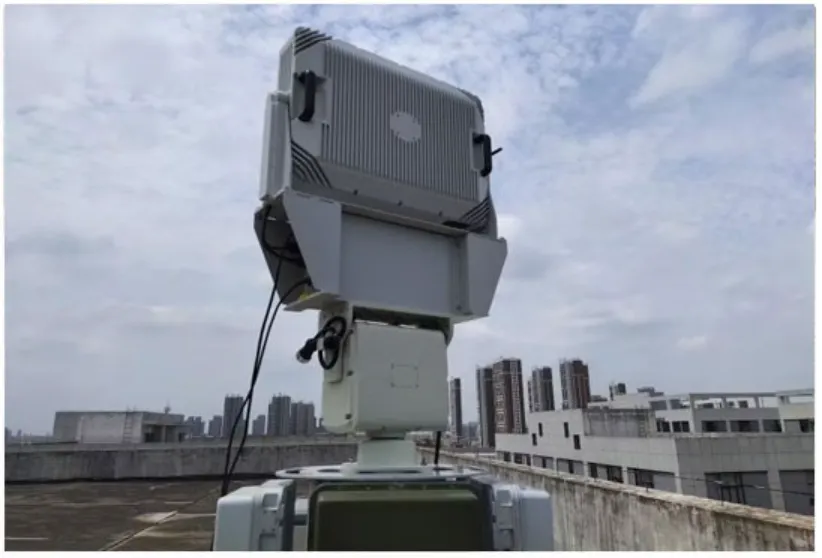

As the rotation part of large system, BIT-PT865 pan tilt unit has been widely used in various applications including border defence, forest fire prevention, power station, costal/river monitoring, telecommunicationand airport, etc.
Contact our sales representative for free professional technical consulting and customization services at sales@bit-cctv.com or call us at +86-139-2068-8922.
Model | BIT-PT865 | ||||
Max. Load | 30kg/66lb | 50kg/110lb | 65kg/143lb | ||
(Please provide size/weight/gravity center of your payload to make sure that the pan tilt can load it) | |||||
Load Mode | Top-mounted or side-mounted | ||||
Pan Rotation Angle | Pan angle: 0°~360° continuous (Optional uncontinuous rotation) | ||||
Tilt Rotation Angle | -80°~ +80° | -60°~ +60° | -45°~ +45° | ||
Pan Rotation Speed | 0.01°/s~60°/s | 0.01°/s~30°/s | 0.01°/s~20°/s | ||
Tilt Rotation Speed | 0.01°/s~20°/s | 0.01°/s~12°/s | 0.01°/s~10°/s | ||
Preset Positions | 200 | ||||
Scan | 1 | ||||
Cruising Track | 8 tracks (each with 10 preset positions) | ||||
Position Feedback | Support angle query with RS485 Optional real-time position feedback with RS422 | ||||
Absolute Positioning | Supported with Pelco D protocol | ||||
Preset Accuracy | ±0.1 degree | ||||
Auto Homing | Pan tilt will go back to the zero position without any operation for a period of time. It can be set up within the period of 1~60 min | ||||
Control Interface | Standard RS485 Optional RS422, RS232 or Ethernet (RJ45) | ||||
Protocol | Pelco D or Pelco P | ||||
Baud Rate | 2400/4800/9600/19200bps | ||||
Interface | RS485 (RS232, RS422, RJ45 optional) | ||||
Calibration Movements | Pan tilt unit will carry on a series of movements for calibration when the unit is powered on which can’t be canceled. External cabling may twist during the start movement. | ||||
Self-lock | Supported with worm/gear | ||||
Drive Mode | Worm gear drive with stepper motors | ||||
Standard Wiring | |||||
Pan Tilt Base | 1. Ethernet (8 wire, pass-through to the base) 2. RS485 P/T control input (2 wire) 3. 48V DC Power Input (2 wire) 4. GND | ||||
Pan Tilt Top | 1. Ethernet (8 wire, pass-through to the top) 2. RS485 P/T control input (2 wire) 3. 12V DC @1.5A output (2 wire) 4. 48V DC@1.5A output (2 wire) 5. GND | ||||
General | |||||
Input Voltage | 48VDC ±10% | ||||
Power Consumption | ≤150W | ||||
Operation Temperature | Working temperature:-35℃~+70℃ Working humidity: 90%±3% RH, without condensation | ||||
Storage Temperature | -50℃~+70℃ | ||||
Driven Mode | Worm-gear in both pan and tilt direction | ||||
Protection | IP66 rated | ||||
Weight | 24kg/52lb | ||||
Dimension | 353×214×384mm/13.9x8.43x15.12in (L*W*H) | ||||
Unit: mm
BIT-PT865 is designed as heavy duty PT turrent to load up to 65kg on the top, and there are optional 35kg and 50kg load options with wider tilt angle and faster speed.
48VDC is required as power for BIT-PT865 with maximum 150W consumption.
With 35kg load option, BIT-PT865 features 0.01°/s~60°/s pan speed and 0.01°/s~20°/s tilt speed.
Yes, BIT-PT865 offers customization based on special slip ring, including RF, HD-SDI, analog, USB etc.
