Maximum top load capacity 120kg (264.55lb)
Pan/Azimuth angle: continuous 360°, tilt/elevation angle: -45°~-+45°
Pan/Azimuth speed 0.005°/s~15°/s, tilt/elevation speed 0.005°/s~7°/s
Preset positioning accuracy: ±0.1°
Double pitch worm and gear driving, electronic image stabilization and anti-loose design, self-lock after power failure, strong wind resistance, high stability
256 subdivision design, smooth rotation at low speed
Whole structure with PTA three-proofing coating, key component sealed with pure nitrogen
Aviation circular connector design, easy for installation and maintenance.
Self-lock with memory after power failure, strong wind-resistance
RS485/RS422 control with Pelco P/D protocol
Support position feedback and absolute control
Anti-corrosion surface treatment and coating
Rated IP66 for dust and water ingress
BIT-PT8120 is a large size,military level, multi-functional heavy duty pan tilt head positioner with load capacity up to 120kg (264.55lb). Powered with DC48V and equipped with double pitch worm and gear, it features a minimum speed of 0.005°/s, electronic image stabilization, anti-loose technology, self-lock to make sure smooth and stable view for a long range surveillance. With IP66 ingress protection design and corrosion resistance surface treatment and coating, PT8120 is a good choice for application in corrosive environment like the coast.
Model | BIT-PT8120 |
Max. Load Capacity | 120kg (264.55lb) |
Load Type | Outdoor, top load |
Pan/Azimuth Angle | Continuous 360° |
Tilt/Elevation Angle | +45°～-45° |
Rotation Speed | Pan/Azimuth: 0.005°/s~15°/s |
Preset Accuracy | ± 0.1° |
Programmable Presets | 255 |
Cruising Track | Support |
Scan | Support |
Position Feedback | Support, position query feedback (default)/real-time feedback |
Absolute Control | Support with Pelco D extended commands set |
Guard Location | Support with1 preset or 1 cruising track or 1 auto scan |
Power Failure Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
Self-lock | Support |
Protocol | Pelco P/D |
Baud Rate | 2400/4800/9600/19200 bps |
Communication Interface | RS485 (Optional RS422) |
Transmission | Worm gear transmission |

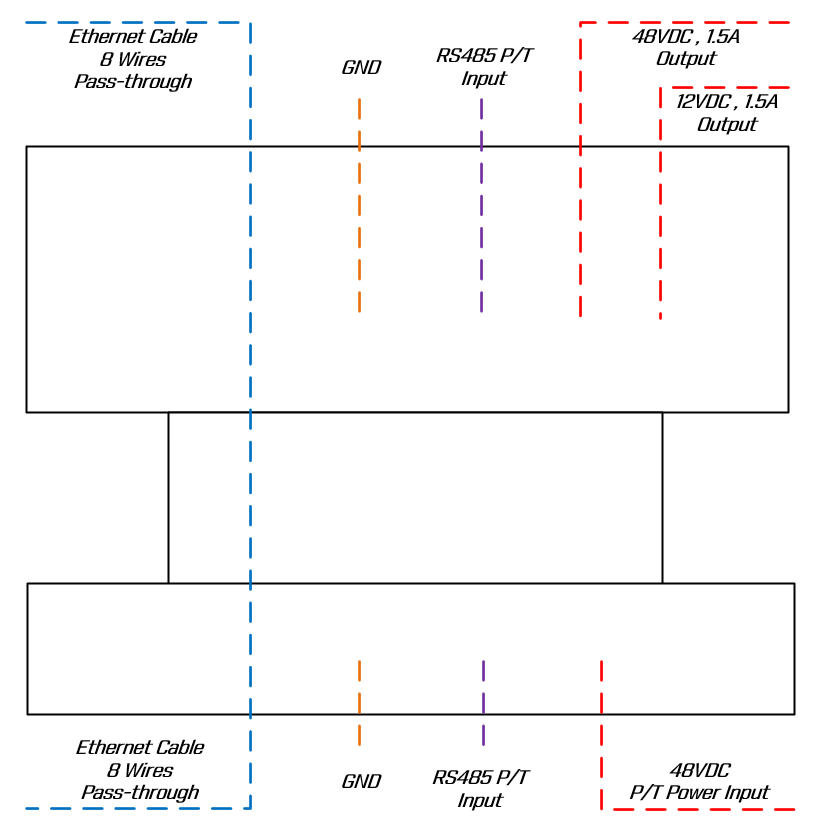

Default Wiring/Interface | |
Pan Tilt Base | 100M Ethernet with RJ45 (4 wire, pass-through), 48V DC (2 wire), GND |
Pan Tilt Top | 100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire) 12V DC (2 wire), 48V AC/DC (2 wire), GND |
General | |
Operating Voltage | DC48V±10% |
Power Consumption | ≤200W |
Working Temperature | -30ºC～+65 ºC (-40 ºF ~ 149 ºF) |
Working Humidity | 90±5% RH |
Storage Temperature | -40 ºC～+70 ºC (-40 ºF ~ 158 ºF) |
Protection Level | IP66 |
Material | Aluminium Alloy |
Weight | 45kg |

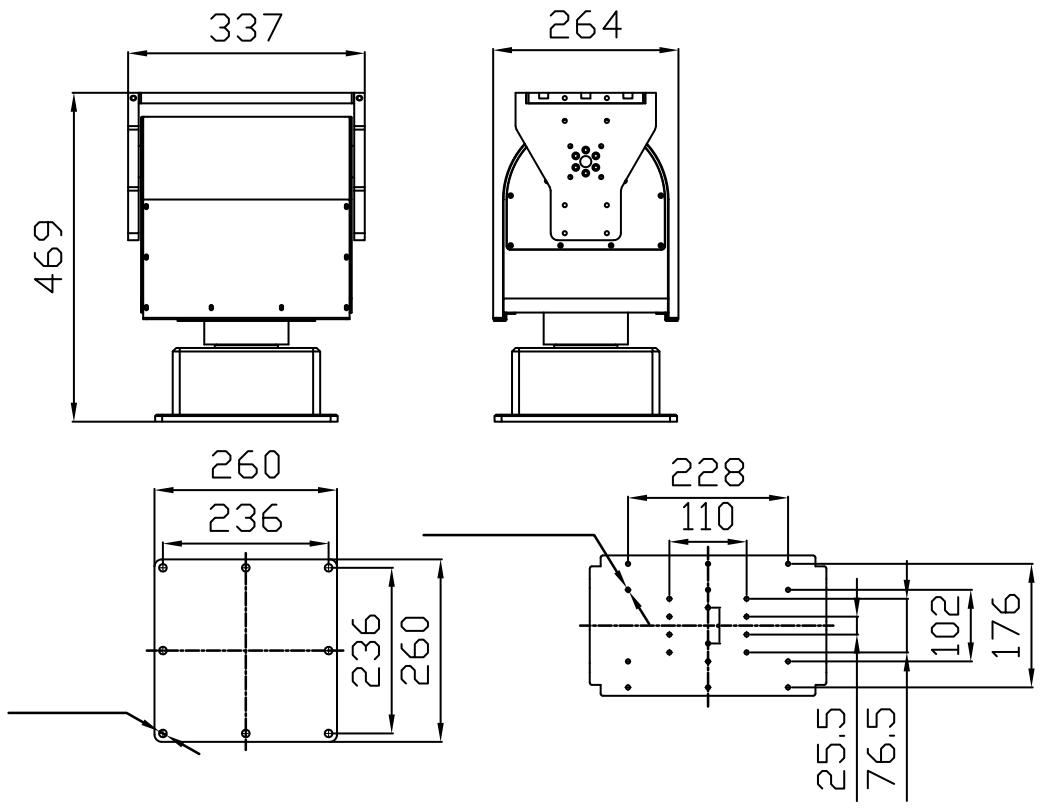

Dimension (L×W×H) | 337×264×469mm (13.27x10.39x18.46in) |
Unit: mm
